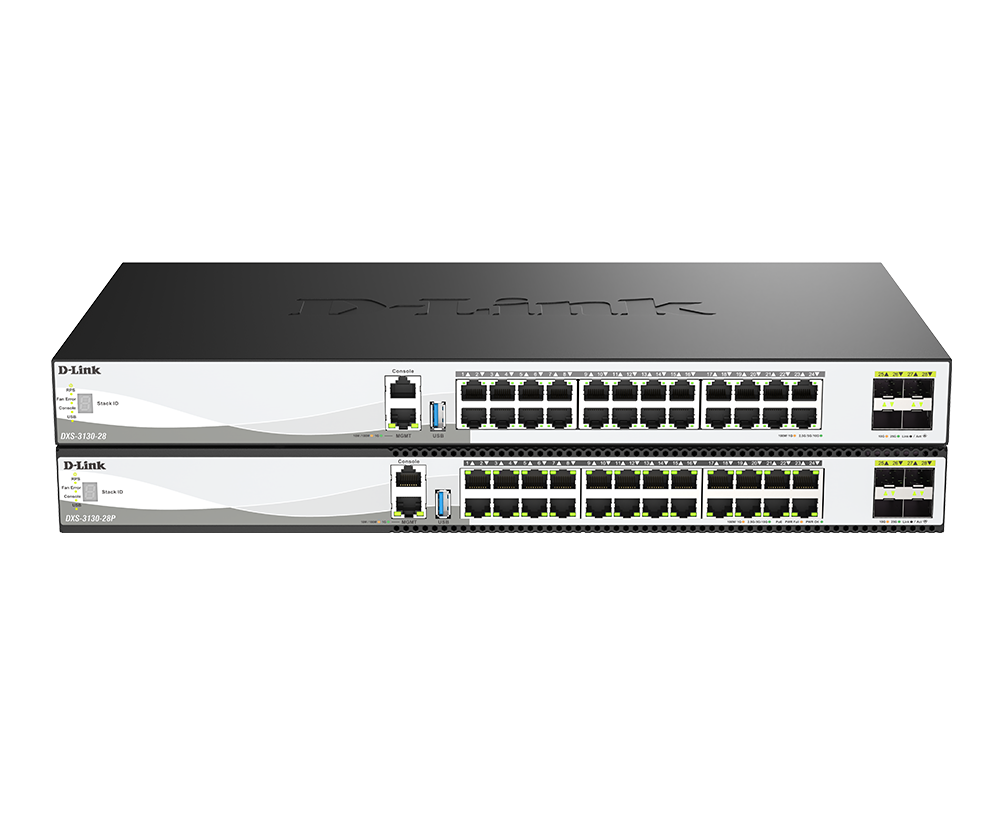

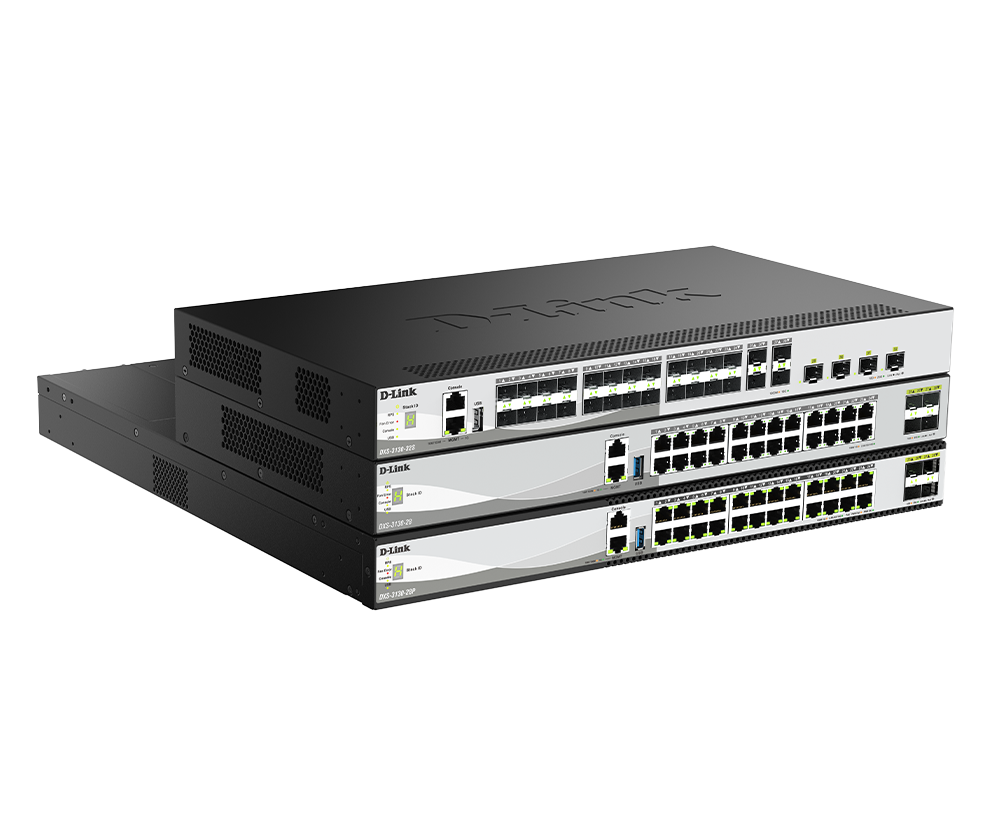

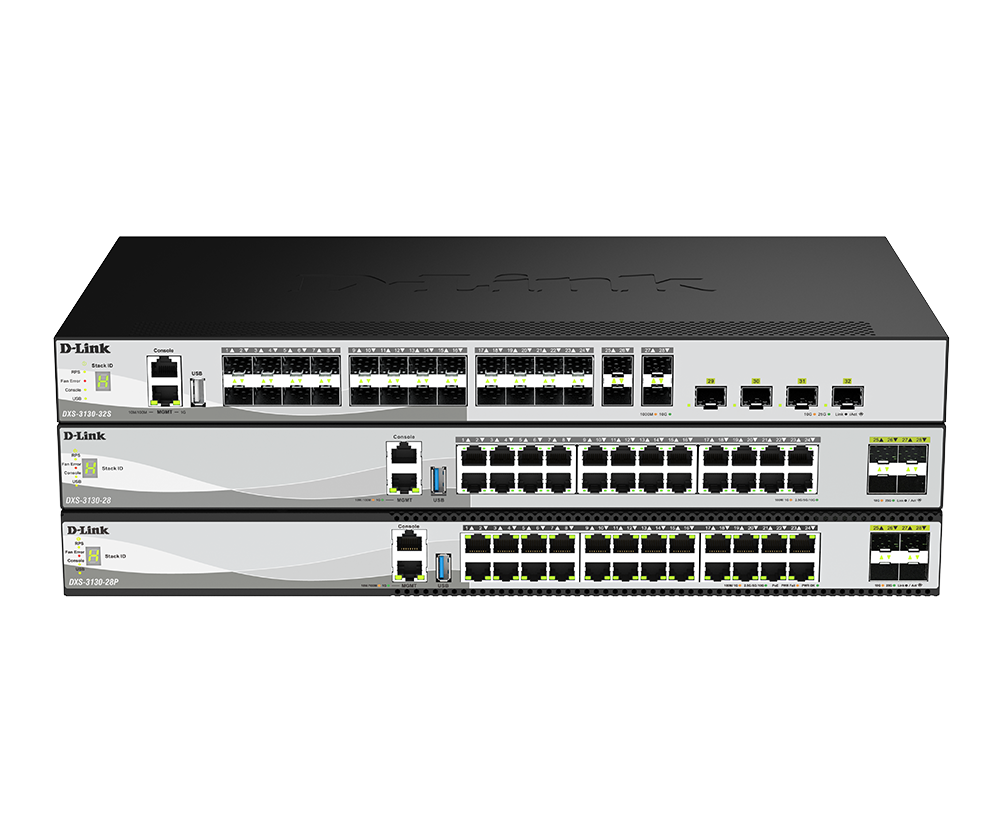

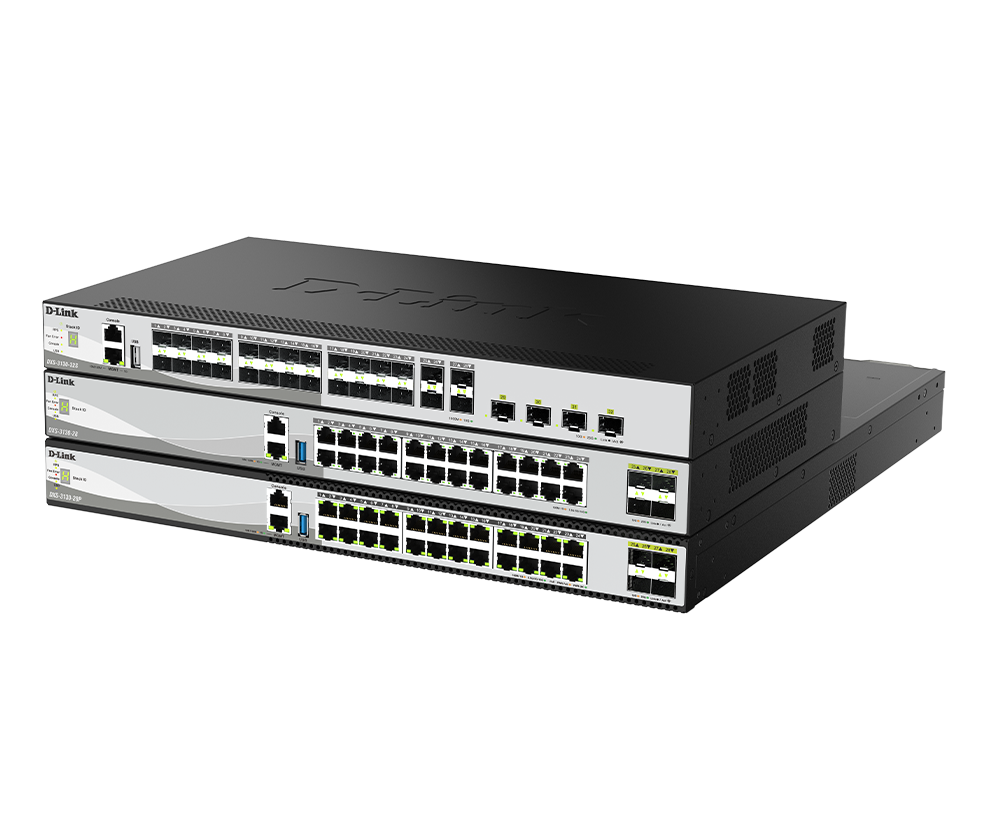

10G Layer 3 Stackable Aggregation Managed Switches

DXS-3130 Series

  • състоянието на продукта (Revision A): Live
  • Support 10G for downlink ports
  • Support 10G/25G SFP28 for uplink ports
  • Support IEEE 802.3af/at/bt to power PoE devices
  • Physical stack of up to 9 units via four 25G ports
  • 200 Gbps per-device physical stacking bandwidth
  • Support Redundant Power Supply (RPS)
  • Support Ethernet Ring Protection Switching (ERPS)
  • L3 Features: RIP/RIPng, OSPFv2/v3, and VRRP
  • Green Features for reduced power consumption
  • Manage through the Nuclias Network Controller
Where to buy

Why You Need It​

10 Gbps Ports

Connect to areas of your network at 10G speeds, increasing port density and operational efficiency

Physical Stacking

Up to 9 units via four 25G ports with 200 Gbps per device physical stacking bandwidth

Solidly Reliable

Supports versatile functions from VRRP, ERPS, STP and Physical Stacking to enhance network resilience

Security Controls

Including Storm Control, LBD, Multi-layer ACL and IMPB with DHCP Snooping to protect the access

Redundant Power

Improves reliability by preventing power outages with redundant RPS AC/DC power options

Rich OAM Support

Supports advanced OAM like 802.3ah, Y.1731, and Dying Gasp , ensuring better monitoring and reliability

DXS-3130 Series Comparison

Products DXS-3130-28DXS-3130-28P


 Interface

 24 x 10GE
 4 x 25G SFP28

 24 x 10GE PoE++
 4 x 25G SFP28

 PoE - PoE++
 Up to 1440 W Power Budget w/ 2 PSU
Learn MoreLearn More

Подобни продукти

Gigabit Layer 3 Stackable Managed Switches
DGS-3130-30TS, DGS-3130-30S, DGS-3130-30PS, DGS-3130-54TS , DGS-3130-54S, DGS-3130-54PS
Разбери повече

　

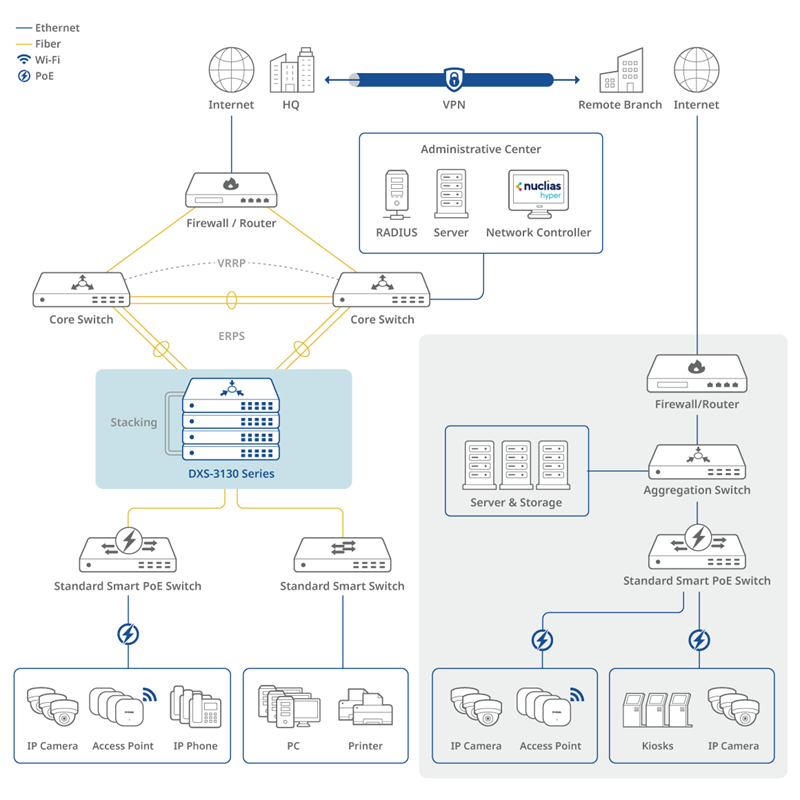

Connection Diagram

The DXS-3130 Series delivers secure, high-performance Layer 3 switching for enterprise and metro networks. With 10G/multi-Gigabit PoE++, 25G uplinks, and physical stacking, it offers scalable bandwidth and power for IP surveillance, VoIP, and high-density environments.

Network Controller

Learn More

Aggregation Switch

Learn More

Standard Smart Switch

Learn More

Access Point

Learn More

Applications

Enterprise

  • High Bandwidth for Workloads
  • Optimized Network Efficiency
  • Improved Security & Compliance
  • Stronger Network Segmentation

Education

  • Speed that Empowers Learning
  • Scalability for Future Growth
  • Seamless Integration
  • Improved Security

Business

  • High Bandwidth Capacity
  • High Availability Assurance
  • Simplified Network Management
  • Cost Efficiency

Building

  • Performance at Full Throttle
  • Enhances Network Stability
  • Enhances Security
  • Provides Scalability

DXS-3130 Series Specification


Products

DXS-3130-28DXS-3130-28P


Interface

 24 x 10GE
 4 x 25G SFP28

24 x 10GE PoE++
 4 x 25G SFP28

Performance
Switch Capacity 680 Gbps 680 Gbps

Max. Packet Forwarding Rate

 505.92 Mpps 505.92 Mpps
PoE
PoE Standard - IEEE802.3af/at/bt
PoE Ports - Port 1 - 24
PoE Budget - 790 W
Technical Specification
Surge Protection 6KV surge protection on all Ethernet access ports
Console Port Yes Yes
Power Supply Type
 Internal CRSP
Learn MoreLearn More
