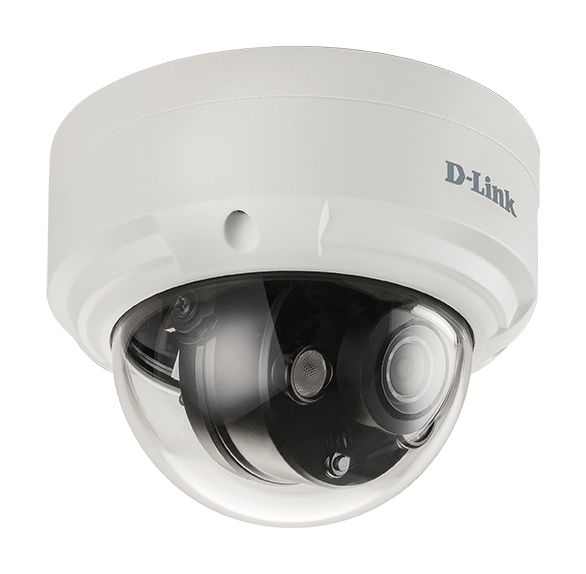

Vigilance 2 Megapixel H.265 Outdoor Dome Camera

DCS-4612EK

  • състоянието на продукта (Revision A1): End of Sale

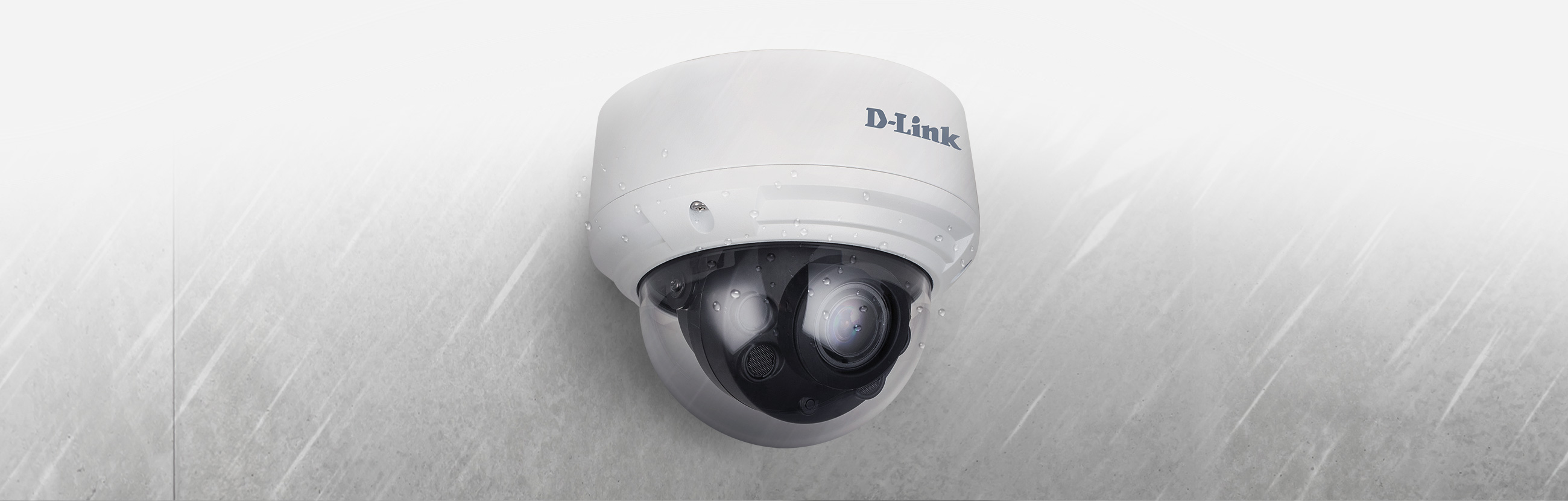

Professional Surveillance in Vandal-proof 2MP High Definition

A 2 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.

2MP HD Resolution

2-megapixel sensor with High Definition resolution up to 1920 x 1080 for detailed footage

Vandal-proof

IK10-rated housing for protection against physical impacts

Weather-Resistant

IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C

Day & night surveillance

Built-in IR LED illuminators with 30-meter range for pitch-black areas

PoE Capable

Supports 802.3af PoE for flexible and simple installation

Storage options

Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.

Wide Dynamic Range with LowLight+

Improved image quality in high-contrast conditions with WDR & optimised for low-light environments

Free Video Management Software

Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive

High quality videos, whatever the lighting

Video resolutions of up to 1920 x 1080 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4612EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.

Viewing Angles
(H) 106.8°
(V) 58°
(D) 126°

High Quality Lens
2.8 mm lens with an F2.0 aperture

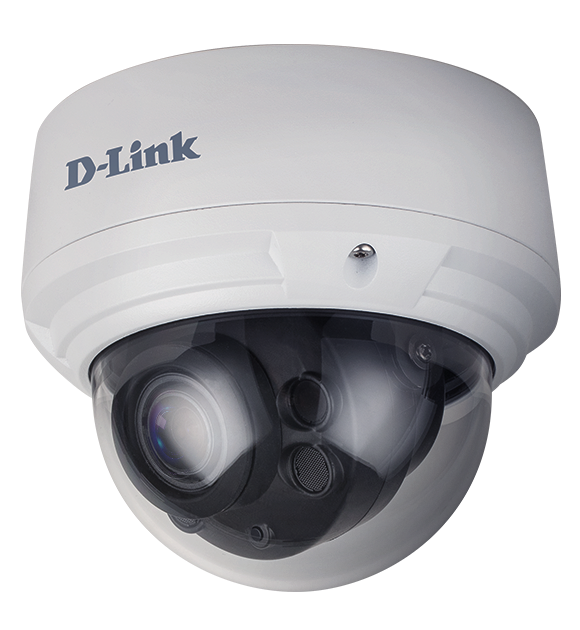

Versatile Monitoring in All Environments

IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.

Weather resistant
Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.

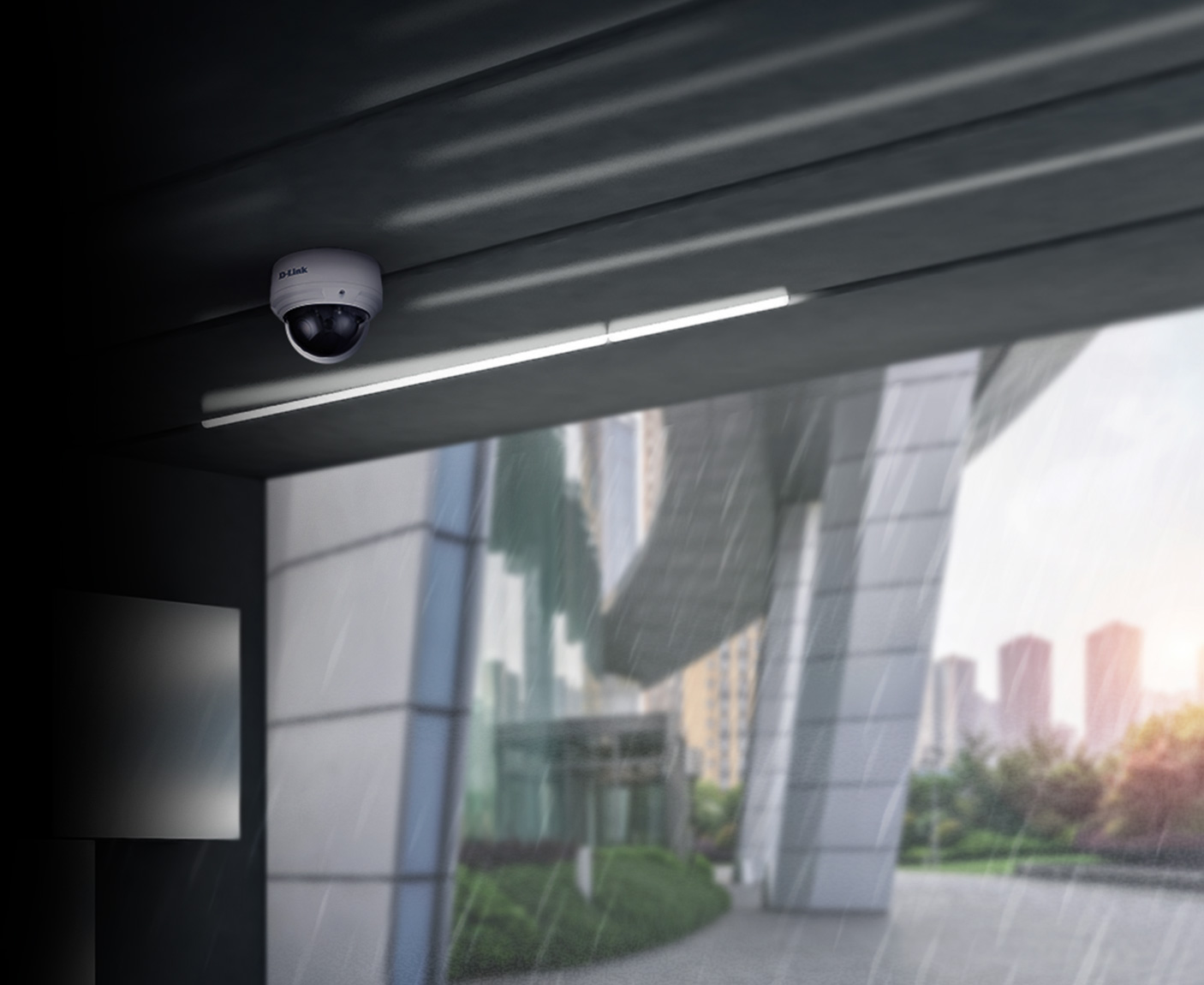

Vandal-proof

The IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.

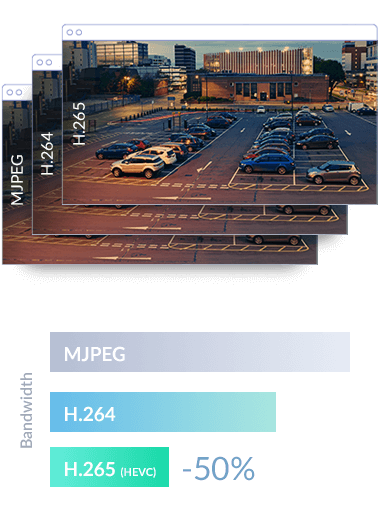

Optimising Bandwidth and Storage

To maximise bandwidth efficiency and improve image quality, the DCS-4612EK provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting two separate profiles for simultaneous video streaming and recording.

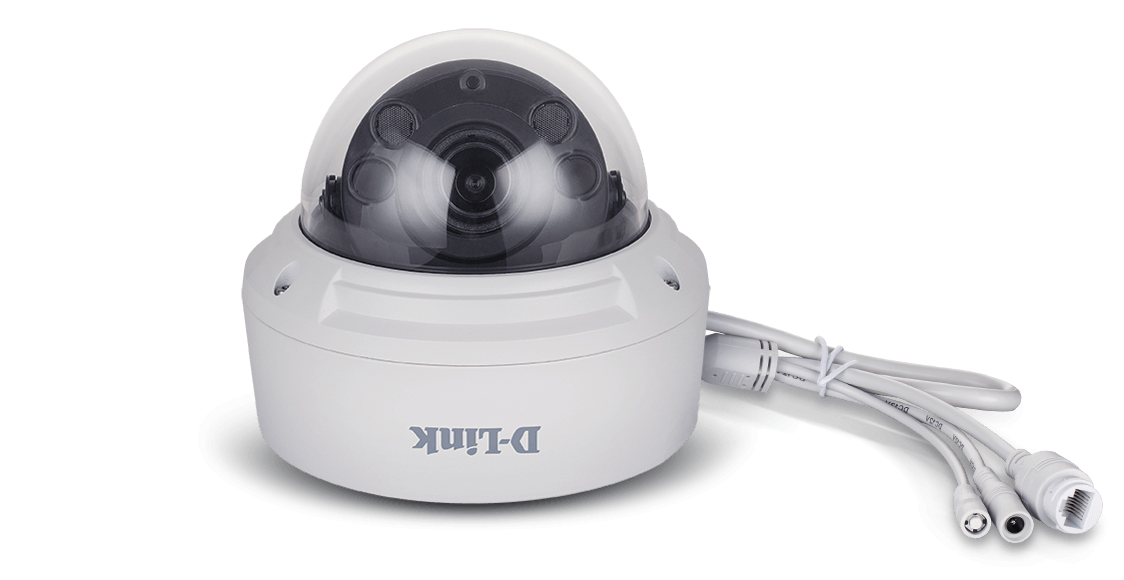

Flexible Connectivity

Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.

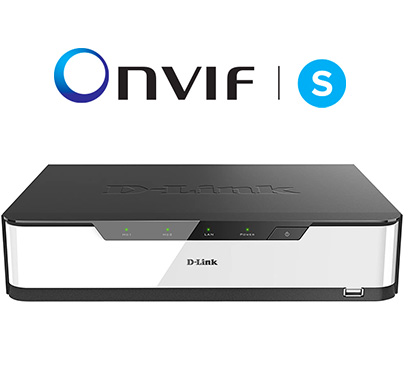

Optional recording to an NVR, VMS or NAS system

Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.

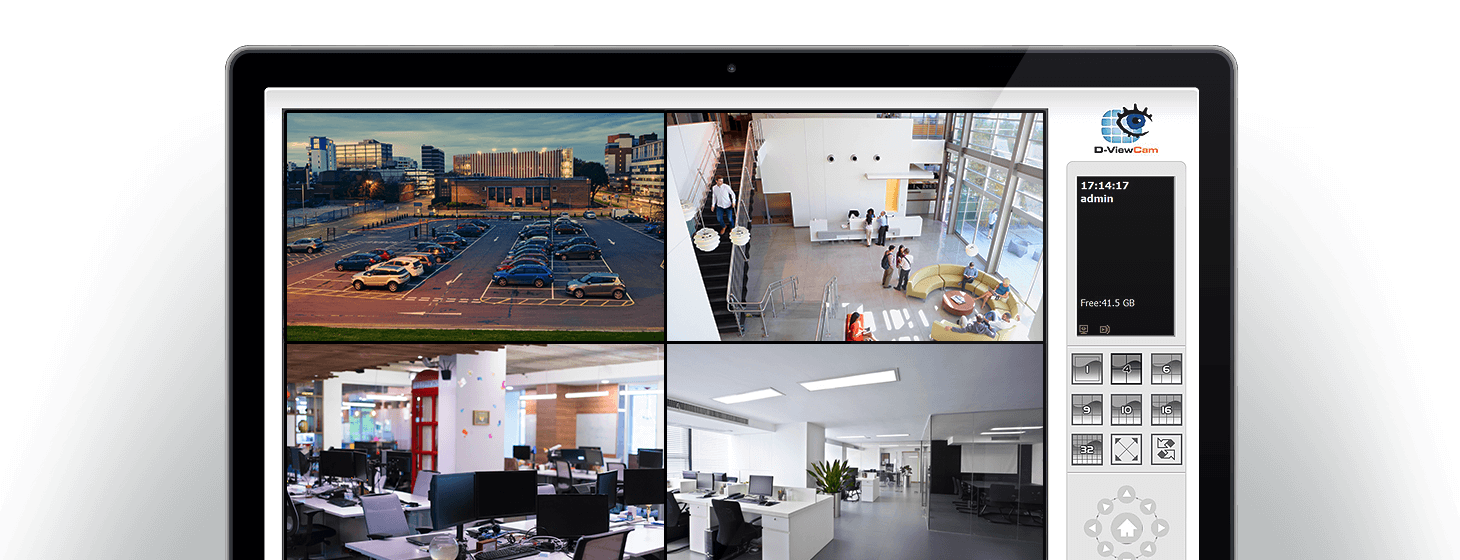

Free Surveillance Management Software

D-Link Network Cameras include D-Viewcam - a complete surveillance software package to view, manage and record up to x64 cameras on a single computer from a central location.

Learn more

Тук сме, за да помогнем

Над 35 години опит в сферата на компютърните мрежи

Експерти в създаването на комплексни иновативни решения за малки фирми и големи корпорации

Комуникацията с нас е лесна

Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.

2-годишна гаранция от D-Link

Предоставена от световен лидер в бранша.

Подобни продукти

D-ViewCam
DCS-100
Разбери повече

Технически характеристики

Indoor/outdoor
Outdoor
Type
Dome
Connectivity
Wired PoE
Resolution
Full HD 2 megapixel
Image sensor
1/2.8" 2 megapixel WDR progressive scan CMOS
Maximum Video Resolution
1920 x 1080 (16:9)
Advanced Light features
Corridor Mode
LowLight+
Wide Dynamic Range
Lens
2.8 mm
F2.0
Fixed
Angle of View (H/V/D)
106.8° / 58° / 126°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
30 m
Wide Dynamic Range(WDR)
Supported
LowLight+
Supported
Privacy Masks
3 zones
Vandal Proof
Supported
External Card Slot
MicroSD SDHC SDXC (max 256 GB)
Power Consumption
5 W
App Support
JustConnect+
Features
ONVIF
Video Format
H.264
H.265
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
18x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Този продукт ще бъде прекратен на: 31/05/2023
Последната дата на поддръжка на този продукт е: 30/05/2025
Версия Дата Тип Размер на файла
Datasheet EN - PDF 0.71mb Свали
Версия Описание Дата Тип Размер на файла
Manual 1.40 RevA1B1 Product Manual 3.12.2021 г. - - Свали
Manual 1.30 RevA1B1 Product Manual 1.10.2021 г. - - Свали
Manual 1.20 RevA1 Product Manual 29.4.2021 г. - - Свали
Версия Описание Дата Тип Размер на файла
QIG 1.21 RevA1B1 Quick Install Guide 30.11.2021 г. - - Свали
QIG 1.20 RevA1B1 Quick Install Guide 1.10.2021 г. - - Свали
QIG 1.10 RevA1 Quick Install Guide 19.4.2021 г. - - Свали
QSG 1.10 RevA1 Quick Setup Guide 19.3.2021 г. - - Свали
Версия Описание Дата
Win Setup Wizard 1.00 Win Setup Wizard 15.8.2022 г. Свали
Версия Описание Дата
CE doc UKCA 1.00 RevA1 CE Document 5.5.2021 г. Свали
