DOCSIS/EuroDOCSIS 3.0 Wireless N Cable Router EMTA

DCM-704B

  • състоянието на продукта (Revision A1): End of Sale
The DCM-704B maximises cable operators’ investments in their network by optimising Internet bandwidth for applications requiring rapid data transfers, such as Real Time HD media streaming or gaming.

Ultimate performance

Powered by DOCSIS/EuroDOCSIS 3.0 channel bonding bandwidth technology, the DCM-704B Wireless N Cable Router EMTA increases download speeds by up to 8 times when compared with DOCSIS/EuroDOCSIS 2.0. This guarantees uninterrupted enjoyment of popular Internet applications, such as file sharing, audio and video streaming and Internet TV.

Extensive compatibility
The DCM-704B Wireless N Cable Router EMTA is DOCSIS/EuroDOCSIS 3.0 CableLabs Certified, which ensures compatibility with all DOCSIS compatible cable providers. This cable modem is also backwards compatible with DOCSIS/EuroDOCSIS 2.0/1.1/1.0 standards.

Integrated home services
The DOCSIS/EuroDOCSIS 3.0 standard provides speeds fast enough to support the integration of services such as digital television and Video on Demand (VoD) in your home.
By clearing network congestion and boosting download speeds, the DCM-704B allows you to get more out of your broadband connection.

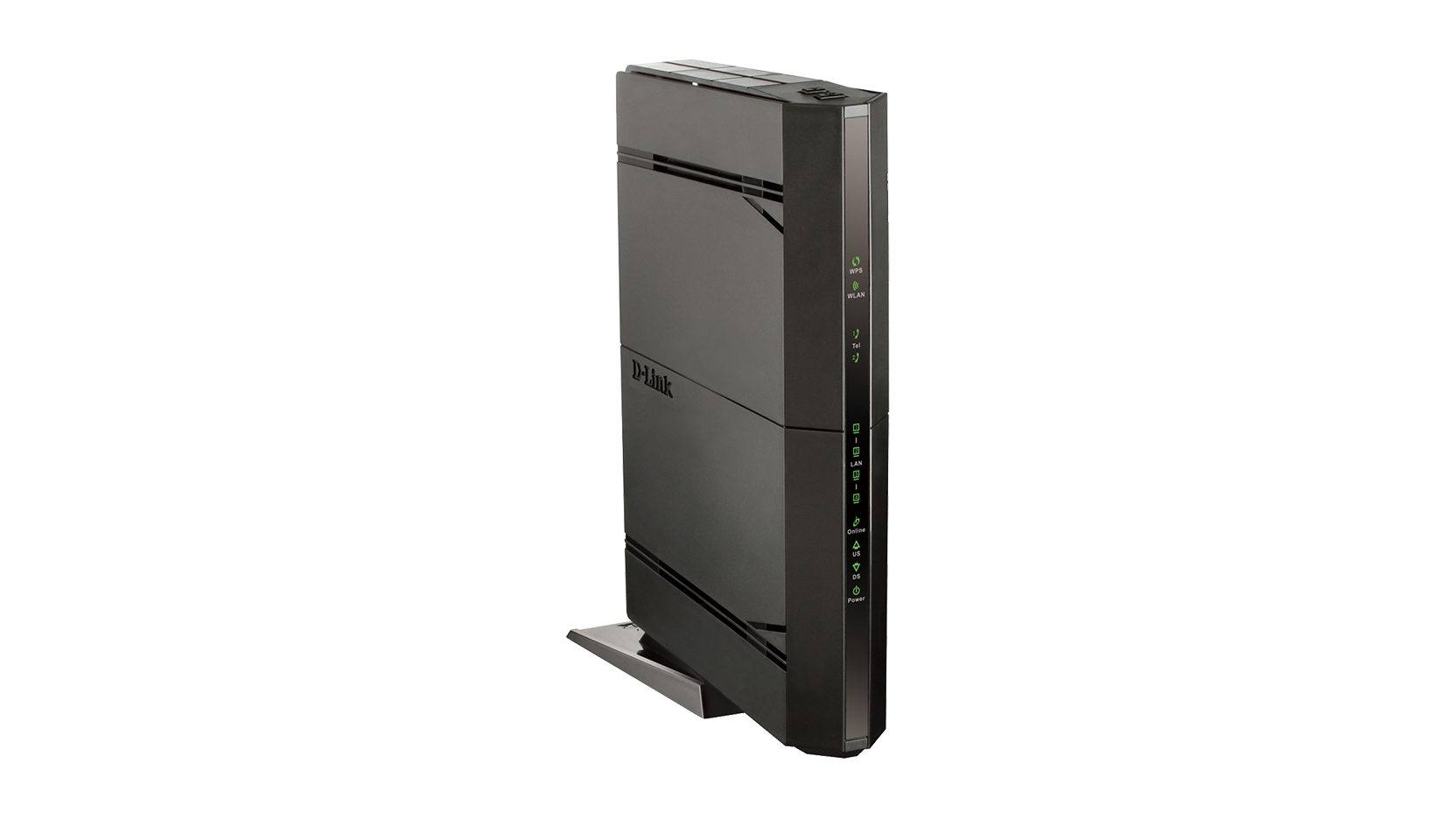

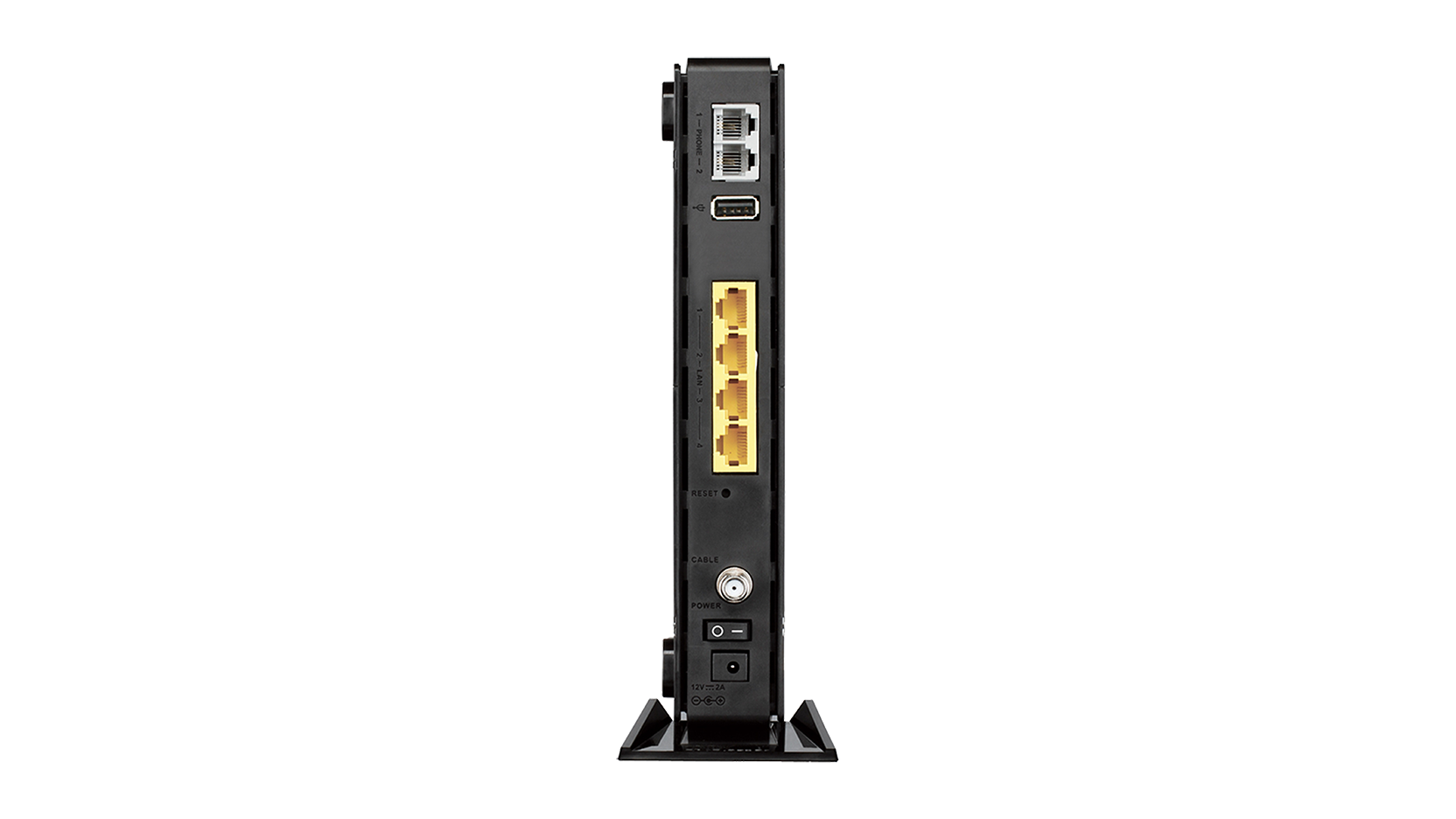

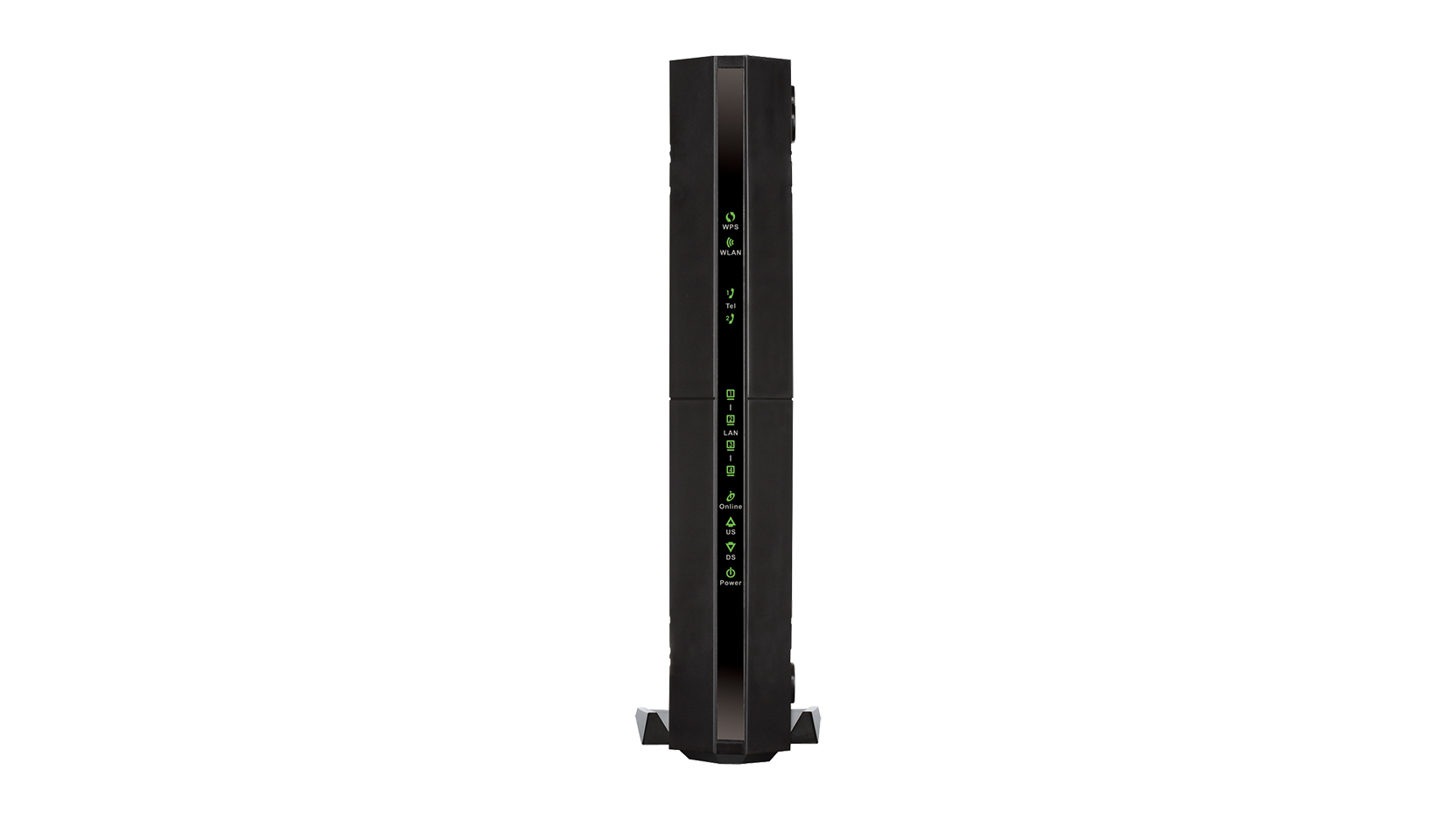

Actual product appearance may differ from the image displayed on this page

Технически характеристики

Hardware
  • Four 10/100/1000 Mbps autosensing MDIX, Auto Uplink™ RJ-45 ports
  • WAN Port: Coax F connector
  • Two FXS ports for analog phones
  • One USB port

Wireless
  • IEEE 802.11n Wireless LAN specification
  • Disable SSID broadcast
  • Disable Wi-Fi Radio
  • MAC address Access Control
  • Multiple SSIDs
  • Push ‘N Connect Wi-Fi Protected Setup™ with PIN or push button
  • SID to SSID QoS mapping
  • Turn Wi-Fi on or off with software
  • Security: WEP 64/128 bit, WPA2, WPA2-PSK
  • WMM-QoS & UAPSD

Compliance
  • DOCSIS 3.0, EuroDOCSIS 3.0, backwards compatible with CMTS based on DOCSIS 2.0, EuroDOCSIS 2.0, DOCSIS 1.1
  • Voice
  • PacketCable™ & EuroPacketCable™ 1.5
  • Voice Features: Caller ID, call hold, transfer, forwarding, return, conference, redial, speed dial, anonymous call, voicemail, power saving
  • Codecs: AMR, BV-16, G.711, G723.1, G.726, G,728 G729a, G.722, G.168, iLBC, T.38 Fax
  • relay
  • Signaling: MGCP & SIP

Security
  • Stateful Packet Inspection (SPI), intrusion logging and reporting
  • Domain & URL Filtering
  • IPSec, PPTP and L2TP VPN pass-through
  • Parental Control
  • Support for 802.1X RADIUS

Product Support Section

Версия Дата Тип Размер на файла
Datasheet (English) - PDF 0.49mb Свали
