This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.
![](/be/nl/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_learnmore.jpg?h=703&w=560&la=nl-BE&hash=2C927A10CA41EAEC3357C7A9F29F11B7)
Nuclias hardwarecontroller
De DNH-100 Wireless Controller is een voordelige, kant-en-klare oplossing die installatie en onderhoud van Nuclias Connect op extra hardware, zoals een server of pc, overbodig maakt. Hij ondersteunt maximaal 100 AP's, detecteert apparaten automatisch, pusht configuraties en biedt robuust hardwarebeheer. Gewoon aansluiten en inschakelen.
![](/be/nl/-/media/product-pages/dap/2682/slices/dap2682_05_controller.png?h=640&w=490&la=nl-BE&hash=EAF405E49F03E0D82D5D0FC9711A6E1F)

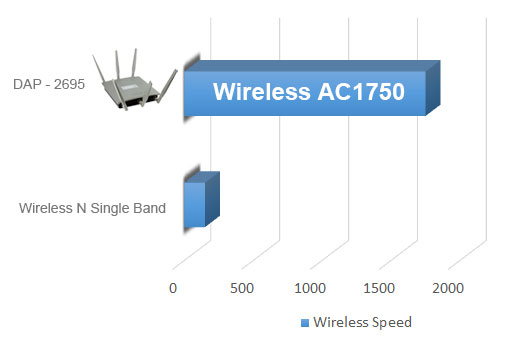

Performance without Compromise
Incorporating industry leading Wireless AC Chipset, the DAP-2695 delivers up to 4 times* the performance of Wireless N by supporting simultaneous dual-band operation
![](/be/nl/-/media/product-pages/dap/2695/dap2695_performance.jpg)

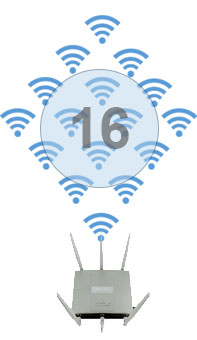

Broadcast on 16 SSIDs Simultaneously
Supports up to 16 SSIDs, 8 per Band, including station isolation
![](/be/nl/-/media/product-pages/dap/2695/dap2695_16_ssid.jpg)

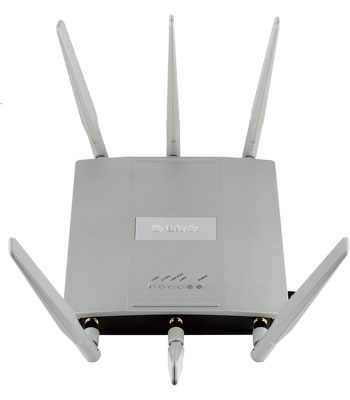

Flexible Wireless
The DAP-2695 is a robust and versatile indoor access point, designed and built to withstand the harshest environments. It can be deployed anywhere from manufacturing plants and stadia, to school campuses and golf courses, virtually any venue requiring a robust wireless solution.
![](/be/nl/-/media/images/b2b_icons/access_points/wireless_ac.jpg)
![](/be/nl/-/media/images/b2b_icons/access_points/speed1750.jpg)
![](/be/nl/-/media/images/b2b_icons/access_points/range100m.jpg)
![](/be/nl/-/media/images/b2b_icons/access_points/dual_band.jpg)
![](/be/nl/-/media/images/b2b_icons/access_points/cwm.jpg)
![](/be/nl/-/media/product-pages/dwl/8600ap/dwl8600_flexible_design.jpg)
Simultaneous Dual-Band Wireless
Supports up to 1300Mbps for the 5Ghz band and up to 450Mbps for the 2.4Ghz band
![](/be/nl/-/media/product-pages/dap/2695/dap2695_dual_band.jpg)
Smart Design
The DAP-2695 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
![](/be/nl/-/media/product-pages/dap/2695/dap2695_smart_design.jpg)

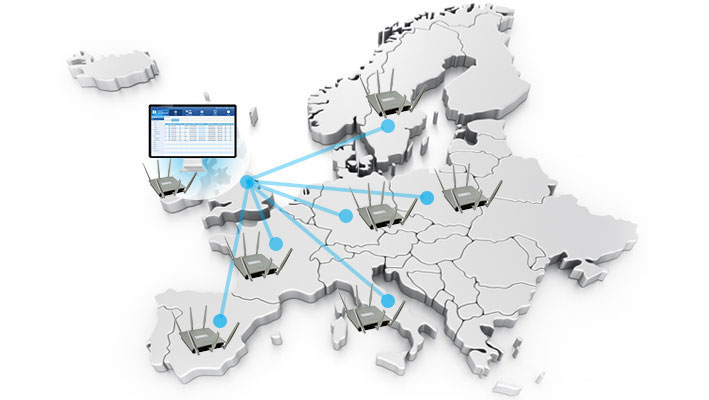

Scalable, flexible, centralised AP management
Manage up to 1000 Access Points from a central location, regardless of geography.
![](/be/nl/-/media/product-pages/dap/2660/dap_2660_scalable.jpg)
* When compared to Wireless N300
Product Comparison
<>Wireless AC
![]() |
![]() |
|||
---|---|---|---|---|
DAP-2660 | DAP-2695 | |||
Wireless Standard | B, G, N, AC | B, G, N, AC | ||
Frequency | 2.4GHz, 5GHz | 2.4GHz, 5GHz | ||
2.4GHz Throughput | 300Mbps | 300Mbps | ||
5GHz Throughput | 867Mbps | 1300Mbps | ||
Aspect | Indoor | Indoor | ||
Range* | 100m | 100m |
<>Wireless N
![]() |
![]() |
![]() |
||
---|---|---|---|---|
DAP-2310 | DAP-2360 | DAP-2690 | ||
Wireless Standard | B, G, N | B, G, N | B, G, N | |
Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | |
2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | |
5GHz Throughput | - | - | 300Mbps | |
Aspect | Indoor | Indoor | Indoor | |
Range* | 100m | 100m | 100m |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Gerelateerde Producten
![](/be/nl/-/media/product-pages/dnh/100/dnh_100_a1_side.png?h=100&w=209&la=nl-BE&hash=AC3F7BAC72849859B113E4B5AC9547D0)
![](/be/nl/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_09_screenshot.png?h=100&w=192&la=nl-BE&hash=E0D7BC87286BB9AFAB1C8413F9C72FD9)
![](/be/nl/-/media/product-pages/dgs/1210/g1/dgs121008p162424p48g1image-lfront.png?h=100&w=175&la=nl-BE&hash=49AAC13C57E1E7BA18C346ABF9E8DF90)
![](/be/nl/-/media/product-pages/dpe/101gi/dpe101gib1image-lsideleft.png?h=100&w=178&la=nl-BE&hash=119A5B4A1334DBFC1D8D849D8A132D08)
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless AC |
Frequency band mode
|
Dual-band simultaneous |
Antenna type
|
6 detachable omni-directional antennas |
Antenna gain
|
4 dBi for 2.4 GHz 6 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |

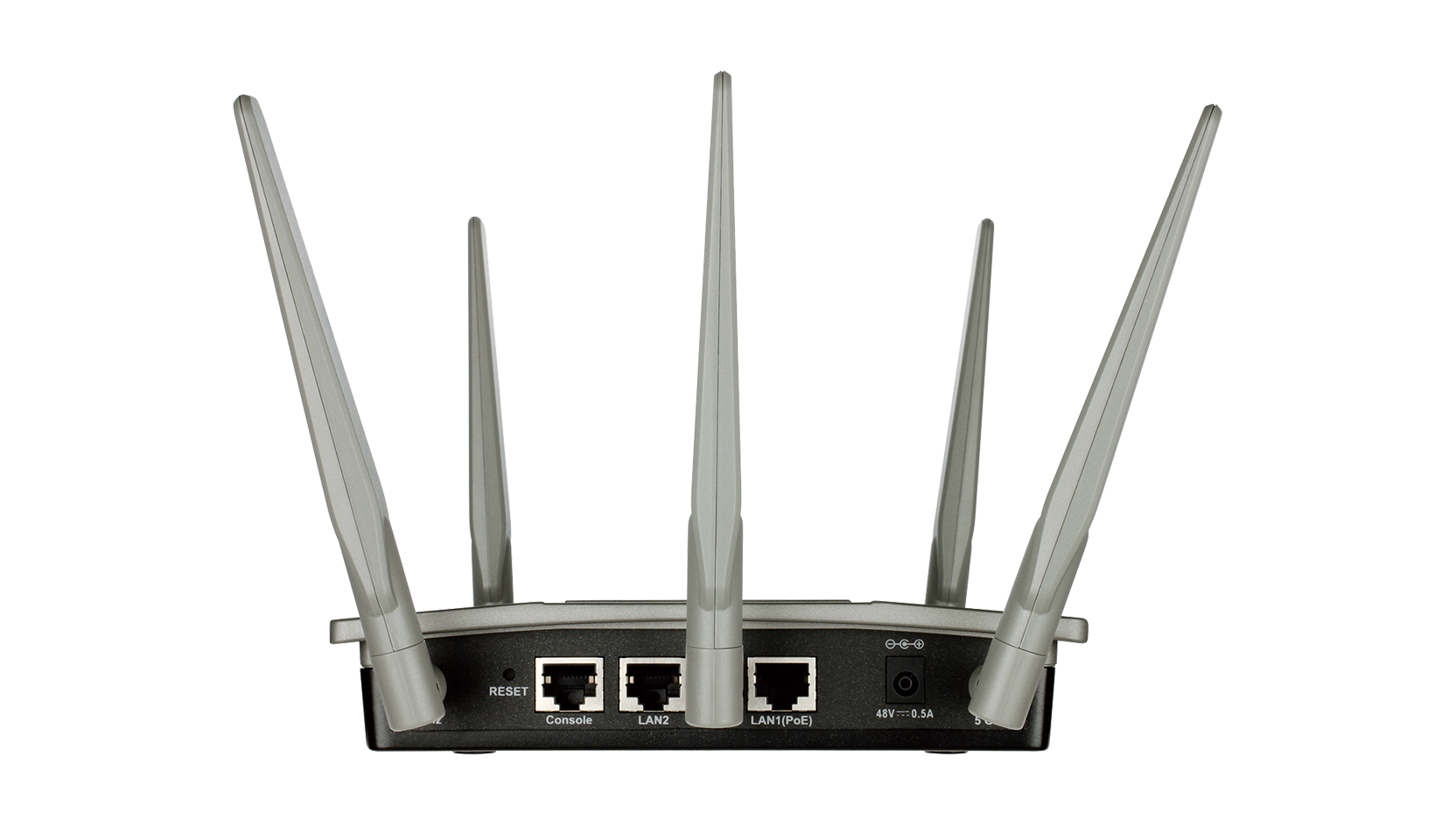

Wired interface
|
2 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Metal |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Geavanceerde Eigenschappen
|
MIMO |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Management platform
|
Nuclias Connect |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
