Wireless N PoE Access Point

DAP-2230

  • Product Status (Revision A): End of Sale

There's a new version of this product:

Wireless AC1300 Wave 2 DualBand PoE Access Point

DAP-2610

See Newer Product

There's a new version of this product:

DAP-2610

Wireless AC1300 Wave 2 DualBand PoE Access Point

Overzicht

The DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilising the cutting-edge speed of 802.11ac Wave 2.
See Newer Product

Overzicht

The DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilising the cutting-edge speed of 802.11ac Wave 2.
See Newer Product

Performance without Compromise

The DAP-2230 Wireless N PoE Access Point allows businesses to create a secure and manageable wireless network. Multiple operational modes, network management tools and security features give network administrators more flexible deployment options.


Flexible Deployment

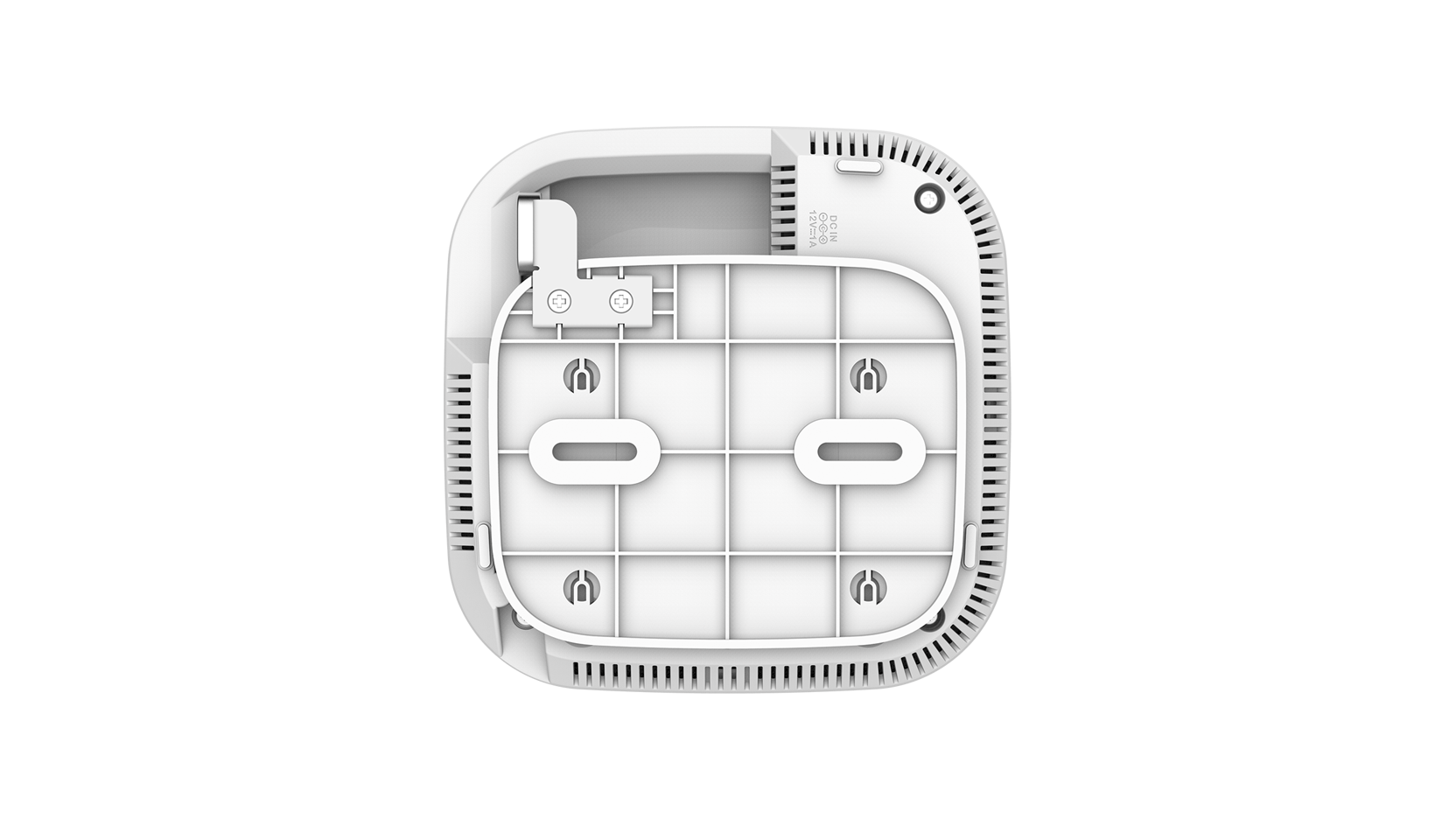

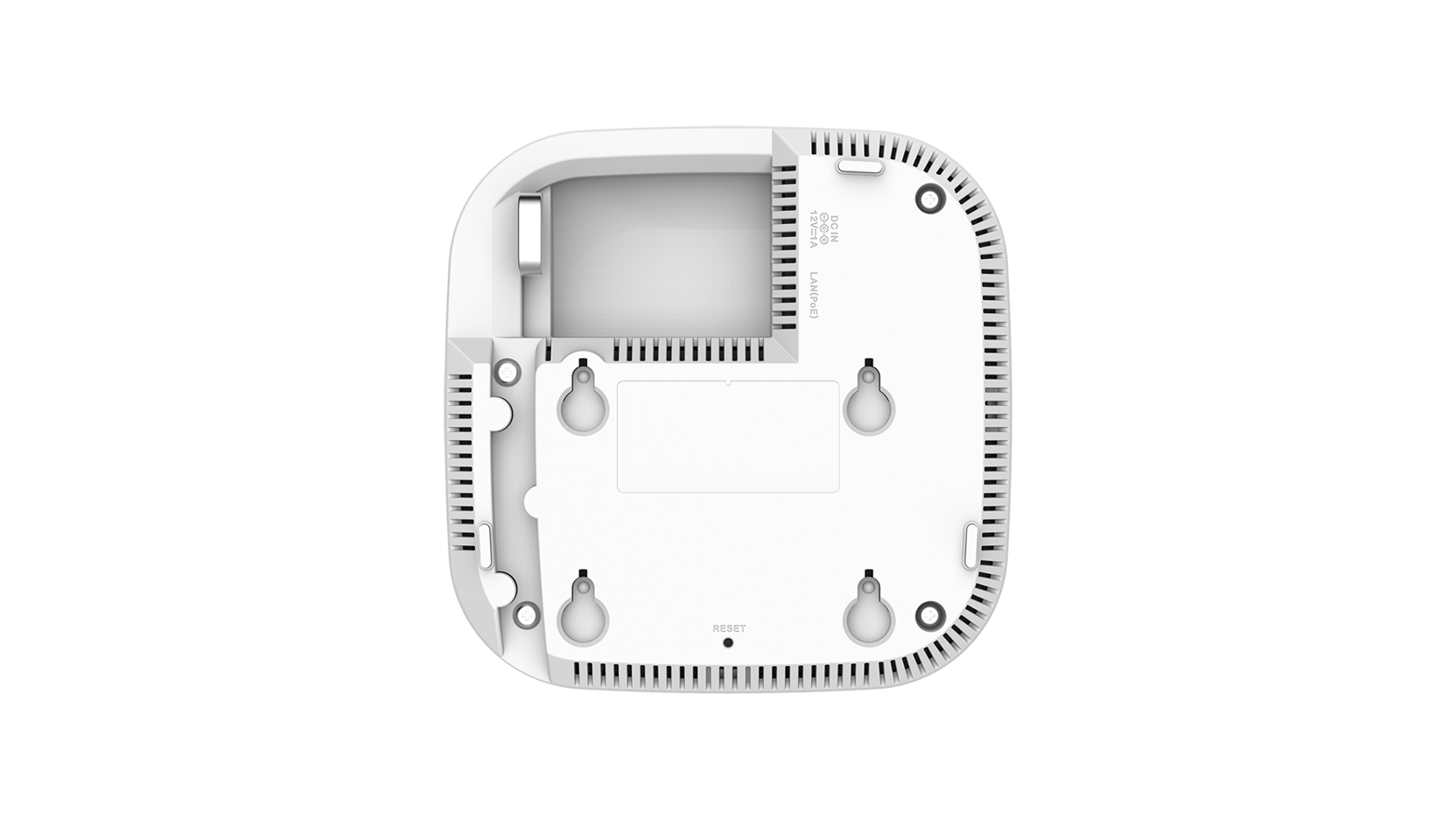

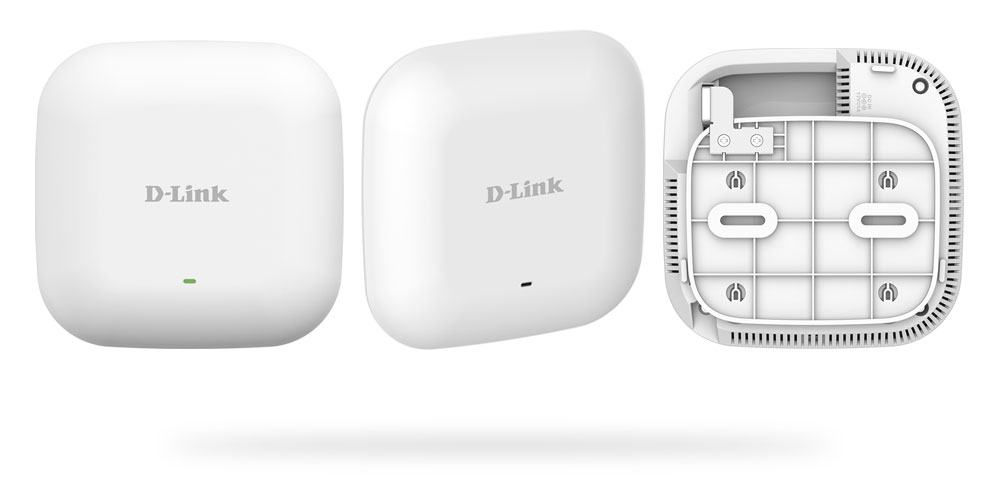

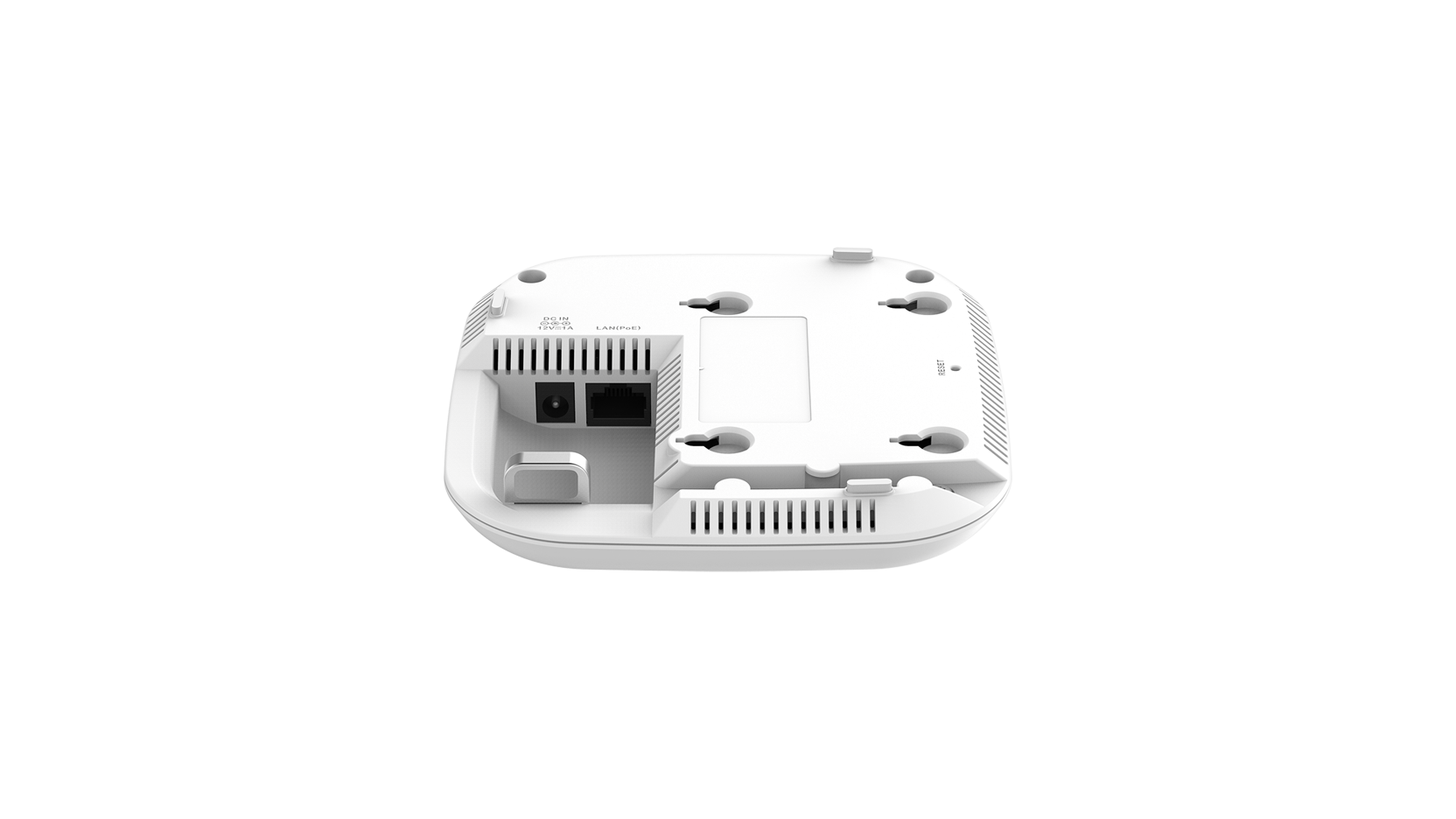

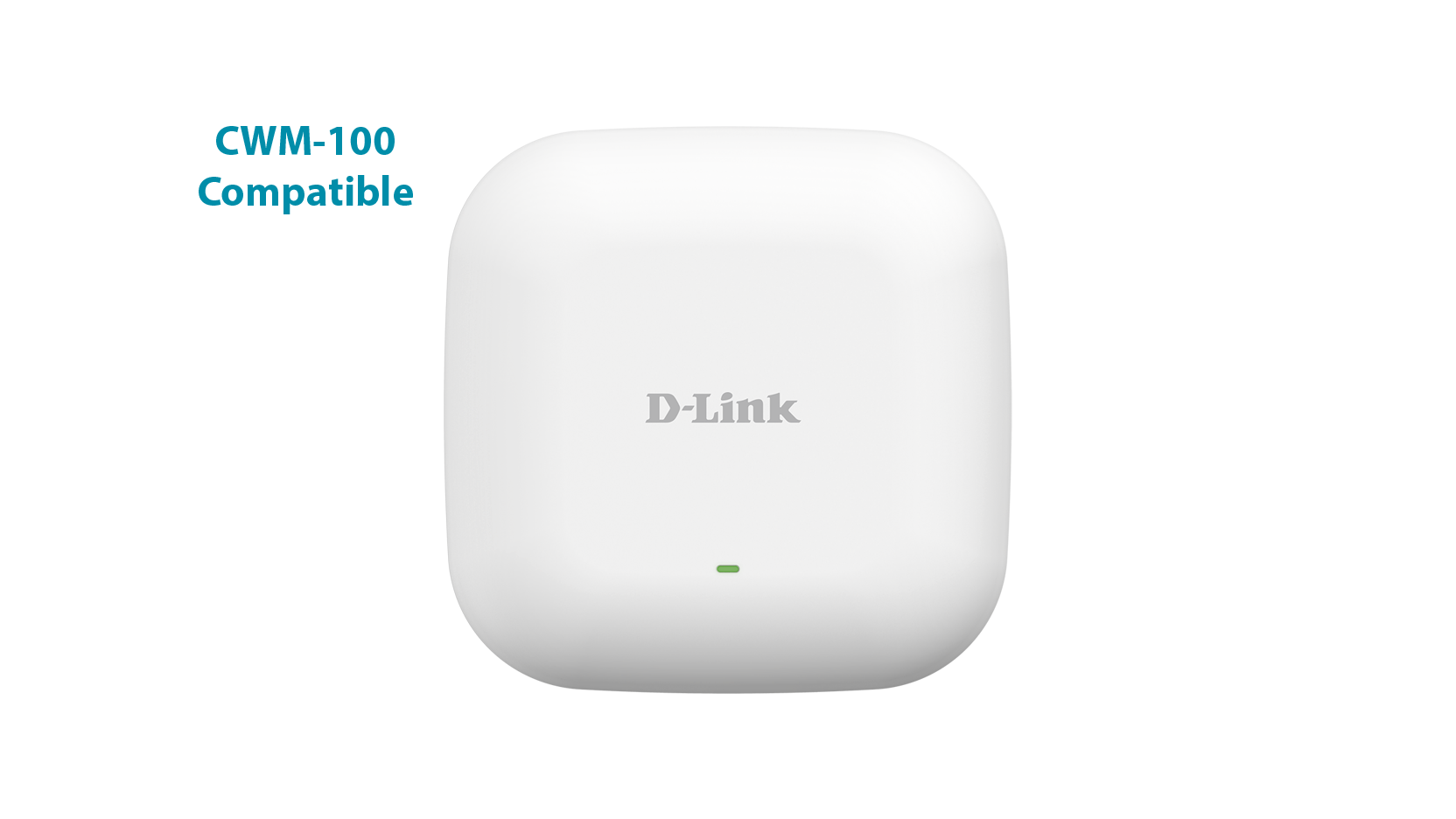

The DAP-2230 has a super compact design, and can be ceiling mounted, wall mounted or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2230 has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.




Green Design

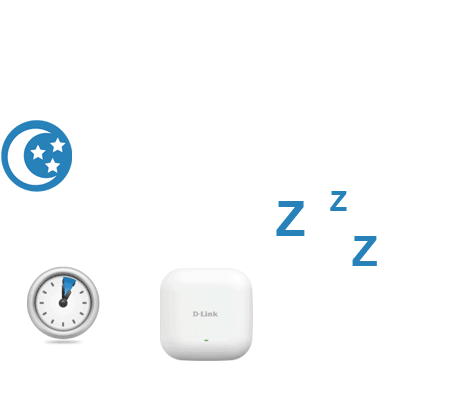

The DAP-2230 has a wireless scheduler feature, which turns off wireless functionality when it isn't needed, saving power.

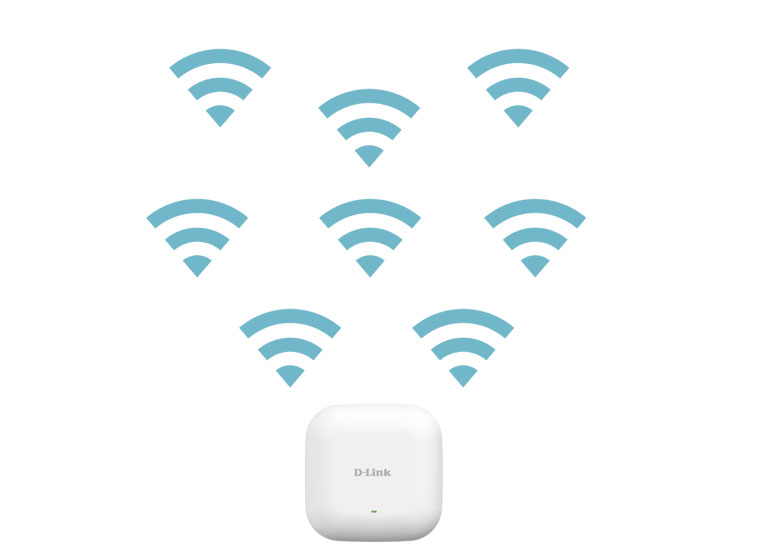

8 SSIDs Simultaneously

Supports up to 8 SSIDs that can logically divide the access point into several virtual access points all within a single hardware platform.


Free Wireless AP Controller software

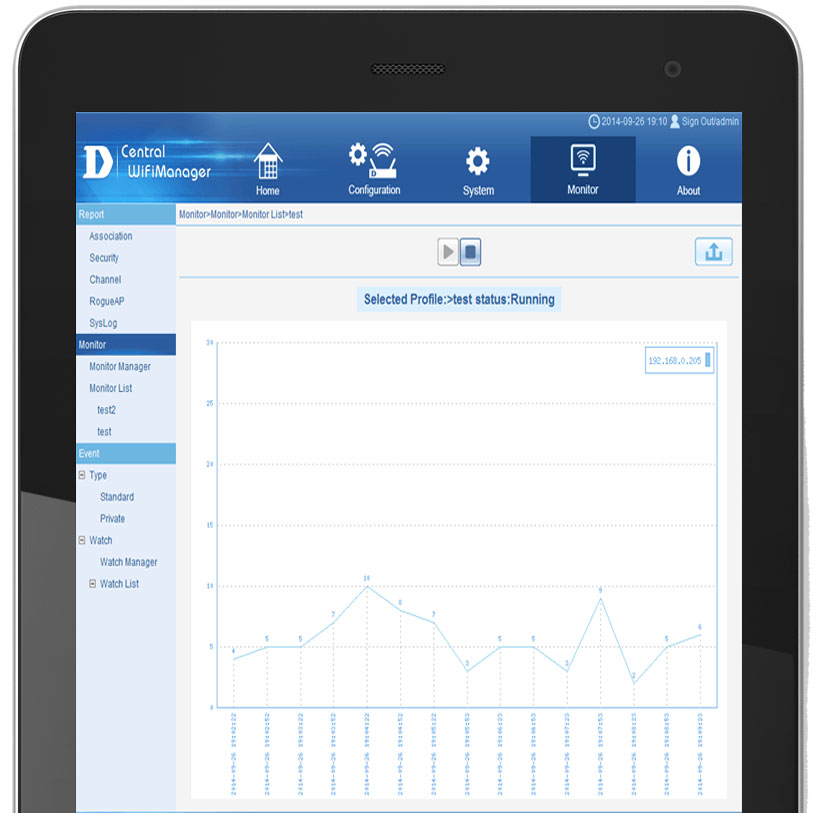

D-Link's free Central WiFiManager is a cloud enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.

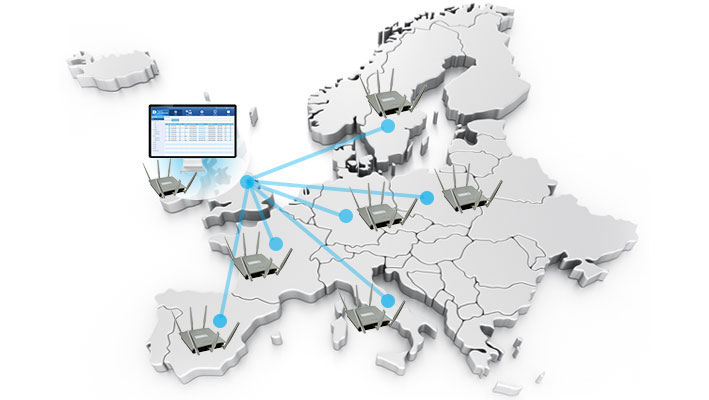

Scalable, flexible, centralised AP management

Manage up to 1000 Access Points located around the world from one virtual controller residing in your network or in the cloud, regardless of geography.

Gerelateerde Producten

Nuclias Connect
DNC-100
Meer lezen
Gigabit Smart Managed Switches
DGS-1100-05V2, DGS-1100-05PDV2, DGS-1100-08V2, DGS-1100-08PV2, DGS-1100-10MPV2 (Max PoE), DGS-1100-16V2, DGS-1100-24V2, DGS-1100-24PV2, DGS-1100-26MPV2 (Max PoE)
Meer lezen
Gigabit Smart Switches met Glasvezelpoorten | D-Link
DGS-1210-08P, DGS-1210-16, DGS-1210-24, DGS-1210-24P, DGS-1210-48
Meer lezen
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Meer lezen
Gigabit PoE injector
DPE-101GI
Meer lezen
Type
Software Managed AP
Wireless standard
Wireless N
Frequency band mode
Single-band
Wireless speed
300 Mbps 2.4 GHz
Antenna type
Embedded omni-directional antennas
Antenna gain
3 dBi for 2.4 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Fast Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Geavanceerde Eigenschappen
802.11k/r Roaming
MIMO
Maximum number of SSIDs
8
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
802.1D STP
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
IPv6
Supported
Management platform
Nuclias Connect
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
This product was phased out on: 28/07/2020
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 27/07/2025
Versie Datum Type Bestandsgrootte
Blad in het Engels Nuclias Connect - - - Download
Blad in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Handleiding in het Engels Handleiding in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Installatiehandleiding Installatiehandleiding - - - Download
Beknopte installatiegids Beknopte installatiegids - - - Download
Dit D-Link product bevat software code welke ontwikkeld is door derden, waaronder software code die valt onder de GNU General Public License ("GPL") of GNU Lesser General Public License ("LGPL"). Indien van toepassing: de voorwaarden van de GPL en LGPL en informatie over het verkrijgen van toegang tot de GPL-code en LGPL-code die in dit product zijn gebruikt, zijn hier voor u beschikbaar:

http://tsd.dlink.com.tw/GPL.asp

De GPL-code en LGPL-code die gebruikt is in dit product wordt gedistribueerd ZONDER ENIGE GARANTIE en is onderworpen aan de auteursrechten van een of meer auteurs. Voor meer informatie, zie de GPL-code en de LGPL-code voor dit product en de voorwaarden van de GPL en LGPL.
Versie Beschrijving Datum Type
2.00r040 Actual firmware for using the DAP-2230 Rev.A in a Nuclias Connect environment
Can't be used in a CWM-100 or AP-Array environment.
Please note the manual for upgrade the firmware
4/11/2019 - Download
1.05v01rc30 Huidige firmware 8/11/2017 - Download
