Wireless AC1300 Wave 2 DualBand PoE Access Point
DAP-2610
- Product Status (Revision A): Live
Alle Verkooppunten
This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.
![](/be/nl/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_learnmore.jpg?h=703&w=560&la=nl-BE&hash=2C927A10CA41EAEC3357C7A9F29F11B7)
Nuclias hardwarecontroller
De DNH-100 Wireless Controller is een voordelige, kant-en-klare oplossing die installatie en onderhoud van Nuclias Connect op extra hardware, zoals een server of pc, overbodig maakt. Hij ondersteunt maximaal 100 AP's, detecteert apparaten automatisch, pusht configuraties en biedt robuust hardwarebeheer. Gewoon aansluiten en inschakelen.
![](/be/nl/-/media/product-pages/dap/2682/slices/dap2682_05_controller.png?h=640&w=490&la=nl-BE&hash=EAF405E49F03E0D82D5D0FC9711A6E1F)
![](/be/nl/-/media/product-pages/dap/2610/dap2610main.png)

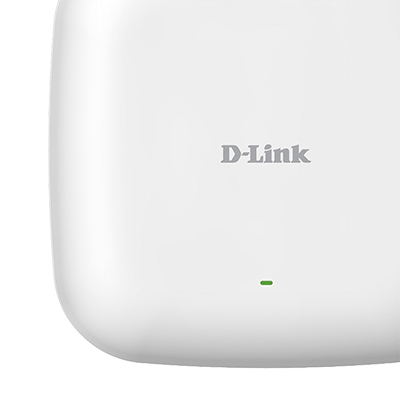

Business
Class
Wi-Fi.
With simultaneous dual-band, PoE support, extensive manageability, versatile operation modes, and robust security enhancements, the DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point provides a reliable solution for deploying a business-class wireless network.
![](/be/nl/-/media/product-pages/dap/2610/dap2610wirelessperformance.png)

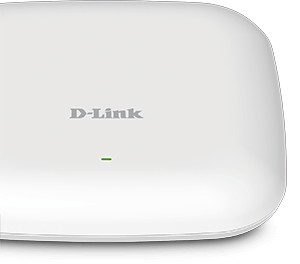

Enterprise Wireless Performance
The DAP-2610 delivers reliable, high-speed wireless performance using the latest 802.11ac Wave 2 standard with wireless signal rates of up to 1.3 Gbps (400 Mbps over the 2.4 GHz band and 900 Mbps over the 5 GHz band)1.

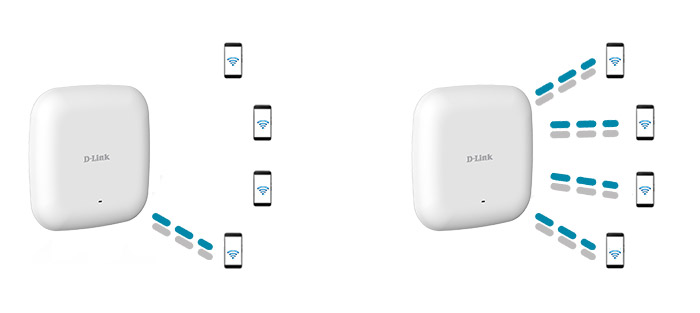

Technology that makes a difference
MU-MIMO allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. Beamforming improves coverage and speed by directing Wi-Fi signal directly to the client device. Band Steering automatically connects each device on the network to the best, clearest band available for the best connection.
![](/be/nl/-/media/product-pages/dap/2610/dap2610mumimo.jpg)
![](/be/nl/-/media/product-pages/dap/2610/dap2610radius.png)

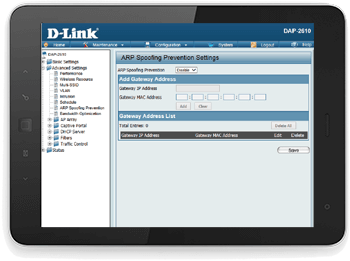

Built-in RADIUS and Dynamic VLAN
WPA/WPA2 Enterprise can connect to your existing RADIUS server or use the built-in RADIUS server allowing users to create their accounts within the device itself.
Network Access Protection (NAP) this allows dynamic VLAN assignment for each wireless client upon authentication. Up to eight VLANs per band and bandwidth controls are supported, for further user segmentation.
![](/be/nl/-/media/product-pages/dap/2610/dap2610guestaccess.png)

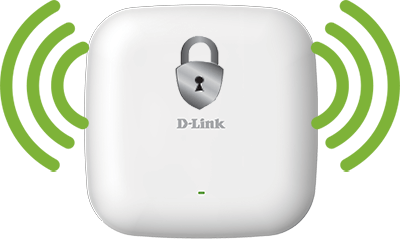

Guest access control
Provide Guest access with a Captive Portal. Combine it with RADIUS authentication and Dynamic VLAN for Guest bandwidth and access control.
Flexible deployment
With 802.3af Power over Ethernet (PoE) support, you can easily install in areas where power outlets are not available. WDS support allow multiple DAP-2610s to bridge with one another, while also providing network access to individual clients. Additionally, advanced features such as load balancing and redundancy ensure fail-safe wireless connectivity.

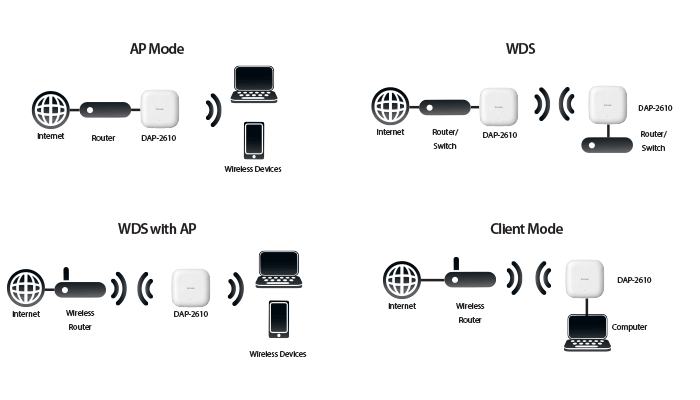

Multiple Operation Modes
Configure your DAP-2610 access point to meet your specific wireless network requirements with any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS), a WDS with Access Point, and Wireless Client.
![](/be/nl/-/media/product-pages/dap/2610/dap2610multiopmodes.png)
![](/be/nl/-/media/product-pages/dap/2610/dap2610powersaving.png)
Efficient Power Saving
The DAP-2610 has a built-in schedule function which dynamically powers down the wireless network off when not in use. This feature reduces power consumption, saving energy and money.
1. Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
Gerelateerde Producten
![](/be/nl/-/media/product-pages/dnh/100/dnh_100_a1_side.png?h=100&w=209&la=nl-BE&hash=AC3F7BAC72849859B113E4B5AC9547D0)
![](/be/nl/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_09_screenshot.png?h=100&w=192&la=nl-BE&hash=E0D7BC87286BB9AFAB1C8413F9C72FD9)
![](/be/nl/-/media/product-pages/dgs/1210/g1/dgs121008p162424p48g1image-lfront.png?h=100&w=175&la=nl-BE&hash=49AAC13C57E1E7BA18C346ABF9E8DF90)
![](/be/nl/-/media/product-pages/dpe/101gi/dpe101gib1image-lsideleft.png?h=100&w=178&la=nl-BE&hash=119A5B4A1334DBFC1D8D849D8A132D08)
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
400 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3 dBi for 2.4 GHz 3 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |

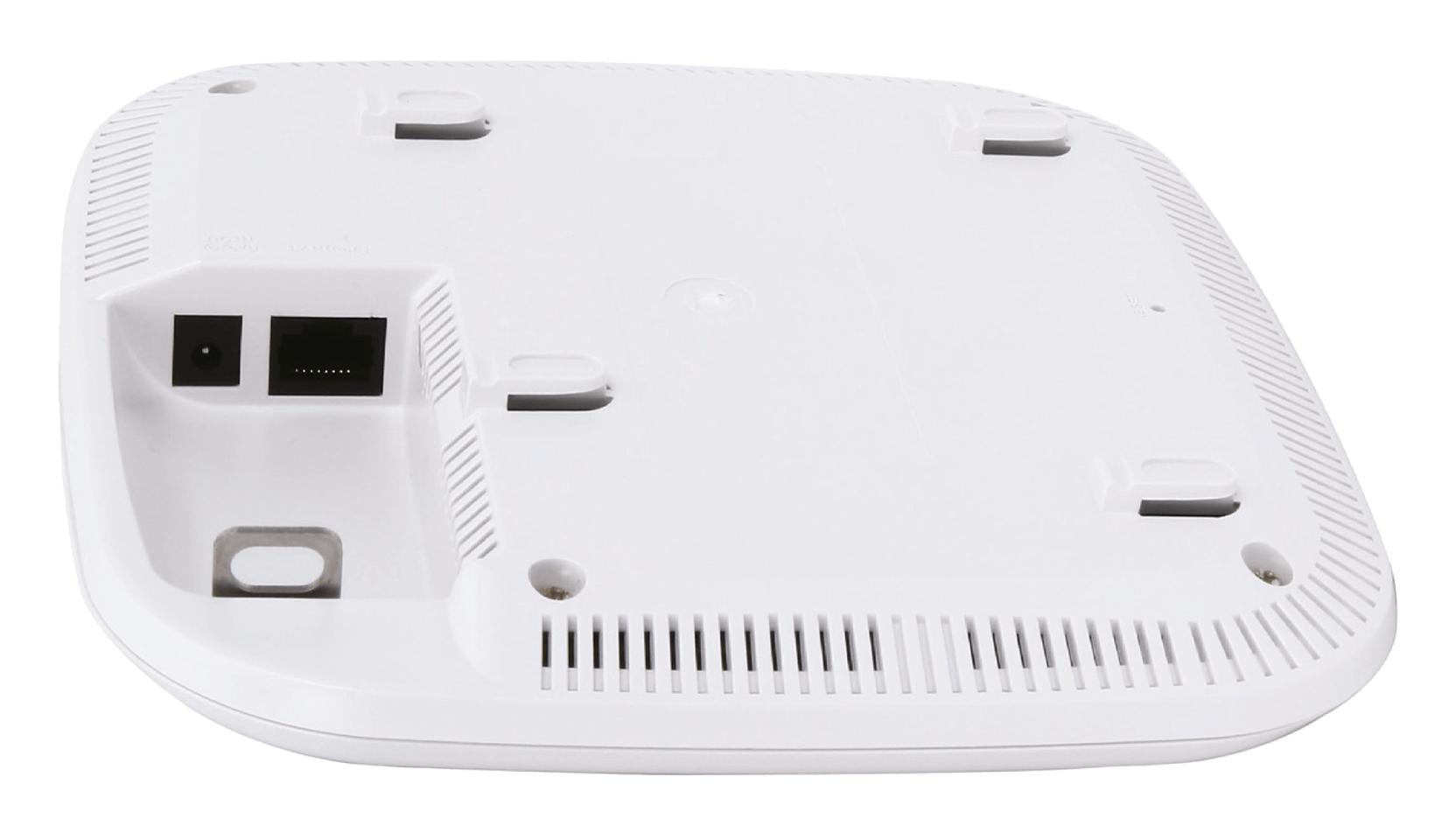

Wired interface
|
1 x Gigabit Ethernet LAN |
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Geavanceerde Eigenschappen
|
802.11k/r Roaming MU-MIMO SmartBeam |
Maximum number of SSIDs
|
8 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
DHCP server
|
Supported
|
802.1D STP
|
Supported
|
IGMP snooping
|
Supported
|
ARP spoofing
|
Supported
|
NTP
|
Supported
|
IPv6
|
Supported
|
Management platform
|
Nuclias Connect |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
