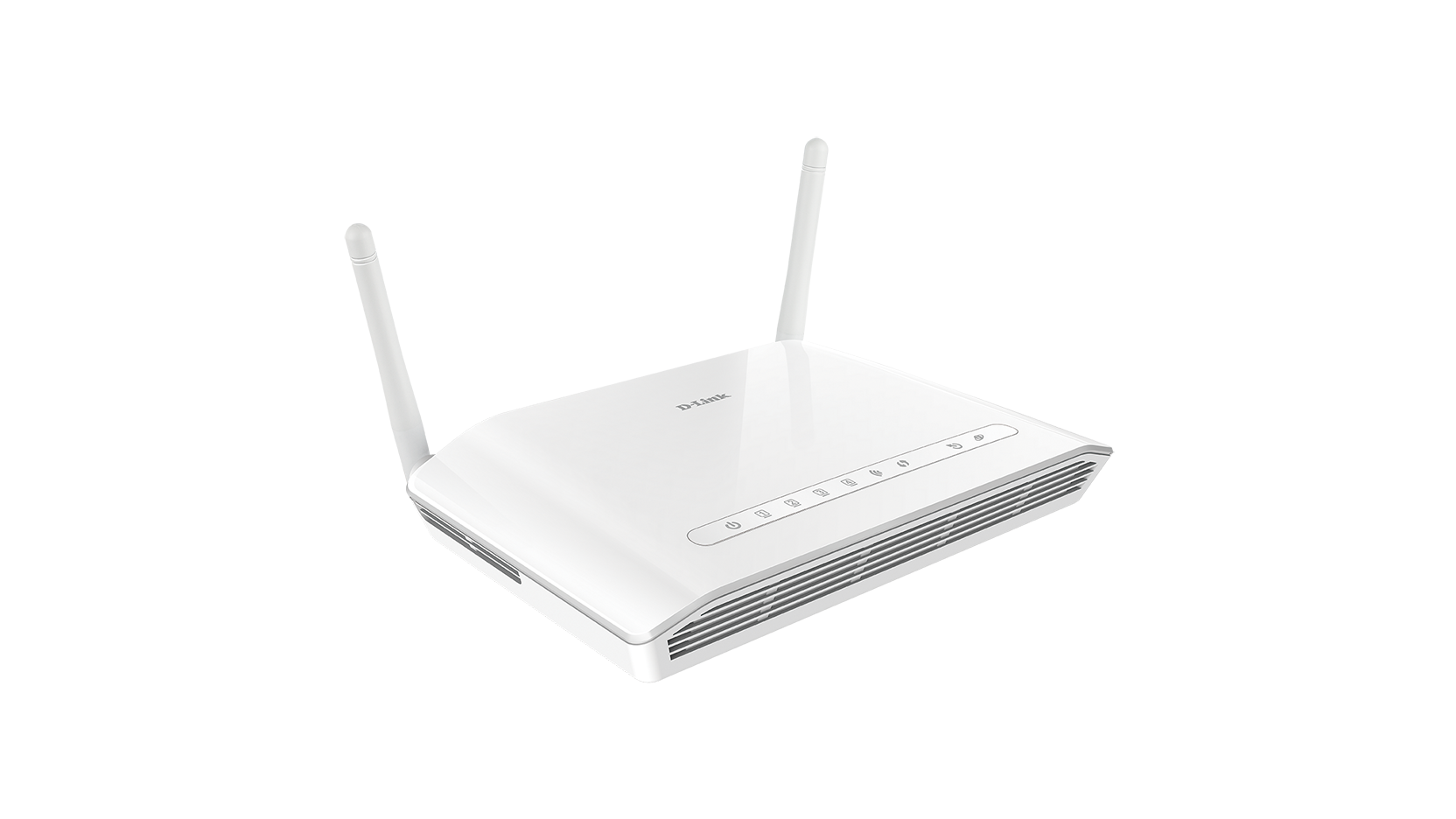

Wireless N300 ADSL2+ Modem Router

DSL-2745

  • Product Status (DEU_Revision_RevA): End of Life

The DSL-2745 Wireless N300 ADSL2+ Modem Router is a versatile, high-performance router for a home or small office. With integrated ADSL2/2+, supporting download speeds up to 24 Mbps, firewall protection, Quality of Service (QoS), 802.11n wireless LAN, and 4 Ethernet switch ports, the DSL-2745 provides all the functions that a user needs to establish a secure and high-speed link to the Internet.

Featuring Wireless N300 technology, the DSL-2745 supports wireless speeds of up to 300 Mbps1, 4 times faster than 802.11g. Featuring 2 x 2 MIMO antenna configuration, wireless devices can take advantage of expanded wireless coverage.


The Wireless N300 ADSL2+ Modem Router offers Quality of Service (QoS), which allows priority queues to enable a group of home or office users to experience the benefit of a smooth network connection without worrying about traffic congestion.


This router’s security features prevent unauthorised access to your private network from wireless devices or from the Internet. These features include firewall security, such as Stateful Packet Inspection (SPI) and hacker attack logging.

Additionally, it supports WPA/WPA2 and WEP for flexible security and data encryption while a WPS button provides an easy way to establish a secure wireless connection.

1 Maximum wireless signal rate derived from IEEE standard 802.11n specifications which are subject to change. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

Related Products

D-Link DWA-121 Wireless N 150 Pico USB Adapter Right side image
Wireless N 150 Pico USB Adapter
DWA-121
Find out more
DWA131 Side
Wireless-N Nano USB Adapter
DWA-131
Find out more
Wireless standard
Wireless N
Wireless speed
300 Mbps 2.4 GHz
Antenna type
2 fixed omni-directional antennas
Wired interface
4 x Fast Ethernet LAN
ADSL2/2+
This product was phased out on: 23/12/2018
This product's last date of support is on: 22/12/2020
Version Date Type File Size
Datasheet - PDF 0.24mb Download
Version Description Date
Ce doc 1.20 - 16.10.2017 Download
