5-Megapixel sensor
High resolution of 2560 x 1920 with Wide Dynamic Range (WDR) image enhancement and x10 digital zoom
Day & night surveillance
Built-in IR LED illuminators with 20-meter range for pitch-black areas
Vandal & Weatherproof
The IP66 and IK10 ratings make it ideal for even the most demanding of surveillance locations
H.265 support
HEVC (High Efficiency Video Coding) standard support to optimise network bandwidth for better visual quality and recording performance.
Free Surveillance Management Software
Includes D-ViewCam - view, manage, and record with up to 32 cameras
2-Year D-Link Warranty
You're protected by one of the global leaders in the industry
Unbeatable video surveillance in any weather

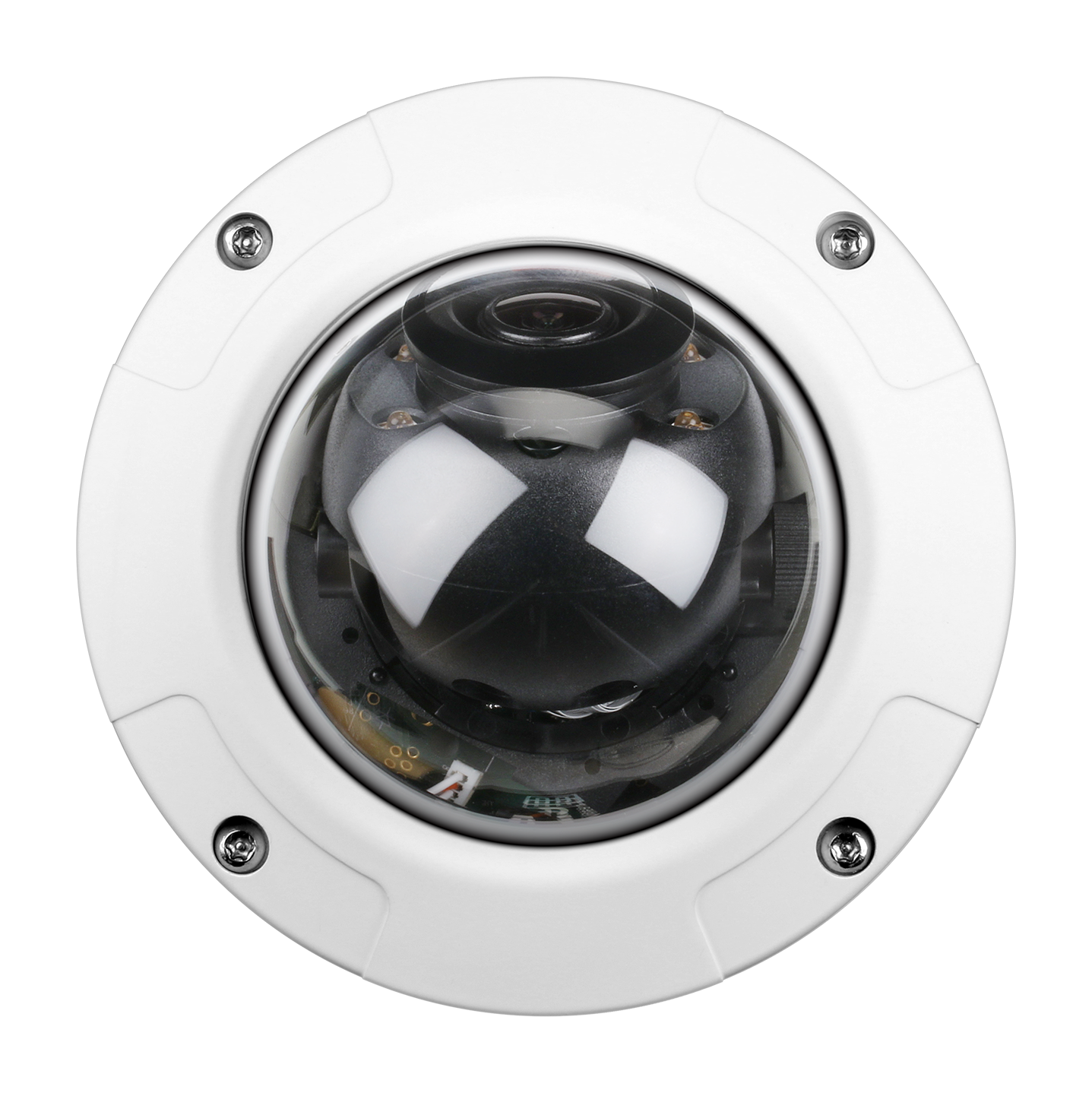

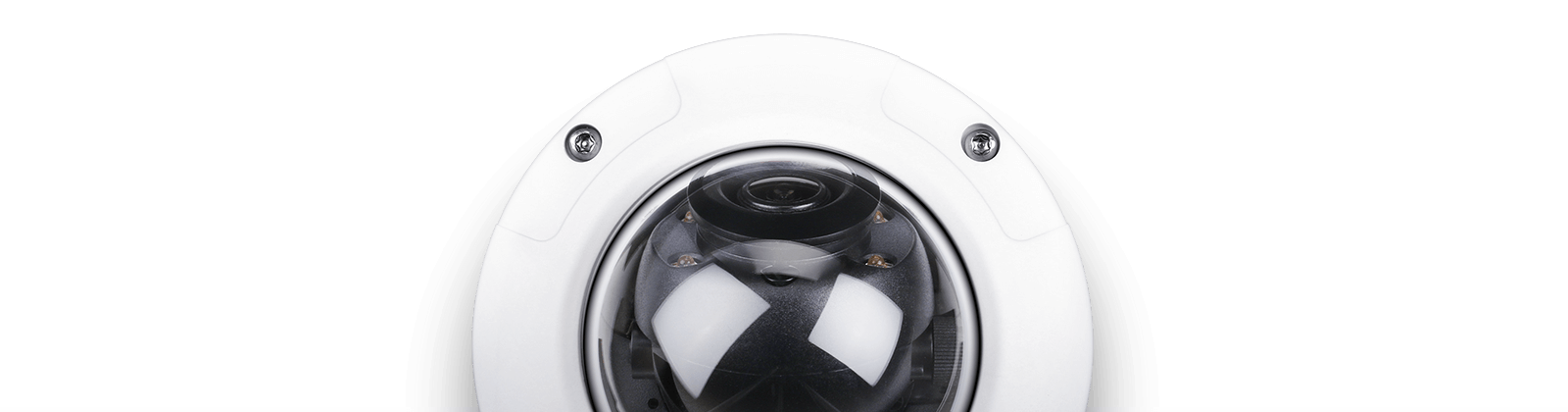

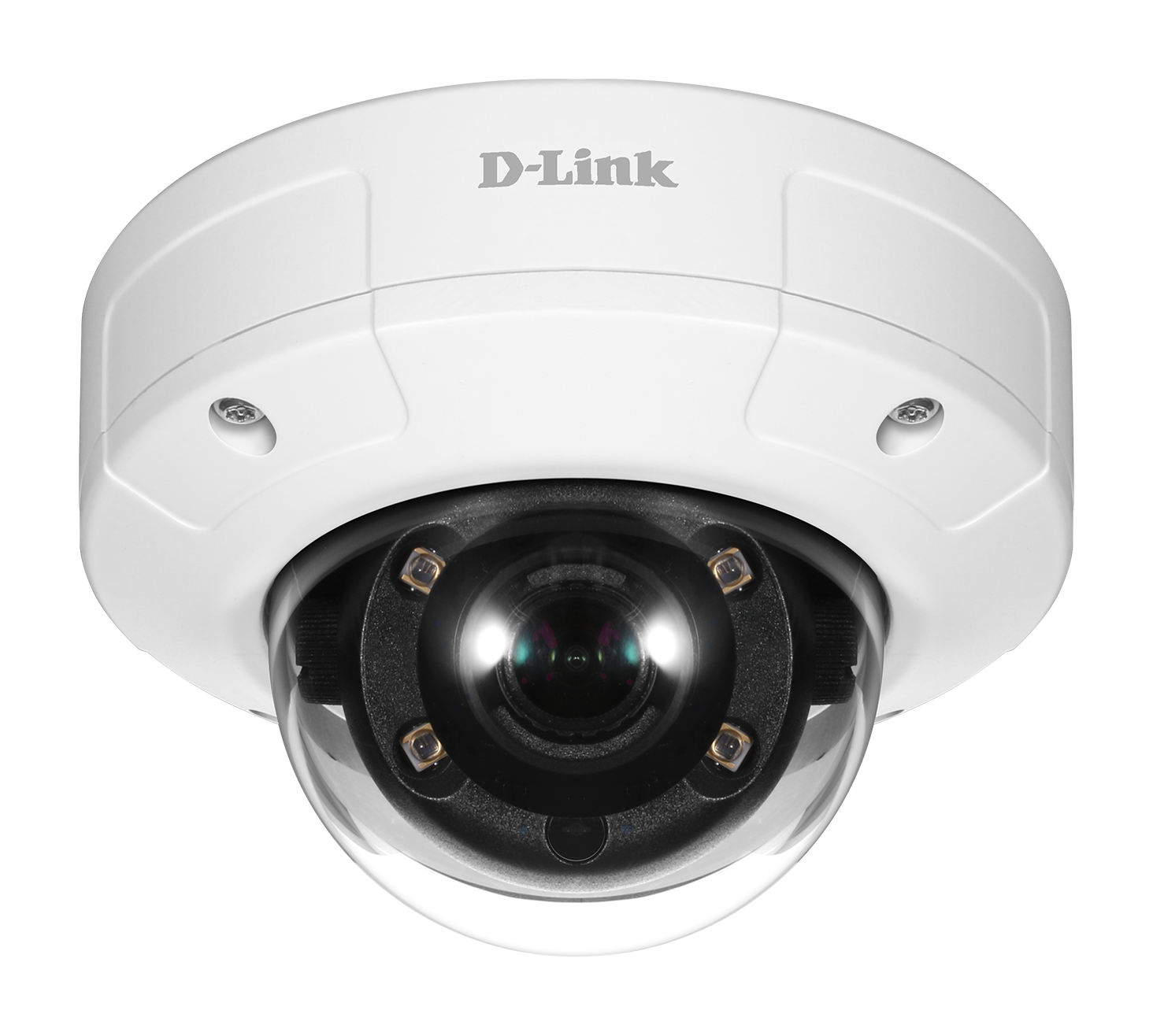

The DCS-4605EV 5-Megapixel Vandal-Proof Outdoor Dome Camera has a rugged weatherproof and vandal-proof dome design, and 20-metre IR night vision which makes the camera extremely reliable to guard day and night, in all seasons.
High-Quality Streaming & Recording

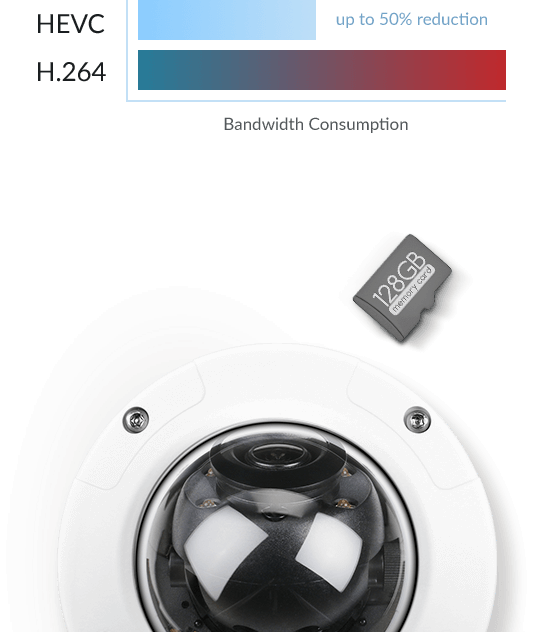

To maximise bandwidth efficiency and improve image quality, the DCS-4605EV provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting three separate profiles for simultaneous video streaming and recording.
Motion detection, event management features, and digital pan, tilt, zoom (ePTZ) allows for deployments in a wide variety of surveillance environments like monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, recording criminal activity, or monitoring inventory.
The onboard microSD card slot can store up to 256GB of footage locally for extra backup protection.
Strong in any environment
Even with uneven or difficult lighting, WDR image enhancements deliver better image quality so you can identify subjects that are backlit, or in brightly-lit areas. In low-light situations, the IR-cut filter slides out of the way to use all available light.
Infrared illuminators allow the camera to see clearly even in complete darkness. The IP66 weatherproofing completely protects the camera from dust and water, and the IK10 rugged vandal-proof housing prevents sabotage. Monitor indoors or outdoors, 24/7.

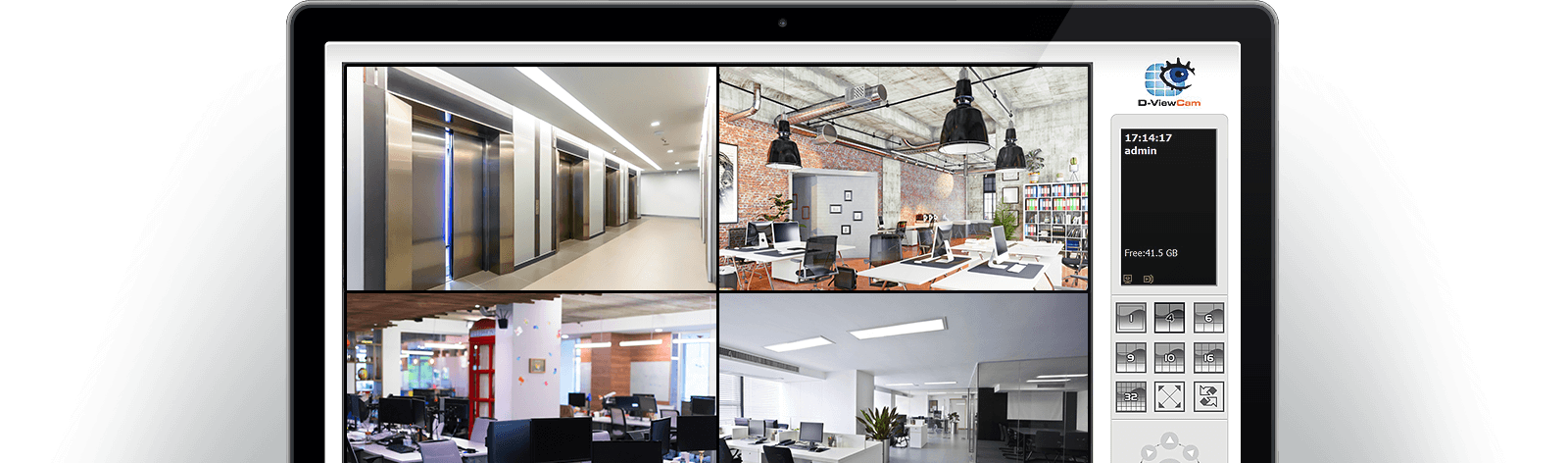

Free Surveillance Management Software
All D-Link Network Cameras include D-ViewCam - view, manage and record up to 64 cameras on a single computer from a central location with this complete surveillance software package.
Faster and easier to deploy

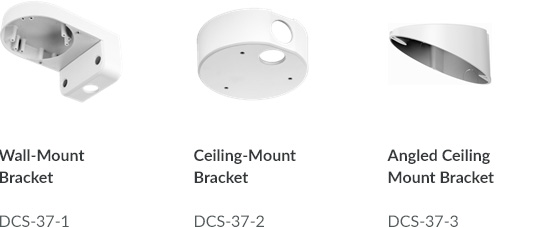

The DCS-4605EV is compatible with a range of mounting brackets to suit any scenario.
Its 802.3af-compliant PoE support provides power and networking connectivity over a single network cable to simplify and speed up deployment.
We're here to help.
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
2‑Year D‑Link Warranty
You're protected by one of the global leaders in the industry.
Specs
Indoor/outdoor
|
Indoor Outdoor |
---|---|
Type
|
Dome |
Connectivity
|
Wired PoE |
Resolution
|
5 megapixel |
Image sensor
|
1/2.9'' 5 megapixel WDR progressive scan CMOS |
Maximum Video Resolution
|
2560 x 1440 (16:9) 2560 x 1920 (other) |
Advanced Light features
|
Wide Dynamic Range |
Lens
|
2.8 mm F2.0 Fixed |
Angle of View (H/V/D)
|
87° / 65° / 110° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
20 m |
Wide Dynamic Range(WDR)
|
Supported
|
Privacy Masks
|
3 zones |
Vandal Proof
|
Supported
|
External Card Slot
|
MicroSD SDHC SDXC (max 128 GB) |
Power Consumption
|
6 W |
App Support
|
JustConnect+ |
Features
|
D-ViewCam D-Link NVR compatible MicroSD Card slot ONVIF |
Video Format
|
H.264 H.265 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
