H.265 8-Channel Network Video Recorder
BNR-008
- Product Status (Rev A): Live
- 10/100 Base-TX Fast Ethernet Port
- 2 x USB 2.0, 1 x HDMI, and 1 x VGA
- HDMI and VGA Video Output up to 1080p
- Built-in Support for ONVIF Profile S
- Recording Bitrate up to 64 Mbps
- 8-Channel D1 Decoding at 30 fps
- Synchronized Audio and Video Recording
- Auto-Recycling When Storage Is Full
Where to buy
User Benefits
24/7 Video Recording
Continuous video recording, 24 hours a day, 7 days a week for uninterrupted security surveillance
Centralized Device Management
Centralized control of cameras, recording schedules, and system settings through one easy interface
Event Recording
Triggers event-based recording from IP cameras with supported intelligent video analytics
System Monitoring
Monitors various system abnormal conditions such as video loss, disk errors, and IP address conflicts
ONVIF Profile S Support
Supports ONVIF Profile S for easy integration with IP cameras across multiple brands
Auto Recycling
Automatically overwrites the oldest recordings when disk storage reaches full capacity
Uninterrupted 24/7 Recording
Intelligent Event Recording
The BNR-008 integrates seamlessly with IP cameras, triggering automated recording based on intelligent video analytics.
*For full functionality, the BNR-008 must be paired with D-Link BCB or BCD series cameras
Motion Detection
Detects motion events by analysing changes in the video scene and triggers alarms when movement is identified.
Person Detection
Automatically identify and classify human objects within the video stream with high precision.
Vehicle Detection
Detects and classifies vehicles, including cars and motorcycles, within the monitored area.
Sound Detection
Triggers instant alerts when ambient sound levels exceed your customised decibel threshold.
Line-Crossing Detection
Triggers instant alerts when subjects cross a customisable virtual line, securing restricted areas with precision.
People Counting
Counts the number of people entering and exiting a defined area based on video analytics.
Wrong-Way Detection
Detects objects moving in a direction opposite to the predefined allowed direction and triggers an alert.
Illegal Parking Detection
Triggers an alarm when a vehicle remains stationary beyond the configured parking duration.
System Monitoring
Related Products

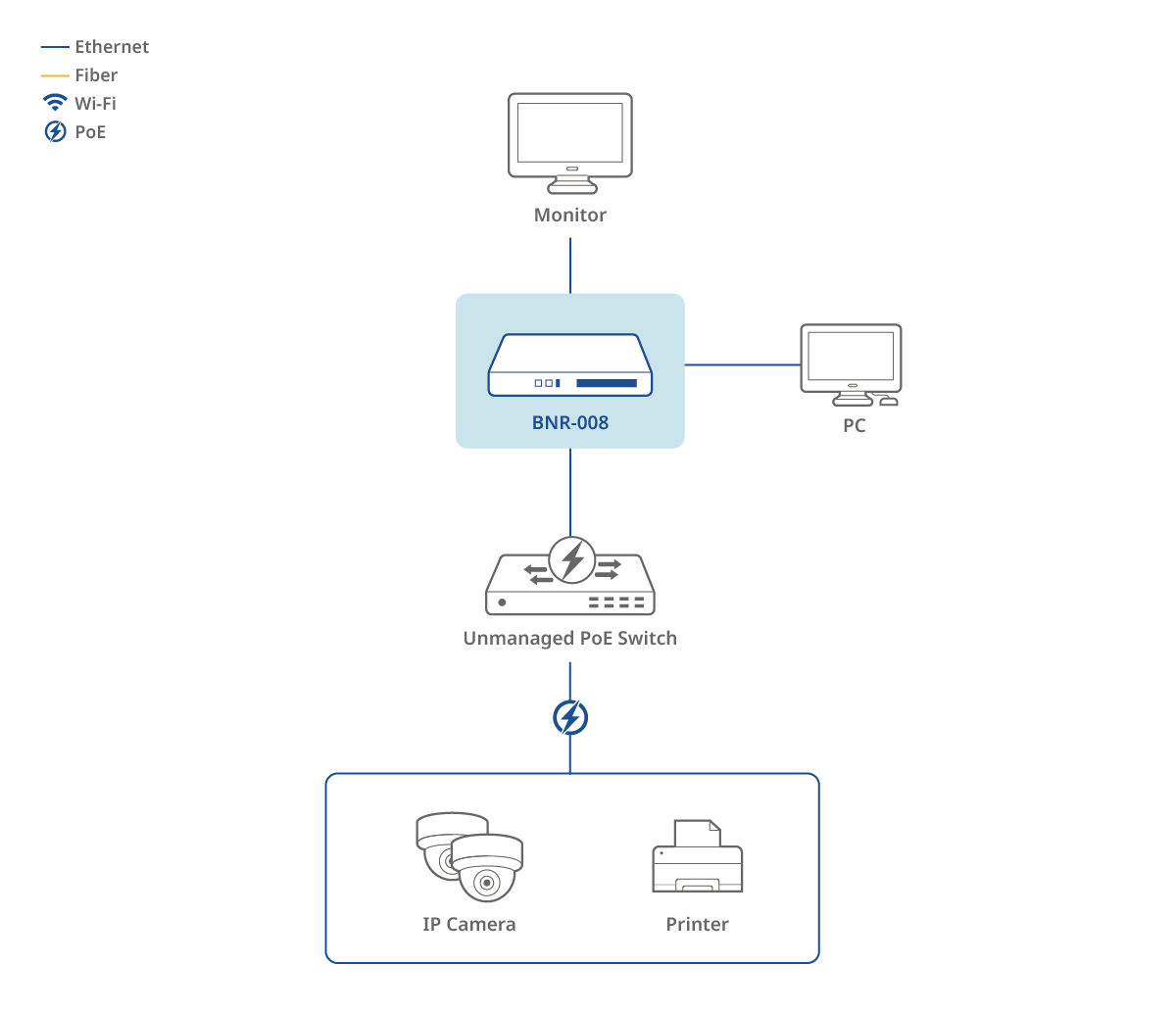

Connection Diagram
The BNR-008 serves as the backbone in the surveillance ecosystem. By integrating seamlessly with PoE switches and IP cameras, it establishes a reliable foundation for continuous 24/7 recording and high-definition monitoring across the entire business.
Unmanaged Switch
IP Camera

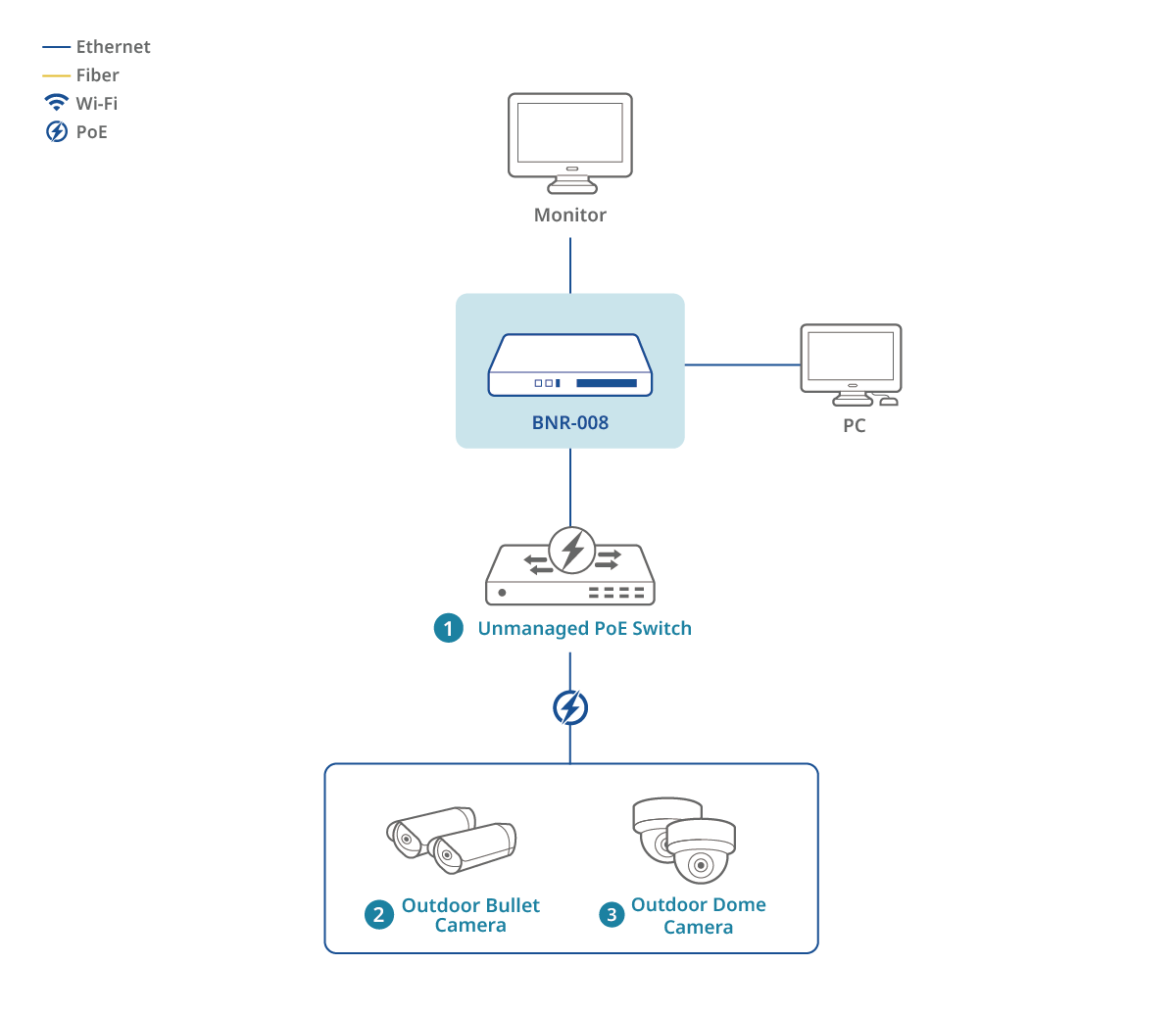

Cafe
User benefits :
- PoE support for power and data through a single cable.
- Clear Full HD video for reliable monitoring in various conditions.
- Intelligent video analysis for event monitoring and false alarms.
Learn more :

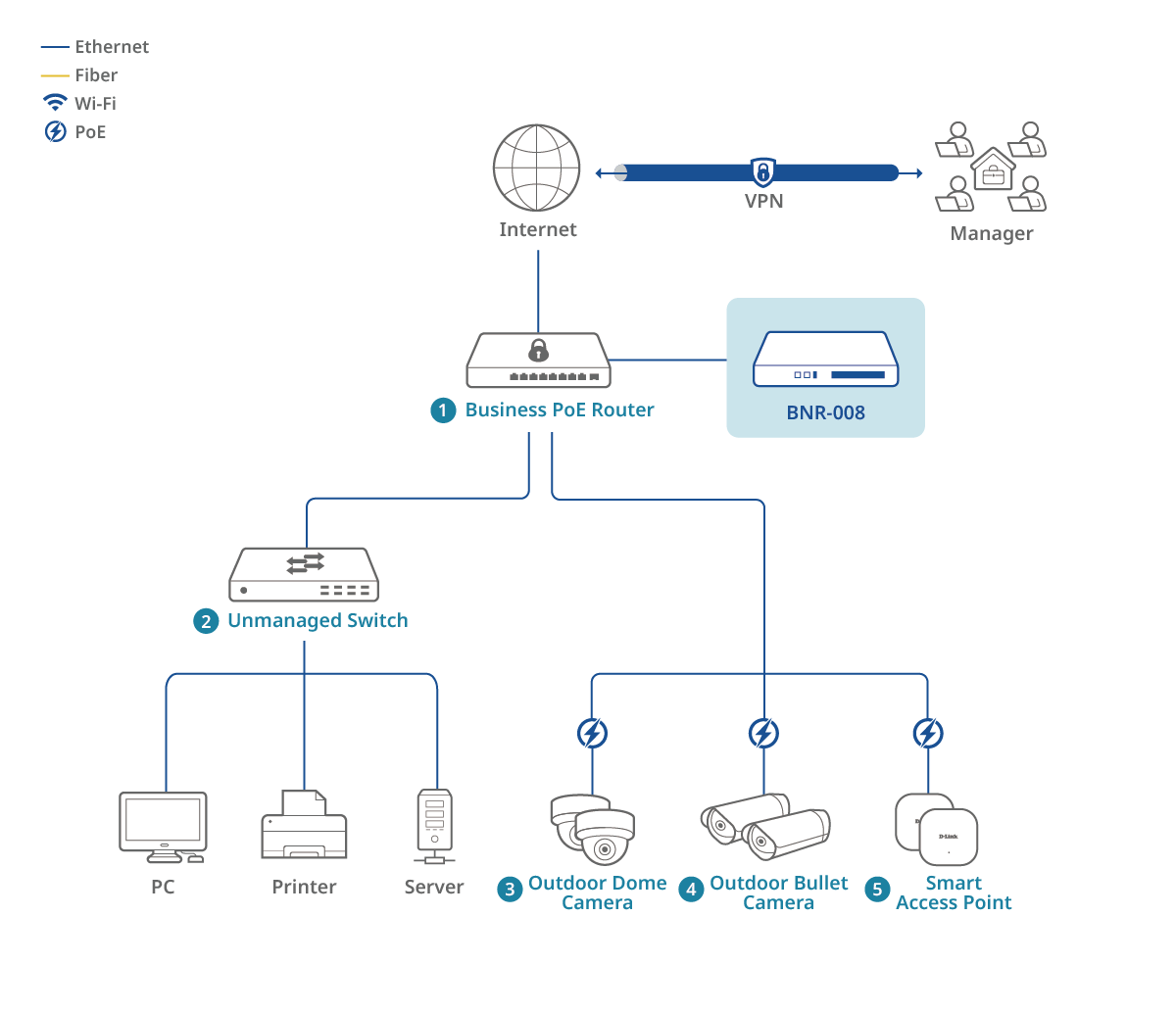

Small Office
- Stable on-site recording without internet dependency.
- Reliable PoE connectivity for remote camera access.
- Real-time video streaming for instant response.
Learn more :
- Business PoE Router : DBR-600P
- Unmanaged Switch : DMS-108
- Outdoor Dome Camera : BCD-P01
- Outdoor Bullet Camera : BCB-P01
- Smart Access Point : DBR-X3000-AP
Specs
|
Standards
|
IEEE 802.3x/u Auto MDI/MDI-X SATA I/II/III |
|---|---|
|
HDD Bay
|
1 |
|
Maximum HDD Capacity
|
Up to 8 TB |
|
Reset Button
|
Reset through web GUI |
|
Interfaces
|
1 x Fast Ethernet port (10/100 Mbps) |
|
I/O Ports
|
1 x HDMI port (supports 1080P resolution) 1 x VGA (supports 1080P resolution) 1 x 10/100 Base-T RJ-45 port 2 x USB 2.0 ports |
|
Video Channel
|
8 |
|
Live View/Playback
|
HDMI port max output resolution: 1080P VGA port max output resolution: 1080P |
|
Decoding Capacity
|
1ch 8MP 8ch D1@30fps |
|
System Requirements for Web Interface
|
MS-Edge Chrome Opera |
|
Recording Performance
|
Max recording bitrate: 64 Mbps |
|
Compression Format
|
H.264 H.265 MJPEG |
|
Event Trigger from IP Camera
|
Motion detection Smart Motion - Person/vehicle detection Single Line-crossing detection Double Line-crossing detection Multi-Loitering detection Wrong-way detection Illegal parking detection People counting |
|
User Interface
|
Web browser Local Control HDMI/VGA |
|
Weight
|
0.62 kg (1.37 lb) (Not Include HDD) |
|
Power Input
|
12V DC/2A |
|
Power Consumption
|
< 10W (without HDD) |
|
Operating Temperature
|
-10 ˚C to 50 ˚C (14 ˚F to 122 ˚F) |
|
Storage Temperature
|
-10 ˚C to 50 ˚C (-14 ˚F to 122 ˚F) |
|
Humidity
|
Less than 90% RH (non-condensing) |
|
Dimensions
|
254.5 x 224.4 x 43.9 mm (10.02 x 8.83 x 1.73 in) |
