There's a new version of this product:
Routeur de services unifiés haute performance SSL (50 utilisateurs max.)

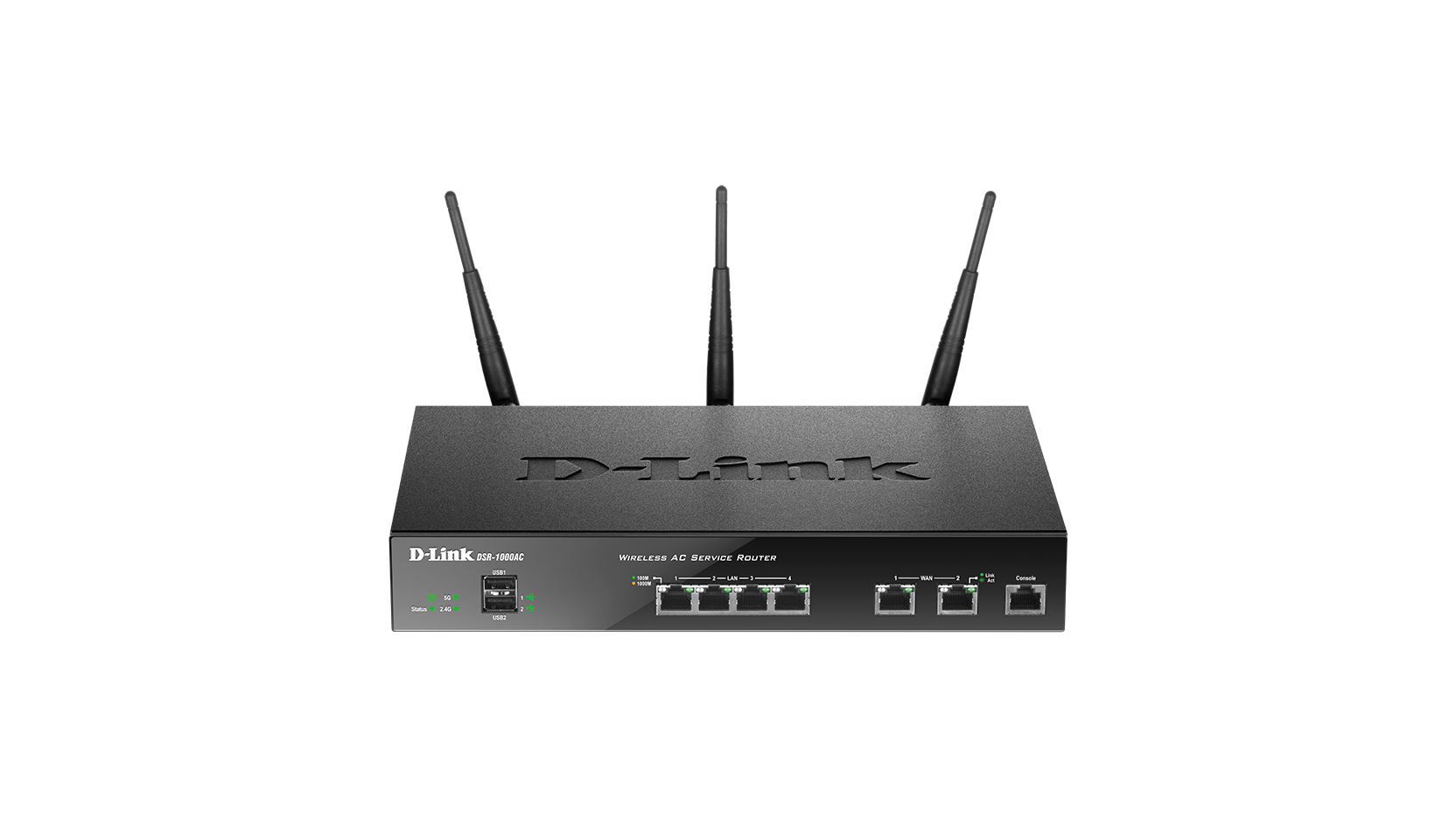

DSR-1000AC
See Newer ProductThere's a new version of this product:
DSR-1000AC
Routeur de services unifiés haute performance SSL (50 utilisateurs max.)
Présentation
Présentation
|
Type
|
VPN security router |
|---|---|
|
Mode de fréquence
|
Single-band |
|
Wireless speed
|
300 Mbps 2.4 GHz |
|
Advanced features
|
MIMO |
|
Types d'antennes
|
2 detachable omni-directional antennas |
|
Gaine de l'antenne
|
2 dBi for 2.4 GHz |
|
Interface filaire
|
1 x Gigabit Ethernet WAN 8 x Gigabit Ethernet LAN |
|
Ports USB
|
1 x USB 2.0 |
|
Console port
|
Supported
|
|
Extérieur/intérieur
|
Intérieur |
|
Wireless modes
|
Access Point (AP) |
|
Maximum number of SSIDs
|
4 |
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
Firewall throughput
|
750 Mbps |
|
VPN throughput (3DES)
|
50 Mbps |
|
Concurrent sessions
|
20000 |
|
Firewall policies
|
200 |
|
Internet connection type
|
Multiple PPPoE PPPoE/L2TP/PPTP Static/Dynamic IP |
|
Firewall system
|
Dynamic DNS Inter-VLAN route Intrusion prevention system (IPS) NAT, PAT Static route Web content filtering |
|
Networking
|
3G redundancy DHCP relay DHCP server/client IEEE802.1q VLAN IP multicast IPv6 VLAN (port-based) |
|
VPN tunnels
|
65 |
|
IPSec tunnels
|
25 |
|
PPTP/L2TP tunnels
|
5 |
|
Encryption methods
|
DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL RC4-128, 3DES, AES |
|
VPN features
|
Dead Peer Detection Hub and Spoke IP Authentication Header (AH) IP Encapsulating Security Payload (ESP) IPSec NAT Traversal IPSec/PPTP/L2TP Server VPN Tunnel Keep Alive |
|
Bandwidth management
|
Maximum bandwidth control Port-based QoS |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Type of housing
|
Metal |
