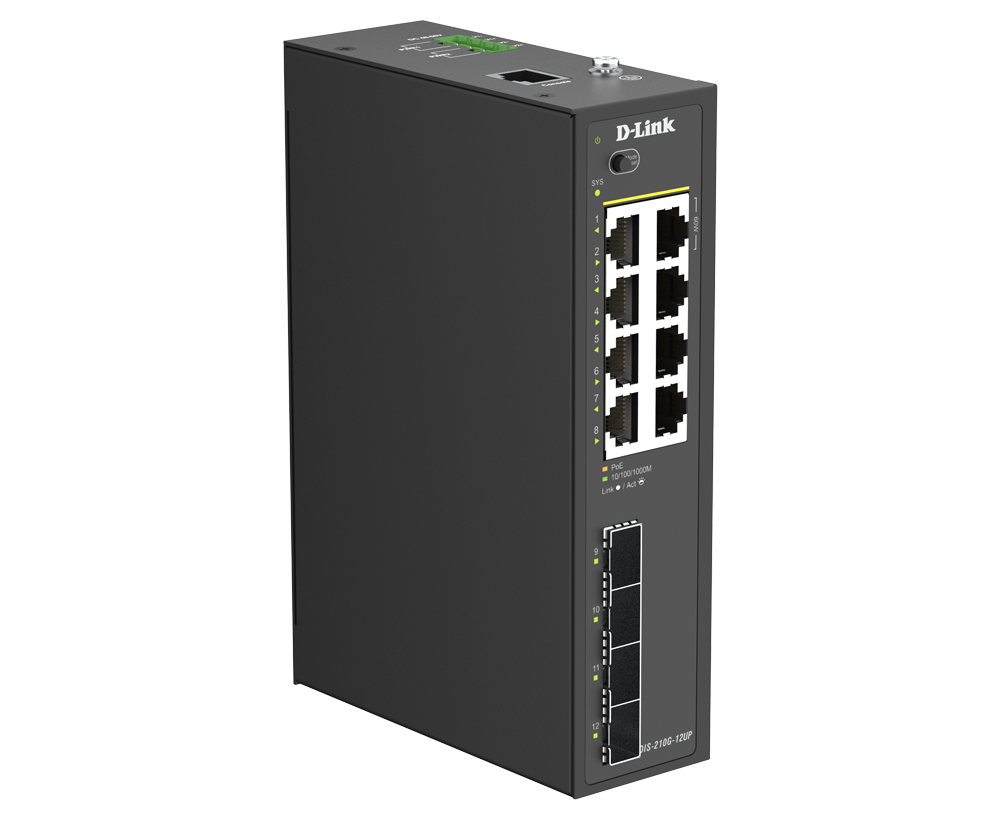

Industrial 2-Port 1G PoE++ + 6-Port 1G PoE+ + 4-Port 1G SFP Smart Switch
DIS-210G-12UP
- Statut produit (DIS-210G_Series_A1_Datasheet_v1.01_(WW)): Live
- 4 x 1G SFP ports for aggregated throughput
- 8 x Gigabit ports for fast data transmission
- IEEE 802.3af/at/bt with 240W PoE power budget
- Dual power inputs provide power redundancy
- -40°C to 75°C operation for harsh environments
- 6kV surge protection on Gigabit Ethernet ports
- Fanless and IP40-rated design enhances reliability
- Support Ethernet Ring Protection Switching (ERPS)
- Support L2 management and IP static routing
- Proactive OAM by Y.1731, 802.1ag, 802.3ah
Voir la liste de nos partenaires
Efficient, Resilient, and Agile
The DIS-210G-12UP comes with four 1G SFP ports to extend transmission distances, enabling seamless aggregation of smaller networks into a unified system. With static routing support, it boosts performance and simplifies management. By streamlining routing and improving overall efficiency, it enhances network resilience, helping IT professionals deliver more reliable, high-quality services.
High Power with PoE++
The DIS-210G-12UP is equipped with eight PoE ports compliant with IEEE 802.3af/at/bt standards, delivering both data and power through a single Ethernet cable.
With a total power budget of up to 240W, ports 1 and 2 can supply up to 60W each, while the remaining ports supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.

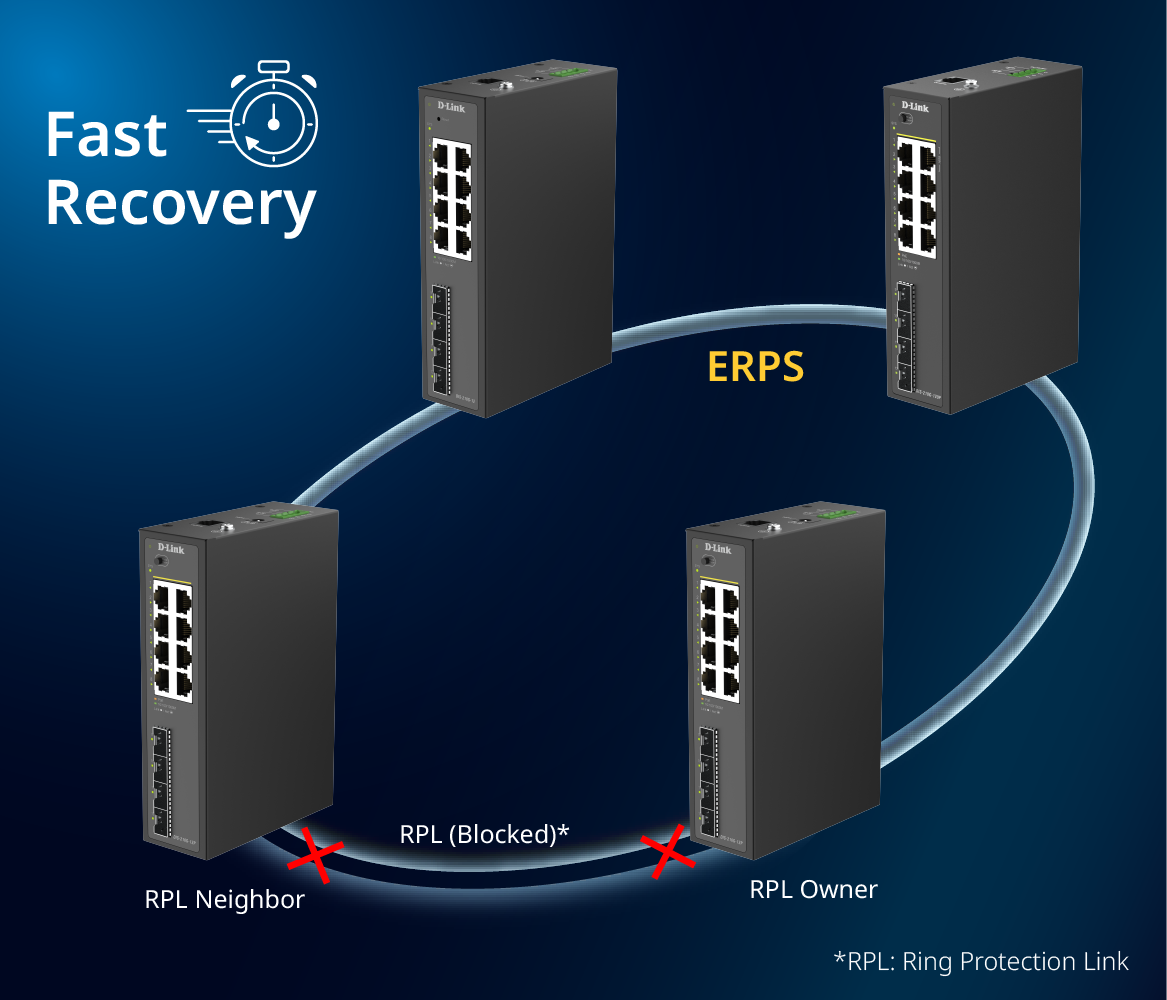

Fast Recovery, Continuous Service
The DIS-210G-12UP combines ERPSv1/v2 and Operations, Administration, and Maintenance (OAM) to deliver a highly resilient and easy-to-manage network. ERPS ensures redundant backup paths, preventing loops and providing rapid failover with fault recovery as fast as 50ms. OAM includes a function set (Y.1731, 802.1ag, 802.3ah) that continuously monitors physical connections and virtual circuits, helping network administrators quickly identify issues. Together, these features enhance network reliability, minimize downtime, and maintain a consistent, high-quality service experience.

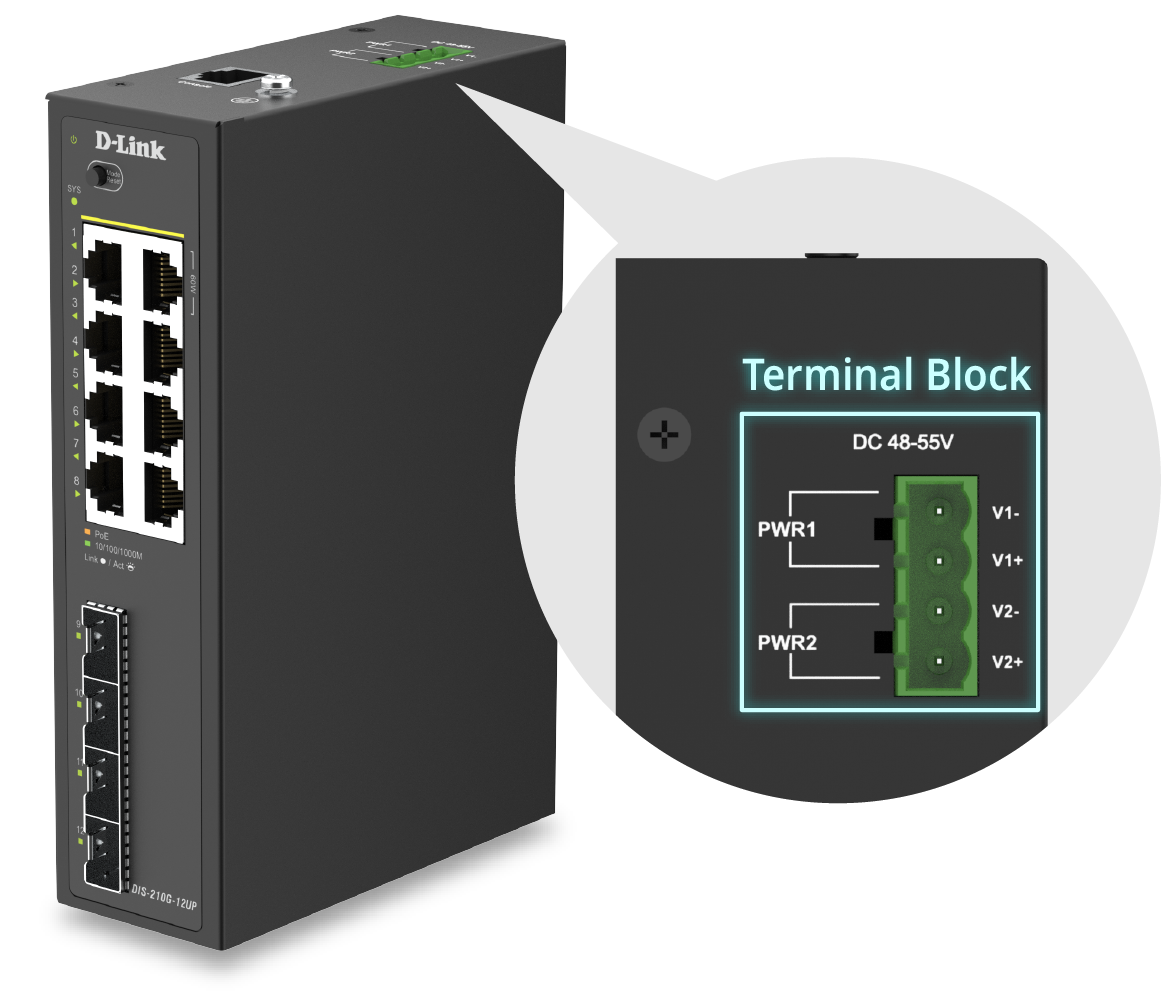

Uninterrupted Power Redundancy

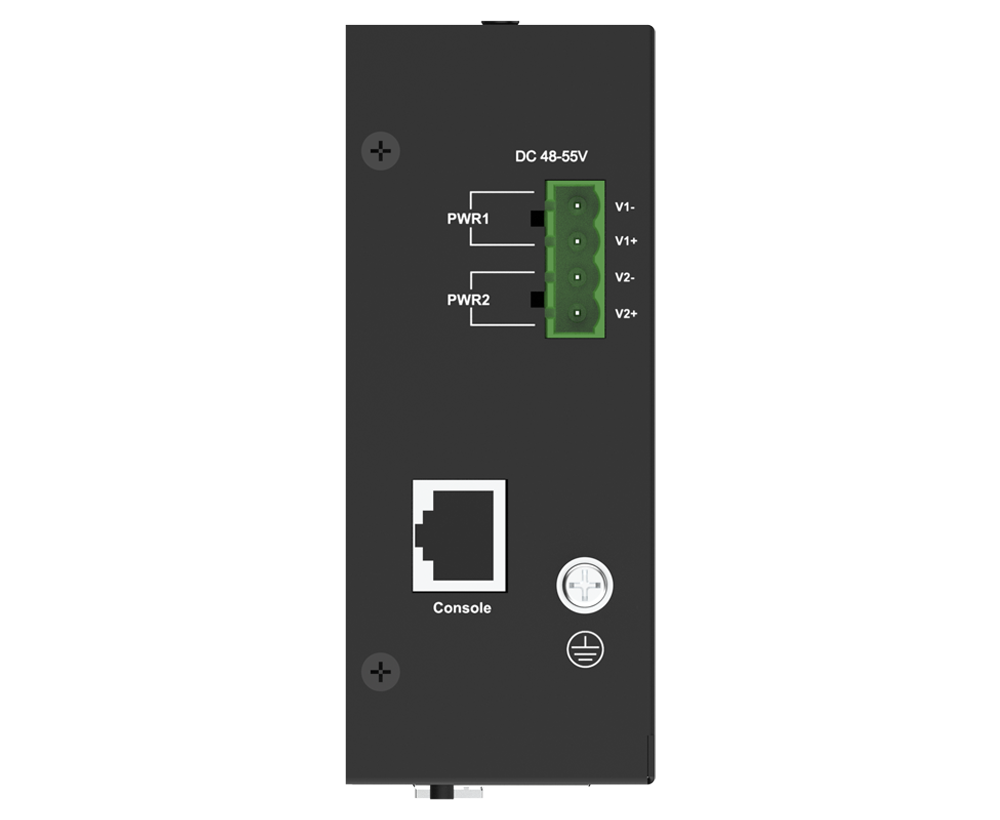

The DIS-210G-12UP supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimizes shutdown risk and maintains network performance.
RedundancyPower Supply
OvercurrentProtection
Anti-reverseProtection
FirmConnection

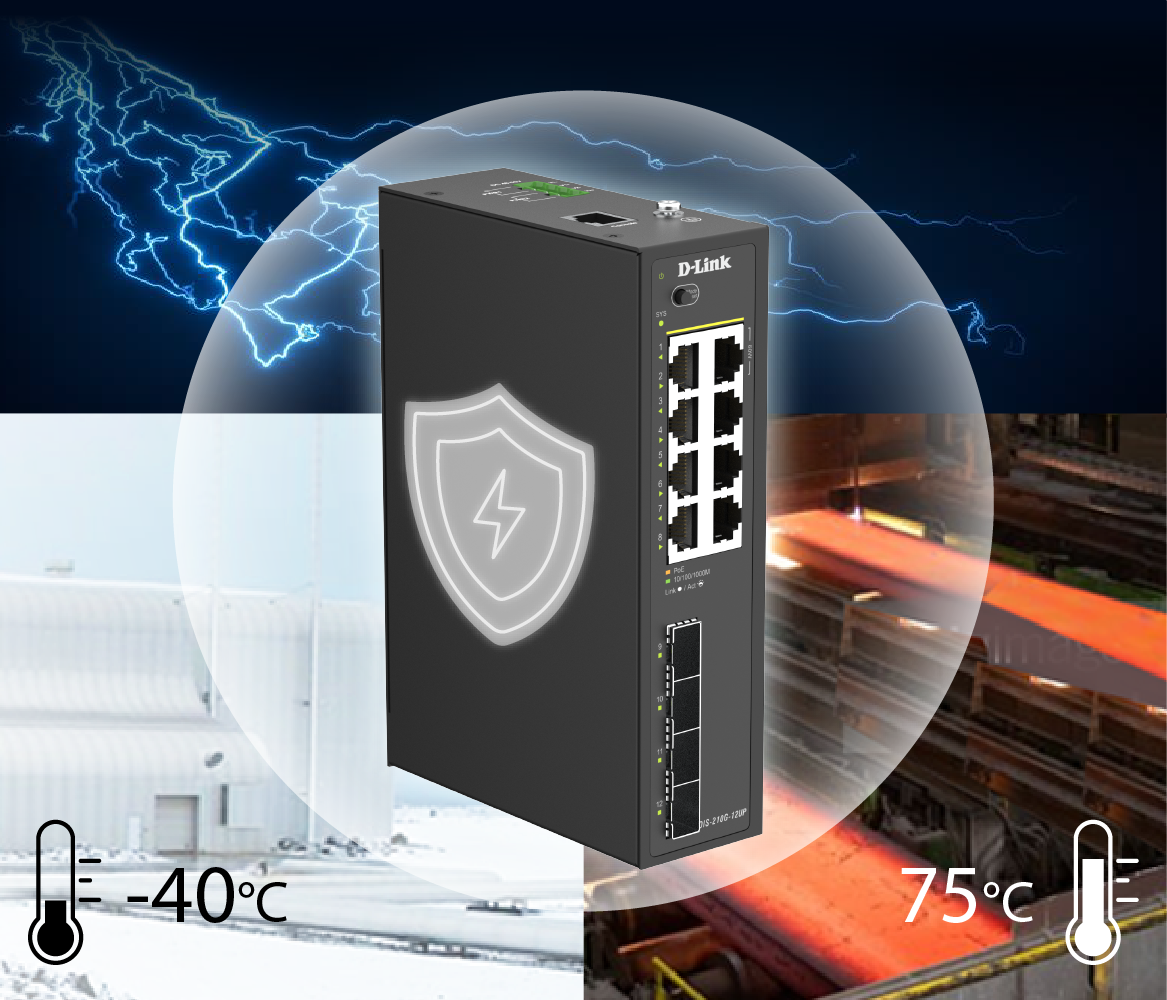

Built Tough for Demanding Conditions
The DIS-210G-12UP is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
Produits apparentés

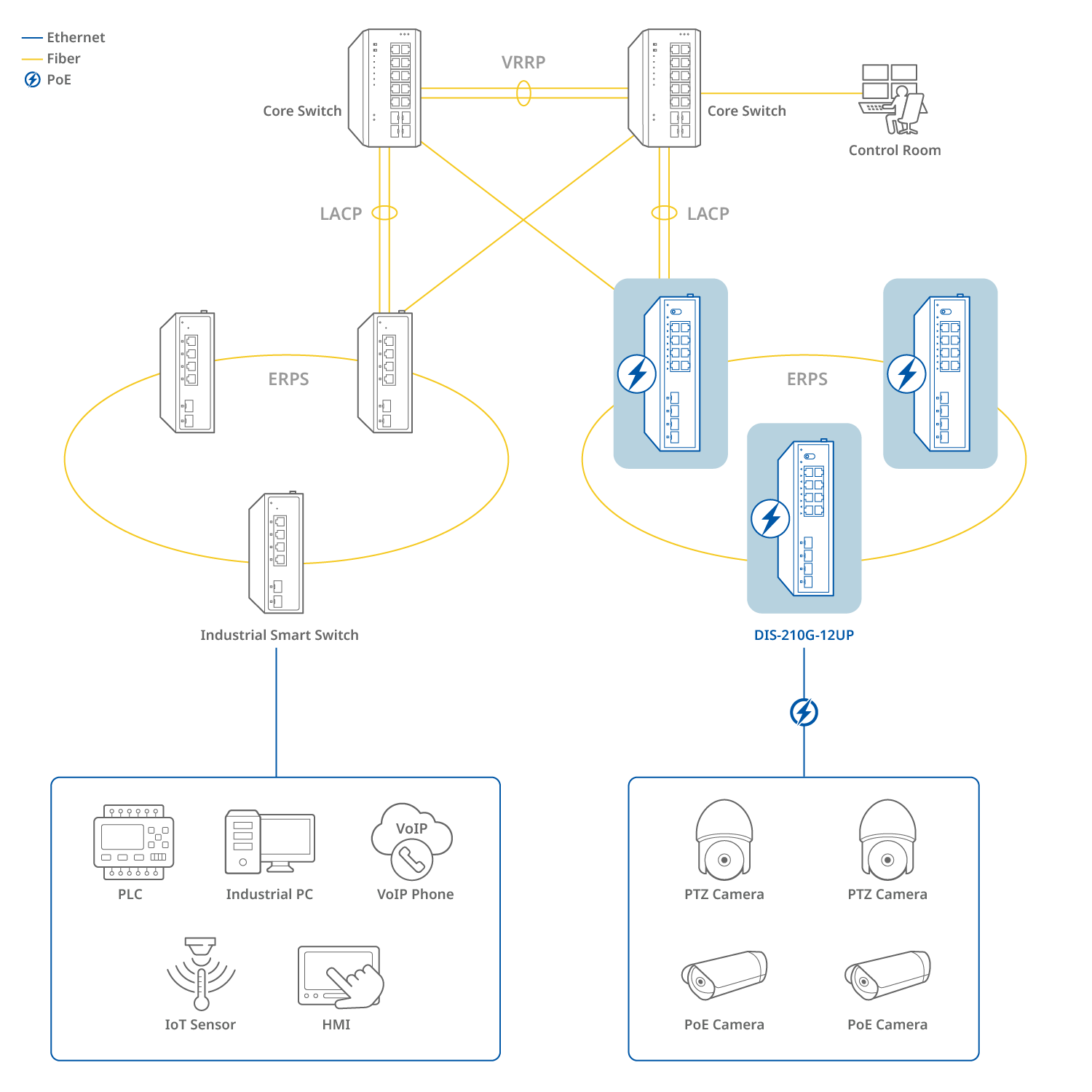

Connection Diagram
The DIS-210G-12UP is an industrial smart switch equipped with eight 1G ports and four 1G SFP ports for network management and aggregation. With a total power budget of up to 240W, six ports can supply up to 30W each, while two ports can supply up to 60W. The SFP ports support long-distance data transmission, rapid failover redundancy, and throughput aggregation. The DIS-210G-12UP supports ERPS and static routing, which reduces latency, enables effective traffic control, and improves network scalability and efficiency.
CoreSwitch
Industrial
Switch
Application

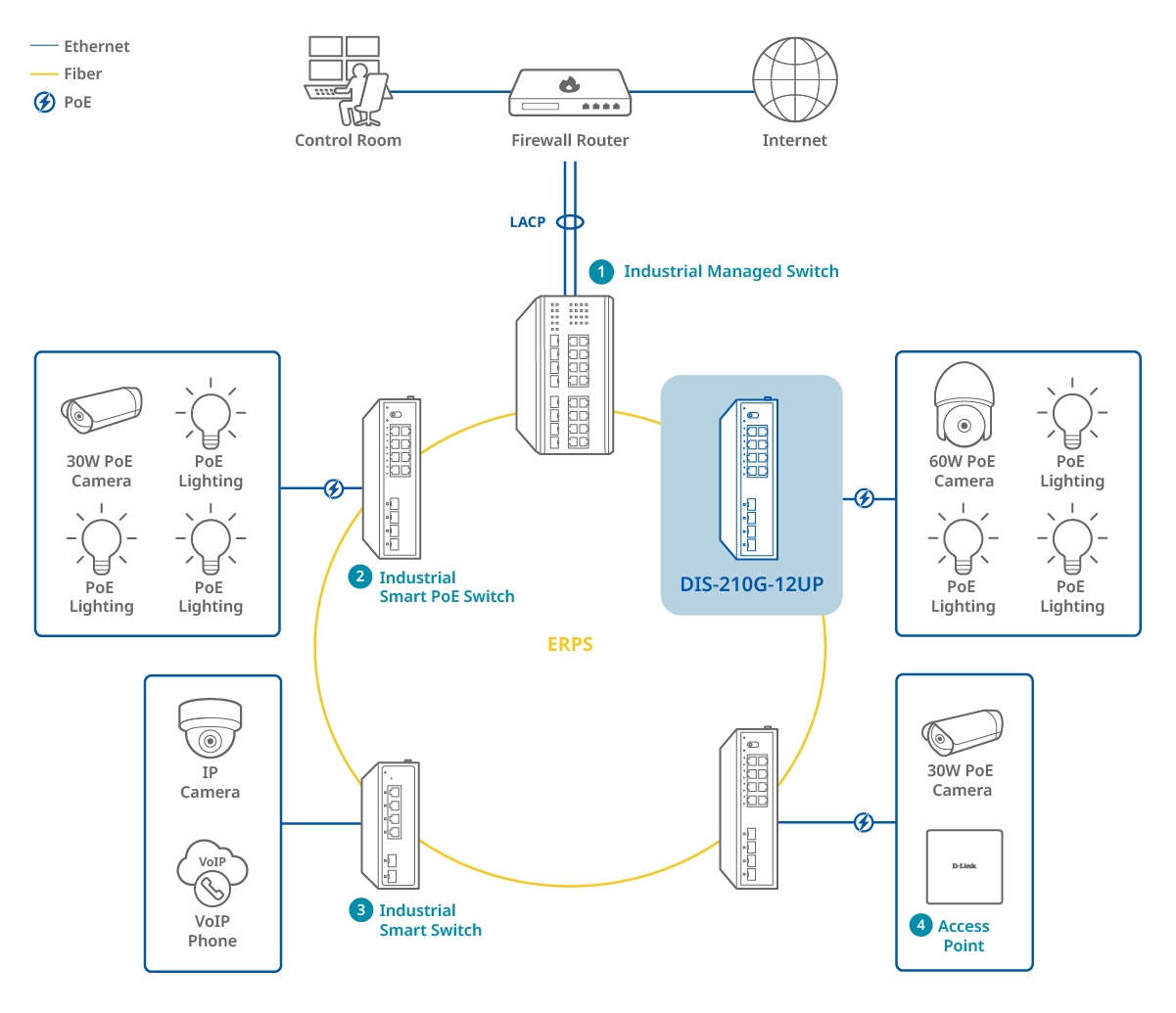

Industrial Automation
City Surveillance
Industrial Automation
User benefits :
- High-Power PoE simplifies multiple powered device installation
- Durable casing for an extreme and harsh factory environment
- ERPS ring ensures continuous monitoring even if a link fails
- Easy monitoring and maintenance through smart management
Learn more :
- Industrial Managed Switch : DIS-310G-24X (Coming Soon)

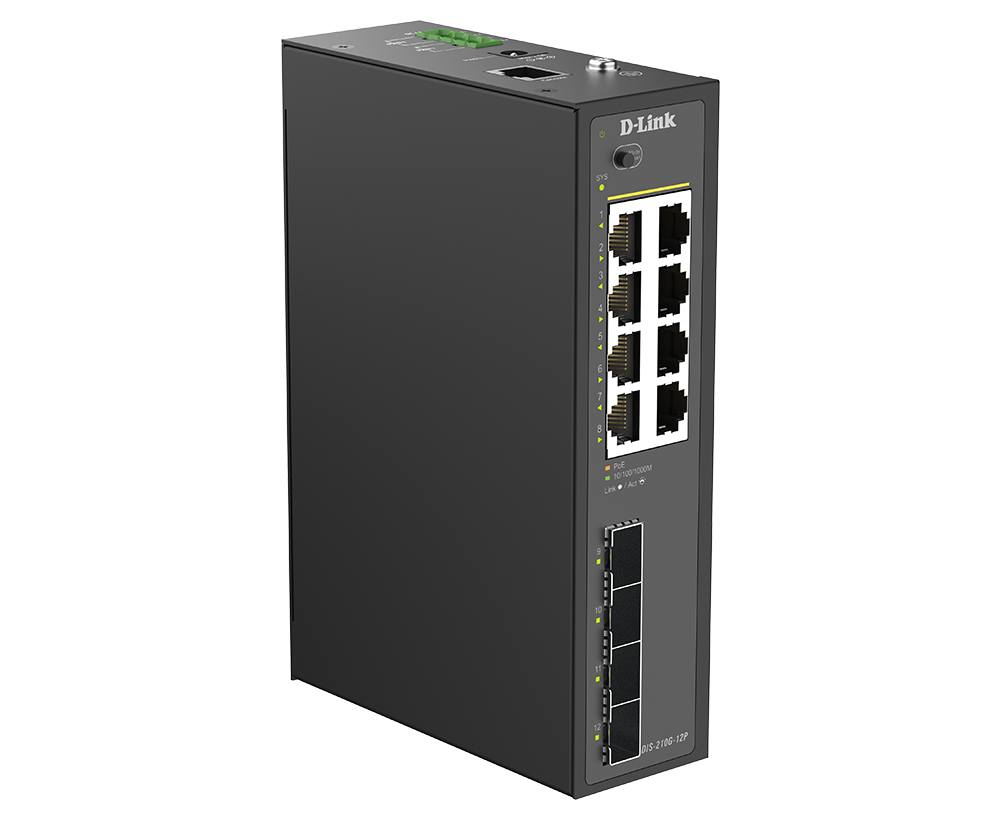

- Industrial Smart PoE Switch : DIS-210G-12P

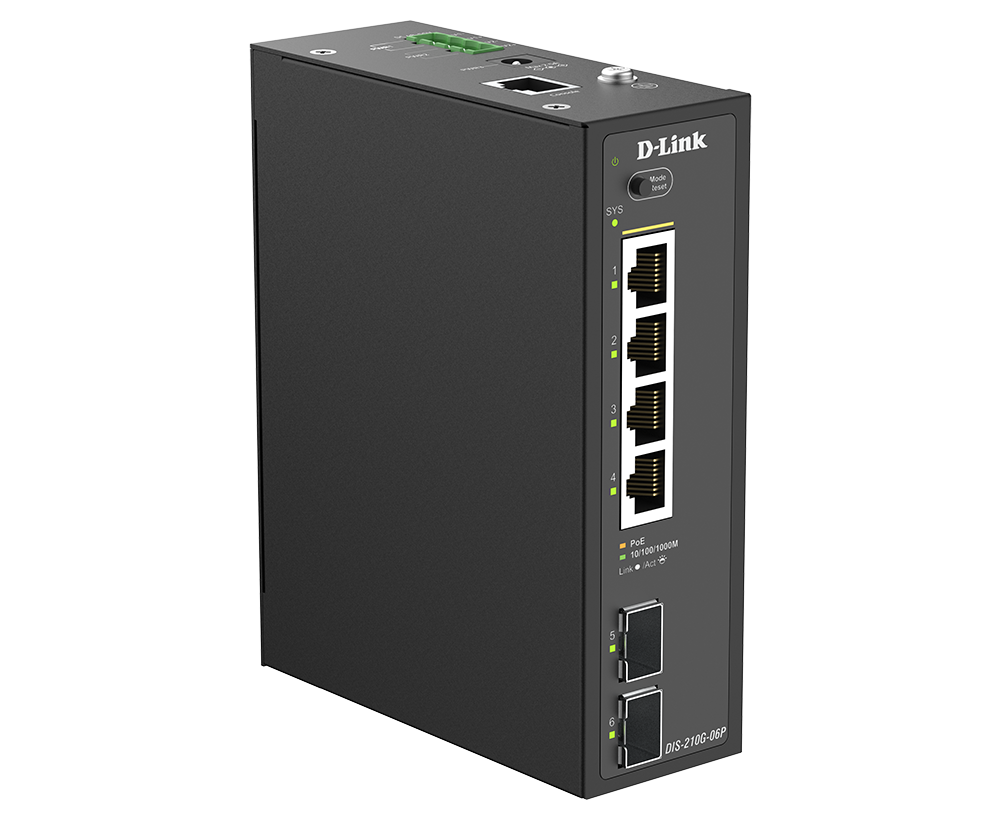

- Industrial Smart Switch :DIS-210G-06
- Access Point : DAP-X3060
City Surveillance
User benefits :
- Power more devices with up to 60W PoE per port
- IP40 & 6kV surge protection for reliable operation
- ERPS ring ensures continuous monitoring even if a link fails
- Smart management for simple and efficient control
Learn more :
- Industrial Managed Switch : DIS-310G-24X (Coming Soon)
- Industrial Smart Switch : DIS-210G-06
- Industrial Smart Switch : DIS-210G-12
- Access Point : DAP-X3060OU
Specification
|
Type of Uplink Ports
|
1G SFP |
|---|---|
|
Number of Gigabit Ports
|
8 |
|
Switching Capacity
|
24 Gbps |
|
PoE Power Budget
|
240 W |
|
Number of PoE Ports
|
8 |
|
Fanless
|
Supported
|
|
802.3az EEE
|
Supported
|
|
Surge Protection
|
6kV |
|
Ingress Protection
|
IP40 |
|
Jumbo Frame
|
9K |
|
Power Supply Type
|
DC:48~55V Dual input |
|
Operating Temperature
|
-40°-75°C |
|
MAC Address
|
Up to 8K |
|
802.1D STP, 802.1w RSTP, 802.1s MSTP
|
Supported
|
|
Port/VLAN Basis GVRP
|
Supported
|
|
Voice VLAN
|
Supported
|
|
IPv6 Support
|
Supported
|
|
Number of Queues per Port
|
Supported
|
|
ACL Ingress
|
Supported
|
|
SSL, IP-MAC-Port Binding (IMPB), ARP Spoofing, BPDU Attack Protection
|
Supported
|
|
802.1X, RADIUS
|
Supported
|
|
SNMP (v1/v2c/v3), RMON v1/ v2
|
Supported
|
|
LLDP, LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
|
OAM by 802.3ah, 802.1ag, ITU-T Y.1731
|
Supported
|
|
Command Line Interface (CLI)
|
Supported
|
|
Console Port
|
RJ-45 console port |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
