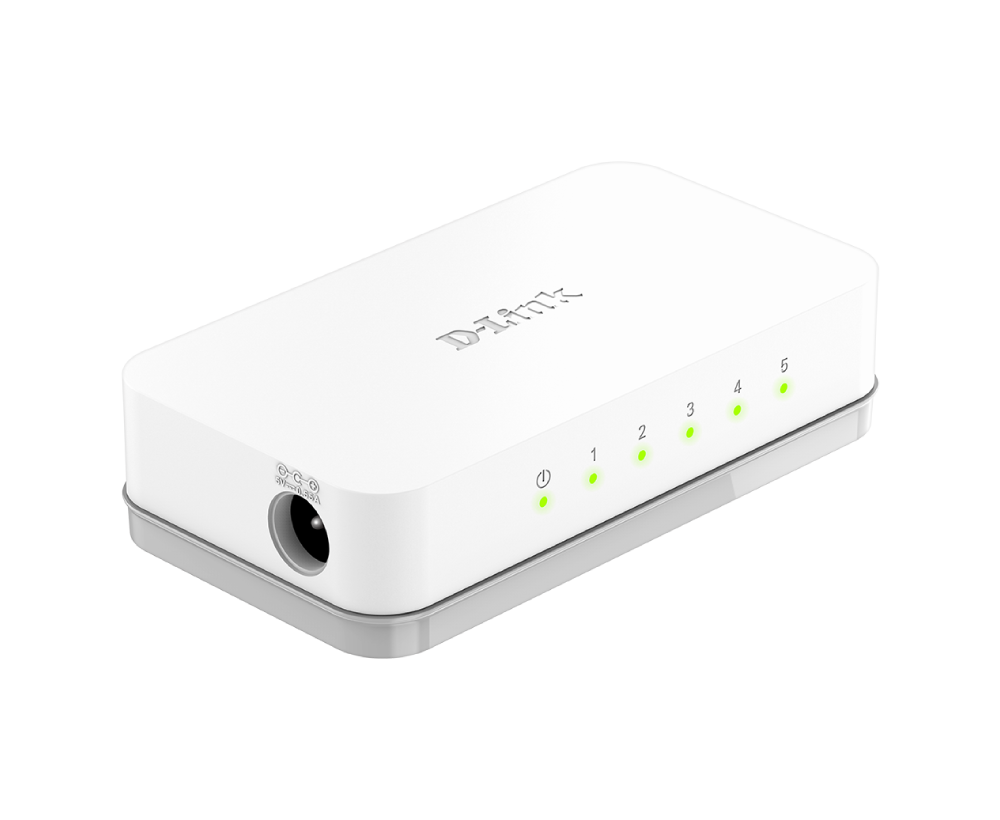

5-Port Fast Ethernet Unmanaged Switch

DES-1005A

  • Statut produit (G1_v100WW): Live

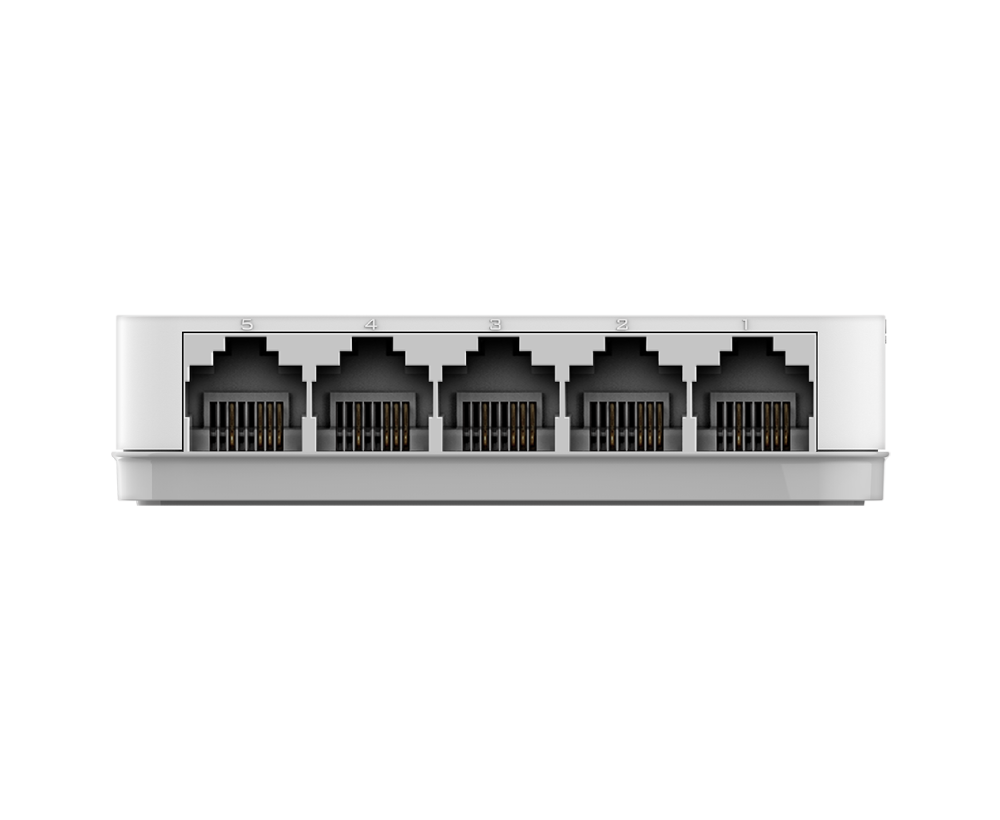

  • 5-Port Fast Ethernet LAN ports for high-speed wired connections
  • D-Link Green Technology features power-saving by link status
  • Auto-sensing ports automatically detect network connections and adjust accordingly

Télécharger Fiche technique

Voir la liste de nos partenaires

Wired Network Setup Made Faster

The DES-1005A 5-port 10/100 Mbps switch allows you to quickly set up a wired network. Use the DES-1005A to connect multiple computers together to share files and folders or connect it to a router to share an Internet connection.

Auto-Negotiation 10/100 Mbps

The D-Link DES-1005A uses auto-negotiation 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network.

These ports detect the network speed and auto-negotiate between 10 BASE-T and 100 BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

Flow Control for Reliable Transmission

802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full. This gives you a more reliable connection for all of your connected devices, ensuring a smooth and uninterrupted network connection.

Produits apparentés

8-Port Fast Ethernet Unmanaged Switch
DES-1008A
En savoir plus
Acoustic
0 dB
Auto MDI/MDIX
Yes
Comply with RoHS 6
Yes
802.3x Flow Control
Supported
Dimensions
87 x 47 x 21 mm
FAN
Fanless
Interfaces
5 x 100Base-TX
MAC Address Table Size
1,024
Max. Packet Forwarding Rate
0.74 Mpps
Maximum Heat Dissipation
3.75 BTU/h
Max Power Consumption
1.1 W
MTBF
1,405,335 hours
Operating Humidity
10% ~ 90% RH
Operating Temperature
0 ~ 40 °C
Packet Buffer Size
0.06 MB
Power Input
EU/DI regions : 200-240V
NA/TW/JP regions : 100-240V
Storage Humidity
5% - 95% RH
Storage Temperature
-40° ~ 70°C
Store & Forwarding Forwading
Yes
Switching Capacity
1 Gbps
Weight
0.043 kg
