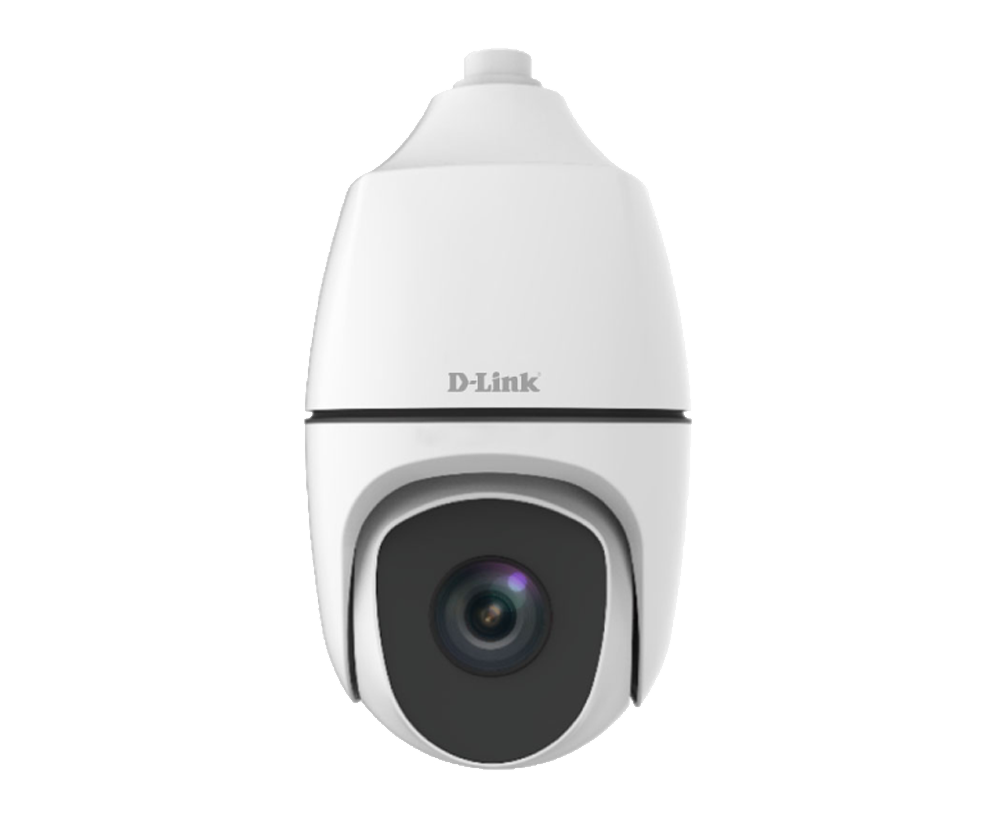

2MP 30X DAY & NIGHT PTZ DOME CAMERA
DCS-F5830
-
Statut produit (Revision Datasheet ME): Live
- 30X Optical Zoom
- Accurate and fast focusing
- Smart IR, up to 150 m (492ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 120dB true WDR
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- Customized OSD
- ONVIF Conformance
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface
Télécharger Fiche technique
Voir la liste de nos partenaires
| Product Description |
2MP 30X DAY & NIGHT PTZ DOME CAMERA |
| Camera Type |
Dome |
| Video Compression |
H.265, H.264, MJPEG |
| Max. Resolution |
2 Megapixel |
| Max. Frame |
1920×1080:Max. 30 fps |
| Image Sensor |
1/2.8", progressive scan,2.0megapixel, CMOS |
| Day & Night (Illumination Range) |
Day & Night (150 Meters) |
| Lens |
AF automatic focusing and motorized zoom lens |
| Focal Length |
4.5 ~ 135 mm |
| Angle of View (Horizontal / Vertical) |
71.7°~ 2.4°(H)43.4°~1.3° (V) 88.2°~2.8°(D) |
| Mechanical PTZ |
No |
| Audio |
Two-way audio Supported |
| Audio Codec |
No |
| Storage Card Slot |
Yes |
| Digital Input / Digital Output |
No |
| Vandal proof |
No |
| Indoor / Outdoor |
Outdoor (IP67) |
| Power Input |
24 V AC±25%, 24 V DC±25% |
| Power over Ethernet (PoE) |
PoE (PSE Required) |
| Max. Power Consumption |
9 ~ 42W |
| Dimension (W x D x H) |
Ø227x359.4 mm (Ø8.9” x 14.2”) |
| Net Weight |
5.28 kg (11.6lb) |
| Operating Temperature |
-40°C ~ 65°C (-40°F ~ 149°F) |
