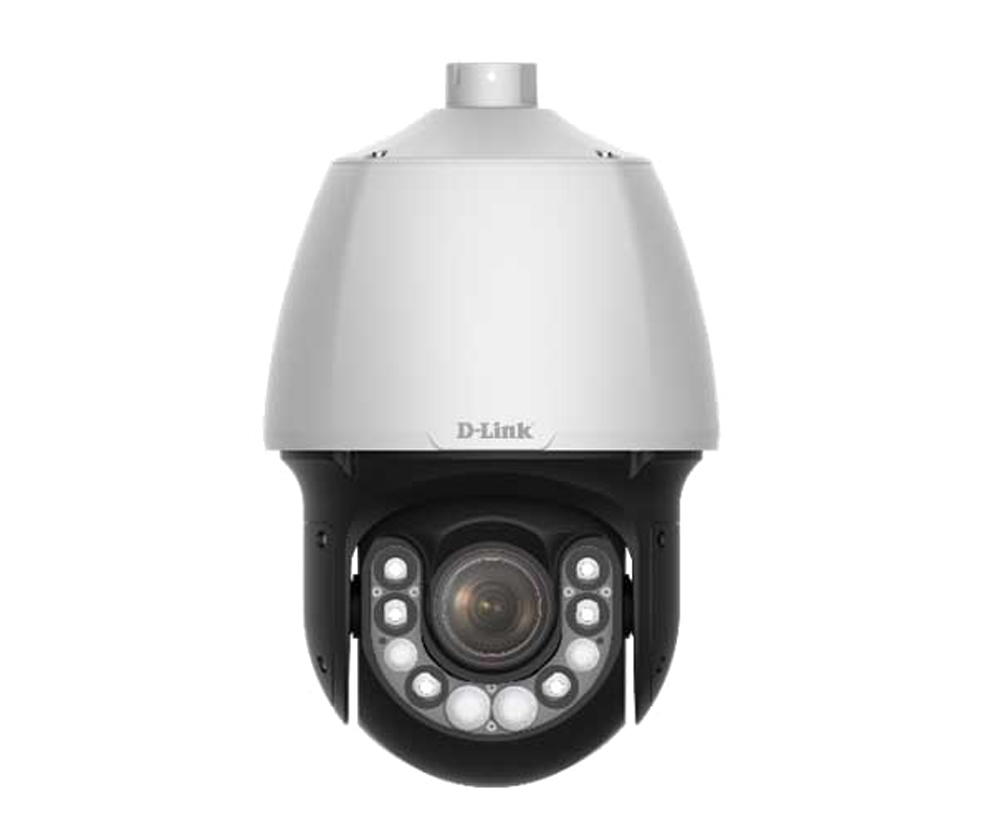

2MP 22x Starlight Network Full Spectrum PTZ Dome Camera
DCS-F5822-SSL-P
- Statut produit (Revision Datasheet ME): Live
Optics
- Starlight illumination
- Accurate and fast focusing
- Full spectrum light with both white and infrared LED design
- Smart IR, up to 200m (656ft) IR distance
- Up to 120dB WDR (Wide Dynamic Range)
- While Light, up to 30m (98ft)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 1080P@60fps Supported
Network
- ONVIF Conformance
Structure
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6KV surge protection designed for network interface
Voir la liste de nos partenaires
Specification
| Product Description | 2MP 22x Starlight Network Full Spectrum PTZ Dome Camera |
|---|---|
| Camera Type | Dome |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Max. Resolution | 2MP |
| Max. Frame | 2MP (1920*1080), Max 60fps |
| Image Sensor | 1/1.8", 2.0 megapixel, progressive scan, CMOS |
| Day & Night (Illumination Range) | Colour: 0.0005Lux (F1.5, AGC ON)0Lux with IR on |
| Lens | AF automatic focusing and motorized zoom lens |
| Focal Length | 6.5 ~ 143 mm, |
| Aperture (F no. ) | AF automatic focusing |
| Angle of View (Horizontal / Vertical) | 57.2° ~ 3.3° (H)38.4° ~ 1.3° (V) 70.4° ~ 3.9° (D) |
| Mechanical PTZ | No |
| Audio | Two-way audio Supported |
| Audio Codec | No |
| Storage Card Slot | Yes |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | Outdoor (IP67) |
| Power Input | AC 24V (Default)±25%, DC 24V±25% |
| Power over Ethernet (PoE) | (IEEE 802.3bt) (IEEE802.3bt switch ) |
| Max. Power Consumption | 12 ~ 46W |
| Dimension (W x D x H) | Ø227 x 359.4mm (Ø8.9” x 14.2”) |
| Net Weight | 5.4kg (11.9lb) |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
