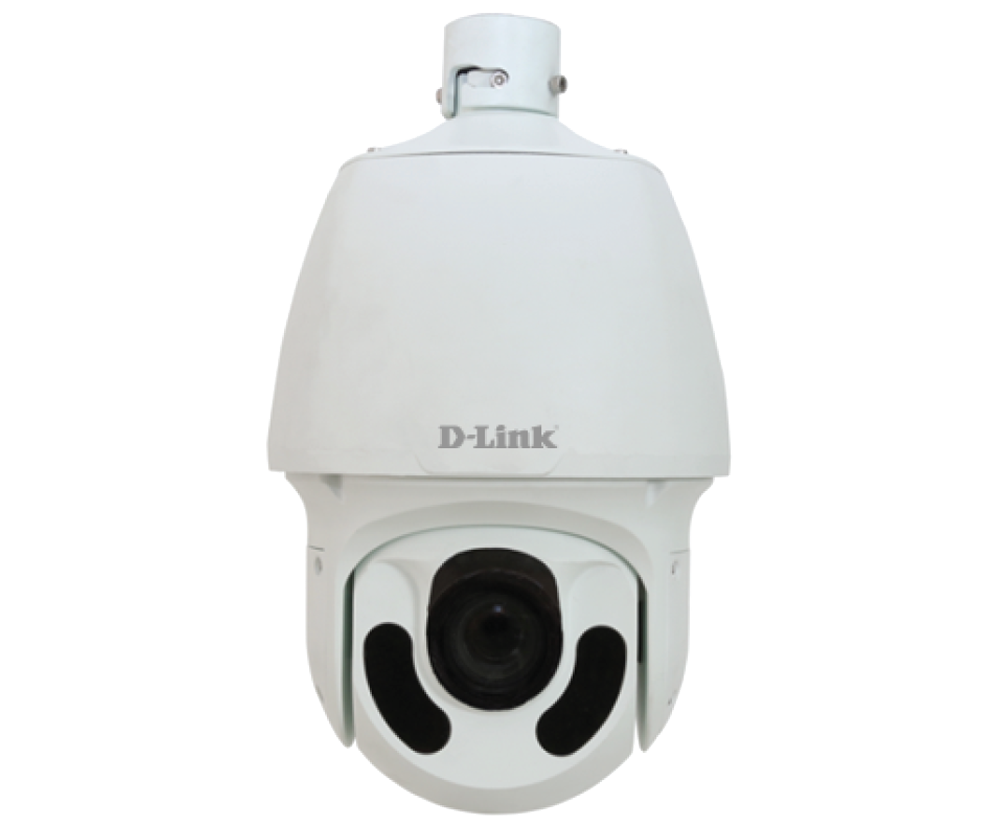

2MP 20X DAY & NIGHT PTZ DOME CAMERA
DCS-F5820
- Statut produit (Revision Datasheet ME): Live
Optics
- Accurate and fast focusing
- The third-generation infrared technology
- Smart IR, up to 150 m (492ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 120dB true WDR
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Special structure and window design tobattlebad weather (especially in dusty weather)
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface
Voir la liste de nos partenaires
Specification
| Product Description | 2MP 20X DAY & NIGHT PTZ DOME CAMERA |
|---|---|
| Camera Type | Dome |
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| Max. Resolution | 2 Megapixel |
| Max. Frame | 2MP (1920×1080):Max. 30 fps |
| Image Sensor | 1/2.8", progressive scan, 2.0megapixel, CMOS |
| Day & Night (Illumination Range) | Day & Night (150 m) |
| Lens | Manual Zoom Lens |
| Focal Length | 5.2 ~ 104 mm |
| Aperture (F no. ) | AF automatic focusing and motorized zoom lens |
| Angle of View (Horizontal / Vertical) | 60.2°~ 3.0°(H) 38.6° ~2.0° (V)79.5° ~4.2° (D) |
| Mechanical PTZ | No |
| Audio | No |
| Audio Codec | No |
| Storage Card Slot | Yes |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | IP67 |
| Power Input | 24 V AC±25%, 24 V DC±25% |
| Power over Ethernet (PoE) | PSE Required |
| Max. Power Consumption | 9 ~ 42W |
| Dimension (W x D x H) | Ø227x359.4 mm (Ø8.9” x 14.2”) |
| Net Weight | 5.28 kg (11.6lb) |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
