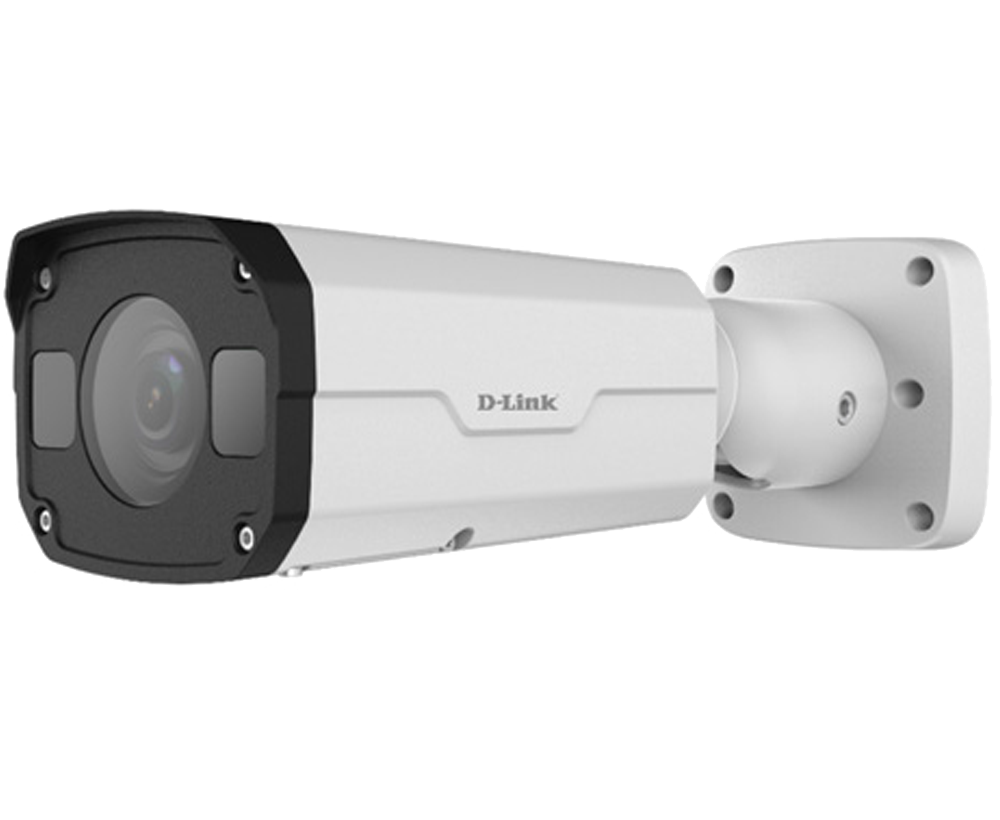

4MP DAY & NIGHT MOTORIZED VARI-FOCAL BULLET CAMERA
DCS-F5724
-
Statut produit (Revision Datasheet ME): Live
- Day/night functionality
- SmartIR, up to 30 m (98 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- ONVIF Conformance
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Télécharger Fiche technique
Voir la liste de nos partenaires
| Product Description |
4MP DAY & NIGHT MOTORIZED VARI-FOCAL BULLET CAMERA |
| Camera Type |
Dome |
| Video Compression |
H.265, H.264, MJPEG |
| Max. Resolution |
4 Megapixel |
| Max. Frame |
2048*1520: Max. 20fps |
| Image Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
| Day & Night (Illumination Range) |
Day & Night (30 Meters) |
| Lens |
motorized zoom lens |
| Focal Length |
2.8~12 mm |
| Angle of View (Horizontal / Vertical) |
91.0°~27°(H)54.4°~13.7° (V) 118.3°~33.2°(D) |
| Mechanical PTZ |
No |
| Audio |
No |
| Audio Codec |
No |
| Storage Card Slot |
Yes |
| Digital Input / Digital Output |
No |
| Vandal proof |
Yes (IK10) |
| Indoor / Outdoor |
Outdoor (IP67) |
| Power Input |
12 V DC±25% |
| Power over Ethernet (PoE) |
IEEE802.3 af |
| Max. Power Consumption |
Max 6.5W |
| Dimension (W x D x H) |
253.4×86×71.7mm(9.98”×3.4”×2.8”) |
| Net Weight |
1kg（2.2lb） |
| Operating Temperature |
-30°C ~ +60°C (-22°F ~ 140°F) |
