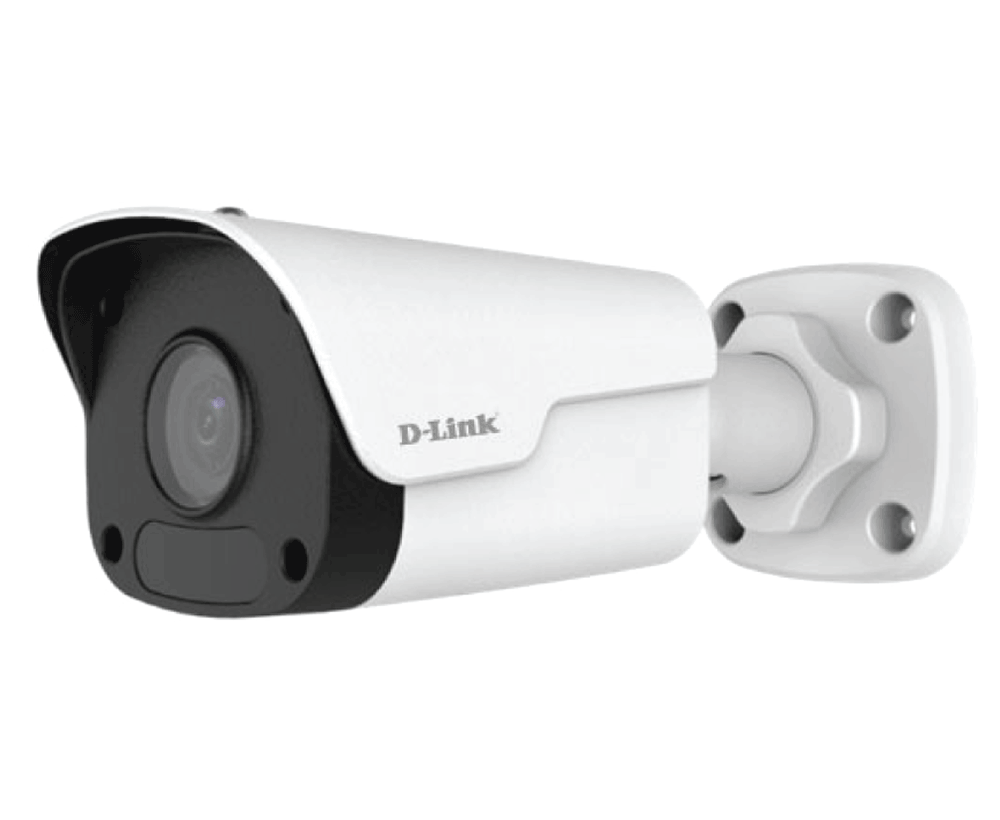

2MP DAY & NIGHT FIXED BULLET CAMERA
DCS-F5702
- Statut produit (Revision Datasheet ME): Live
Optics
- Day/night functionality
- SmartIR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Voir la liste de nos partenaires
Specification
| Product Description | 2MP DAY & NIGHT FIXED BULLET CAMERA |
|---|---|
| Camera Type | Dome |
| Video Compression | H.265, H.264, MJPEG |
| Max. Resolution | 2 Megapixel |
| Max. Frame | 1920*1080: Max. 25 fps |
| Image Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS |
| Day & Night (Illumination Range) | Day & Night (30 Meters) |
| Lens | Fixed Focal |
| Focal Length | 4.0mm |
| Aperture (F no. ) | F2.0 |
| Angle of View (Horizontal / Vertical) | 86.5°(H) 44.1°(V) 106.4°(D) |
| Mechanical PTZ | No |
| Audio | No |
| Audio Codec | No |
| Storage Card Slot | No |
| Digital Input / Digital Output | No |
| Indoor / Outdoor | Outdoor (IP67) |
| Power Input | 12 V DC±25%, |
| Power over Ethernet (PoE) | (IEEE802.3 af) |
| Max. Power Consumption | Max 4.5W |
| Dimension (W x D x H) | 167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”) |
| Net Weight | 0.37kg (0.81lb) |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ 140°F) |
