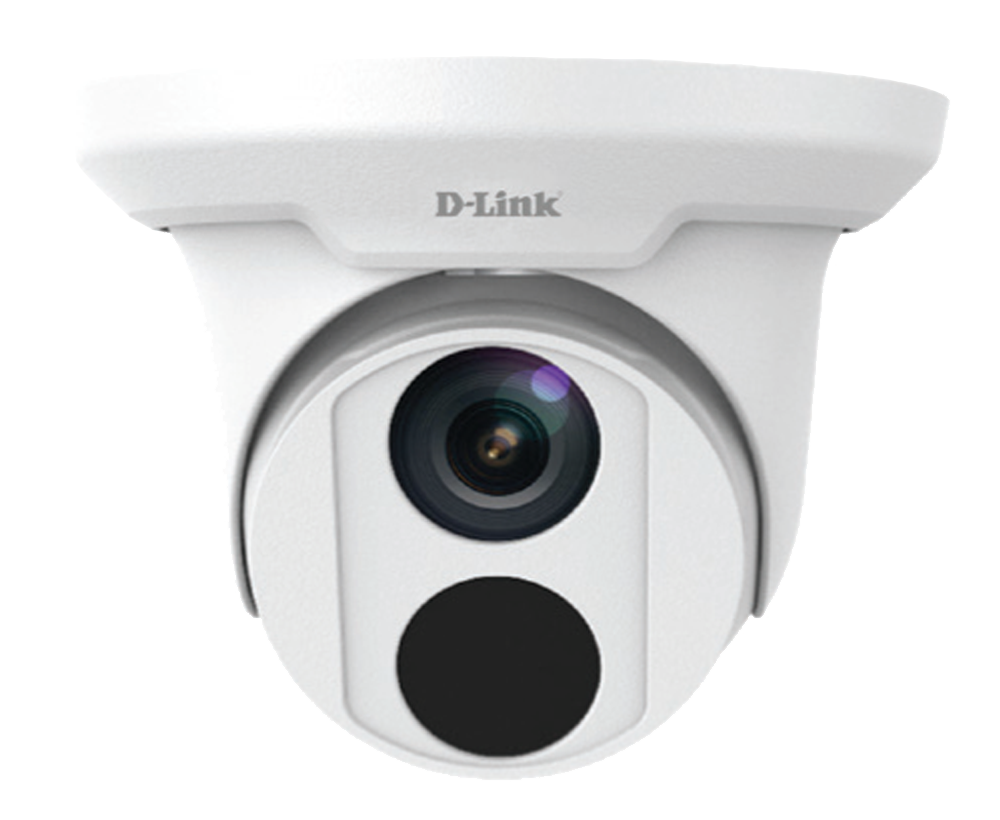

8MP NETWORK IR FIXED DOME CAMERA

DCS-F5608E

  • Statut produit (Revision Datasheet ME): Live

Optics

  • Day/night functionality
  • Smart IR , up to 30m (98ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Up to 120dB WDR (Wide Dynamic Range

Compression

  • Ultra 265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis

Télécharger Fiche technique

Voir la liste de nos partenaires

Specification

Télécharger Fiche technique

Product Description 8MP NETWORK IR FIXED DOME CAMERA
Camera Type Dome
Video Compression Ultra 265, H.264, MJPEG
Max. Resolution 8 Megapixel
Max. Frame 8MP (3840*2160), Max 20fps;
Image Sensor 1/2.5", 8.0 megapixel, progressive scan, CMOS
Day & Night (Illumination Range) IR-cut filter with auto switch (ICR)
Lens Fixed Focal
Focal Length 4.0mm
Aperture (F no. ) F2.0
Angle of View (Horizontal / Vertical) 91.6°(H)47.2° (V)112.7°(D)
Mechanical PTZ No
Audio Supported
Audio Codec No
Storage Card Slot Yes
Digital Input / Digital Output No
Vandal proof Yes (IK10)
Indoor / Outdoor Outdoor (IP67)
Power Input DC 12V±25%
Power over Ethernet (PoE) IEEE 802.3af
Max. Power Consumption Max 5.5W
Dimension (W x D x H) Φ126 x 94mm (Ø5.0” x 3.7”)
Net Weight 0.45kg (0.99lb)
Operating Temperature -30℃ ~ 60℃ (-22°F ~ 140°F)

Support

Version Date Type Taille de fichier
Datasheet - PDF 0.53mb Télécharger
