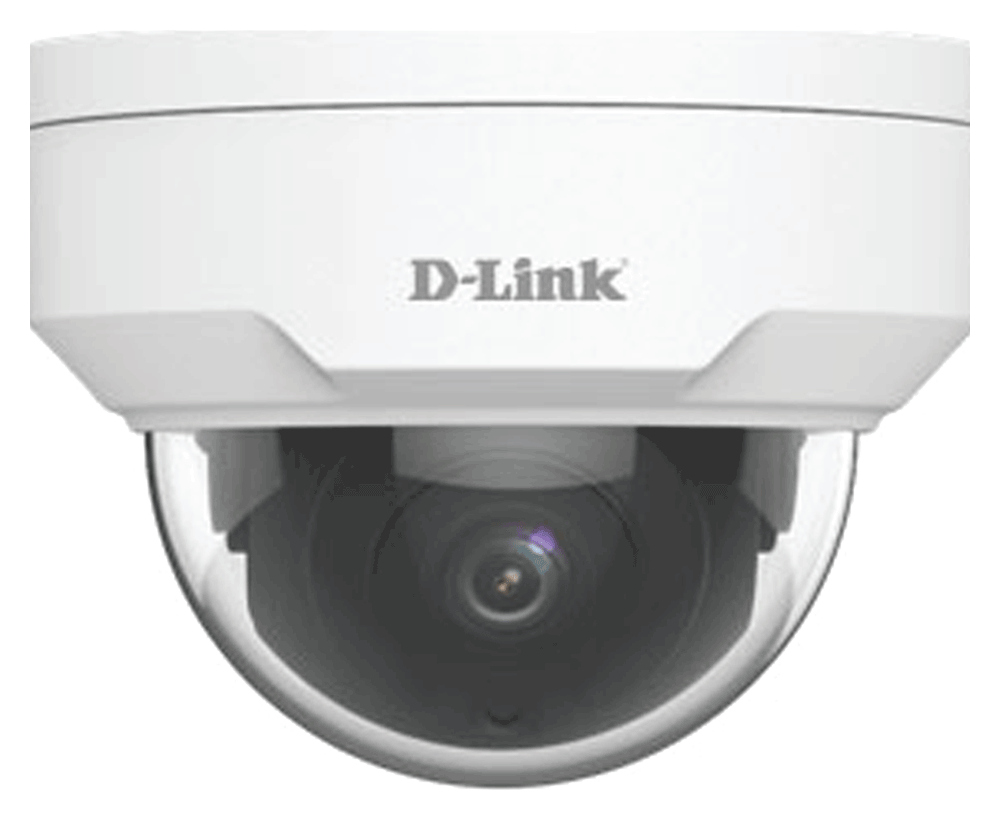

2MP DAY & NIGHT VANDAL PROOF FIXED DOME CAMERA
DCS-F5602
- Statut produit (Revision Datasheet ME): Live
Optics
- Day/night functionality
- SmartIR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
Voir la liste de nos partenaires
Specification
| Product Description | 2MP DAY & NIGHT VANDAL PROOF FIXED DOME CAMERA |
|---|---|
| Camera Type | Dome |
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| Max. Resolution | 2 Megapixel |
| Max. Frame | 1080P (1920*1080): Max. 25 fps |
| Image Sensor | 1/2.7", progressive scan, 2.0 megapixel, CMOS |
| Day & Night (Illumination Range) | Day & Night (30 Meters) |
| Lens | Fixed Focal |
| Focal Length | 2.8mm |
| Aperture (F no. ) | F2.0 |
| Angle of View (Horizontal / Vertical) | 112.7°(H)60.1° (V) 146.5°(D) |
| Mechanical PTZ | No |
| Audio | No |
| Audio Codec | No |
| Storage Card Slot | No |
| Digital Input / Digital Output | No |
| Vandal proof | Yes (IK10) |
| Indoor / Outdoor | Outdoor (IP67) |
| Power Input | DC12V±25% |
| Power over Ethernet (PoE) | IEEE802.3 af |
| Max. Power Consumption | Max.5.5w |
| Dimension (W x D x H) | Ø109 x 81mm (Ø4.3” x 3.2”) |
| Net Weight | 0.45kg (0.99lb) |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ 140°F) |
