Description
The optional SNMP/network management software allows for web-based management and is designed for use with the DMC-1000 chassis.

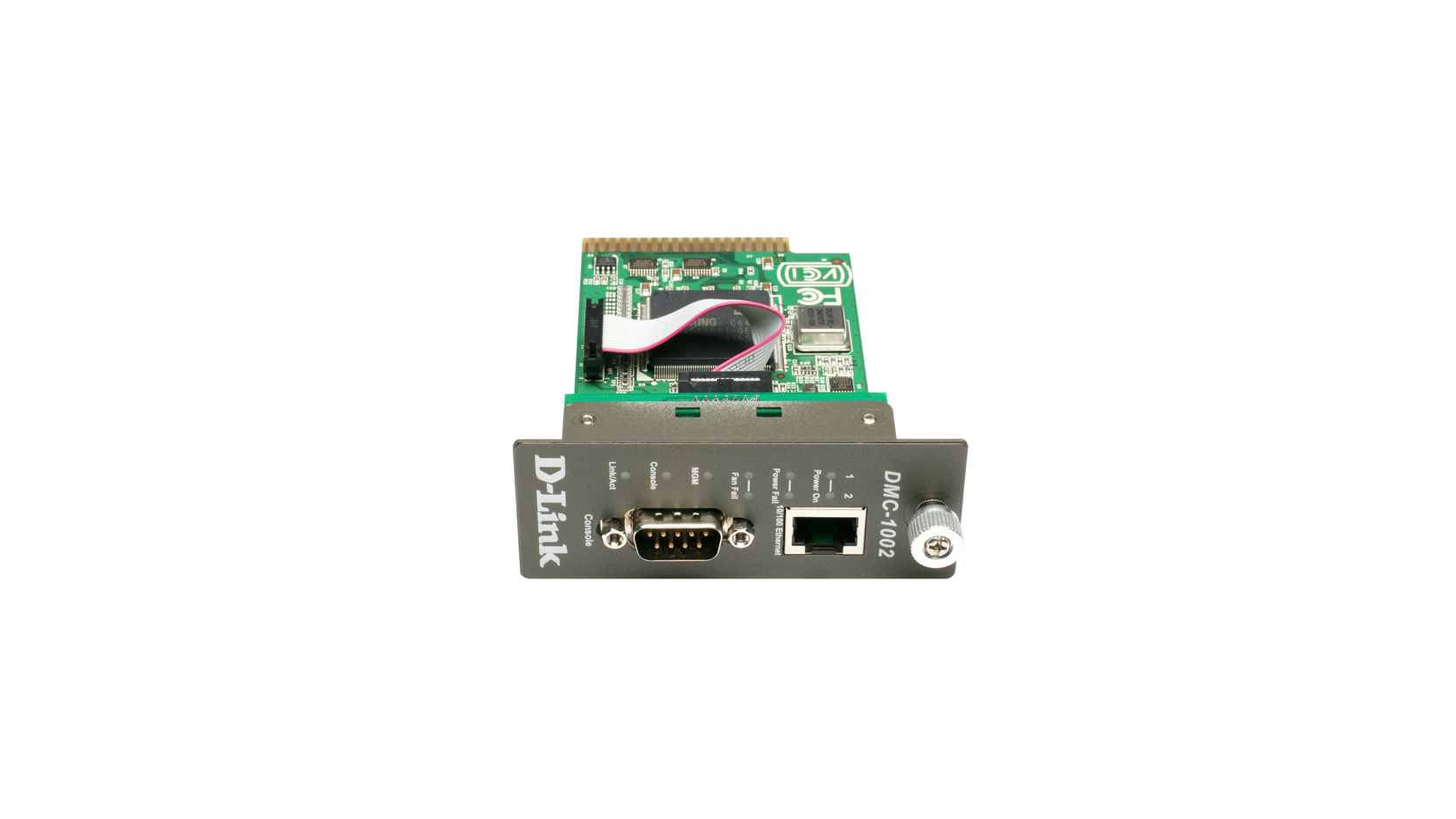

This module provides SNMP-based and web-based management of all media converter and power supply modules installed in the DMC-1000 chassis. It features a 32-bit, high performance RISC microprocessor executing a real-time operating system. It provides a 10/100Mbps Fast Ethernet port for network connection, allowing you to configure and monitor the system through an SNMP management station or from a PC running an Internet browser. An RS-232 port is also provided to let you connect to a console (PC) to set configuration. The management module periodically polls all converters and power supplies in the chassis to collect information regarding status and configuration settings. It also receives traps for events such as module hot-swaps and power failures as soon as they occur, as well as warning traps, upon which alarms may be sounded out to alert you.
The optional SNMP/network management software allows for web-based management and is designed for use with the DMC-1000 chassis.
This module provides SNMP-based and web-based management of all media converter and power supply modules installed in the DMC-1000 chassis. It features a 32-bit, high performance RISC microprocessor executing a real-time operating system. It provides a 10/100Mbps Fast Ethernet port for network connection, allowing you to configure and monitor the system through an SNMP management station or from a PC running an Internet browser. An RS-232 port is also provided to let you connect to a console (PC) to set configuration. The management module periodically polls all converters and power supplies in the chassis to collect information regarding status and configuration settings. It also receives traps for events such as module hot-swaps and power failures as soon as they occur, as well as warning traps, upon which alarms may be sounded out to alert you.
Specs
Technical Specifications
Management Information & Functions Supported
Chassis
Media Converter Modules
Alarms
Active Control
Protocols Supported
Physical & Environmental
LED Indicators
Dimensions
Operation Temperature
Storage Temperature
Operation Humidity
Storage Humidity
Emission (EMI)
Management Information & Functions Supported
Chassis
- Part Number
- Revision
- Description
- Chassis Reset
- Power status
Media Converter Modules
- Link Status
- Converter Type
- Slot Occupied
- Part Number
- Revision
Alarms
- Cold Start
- Warm Start
- Link Up
- Link Down
- Authentication Failure
- Power Supply On/Off
- Power Supply Inserted
- Power Supply Removed
- Module Insertion
- Module Removal
- Module Unknown
- Module Failure
Active Control
- Link Loss Carry Forward
- Link Loss Return
- Module Name
- IP address
- Reset Module
- Redundant Backup
- Download software via tftp / http
- Subnet Mask
- Default Gateway
- Telnet to Console Commands
Protocols Supported
- IP
- UDP
- SNMP
- TCP
- TFTP
- ARP
- ICMP
- HTTP
Physical & Environmental
LED Indicators
- Power 1, 2
- Power Fail 1, 2
- Fan Fail 1, 2 - MGM
- Console
- Link/Activity
Dimensions
- 120 x 88 x 25 mm
Operation Temperature
- 0° - 40° C
Storage Temperature
- -25° - 70° C
Operation Humidity
- 10% - 90%
Storage Humidity
- 5% - 90%
Emission (EMI)
- FCC Class B
- CE Mark Class B
- VCCI Class B
FAQ
- How do I access the DMC-1002 to monitor and maintain it? Read Answer
Support
This product was phased out on: 09/08/2015
This product's last date of support is on: 08/08/2017
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet (English) | - | 0.30mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual v1 (English) | Manual v1 (English) | - | 0.55mb | Download |
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | |
---|---|---|---|
DMC 1002 MIB Software v1.16 1.16 | DMC 1002 MIB Software v1.16 | 14-11-2006 | Download |
