1-Channel MPEG4 Video Encoder


  • Product Status (Revision A): End of Life
The DVS-210-1 1-channel MPEG4 Video Encoder makes it possible to turn an existing analog surveillance infrastructure into a fully-functional IP-based surveillance system. The DVS-210-1 is an ideal choice for banks, airports, factories, government buildings, prisons, and traffic monitoring applications - any location where CCTV equipment is already installed and functioning.

Manage, record and view video with ease

The hardware encoder supports MPEG-4 / MJPEG video with frame rates of up to 25 fps at D1 resolution. D-Link’s intuitive D-ViewCam management software provides a robust platform for configuring and controlling one or many IP cameras and video encoders. Intuitive controls allow you to manage and control live video with ease.

Simplify surveillance with advanced alarms and events

Alarm handling features provide alerts in the event of loss of video or loss of network connection. Motion alarms with configurable detection areas allow for effective surveillance and avoid constant human supervision. A buffer system allows the device to capture images on to an SD card* both before and after an event occurs.

Robust management software

D-ViewCam is a software program that allows an operator to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform security staff of unusual activities.

*card not included

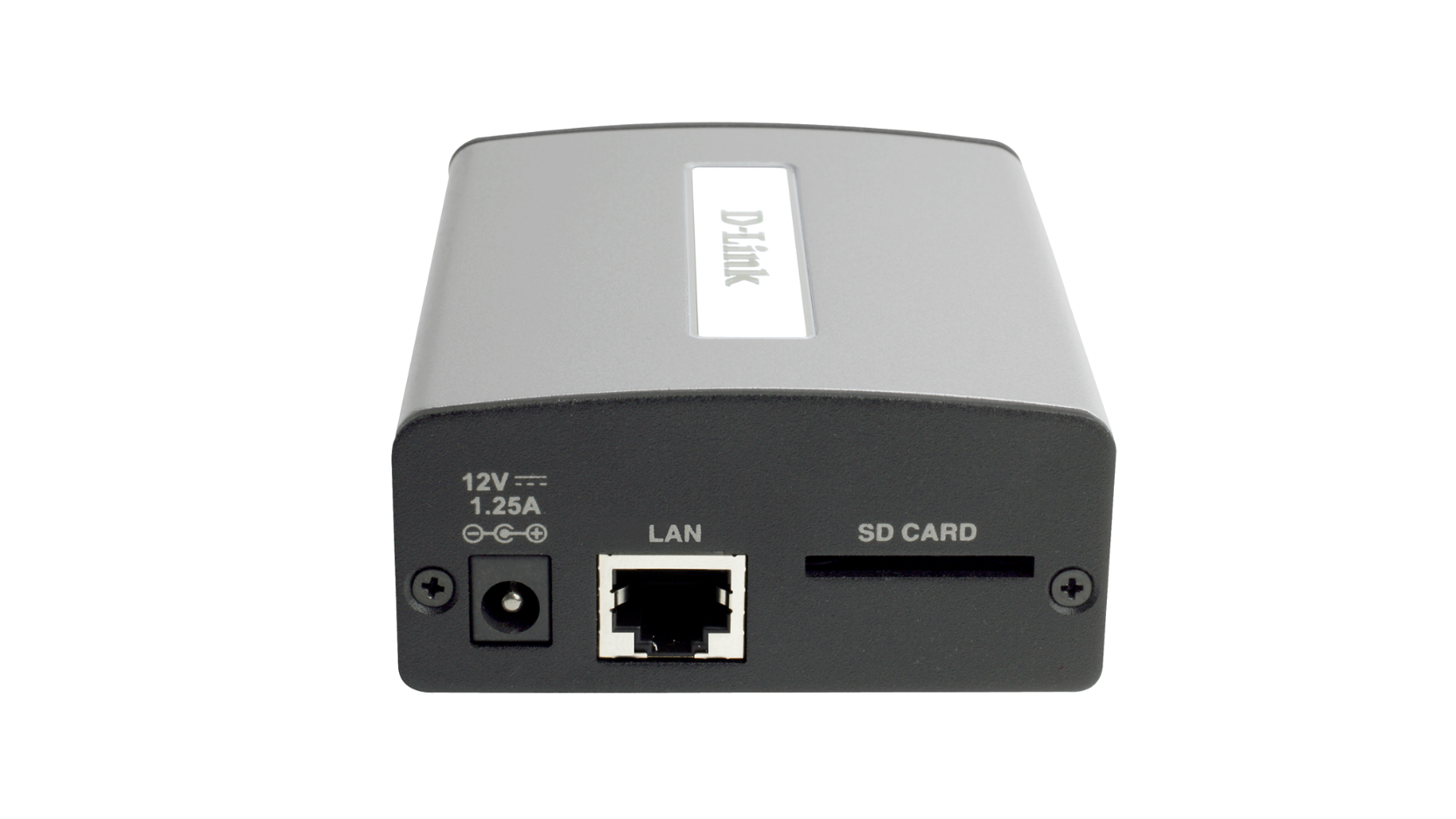

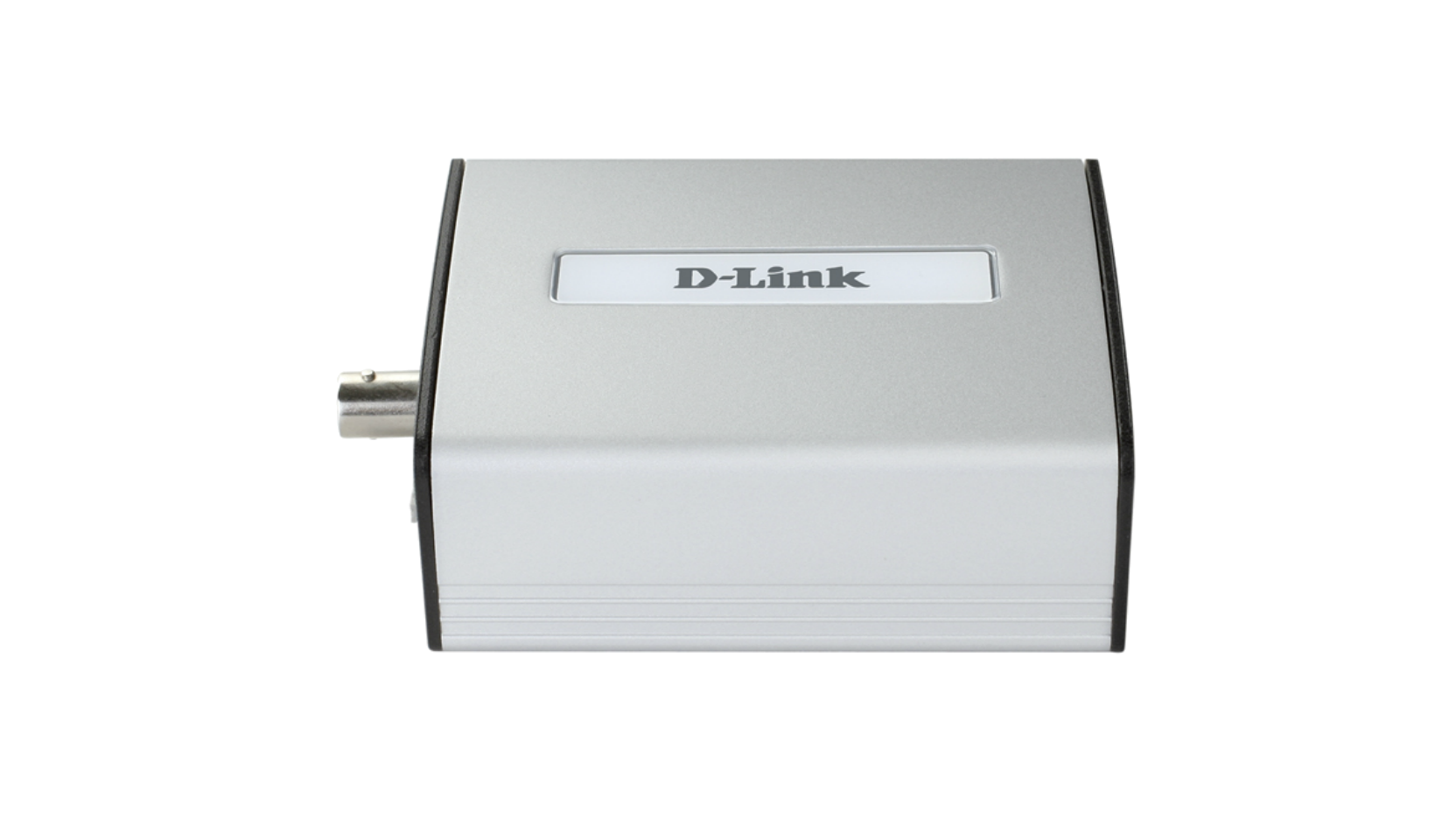

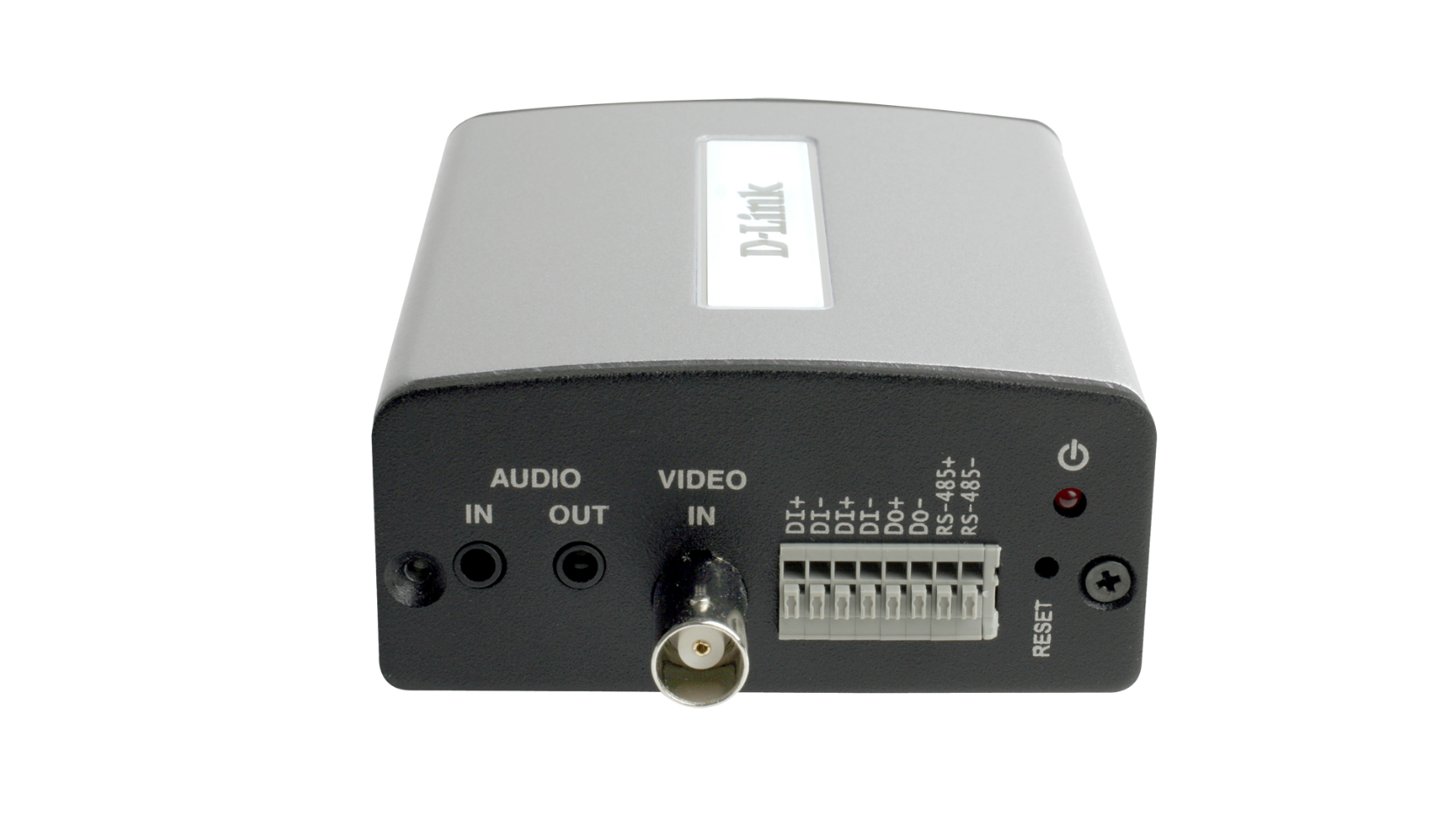

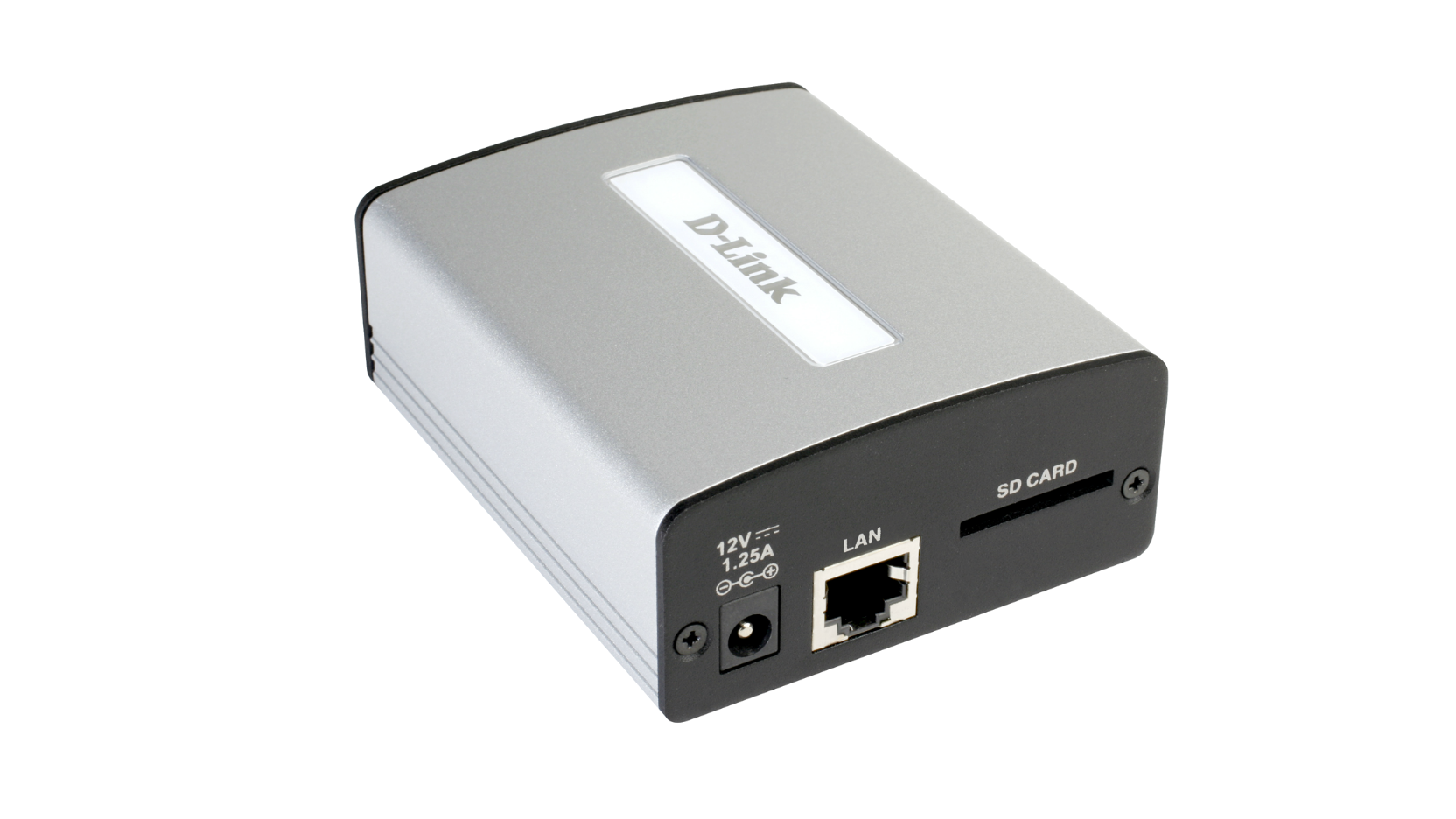

Actual product appearance may differ from the image displayed on this page
  • Robust aluminum housing
  • 10/100Base-TX Ethernet port
  • SD card slot for local recording*
  • 3.5mm stereo input/output audio connectors
  • BNC connector
  • Digital I/O support for sensors and alarms

Video Specifications
  • M-JPEG and MPEG-4 Simultaneous Dual Codec
  • Frame Rate: 25fps (PAL)
  • Bit Rate: 64 kbps to 4 Mbps
  • Resolution (PAL): D1 (720x576), CIF (352x288), QCIF (176x144)

Audio Specifications
  • Input: 8 kHz sample rate, ADPCM
  • Output: 8 kHz sample rate, ADPCM

PTZ Specifications
  • Supported protocols: PelcoP, PelcoD, Merit Lilin, Visca, DynaColor, Transparent
  • Baud rates: 1200, 1800, 2400, 4800, 9600, 19200
  • Connector: RS-485 for PTZ control
This product was phased out on: 18/09/2013
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 18/09/2015
Versie Datum Type Bestandsgrootte
Datasheet (English) - PDF 0.92mb Download
Versie Beschrijving Datum Type Bestandsgrootte
Manual (English) Manual (English) - PDF 7.68mb Download
Versie Beschrijving Datum Type Bestandsgrootte
Quick Installation Guide (Multilingual) - PDF 0.73mb Download
Dit D-Link product bevat software code welke ontwikkeld is door derden, waaronder software code die valt onder de GNU General Public License ("GPL") of GNU Lesser General Public License ("LGPL"). Indien van toepassing: de voorwaarden van de GPL en LGPL en informatie over het verkrijgen van toegang tot de GPL-code en LGPL-code die in dit product zijn gebruikt, zijn hier voor u beschikbaar:
De GPL-code en LGPL-code die gebruikt is in dit product wordt gedistribueerd ZONDER ENIGE GARANTIE en is onderworpen aan de auteursrechten van een of meer auteurs. Voor meer informatie, zie de GPL-code en de LGPL-code voor dit product en de voorwaarden van de GPL en LGPL.
Versie Beschrijving Datum Type
Firmware 1.00.01 Firmware 10/12/2010 - Download
Versie Beschrijving Datum
DEU_CE_Declaration_RevA CE Declaration - (English, French) 6/04/2010 Download
