High-Definition Media Player


  • Product Status (Revision A): End of Life
Experience HD

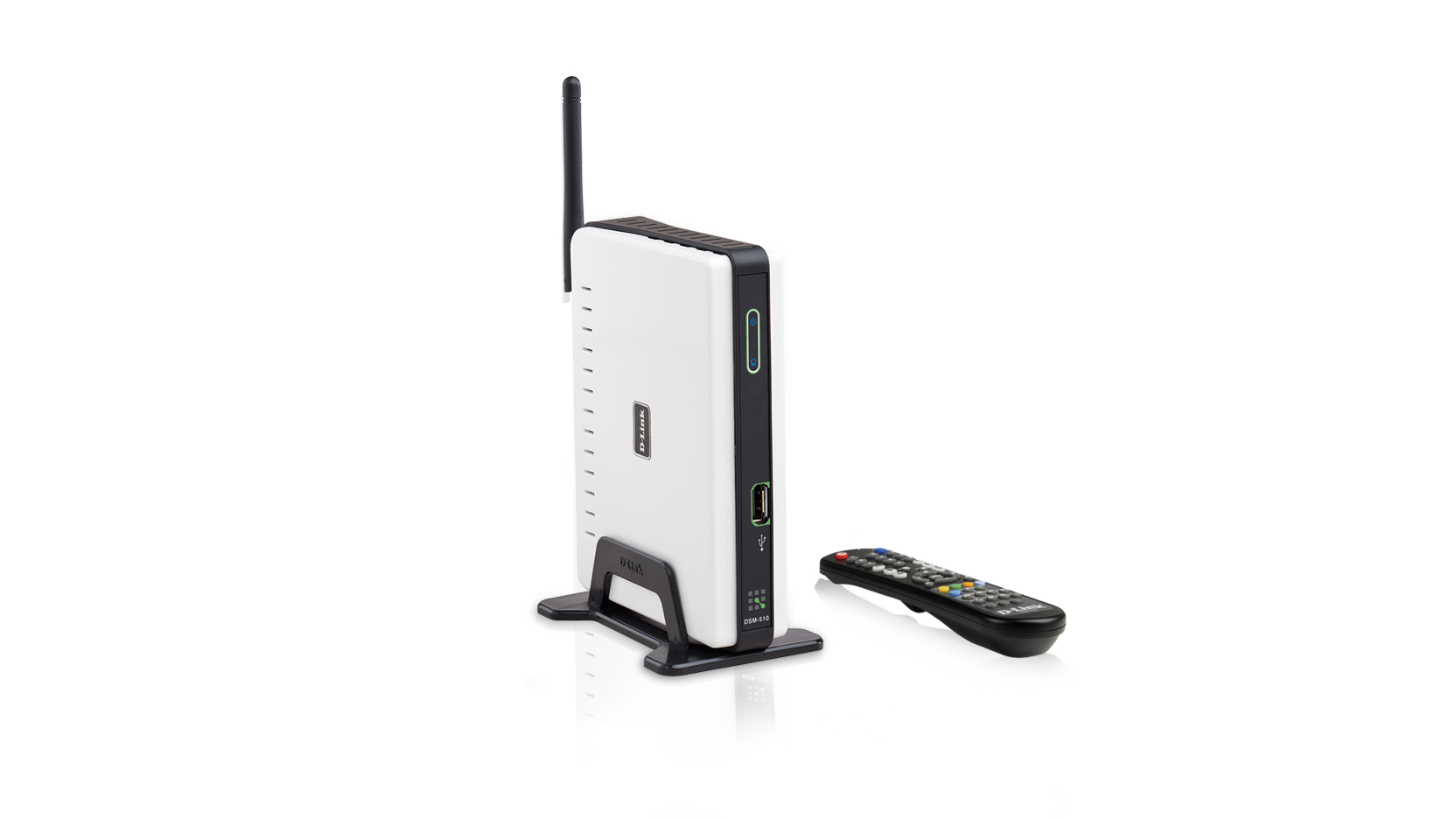

Enjoy brilliant High-Definition (HD) picture quality with the compact D-Link® MediaLounge™ High-Definition Media Player (DSM-510). With the DSM-510, you can sit in the comfort of your living room with friends and family and enjoy media content available on a networked PC or Network Attached Storage (NAS)1 on your big screen TV and sound system. The DSM-510 enables streaming2 of videos, music, and photos over a wireless 802.11g or wired Ethernet connection (a wired network is recommended for optimal video streaming). In addition, the DSM-510 provides a USB 2.0 port in the front panel for instant access to media stored on removable USB flash drives3.

HD Video Block
The DSM-510 supports HD video in Windows Media® Video 9 (WMV9), MPEG-2, MPEG-44, DivX®5, and DVR-MS formats6. Enjoy videos with resolutions up to 1080i for superb picture quality from your HDTV using an HDMI connection, or connect to Standard-Definition Televisions (SDTV) using Composite Video cables.

DivX® Home Theatre™ Certified Device
The DSM-510 is a DivX® Certified device5, providing a high quality video experience. It lets you easily take DivX video from your computer and play it back on your TV at DVD-quality5. DivX videos are a fraction of the size of DVD files making playback over a home network more reliable.

Easy Setup
Setting up the DSM-510 is simple and, with support for Windows® Connect Now, configuring the wireless settings are easier than ever before. Simply run the Wireless Network Setup Wizard from Windows Vista® or Windows® XP Service Pack 2 and transfer the wireless settings to the DSM-510 using a USB flash drive3.

Experience digital media like never before in your living room with the D-Link MediaLounge High-Definition Media Player (DSM-510).

1 Certain features of this device may be unavailable when accessing stored media content on network attached storage devices.
2 Use a wired connection for improved performance with video and other media. Additional hardware devices, software, or services may be required for Internet connection to access online media.
3 USB flash drives not included. D-Link is not responsible for damage to USB flash drive, or loss and/or damage to files on the flash drive, due to improper installation or usage.
4 Supports MPEG-4 Advanced Simple Profile only (without quarter pixel or global motion compensation).4 DivX codec is available with Firmware version 1.06 or later.
5 DivX codec is available with Firmware version 1.06 or later.
6 Ability to play certain digital content over your home network may be limited by Digital Rights Management (DRM) content protection mechanisms and authorization from the content owner or service provider. See www.dlink.com/dsm510 for supported DRM solutions.


  • IEEE 802.11g wireless LAN specification
  • One 10/100 Mbps LAN port


  • HDMI (High-Definition Multimedia Interface)
  • Composite Audio/Video (A/V composite cable & SCART adapter provided)
  • Optical Digital Audio with Support for 5.1 Channel Audio
  • USB 2.0 for direct acess to a USB drive

File formats

  • Audio: MP3 (Up to 360 kbps), WMA, WAV & AIFF (PCM Only), Ogg Vorbis
  • Image: JPEG (Grayscale, RGB & YCbCy Only), JPEG 2000, TIFF (RGB Only), BMP (Non-Compressed), PNG, GIF
  • Video: MPEG-1/2/4 (4), WMV9, XVID with MP3 or PCM, AVI (MPEG-4 Layer Only), DVR-MS, DivX® (7)


  • Detachable antenna (reverse SMA connector, female)
  • Security: WPA-PSK, WEP (64- and 128-bit encryption)
  • Windows® Connect Now


  • Remote control and on-screen display for easy management


  • 2-year warranty

This product was phased out on: 20/10/2010
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 19/10/2012
Versie Datum Type Bestandsgrootte
Datasheet (English) - PDF 1.98mb Download
Versie Beschrijving Datum Type Bestandsgrootte
Manual v1.1 (English) Manual v1.1 (English) 6/11/2007 PDF 13.68mb Download
Versie Beschrijving Datum Type Bestandsgrootte
1.00 Quick installation guide v1.00 (English) 6/11/2007 PDF 0.14mb Download
Versie Beschrijving Datum Type
Firmware update v1.08 1.08 Firmware update v1.08 13/12/2007 - Download
Versie Beschrijving Datum
DEU_CE_EN_FR_RevA3 Certificate of Declaration A3 (English and French) 5/02/2009 Download
