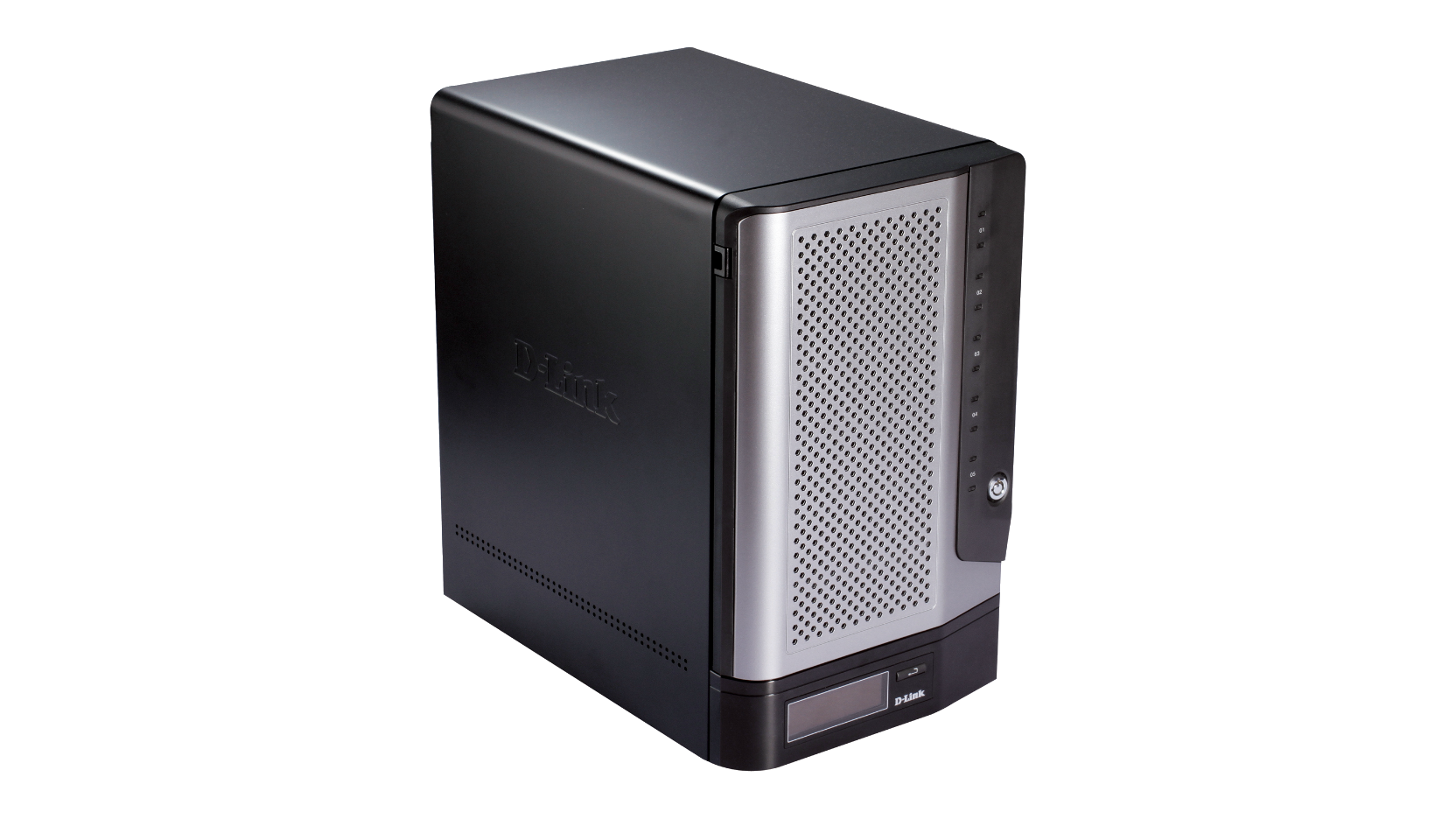

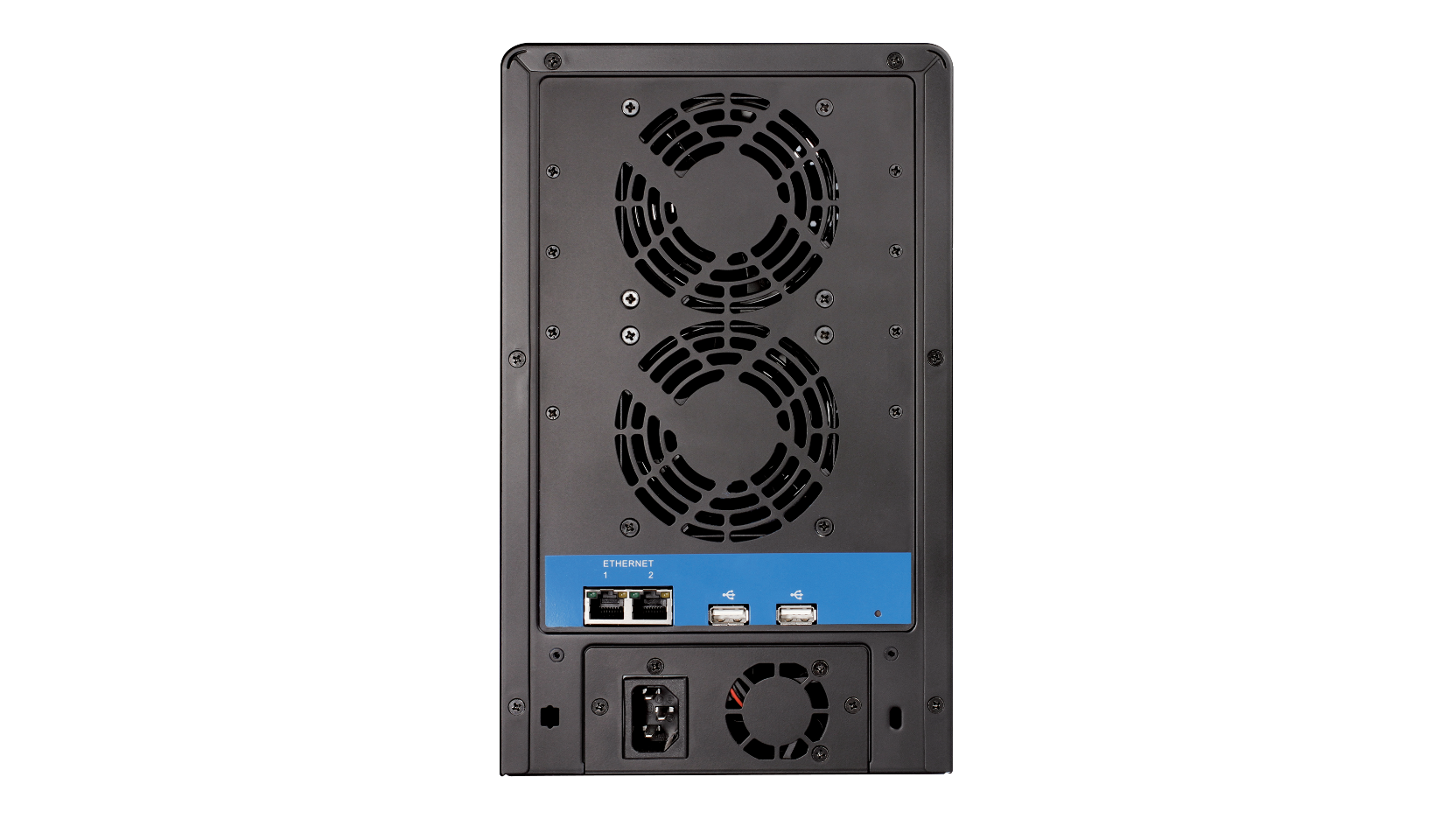

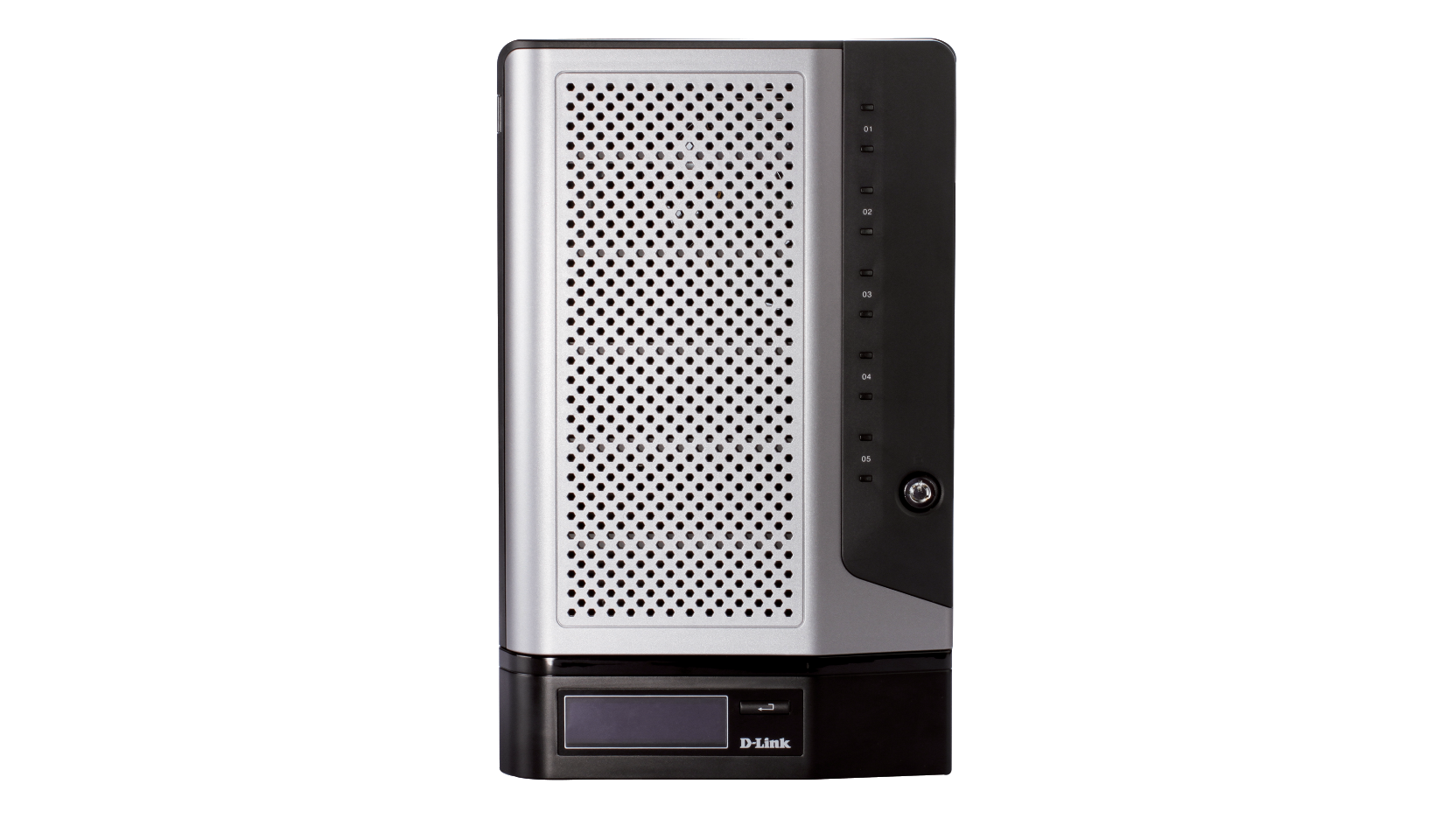

Sharecenter Pro 5-Bay Network Storage Enclosure

DNS-1200-05

  • Product Status (Revision A): End of Life
Small and medium businesses face an ever-increasing need for data consolidation and document sharing. The D-Link ShareCenter™ Pro 1200 NAS addresses these growing data storage requirements, and provides a multitude of additional options for managing and securing important files.

File Sharing

ShareCenter™ Pro 1200 integrates a NAS file server which takes full advantage of the accelerated performance provided by iSCSI. Files can be shared across the network or over the Internet via FTP or an intuitive web file manager, to users with the appropriate credentials.

NAS File Server

Small Businesses will appreciate the DNS-1200-05 NAS file server which takes advantage of the accelerated performance of the quad-core CPU. Providing up to 7200 MIPS of computing power and 1GB of cache memory, the DNS-1200-05 is able to provide the performance required for your business and its future growth.

A Variety of Backup Options

ShareCenter™ Pro 1200 offers several backup options which allow administrators and users to control how, when, and where their data is stored. Remote backup will keep a copy of your files on a remote NAS over the Internet for extra data protection, and volume snapshots can backup a whole volume in a few minutes in contrast with traditional backup schemes that can take hours.

iSCSI for IP Networks

iSCSI offers exceptionally fast access performance thanks to block-level data transfer. iSCSI targets appear as a local drive on a client PC. Operations such as configuration, provisioning, and backup can be handled by the administrator in the same way they would be for directly attached storage. By utilising existing Ethernet technology, the cost associated with separate host bus adapters and the per-Gigabyte cost for storage can be significantly reduced.

Advanced Security

Account management features include the ability to manage users/groups and Read/Write permissions. Create users, groups, and iSCSI targets with password authentication. Additionally, VLAN tag support combined with AES encryption keeps files secure. iSCSI implements a Challenge-Handshake Authentication Protocol (CHAP) to guarantee secure access to the storage system.

Share Printers and USB Storage

USB connectivity provides the option to establish a printer server, monitor a UPS, or connect USB devices such as hard drives and flash storage.

RAID for Efficiency and Redundancy

ShareCenter™ Pro 1200 features 5 Serial ATA (SATA) disk drive bays supporting 2 TB hard drives in RAID level 0, 1, 5, 5+Spare, 6 or JBOD configurations. IT administrators can quickly deploy a network storage solution using inexpensive SATA disk drives, and can add more drives depending on storage needs. Additionally, S.M.A.R.T. disk diagnostics helps to ensure hardware integrity and warns of possible failures before they occur.

Green Features Save Energy

The Sharecenter™ Pro 1200 is part of D-Link Green, D-Link’s programme for providing eco friendly alternatives without compromising performance: if the hard drives are not used in a configurable period of time, or data is not being transmitted, the Sharecenter™ Pro1200 will enter stand-by mode to save power. The silent fan will adapt its speed depending on the hard drives temperature. Additionally, the scheduled on/off function allows the device to be automatically switched off when it is not in use

Actual product appearance may differ from the image displayed on this page
Type
NAS/iSCSI Unified Storage
Enclosure form factor
Tower
CPU
Cavium CN5230 Quad Core
FLASH
256 MB
SDRAM
512 MB
Number of drive bays
5
Drive interface
SATA I/II
Drive form factor
3.5/2.5 inch
Maximum storage capacity
20 TB
Network interface
2 x Gigabit Ethernet
Number of USB ports (for storage backup, printer sharing or UPS monitoring)
2
Link aggregation group (LAG) support
Supported
Multiple Connections per Session MC/S
Supported
CHAP
Supported
802.1 q VLAN
Supported
Multiple drive configuration
JBOD
RAID 0/1/5/5+spare/6
standard
Virtual volumes
Supported
SMART
Supported
Volume encryption
Supported
Disk/RAID roaming
Supported
Windows Active Directory service support
Supported
Maximum number of user accounts
4096 non-ADS,10000 ADS
Maximum number of group accounts
512 non-ADS,10000 ADS
User/group quota management
Supported
Maximum number of managed shared forlders
1000
Maximum concurrent connections via Samba
64
Schedule backup from PC to NAS
Supported
Schedule local backups
Supported
Schedule remote backups
Supported
Cloud storage backup
Amazon S3
D-Link Vault
Dropbox
Google Drive
USB backup
Supported
FTP/HTTP/P2P downloads
Supported
File sharing protocol
CIFS/NFS/DFS/Web File Manager/AFP/WebDAV
Built-in snapshot
Supported
Replication
Supported
Windows MPIO
Supported
Web interface through browser
Supported
Windows Hyper-V certified
Supported
E-mail/SMS notification
Supported
Citrix certified
Supported
SNMP
Supported
