Cloud Network Video Recorder

DNR-322L

  • Product Status (Revision B1): End of Sale

There's a new version of this product:

JustConnect 16-Channel H.265 PoE Network Video Recorder

DNR-4020-16P

See Newer Product

There's a new version of this product:

DNR-4020-16P

JustConnect 16-Channel H.265 PoE Network Video Recorder

Overzicht

  • Standalone H.265 NVR-oplossing
  • Verbindt maximaal 16 camera’s
  • Geschikt voor PoE met een budget van 120 W
  • Dual-Bay SATA voor maximaal 16 TB opslagcapaciteit
  • Gebruiksvriendelijke mobiele app
See Newer Product

Overzicht

  • Standalone H.265 NVR-oplossing
  • Verbindt maximaal 16 camera’s
  • Geschikt voor PoE met een budget van 120 W
  • Dual-Bay SATA voor maximaal 16 TB opslagcapaciteit
  • Gebruiksvriendelijke mobiele app
See Newer Product

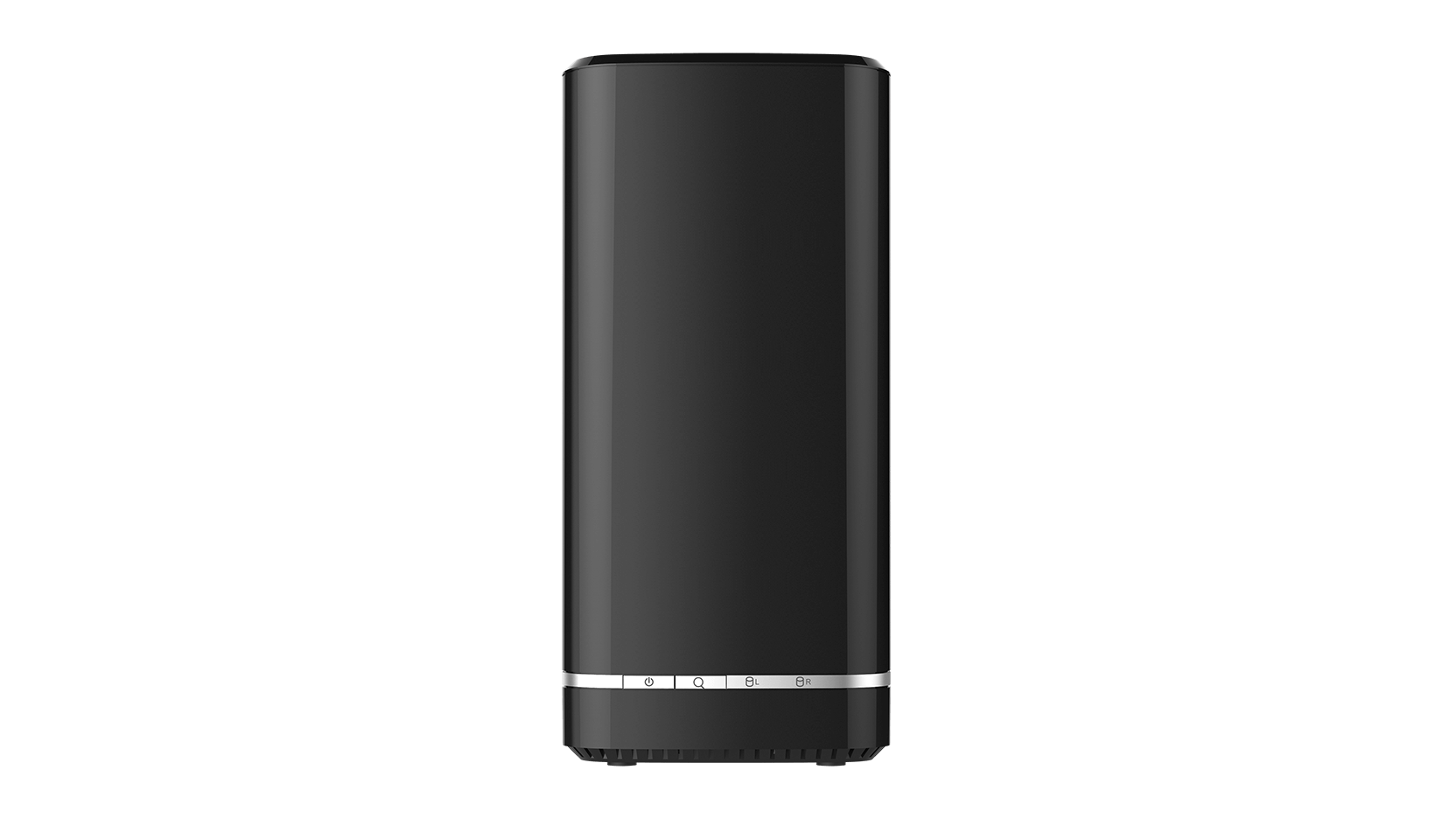

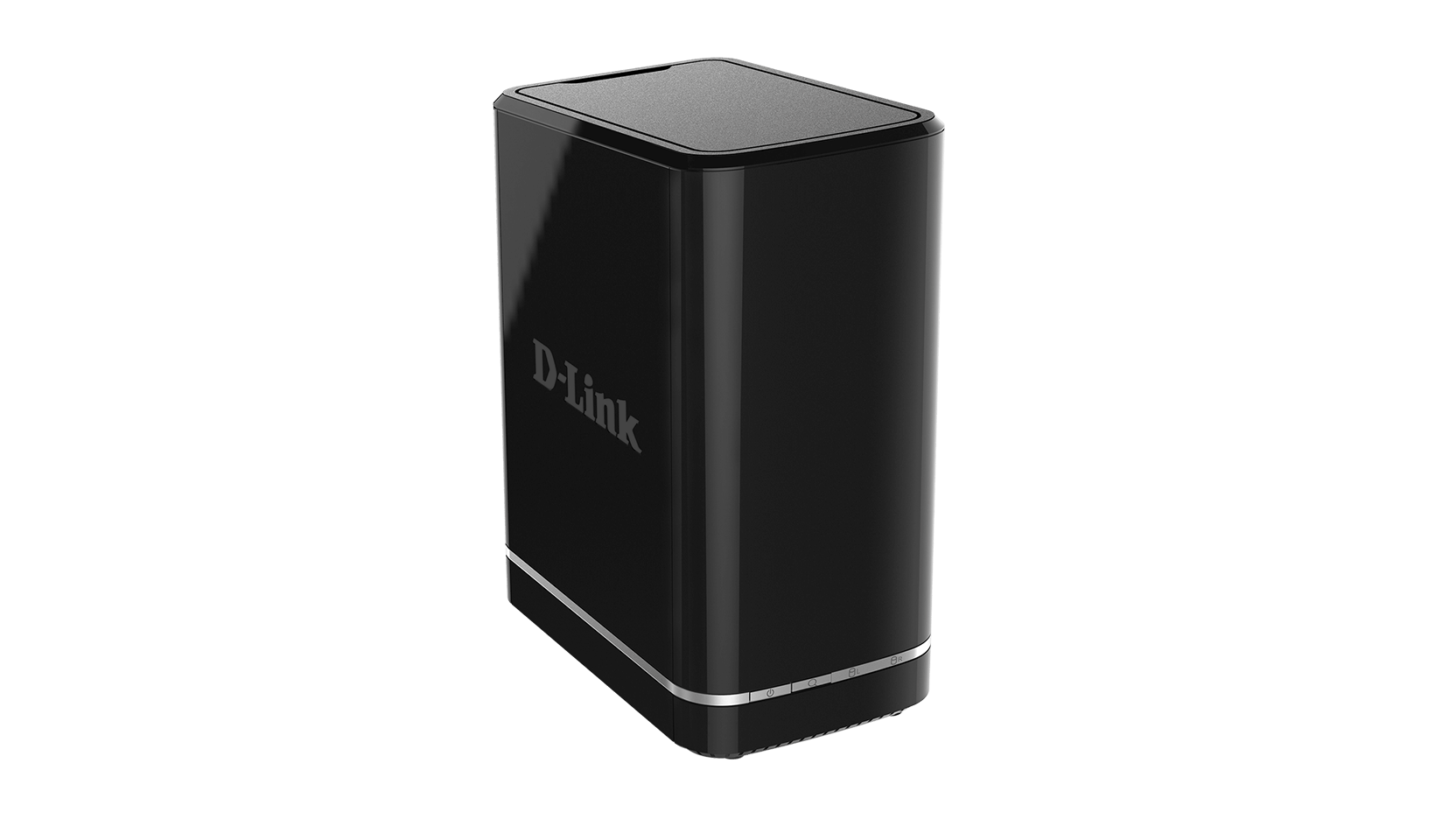

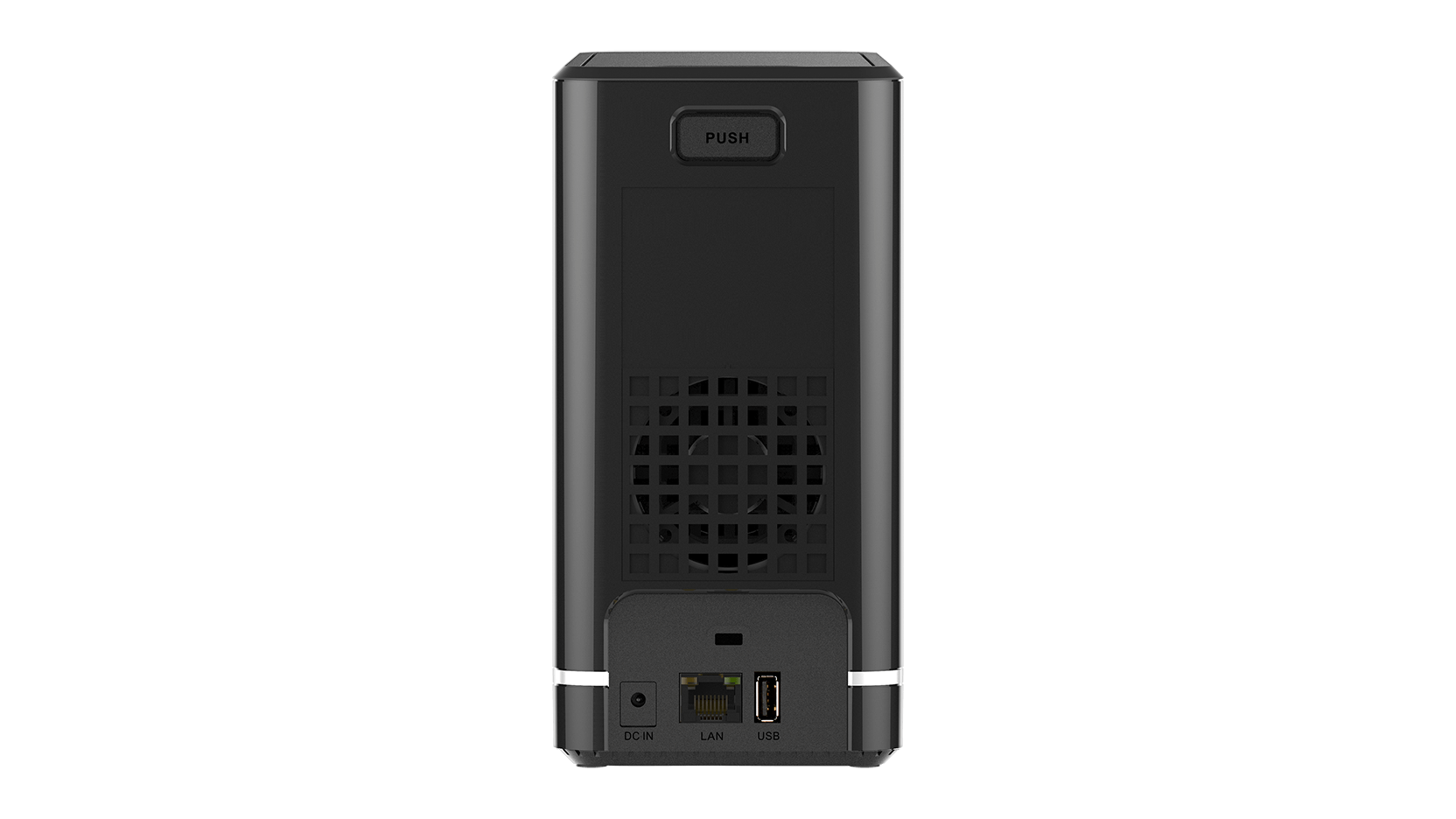

The DNR-322L mydlink™ 2-Bay Network Video Recorder is a standalone storage device that can record video from up to 16 network cameras to its dedicated HDD storagewithout requiring users to turn on their PC. Empowered by mydlink technology, the DNR-322L supports real-time remote monitoring and playback via a web browser using the mydlink website or the NVR’s web GUI. The DNR-322L has the ability to continue recording live while a user is viewing or searching footage at the same time. With complete video management, the DNR-322L’s display and playback ability make it a convenient and effective video recorder.

Versatile Monitoring

Users are provided with a variety of options for viewing and organising camera footage onscreen. For a system with multiple channels, users can simply drag and drop selected cameras to the viewing area. Camera names and recording statuses are displayed via the on-screen display. A single camera may be viewed full-screen with two-way audio support. Users can control Pan/Tilt/Zoom (PTZ) functions from within the interface or by directly clicking on the video.

Secure Storage

Administrators may filter external connections to the NVR by IP address, limiting access and thus increasing security. Administrators may also choose access privileges for users by specifying the cameras they may access. The recorded data can be backed up to additional storage locations periodically or whenever needed. The NVR also includes the option to protect data using a RAID 1 configuration, which duplicates recorded data onto two separate hard drives. In the event of HDD failure, data integrity is maintained on the secondary HDD.

Extensive Recording Functionality

The DNR-322L’s clear interface allows for easy configuration including compression, resolution, and frame rate for all connected cameras. Once the cameras have been set up, recordings can be made continuously, or according to a user-defined schedule. The NVR also provides event recording based on specific triggers such as when motion is detected.

Bundled NVR Software

The NVR software bundled with the DNR-322L consists of five main components including a Playback Manager, a Backup System, and a very versatile search tool. The Playback Manager includes a clean and simple web GUI interface that allows users to play, search, or export video. The Backup System is a flexible backup utility that greatly simplifies the process of backing up video data from the NVR to external storage.

1 Hard disks not included.


Channel Number
16 channels
Compression Format
H.264
MJPEG
MPEG-4
Display Mode
1, 4, 9, 16, 25, 36, 64 split screen
Auto Scan
Supported
PTZ Control
Supported
Auto Pan/Petrol
Supported
Audio
2-way
Recording Type
Edge Motion Detection by Camera
Manual
Schedule
Audio Recording
Supported
Auto/Scheduled Recycling
Supported
Simultaneous Playback
16 channels
Video Control
Play, stop, pause, forward, backward, next, previous
Digital Zoom
4X
Audio Control
Supported
Video Search
Camera
Event
Time
Video Export Format
AVI
Image Export File Format
JPG
Tamper-Proof (Digital Watermark)
Supported
Event to E-mail
Supported
Event by Disk Full
Supported
Client Viewer
mydlink App
Web browser
Remote View
Supported
Max Concurrent Channel per Client
9
Playback Viewer
Playback manager via browser
Number of E-Map Layer
1
E-Map Image Format
BMP
JPG
Supported Camera
D-Link
Auto Surveillance VLAN support
Supported
Number of HDD Bay
2
HDD Configuration
JBOD
RAID0/1
Single
Network Interface
1 x Gigabit port
Auto Boot-Up (Power Recovered)
Supported
This product was phased out on: 19/09/2021

Downloads can vary across product revisions. Please select the correct hardware revision.
