Description

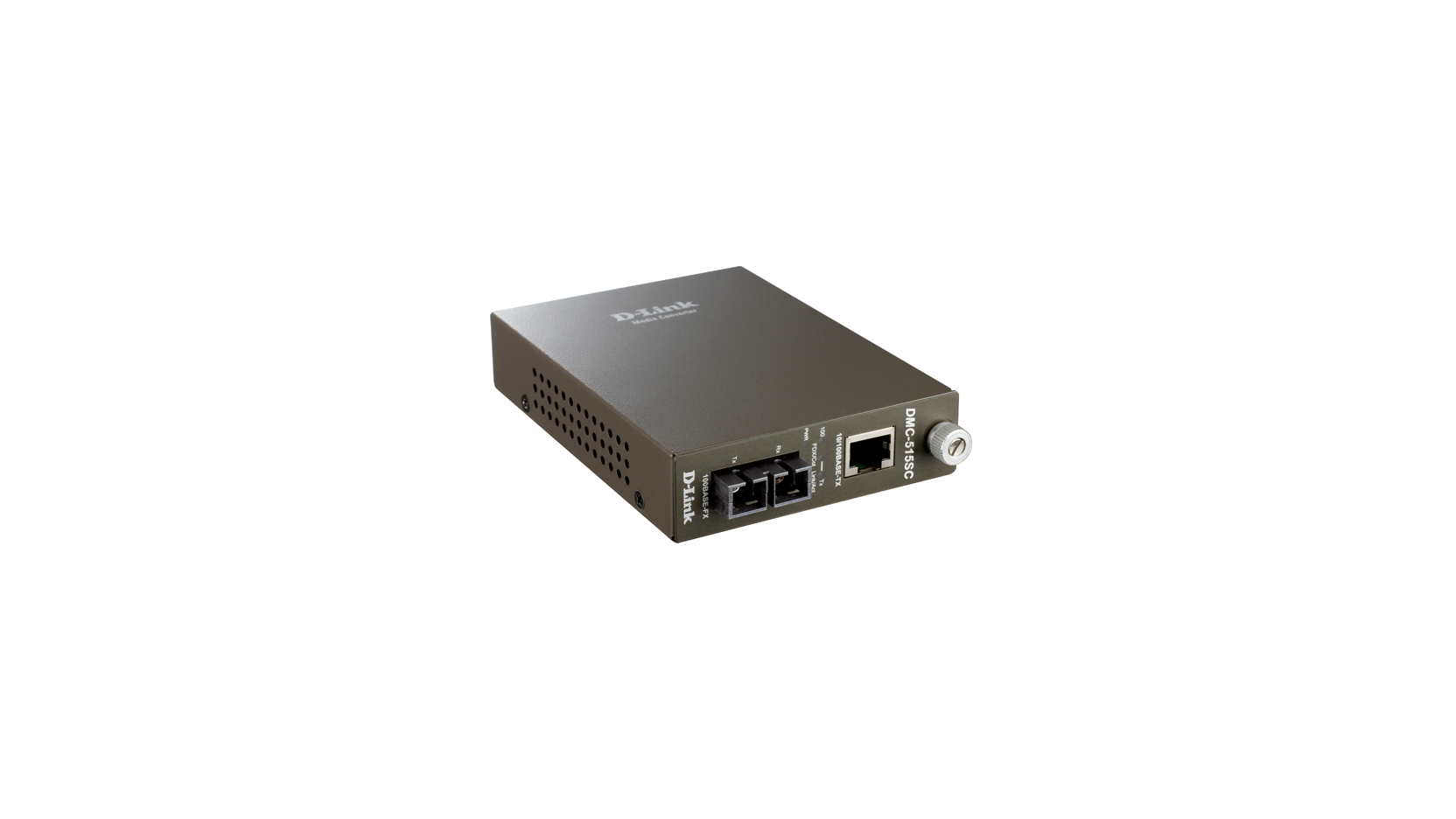

The DMC-515C converts 10/100Mbps 10BASE-T-100BASE-TX Fast Ethernet twisted pair signals to 100BASE-FX single-mode signals up to 15KM apart.

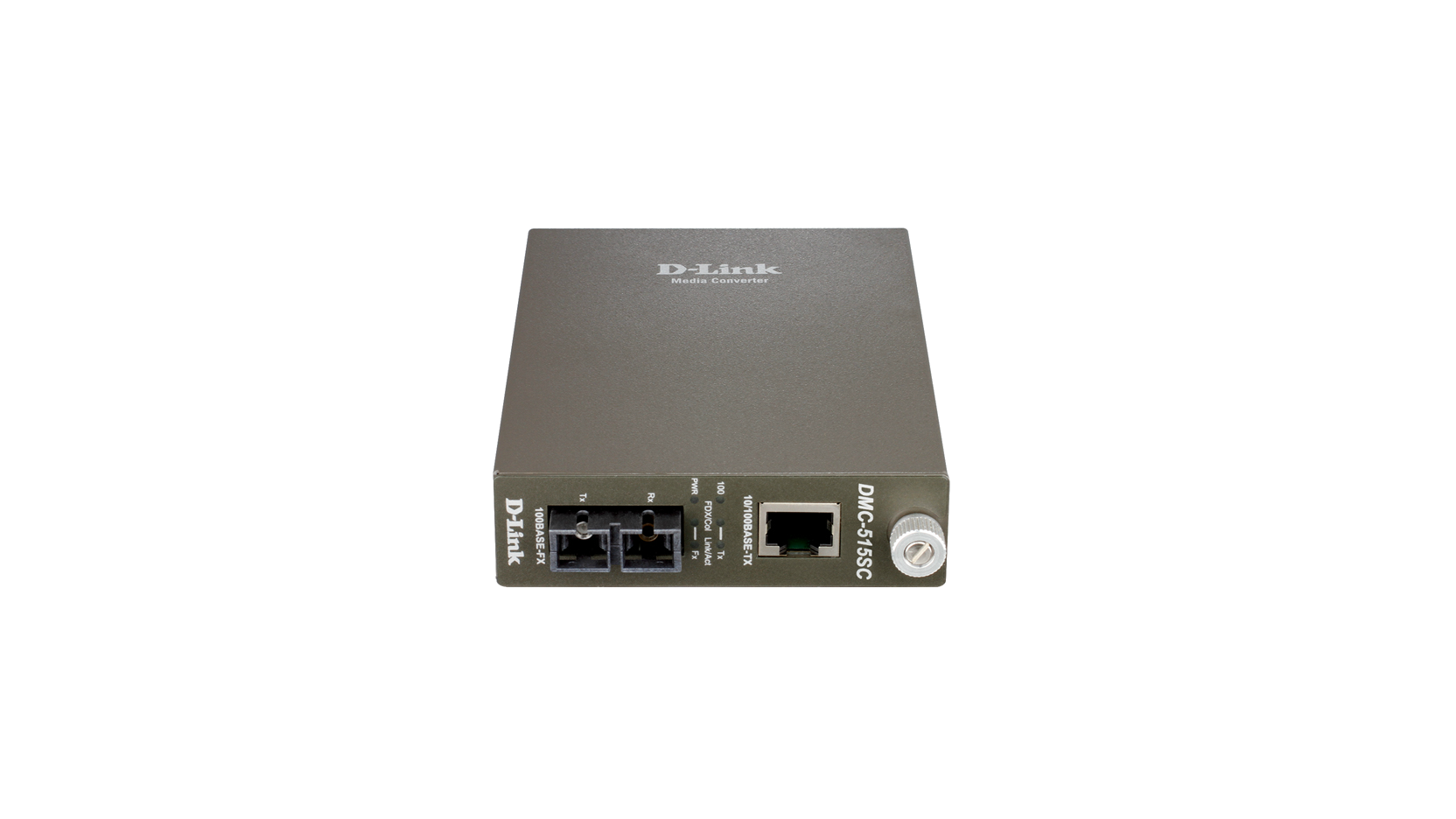

The DMC-515SC, DMC-530SC, and the DMC-560SC convert 10/100Mbps 10BASE-T/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet single-mode fiber signals. Maximum fiber cable distance is 15 - 60 km. 1 RJ-45 twisted-pair port and 1 fiber port (SC connector) are provided.
DMC-515SC: this media converter supports maximum 15 km fiber cable distance.
DMC-530SC: this media converter supports maximum 30 km fiber cable distance.
DMC-560SC: this media converter supports maximum 60 km fiber cable distance.
The media converters come with their own solid metal case housing, LED status indicators and external AC power adapters.
They can be used as stand-alone converters, or installed in a DMC-1000 chassis. In case you install them in the chassis, you will remove their metal cases and slide in their PC boards into the chassis slots. The chassis’s power supply will be used instead of the media converters’ own external AC adapters. All media converters are hot-swappable when used with the chassis.
The DMC-515C converts 10/100Mbps 10BASE-T-100BASE-TX Fast Ethernet twisted pair signals to 100BASE-FX single-mode signals up to 15KM apart.
The DMC-515SC, DMC-530SC, and the DMC-560SC convert 10/100Mbps 10BASE-T/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet single-mode fiber signals. Maximum fiber cable distance is 15 - 60 km. 1 RJ-45 twisted-pair port and 1 fiber port (SC connector) are provided.
DMC-515SC: this media converter supports maximum 15 km fiber cable distance.
DMC-530SC: this media converter supports maximum 30 km fiber cable distance.
DMC-560SC: this media converter supports maximum 60 km fiber cable distance.
The media converters come with their own solid metal case housing, LED status indicators and external AC power adapters.
They can be used as stand-alone converters, or installed in a DMC-1000 chassis. In case you install them in the chassis, you will remove their metal cases and slide in their PC boards into the chassis slots. The chassis’s power supply will be used instead of the media converters’ own external AC adapters. All media converters are hot-swappable when used with the chassis.
Specs
Technical Specifications
LED Indicators
Dimensions
Power Input
Operation Temperature
Storage Temperature
Humidity
Emission (EMI)
LED Indicators
- Power
- 100Mbps Speed (for twisted-pair port)
- Full Duplex/Collision (for twisted-pair and fiber ports)
- LINK/ACT (for twisted-pair port)
Dimensions
- 120 x 88 x 25 mm

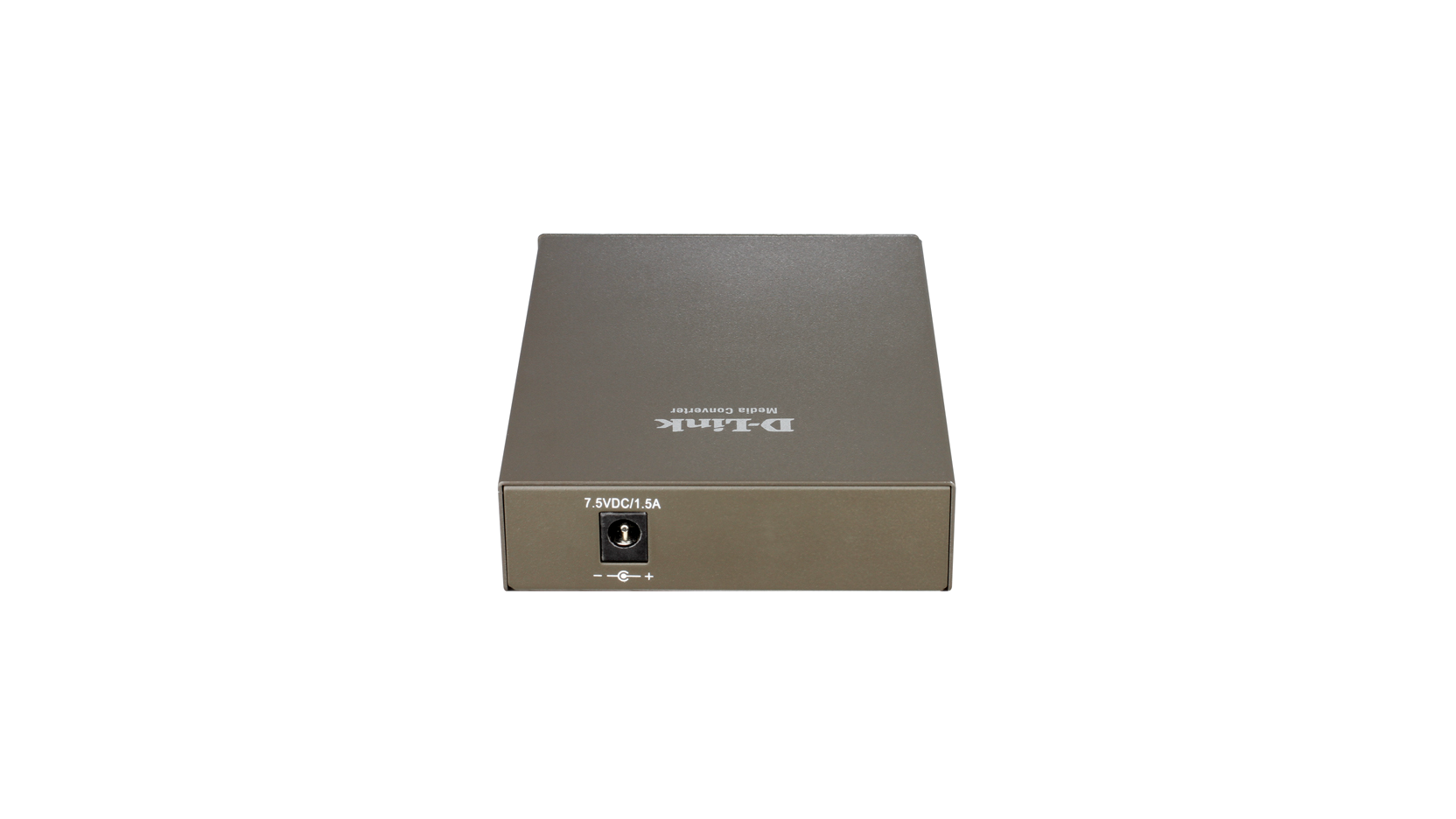

Power Input
- 7.5V 1.5A
- Through external AC power adapter
Operation Temperature
- 0° - 40° C
Storage Temperature
- -25° - 70° C
Humidity
- 10 ~ 90% non-condensing
Emission (EMI)
- FCC Class B
- VCCI Class B
- CE Class B
- C-Tick
FAQ
- What do the lights indicate on the media converter modules? Lees antwoord
- I lost the power supply for my media converter. How can I get a new one? Lees antwoord
- What type of cable should I use on the copper port? Lees antwoord
- Can I install this media converter by itself or do I need a chassis? Lees antwoord
Support
This product was phased out on: 14/05/2022
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 13/05/2024
Versie | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|
Datasheet (English) | - | 0.23mb | Download |
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
Manual v1.00 (English) | Manual v1.00 (English) | 8/08/2008 | 0.21mb | Download |
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
1.00 | Quick Installation Guide (English) | 11/08/2008 | 0.61mb | Download |
Versie | Beschrijving | Datum | |
---|---|---|---|
CE doc UKCA 1.90 RevD7 | Certificate of Declaration | 11/05/2022 | Download |
CE doc UKCA 1.70 RevD7 | Certificate of Declaration | 17/10/2021 | Download |
CE doc 1.60 RevD7 | Certificate of Declaration | 31/01/2021 | Download |
CE doc 1.50 RevD7 | Certificate of Declaration | 27/05/2020 | Download |
CE doc 1.40 RevD7 | Certificate of Declaration | 26/12/2019 | Download |
CE doc 1.20 Revision D7 | Certificate of Declaration | 26/12/2018 | Download |
DEU_CofD_RevA | Certificate of Declaration | 4/10/2002 | Download |
