Hoge snelheid, lage latentie en transmissie over lange afstanden
Ondersteunt IEEE 802.3af/at en levert tot 30 W per poort voor een eenvoudige installatie
6 kV overspanningsbeveiliging beschermt alle Ethernet-poorten tegen overspanning
De corrosiebestendige stalen behuizing en geharde componenten zorgen voor betrouwbare werking in veeleisende omgevingen
Het ventilatorloze ontwerp vermindert het risico op componentstoringen die de MTBF kunnen beïnvloeden en verlaagt de onderhouds- en downtimekosten
Energy Efficient Ethernet (EEE) vermindert het energieverbruik en helpt kosten te besparen, vooral in omgevingen die continu in bedrijf zijn

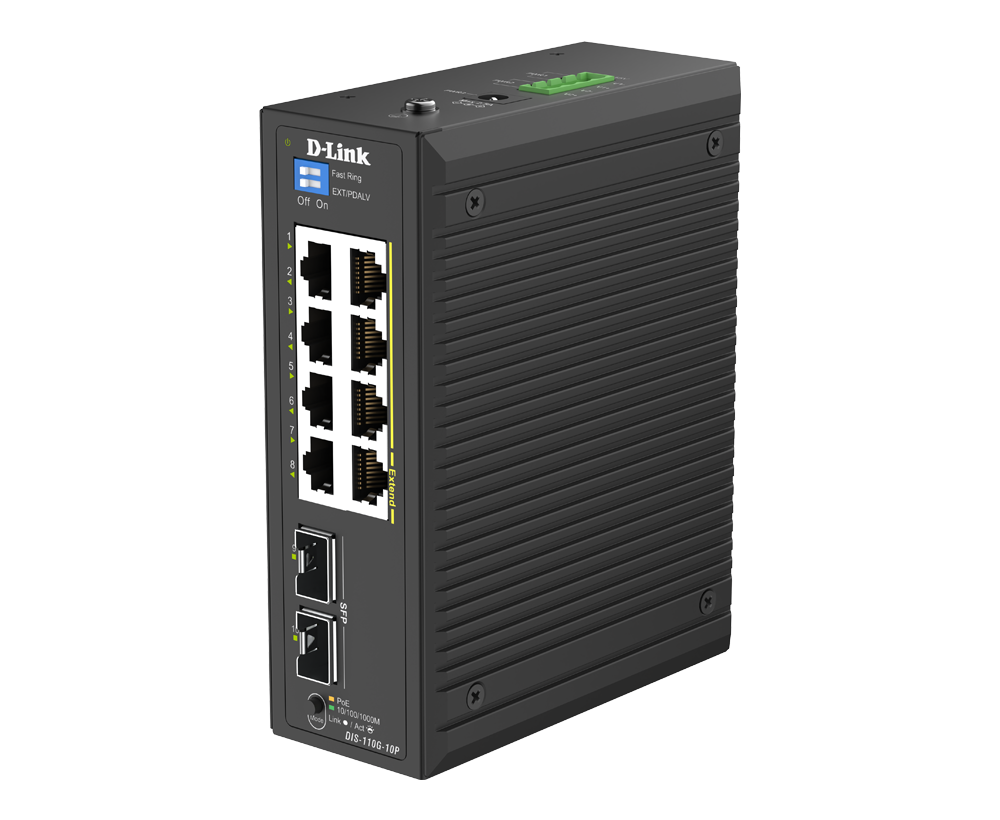

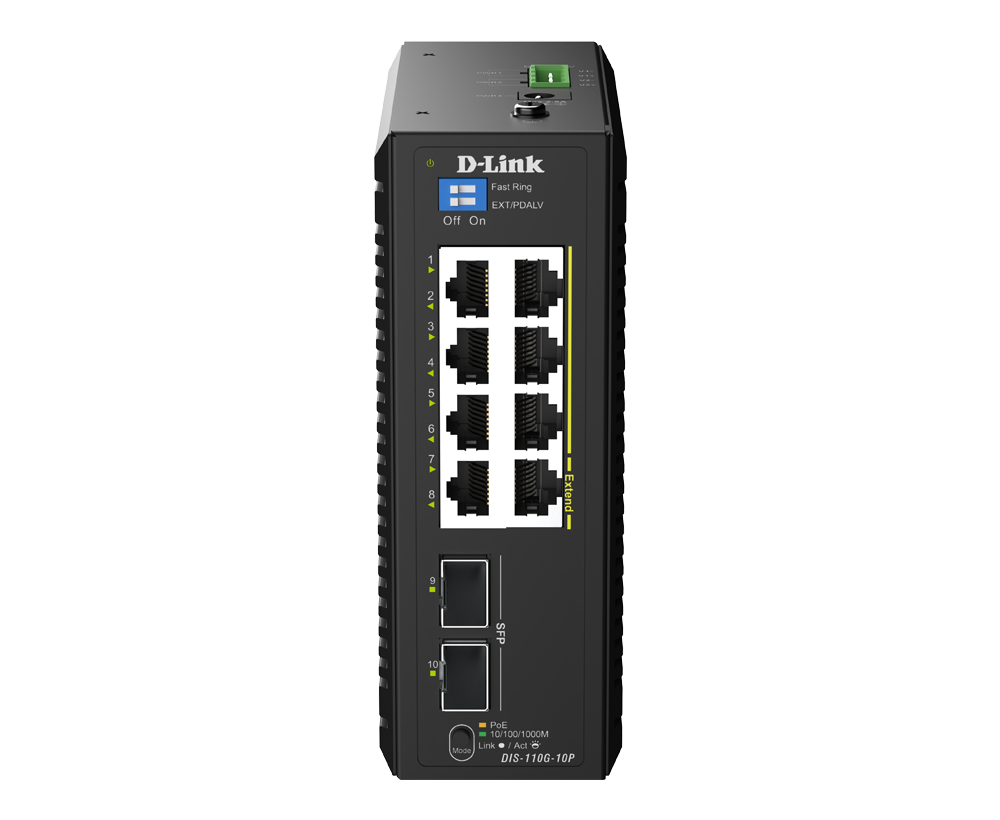

The DIS-110G-10P is equipped with eight PoE ports compliant with IEEE 802.3af/at standards, delivering both data and power through a single Ethernet cable. Using the built-in DIP switch, ports 1 - 4 can be set to “Extend Mode”, supporting transmission distances of up to 250 meters at 10 Mbps, perfect for surveillance cameras that require stable, long-distance connectivity.
With a total power budget of up to 240 W, each port can supply up to 30 W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.
The DIS-110G-10P features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

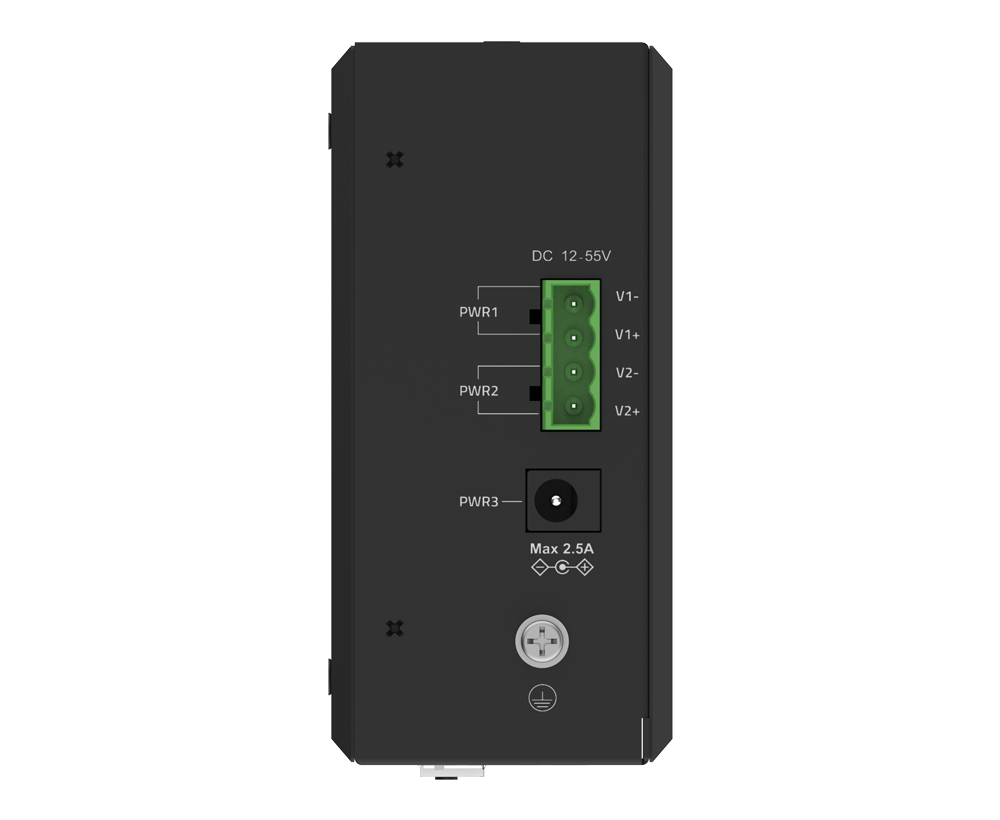

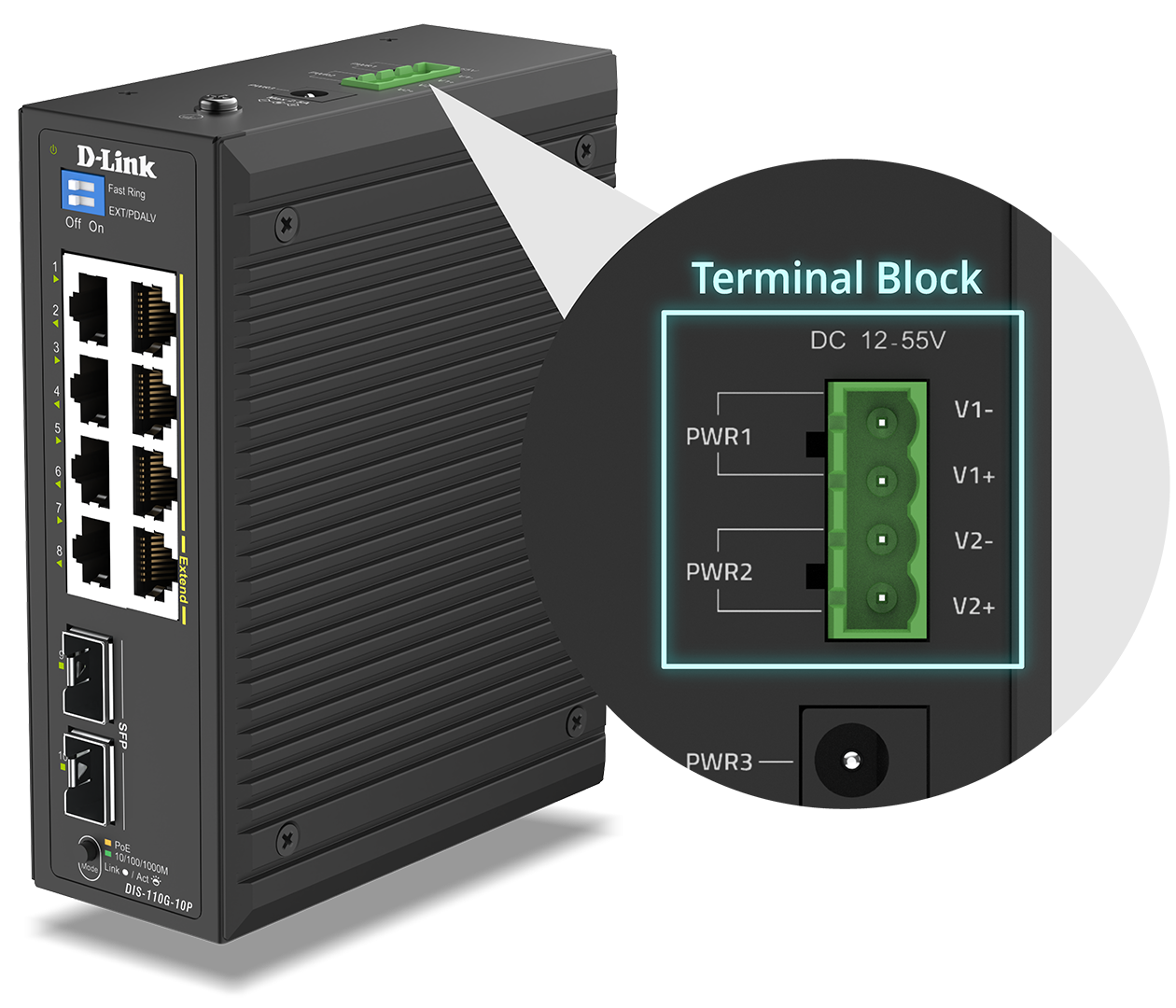

The DIS-110G-10P is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 48 - 57V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Breed
Spanning
Redundant Power Supply
Oververhittingsbeveiliging
Anti-Reverse Protection
Stevige
Verbinding

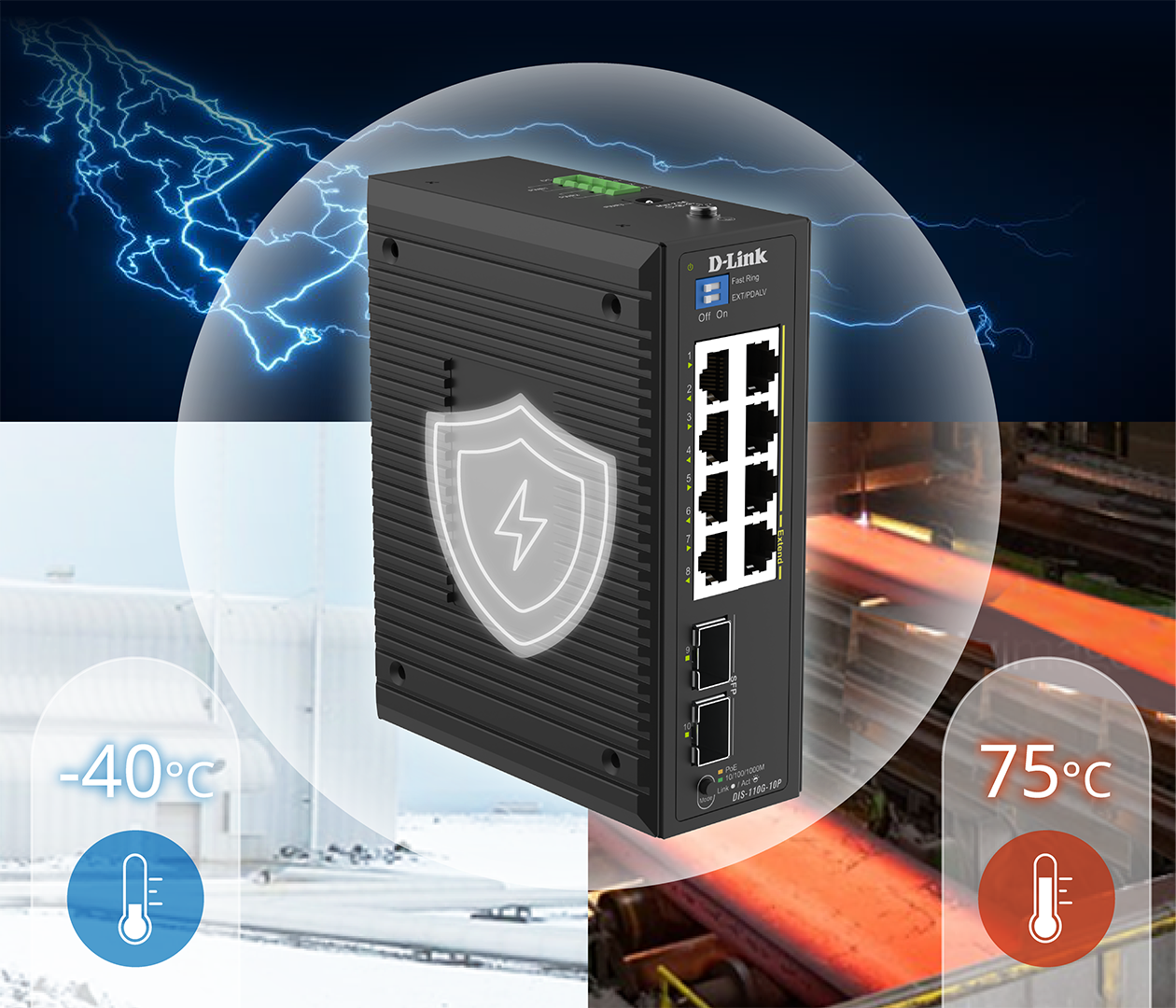

The DIS-110G-10P is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. The fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
De DIS-100G-06 is een industrial unmanaged switch, uitgerust met vier 1G-poorten en twee SFP-poorten, wat zorgt voor een eenvoudige plug-and-play implementatie. De SFP-poorten ondersteunen gegevensoverdracht over lange afstanden, waardoor de afstandsbeperkingen van traditionele Ethernet-bekabeling worden weggenomen. Met een betrouwbare, hoogwaardige werking zorgt hij voor realtime gegevensoverdracht en naadloze connectiviteit voor toepassingen zoals kiosken, digital signage, LED-displays en meer.
Business
Router
4G M2M Router
Aggregatie Switch
Industrial
Switch
Access
Point
City Surveillance
Building Automation
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Power Supply Type
|
DC:48~57V Dual input |
|
Type of Uplink Ports
|
1G SFP |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
