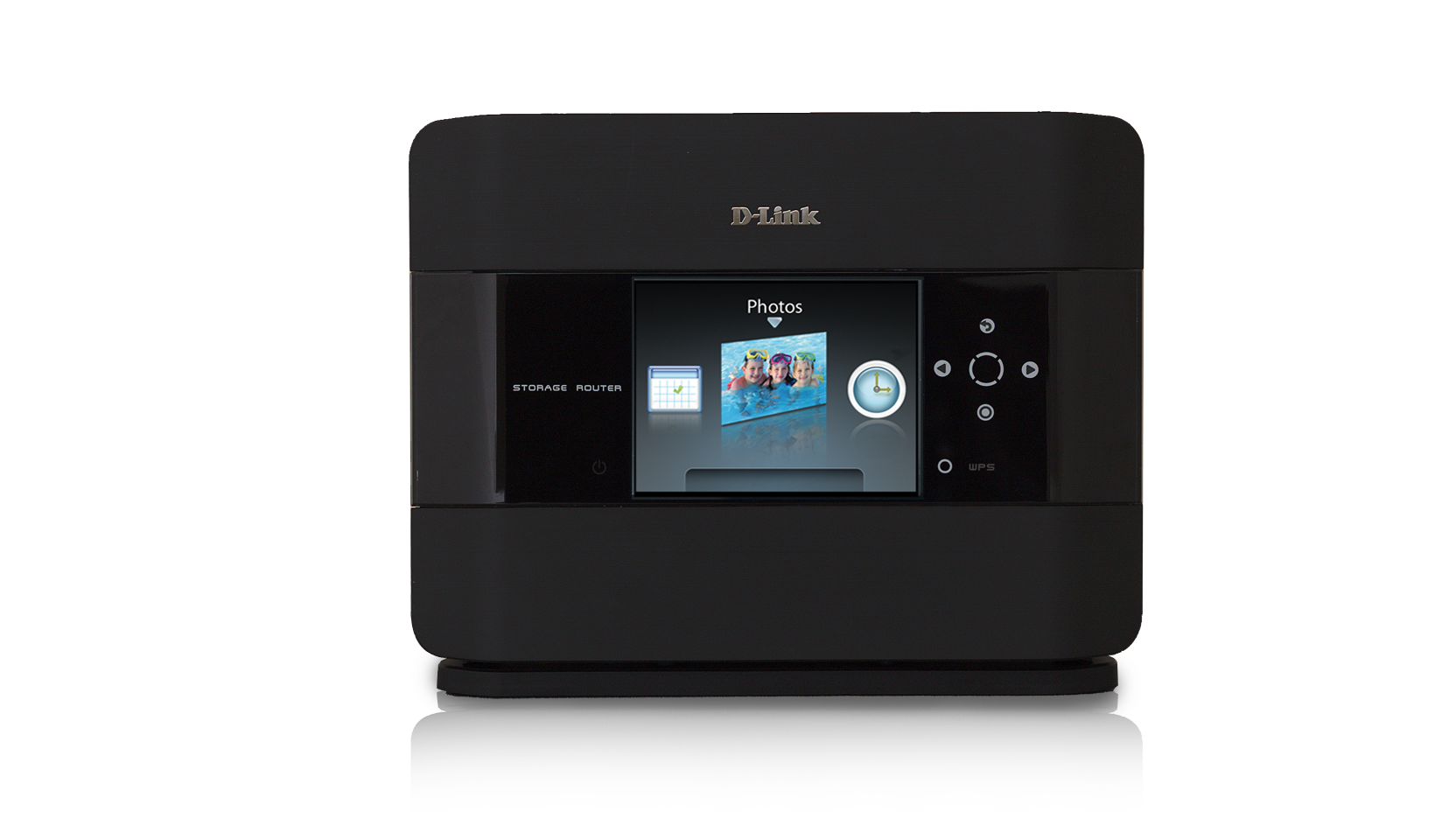

Wireless N Storage Router

DIR-685

  • Product Status: End of Life

Fast Connection                                                                                                                          The router’s 802.11n (draft 2.0) high-speed wireless LAN delivers superior wireless speed and range, for a fast Internet connection wherever you are at home.

It also comes with a 4-port 10/100/1000 Gigabit switch to connect multiple wired devices such as computers, media players and game consoles for fast file transfer and lag-free online gaming.

Up to 500 GB of storage
                                                                                                             A compact 2.5” Hard Drive (HDD) with up to 500 GB disk space can be placed inside this router to act as network storage1.

This disk space can be wirelessly shared among family members to keep and back up valuable files, or provide remote access to your personal documents via the Internet2.

Once music, photo and video collections have been saved on to the HDD for safekeeping, content can be streamed to compatible media players, such as a PlayStation®3, a Microsoft® Xbox 360™ or a D-Link MediaLounge product. This does not require a computer to be turned on!

LCD Display
An interactive 3.2” colour screen brightens up your desk, by displaying your favourite photos saved on the router’s hard drive or photo-sharing sites. You can also use the front-panel buttons to monitor network speed, router and HDD status, or view Internet feeds such as weather forecasts, news or sport events3, all without turning on a computer.

Useful USB ports
Two USB ports are available through the SharePort™ Network USB utility4. You can connect flash drives or multifunction printers to share printing and scanning functions among family members5. These will also accept a 3G adapter, so you can connect the router to a 3G mobile service to provide Internet access to a group while travelling6.

Intelligent data prioritsation
he DIR-685 includes intelligent Quality of Service (QoS). It automatically detects if audio, video or gaming content is being transmitted over the network and gives these applications priority over less time-sensitive traffic such as email or file transfers. It then adjusts priorities on the fly to ensure media content is transmitted without jitter or lag. This enables multiple applications to stream smoothly to your TV or PC.

All angles covered
DIR-685 supports the latest wireless security features to help prevent unauthorised access, be it from over the wireless network or from the Internet. Support for WEP, WPA and WPA2 standards ensure that the best possible encryption may be used while the dual active firewalls (SPI and NAT) prevent potential attacks from across the Internet.

Strong parental controls are included, that allow blocking or allowing of specific web sites completely or at certain times of the day.

The D-Link Click’n Connect (DCC) wizard allows anybody without any prior technical knowledge to install the router and connect to the Internet within minutes, just by running the product CD4. In just a few simple steps, the user is taken through establishing physical connections (power and cabling), configuring wireless network settings, security and connecting to their ISP.

D-LINK GREEN                                                                                                                                  The DIR-685 reacts when a device attached to it is turned off, by placing the corresponding port in a standby mode that requires less power.

In addition, the router is able to detect the Ethernet cable length and adjust power usage accordingly, hence saving any surplus power that would otherwise dissipate as heat.

The Wi-Fi signal can also be turned off completely at certain times of the day, resulting in extra savings.
Furthermore, the hard drive goes into sleep mode when your disk is not in use and the LCD screen goes off after a certain amount of time that you can set.
Consolidating all of the above functions in a single device itself ultimately helps to conserve energy.


1 Hard Drive must be no thicker than 9.5 mm. Capacity can go up pending future technology advancements. Hard Drive not included. For a list of SATA drives that have been tested to work with this device, visit your D-Link support web sites.

2 Use of an FTP Server to access files over the Internet does not provide for secure or encrypted transmissions.

3 Use Framechannel™ to display weather forecasts, news and sport events

4 Windows computers only

5 Hard drives and multifunction equipment can only be accessed by a single user at a time.

6 Currently only the D-Link DWM-152 and DWM-156 3G adapters are supported





Actual product appearance may differ from the image displayed on this page

Gerelateerde Producten

DWA131 Side
Wireless-N Nano USB Adapter
DWA-131
Meer lezen
D-Link DWA-121 Wireless N 150 Pico USB Adapter Right side image
Wireless N 150 Pico USB Adapter
DWA-121
Meer lezen
Hardware
  •  1 10/100/1000 Mbps Gigabit WAN port
  •  4 10/100/1000 Mbps Gigabit LAN ports with Jumbo frames support
  •  1 Hard Drive bay for 2.5” SATA Hard Drive of any capacity1
  •  2 USB 2.0 ports for printer or flash memory sharing via Shareport™
  •  3.2” true colour LCD display
  •  Internal Wireless LAN antennae
  • 1Hard Drive must be no thicker than 9.5 mm

Wireless
  •  IEEE 802.11n (draft 2.0) Wireless LAN specification, Wi-Fi certified
  •  Backward compatible with 802.11g wireless networks
  •  Simple wireless encryption set up at the touch of a button (WPS - Wireless Protect Setup)
  •  Wi-Fi Protected Access (WPA / WPA2)


Quality of Service (QoS)
  • Automatic data prioritisation with D-Link Intelligent QoS Technology
  •  Wireless Multimedia (WMM) for WLAN traffic

Storage
  •  Built-in FTP server (download the Yahoo!® widget)
  •  Built-in iTunes® server
  •  UPnP™ AV server for streaming content to compatible media players

Security
  •  Stateful Packet Inspection (SPI)
  •  Built-in NAT firewall
  •  Content filtering with URL blocking and scheduling
  •  Denial of Service (DoS) prevention
  •  Multiple IPSEc/PPTP/L2TP pass-through
  • MAC address filtering
  •  Support for 802.1X RADIUS

Configuration/Management

  •  D-Link Click’n Connect easy set-up with wizard in 15 languages
  •  Web-based management

D-Link Green™
  •  Automatic power down of idle ports
  •  Reduced power according to Ethernet cable length
  •  Wireless LAN scheduling
  •  HDD sleep mode
  •  LCD power off
  •  EnergyStar qualified power adapter
  •  Recyclable packaging
  •  RoHS compliant



This product was phased out on: 15/09/2013
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 15/09/2015
Versie Datum Type Bestandsgrootte
Blad in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Handleiding in het Engels Handleiding in het Engels - - - Download
Handleiding in het Duits Handleiding in het Duits - - - Download
Windows SharePort handleiding in het Engels Windows SharePort handleiding in het Engels - - - Download
macOS SharePort handleiding in het Engels macOS SharePort handleiding in het Engels - - - Download
Dit D-Link product bevat software code welke ontwikkeld is door derden, waaronder software code die valt onder de GNU General Public License ("GPL") of GNU Lesser General Public License ("LGPL"). Indien van toepassing: de voorwaarden van de GPL en LGPL en informatie over het verkrijgen van toegang tot de GPL-code en LGPL-code die in dit product zijn gebruikt, zijn hier voor u beschikbaar:

http://tsd.dlink.com.tw/GPL.asp

De GPL-code en LGPL-code die gebruikt is in dit product wordt gedistribueerd ZONDER ENIGE GARANTIE en is onderworpen aan de auteursrechten van een of meer auteurs. Voor meer informatie, zie de GPL-code en de LGPL-code voor dit product en de voorwaarden van de GPL en LGPL.
Versie Beschrijving Datum Type
2.02b03 Huidige firmware 6/08/2015 - Download
Versie Beschrijving Datum
SharePort Utility Windows SharePort Utility Windows 2000 (32 Bit), XP (32 Bit), Vista (32/64 Bit), 7 (32/64 Bit), 8 (32/64 Bit), 8.1 (32/64 Bit), 10 (32/64 Bit) 7/10/2015 Download
SharePort Utility macOS 10.6-10.10 SharePort Utility macOS 10.6-10.10 28/10/2014 Download
Windows Direct Click and Connect Utility Windows Direct Click and Connect Utility - Download
GPL Firmware Sourcecode GPL Firmware Sourcecode - Download
