The xStack DGS-3600 series of next generation Layer 3 Gigabit switches delivers performance, flexibility, security, multi-layer QoS and access, and redundant power option for SMB and enterprises. With high Gigabit port densities, SFP support, 10-Gigabit uplink options and advanced software functions, these switches can act as departmental accesslayer devices or core switches to form a multi-level network structured with high-speed backbone and centralized servers. Telecom service providers can also take advantage of the high SFP density switches to form the core of their Fiber to the building (FTTB) network that extends to the subscribers' sites.
Unparalleled Flexibility.
Easy to deploy and simple to managed, the DGS-3600 series can be stacked with any switches supporting D-Link's Single IP Management to form a multi-level network structured with backbone and centralized high-speed servers. This virtual stack can comprise units located anywhere on the same network domain, and uses the optional 10- Gigabit uplinks to move intra-stack traffic at 20Gbps full duplex. It can eliminate single points of failures, cable distance barriers, physical stacking method limitations and the need for stacking cabling.
Redundant Ring Stacking.
Alternatively, users can install one or two 10-Gigabit uplinks, depending on whether the linear or fault-tolerant ring stacking is implemented, to create a physical stack. Up to 12 units or 576 Gigabit ports can be configured for a stack. Using the coaxial cable or fiber as the medium to stack switches together, the DGS-3600 series provides not only high-bandwidth stacking but also the cost control capability that allows users to add 10-Gigabit uplinks strictly as needed. Modules with single 10-Gigabit XFP can also be installed in any of the open slots for uplink to servers or a fiber backbone.
Security, Performance & Availability.
The DGS-3600 series provides a complete set of security features, which includes L2/L3/L4 multi-layer Access Control Lists and 802.1x user authentication via TACACS+ and RADIUS servers. In addition, it offers suppression capabilities and Layer 3 IP v4/v6 Static Routing to increase network performance and security. Built-in D-Link ZoneDefense2 technology allows business to integrate the switch stack with D-Link NetDefend firewalls to implement a full coverage, proactive security architecture.
The DGS-3600 series offers extensive VLAN support including GARP/GVRP and 802.1Q VLAN to enhance security and performance. To support converged applications including VoIP, ERP, Intranet and video conference, a robust set of L2/L3/L4 QoS/CoS features ensures that critical network services are served with proper priority. To prevent malicious flooding traffic caused by worm/virus infections, the DGS-3600 series provides D-Link Safeguard Engine to increase the switch's reliability, serviceability and availability. Bandwidth Control can be flexibly set for each port using pre-defined thresholds to assure a committed level of service for end users. For advanced applications, per-flow bandwidth control allows easy fine-tuning of service types based on specific IP addresses or protocols.

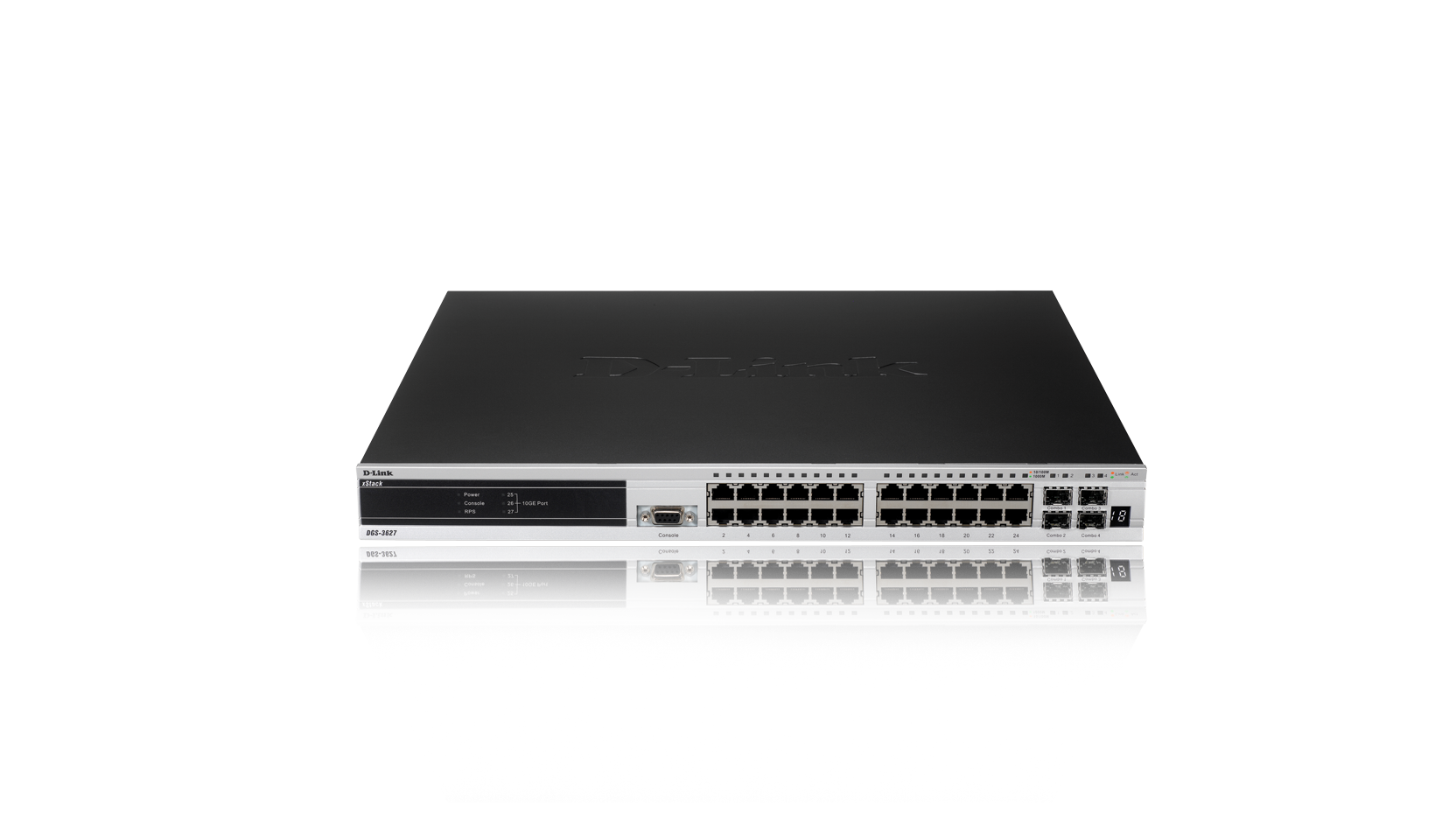

Actual product appearance may differ from the image displayed on this page
Gerelateerde Producten
Specs
Number of ports
|
16 to 30 ports |
---|---|
Layer
|
Layer 3 |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
Combo 1000BASE-T/SFP Open slot |
Switching capacity
|
108 Gbps |
Form Factor
|
Rackmountable |
Physical stacking
|
Up to 12 devices Up to 40 Gbps bidirectional bandwidth |
Virtual stacking (up to 32 devices)
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Link aggregation
|
802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) Super VLAN |
IPv4/IPv6 routing table
|
IPv4 - 12K IPv6 - 6K |
IPv4/IPv6 forwarding table
|
IPv4 - 8K IPv6 - 4K |
IP interfaces
|
256 |
IPv6 Ready
|
Supported
|
IPv6 tunneling
|
Supported
|
Multicasting
|
Supported
|
PIM-SM
|
Supported
|
DVMRP v3
|
Supported
|
RIP v1/v2
|
Supported
|
RIPng
|
Supported
|
OSPF
|
Supported
|
BGP
|
Supported
|
OSPFv3
|
Supported
|
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
64 Kbps minimum granularity |
Time-based QoS
|
Supported
|
ACL type
|
Egress Ingress VLAN-based |
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
Microsoft NAP support
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
sFlow
|
Supported
|
ICMPv6
|
Supported
|
