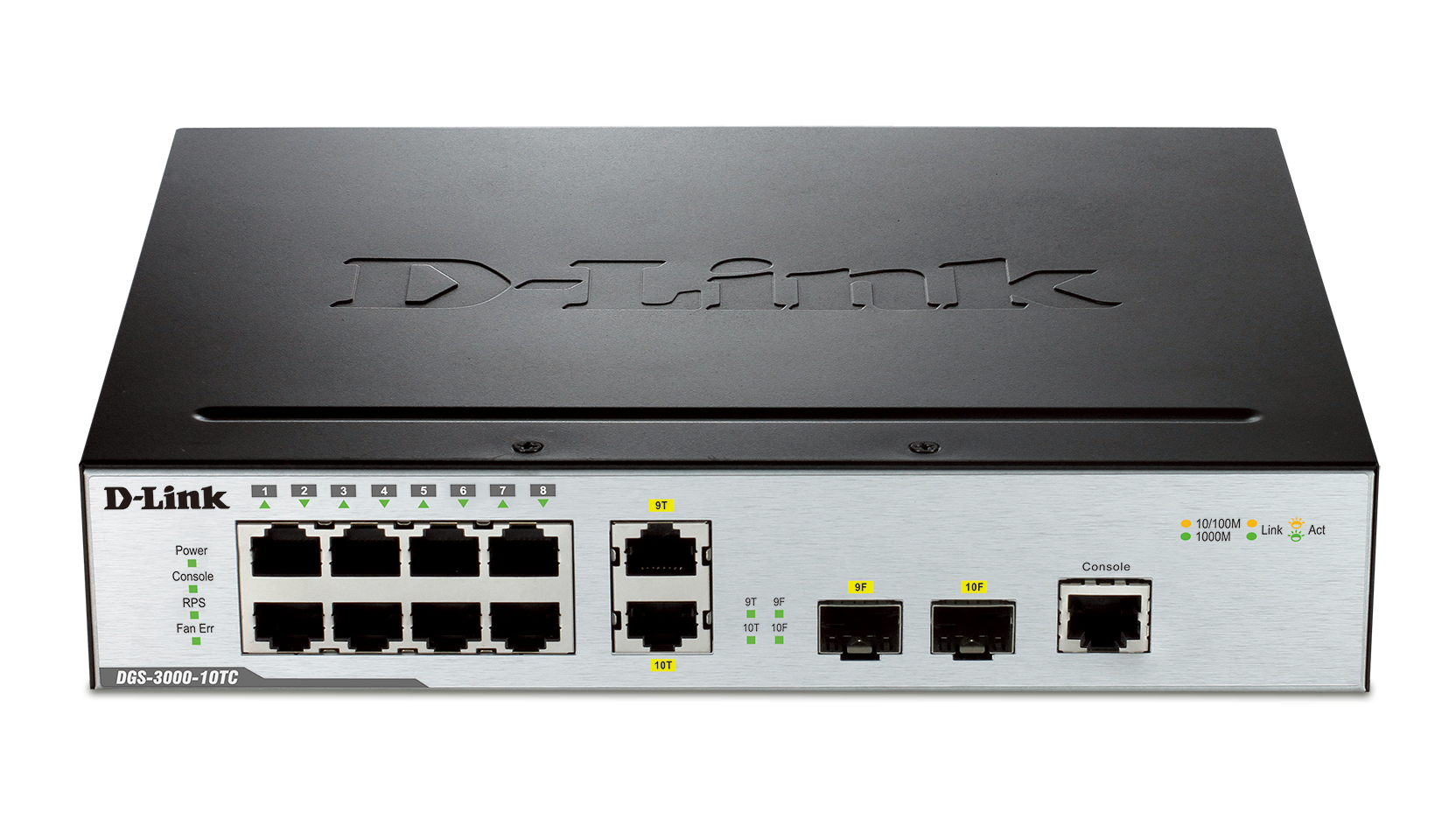

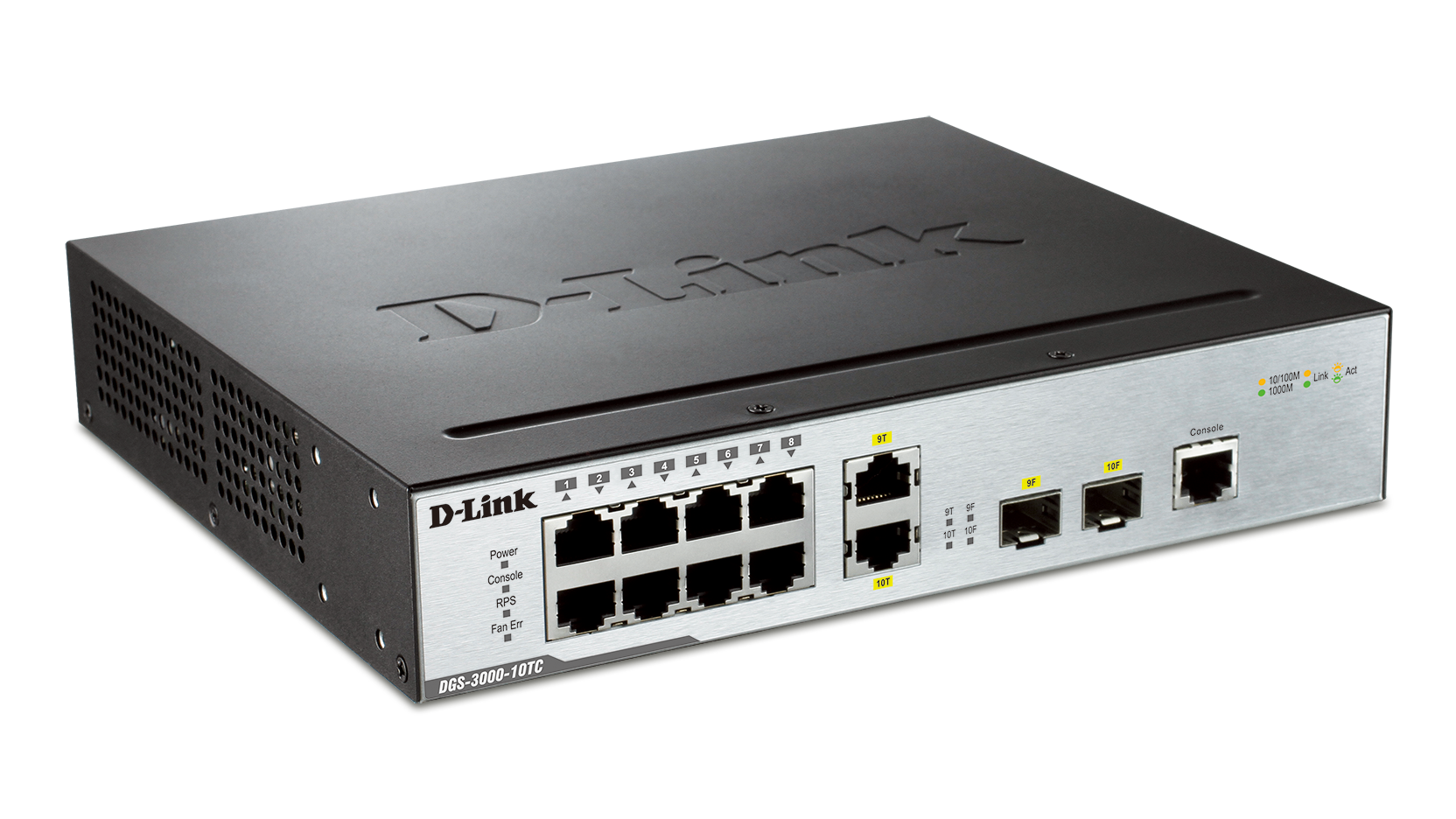

The DGS-3000-10TC is part of the Layer 2 family of D-Link’s managed switch product line that provides wired Gigabit speed access for metro and campus networks. The DGS-3000-10TC is designed as a 1U rackmount case suitable for enterprise access or service provider telecom cabinets, maximising network performance without compromising on reliability and security. Green technology decreases energy costs by reducing power consumption, without compromising on performance.
Reliable Networking
All of the Ethernet ports of the DGS-3000-10TC support 6kV surge/lightning protection. This feature protects the switch from power surges due to lightning or improper electrical wiring when the Ethernet cables are exposed in open spaces, such as in old buildings. For Ethernet link fail-over, the DGS-3000-10TC supports 802.1D Spanning Tree Protocol (STP), 802.1w Rapid Spanning Tree Protocol (RSTP), and 802.1s Multiple Spanning Tree Protocol (MSTP), to allow automatic backup of bridge paths. Using these features, the transmission and reception of frames can be guaranteed even during a network failure. For mission critical environments, the switches also support ITU-I G.8032 Ethernet Ring Protection Switching (ERPS); traffic can be rerouted around the ring within 50 milliseconds, minimising disruption to service. D-Link Loopback Detection (LBD) is a protocol-less loop detection function that prevent loop events from causing congestion in uncontrolled network segments such as unmanaged switches or customer networks. The DGS-3000-10TC also support 802.1AX and 802.3ad Link Aggregation, which allows grouping of multiple ports in parallel to increase bandwidth and redundancy for high availability and load sharing in a multi-client environment.
Virtual Stacking reduces the number of IP addresses needed on a network by configuring up to 32 devices to appear as a single unit with one IP address. This simplifies network management for small workgroups and allows for switches to be added without special cabling.
Solid Security with High Availability
The DGS-3000-10TC offers various user/device authentication features including 802.1X, Web-based Access Control (WAC)1 and MAC-based Access Control (MAC). The clientless WAC1 and MAC functions provide convenience for IT managers implementing user/device authentication into a network. It permits administrators to control security without installing client software on each network device; this is especially important for devices on which the software cannot be installed. For a greater security level, the DGS-3000-10TC also supports Compound Authentication1, letting IT managers choose between multiple authentication methods for any single device. Selectable host-based authentication and authorisation provides the option to finely control access by each device in the network. For advanced applications, the switches also provide RADIUS and TACACS accounting information for integration of backend services such as a billing system or advanced user/device control. In mission critical networks, the DGS-3000-10TC supports strict address and interface binding function via IP-MAC-Port Binding and ARP Spoofing Prevention to protect the networks from Man-In-The-Middle or ARP Spoofing attacks.
To maintain a high availability network, the DGS-3000-10TC uses D-Link Safeguard Engine to manage the CPU and ensure that your network stays up even if it is overloaded by malicious traffic caused by worms and viruses. The switches also support DHCP Screening to filter out unauthorised DHCP offerings from rogue DHCP servers or routers. Other security features such as BPDU Attack Protection, DoS Attack Prevention, and L3 Control Packet Filtering help to block leaks caused by protocol or behavioural security intrusions.
Deliver Triple Play Services
The DGS-3000-10TC features full L2 multicast functions, including IGMP/MLD snooping, fast leave, and filtering. With L2 multicast support, the switches can handle the increasingly popular IPTV service. Host-based IGMP/MLD Snooping provide service to multiple IPTV subscribers per physical interface and ISM VLAN registers multicast streams in a multicast VLAN to save bandwidth on the network backbone. The ISM VLAN profiles allow users to bind or replace the channel profiles of subscription ports quickly and easily. The DGS-3000-10TC also supports IGMP authentication, which can prevent rogue IPTV subscriptions by authenticating Set Top Boxes as well as channel switching to secure Internet Service Provider (ISP) revenues.
The DGS-3000-10TC also supports advanced Quality of Service (QoS) functions to help ISPs reliably deliver high-quality triple play services. Flexible packet classification can be based on various header fields or user-defined packet content to help administrators prioritise network traffic. Two-rate and single-rate Three Colour Marker (trTCM/srTCM) help classify traffic streams into conforming and nonconforming groups to guarantee the minimum bandwidth for prioritised packets. The Bandwidth Control feature allows ISPs to define the upstream/downstream throughput levels for each port with granularity down to 64 kbps.
Easy Maintenance and Troubleshooting
The DGS-3000-10TC features rich Operations, Administration, and Management (OAM) features to help ISPs reduce the burden of maintenance and troubleshooting. Cable diagnostics display the status of Ethernet cables and locate the position of cable errors remotely, helping providers cut onsite support costs. 802.1ag Connectivity Fault Management (CFM) provides administrators with a convenient tool to monitor and troubleshoot end-to-end service networks. This allows service providers to check connectivity, isolate network issues, and identify the affected customers. D-Link Unidirectional Link Detection (DULD) helps detect a broken one-way fibre connection, improving the stability of the fibre infrastructure in a Metropolitan Area Network.
IPv6 Ready
The DGS-3000-10TC is IPv6 ready and supports various IPv6 functions such as MLD Snooping, WAC1, IPv6 ACL/QoS, and IMPBv6 to ensure seamless integration of next generation networks. The DGS-3000-10TC also supports a IPv4/v6 dual stack function that allows the switch to act as a bridge between IPv4 and IPv6 networks. Finally, all DGS-3000-10TC are certified to be IPv6 ready, which guarantees interoperability for IPv6 environments.
Gerelateerde Producten
![](/be/nl/-/media/product-pages/dv/700/dv700.png?h=100&w=178&la=nl-BE&hash=8F99ABDAEFBE4C38EC42E3145EAC5189)
Specs
Type
|
Managed |
---|---|
Number of ports
|
5 to 14 ports |
Layer
|
Layer 2 |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
1000BASE-T Gigabit Ethernet 100BASE-FX 100GbE QSFP28 10GBASE-T 10GbE CX4 10GbE SFP+ 10GbE XFP 2.5GBASE-T Ethernet 25GbE SFP28 40GbE QSFP+ Combo 1000BASE-T/SFP Combo 10GBASE-T/SFP+ Open slot SFP |
Switching capacity
|
20 Gbps |
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Desktop Rackmountable |
Virtual stacking (up to 32 devices)
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Link aggregation
|
802.1AX 802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
GVRP MAC-based Port-based |
Advanced VLAN
|
Double VLAN (Q-in-Q) ISM VLAN Voice VLAN |
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
64 Kbps minimum granularity |
Time-based QoS
|
Supported
|
ACL type
|
Ingress |
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
Microsoft NAP support
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
LLDP
|
Supported
|
LLDP-MED
|
Supported
|
ICMPv6
|
Supported
|
802.3ah
|
Supported
|
802.1ag
|
Supported
|
ITU-T Y.1731
|
Supported
|
