If you install the D-Link DGE-560SX in your servers, you will benefit from Gigabit connectivity and the higher performance offered by the PCI Express (PCI-E) architecture.
This enables you to deploy a highly stable, scalable, high-speed network solution at an affordable price.
Fiber Gigabit PCI Express x4 Adapter
The DGE-560SX Fiber Gigabit PCI Express x4 Adapter is a high-performance network card that lets businesses take advantage of the PCI Express (PCIe) slots of their servers to enhance network performance with fiber-optic connectivity. The PCIe architecture ensures dedicated input/output (I/O) bandwidth for the adapter, ensuring high performance without bus sharing for Gigabit Ethernet connectivity in fiber-optic networks.
PCI Express Interface
The DGE-560SX supports 2Gbps transfer rate between the adapter's board and the server host. It provides unsurpassed robustness, reliability and performance, and is the optimum I/O connectivity solution for a wide spectrum of server, storage and system area networks (SAN). As a successor to the PCI and PCI-X interfaces, the PCI Express serial bus eliminates many of the inefficiencies of parallel PCI and PCI-X architectures. With lower pin counts and lower power consumption requirements, the DGE-560SX adapter also reduces system power requirements. PCI Express is backward compatible with PCI and PCI-X addressing, which allows all existing applications and Operating Systems to function unchanged.
Fiber-Optic Connection
With fibre optic cable, distance can reach up to 550m and network speed 2000Mbps (full-duplex). The adapter offloads the host operating system overhead by providing on-board verification of IP header and TCP/UDP checksum for data received, in turn freeing up server processing power for other applications.
VLAN & QoS Support
The DGE-560SX adapter provides on-board screening of VLAN tagged Ethernet frames compliant with IEEE 802.1Q. This allows the server to operate in a flexible and secure network configuration in a standards-based environment. The adapter supports 802.1p Priority Queues for improved delivery of delay-sensitive data such as voice and video.
The DGE-560SX supports other advanced features such as Jumbo frames of up to 9KB and Promiscuous mode. It supports ACPI (Advanced Configuration and Power Interface) specifications to enable OS-directed configuration and Power Management (OSPM) to enumerate and configure server motherboards. The adapter supports SNMP agent for management under an SNMP-based platform.
Hot Swap Capability
It is often difficult or impossible to schedule downtime on a server to replace or install peripheral cards. As a PCI Express card, the DGE-560SX provides native support for hot plugging and hot swapping, which makes it ideal for installation in a server. This hot swap capability makes it easy for network administrators to add, change or remove I/O peripherals while minimizing the server downtime.

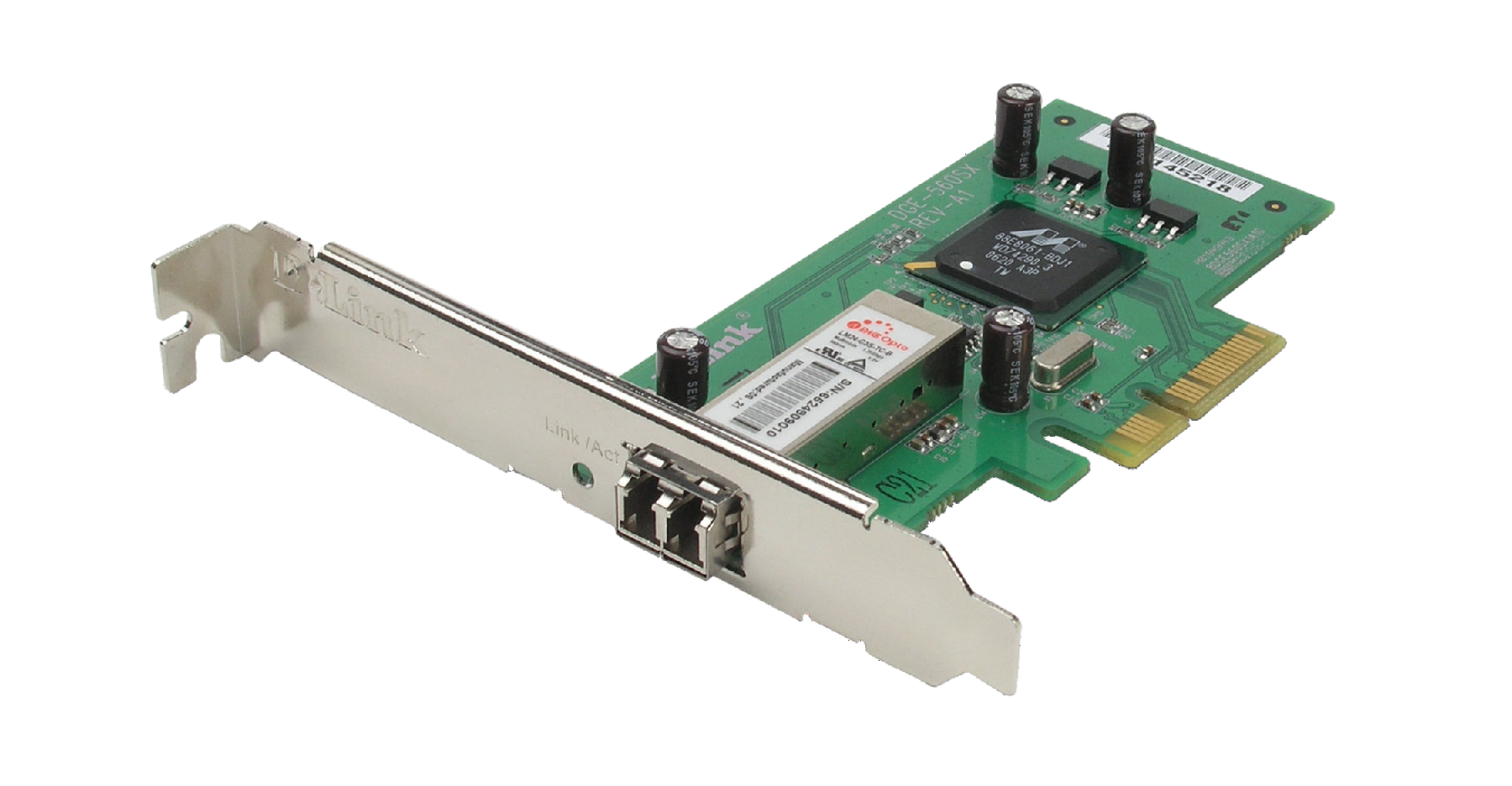

Actual product appearance may differ from the image displayed on this page
This enables you to deploy a highly stable, scalable, high-speed network solution at an affordable price.
Fiber Gigabit PCI Express x4 Adapter
The DGE-560SX Fiber Gigabit PCI Express x4 Adapter is a high-performance network card that lets businesses take advantage of the PCI Express (PCIe) slots of their servers to enhance network performance with fiber-optic connectivity. The PCIe architecture ensures dedicated input/output (I/O) bandwidth for the adapter, ensuring high performance without bus sharing for Gigabit Ethernet connectivity in fiber-optic networks.
PCI Express Interface
The DGE-560SX supports 2Gbps transfer rate between the adapter's board and the server host. It provides unsurpassed robustness, reliability and performance, and is the optimum I/O connectivity solution for a wide spectrum of server, storage and system area networks (SAN). As a successor to the PCI and PCI-X interfaces, the PCI Express serial bus eliminates many of the inefficiencies of parallel PCI and PCI-X architectures. With lower pin counts and lower power consumption requirements, the DGE-560SX adapter also reduces system power requirements. PCI Express is backward compatible with PCI and PCI-X addressing, which allows all existing applications and Operating Systems to function unchanged.
Fiber-Optic Connection
With fibre optic cable, distance can reach up to 550m and network speed 2000Mbps (full-duplex). The adapter offloads the host operating system overhead by providing on-board verification of IP header and TCP/UDP checksum for data received, in turn freeing up server processing power for other applications.
VLAN & QoS Support
The DGE-560SX adapter provides on-board screening of VLAN tagged Ethernet frames compliant with IEEE 802.1Q. This allows the server to operate in a flexible and secure network configuration in a standards-based environment. The adapter supports 802.1p Priority Queues for improved delivery of delay-sensitive data such as voice and video.
The DGE-560SX supports other advanced features such as Jumbo frames of up to 9KB and Promiscuous mode. It supports ACPI (Advanced Configuration and Power Interface) specifications to enable OS-directed configuration and Power Management (OSPM) to enumerate and configure server motherboards. The adapter supports SNMP agent for management under an SNMP-based platform.
Hot Swap Capability
It is often difficult or impossible to schedule downtime on a server to replace or install peripheral cards. As a PCI Express card, the DGE-560SX provides native support for hot plugging and hot swapping, which makes it ideal for installation in a server. This hot swap capability makes it easy for network administrators to add, change or remove I/O peripherals while minimizing the server downtime.
Actual product appearance may differ from the image displayed on this page
Specs
High Performance Hardware
Advanced Functions
Operating Systems
- E 1.0 interface with 2.5GHz signalling
- 2.3az 1000Base-SX standard
- Multi-mode fibre up to 550m (LC connector)
- 802.3x Flow Control and full duplex operation
- Laser eye safety certified
- Hot-swappable
Advanced Functions
- 9KB Jumbo frame
- 802.1Q VLAN support
- 802.1p priority queues support
- Promiscuous mode
- ACPI2.0 power management
- SNMP agent for integration with SNMP management
- D-Link Network Control Program
Operating Systems
- Windows 2000/2000 Server
- Windows 2003 Server/2003 Server x64 edition
- Windows XP/XP x64
- Linux for kernel 2.4.x and 2.6.x
Support
This product was phased out on: 24/04/2013
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 24/04/2015
Versie | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|
Datasheet (English) | - | 1.05mb | Download |
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
Manual (English) | Manual (English) | 1/07/2007 | 0.75mb | Download |
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
Quick Installation Guide (English) | - | 0.26mb | Download |
Versie | Beschrijving | Datum | |
---|---|---|---|
DEU_CE_A1_RevA | Certificate of Declaration A1 | 2/07/2009 | Download |
