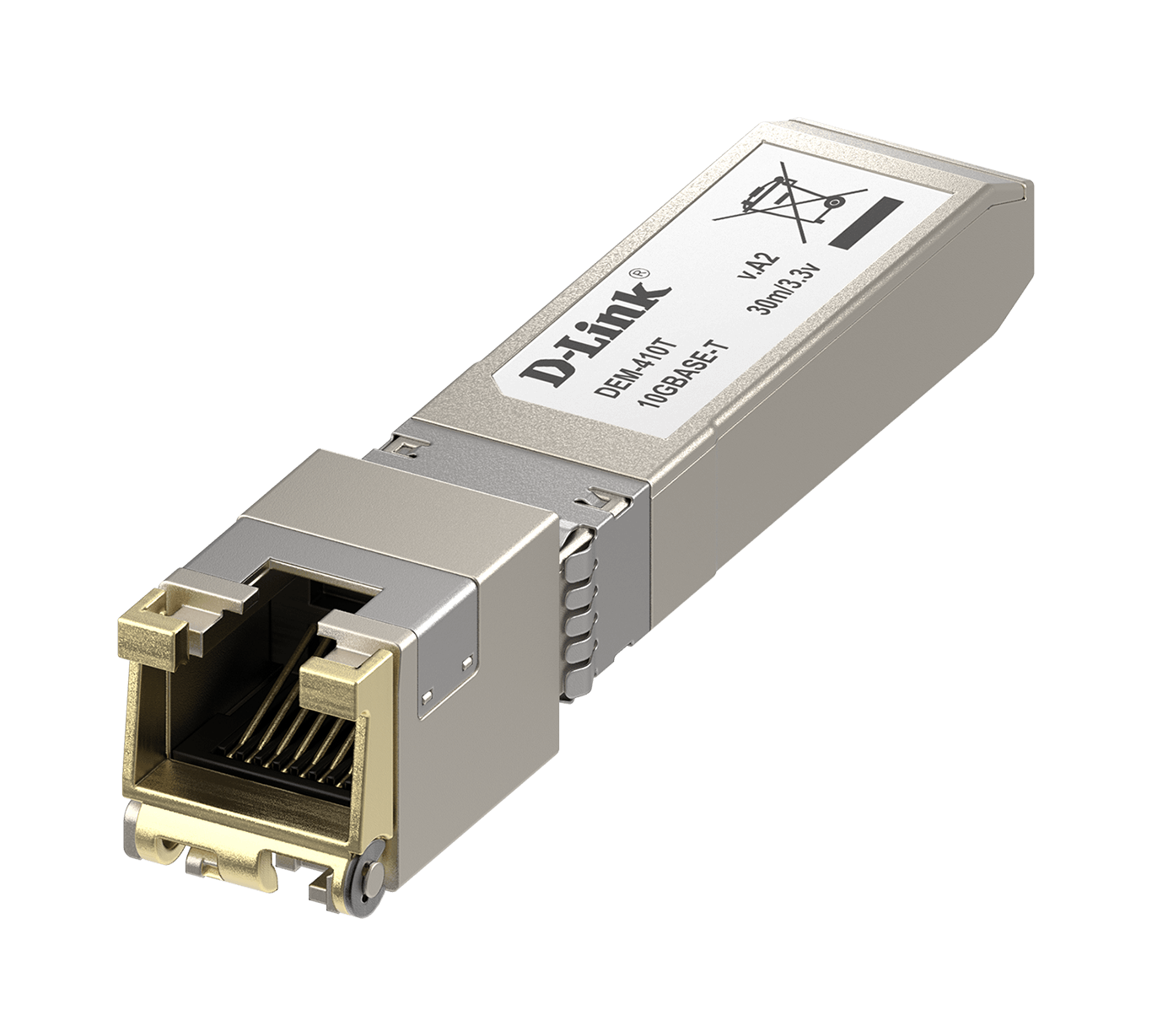

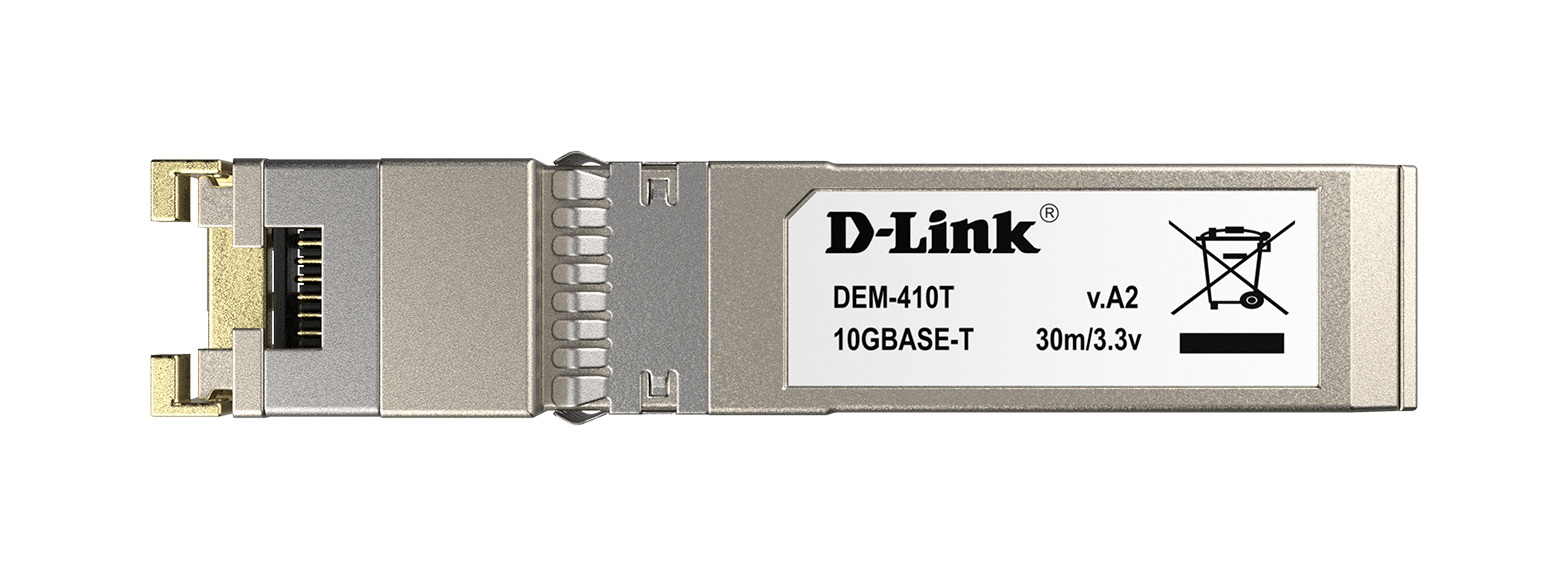

SFP+ 10GBASE-T Copper Transceiver

DEM-410T

  • Product Status: Live
The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity.

Download de datasheet.

Alle Verkooppunten

The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity.

It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.

Gerelateerde Producten

10G Multi-Gigabit Smart Managed Switches
DXS-1210-10TS, DXS-1210-12TC, DXS-1210-12SC, DXS-1210-16TC
Meer lezen
Top of Rack 10 Gigabit Stackable Managed Switches
DXS-3400-24TC, DXS-3400-24SC
Meer lezen
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Meer lezen
Gigabit Layer 3 Stackable Managed Switches
DGS-3130-30TS, DGS-3130-30S, DGS-3130-30PS, DGS-3130-54TS , DGS-3130-54S, DGS-3130-54PS
Meer lezen
Gigabit L3 Stackable Managed Switches
DGS-3630-28SC, DGS-3630-28TC, DGS-3630-28PC, DGS-3630-52TC, DGS-3630-52PC
Meer lezen

Features

  • Hot Pluggable
  • MSA Compliant: SFF-8431, SFF-8432
  • RoHS Compliant

Specification

Compliant Standard

  • IEEE 802.3an 10GBase-T IEEE

Transceiver Type

  • RJ45

Max. Transmit Distance

  • 10GBASE-T up to 30m with Cat 6a

Speed

  • 10Gbps

Operating Power (V)

  • 3.3V

Max Input Current (mA)

  • 700mA

MTBF (hours)

  • 217,186 hours

Operation Temperature (°C)

  • 0~60℃

Storage Temperature (°C)

  • -40~85℃

Operating Humidity (%)

  • 5%~95%

Storage Humidity (%)

  • 5%~95%

Dimension ( W x D x H mm)

  • 13.7mm x 68mm x 8.5mm

Weight (g)

  • 20g

Emission (EMI)

  • FCC Class B, CE Class B VCCI, Class B

Safety

  • LVD
