High Resolution Surveillance

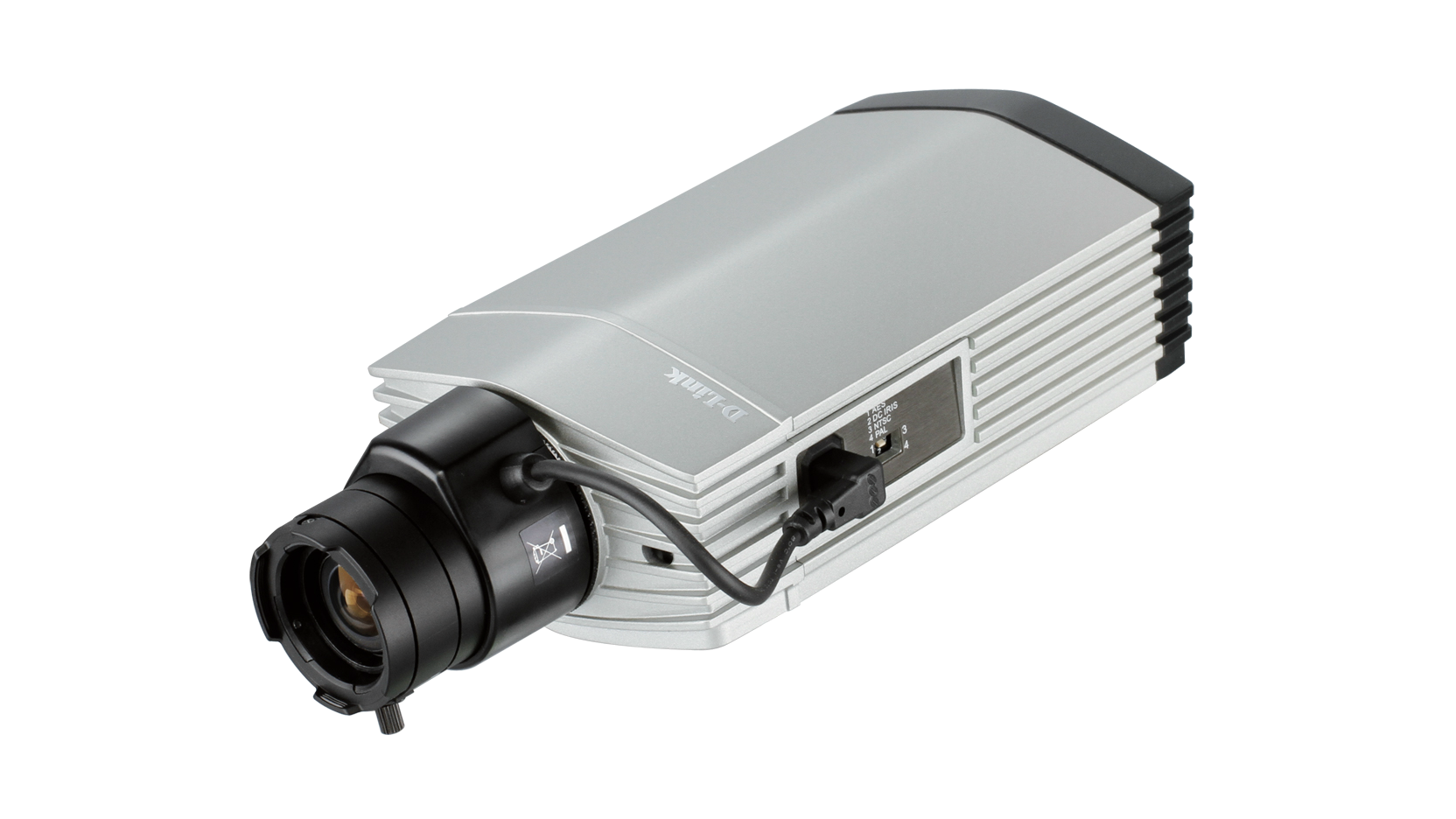

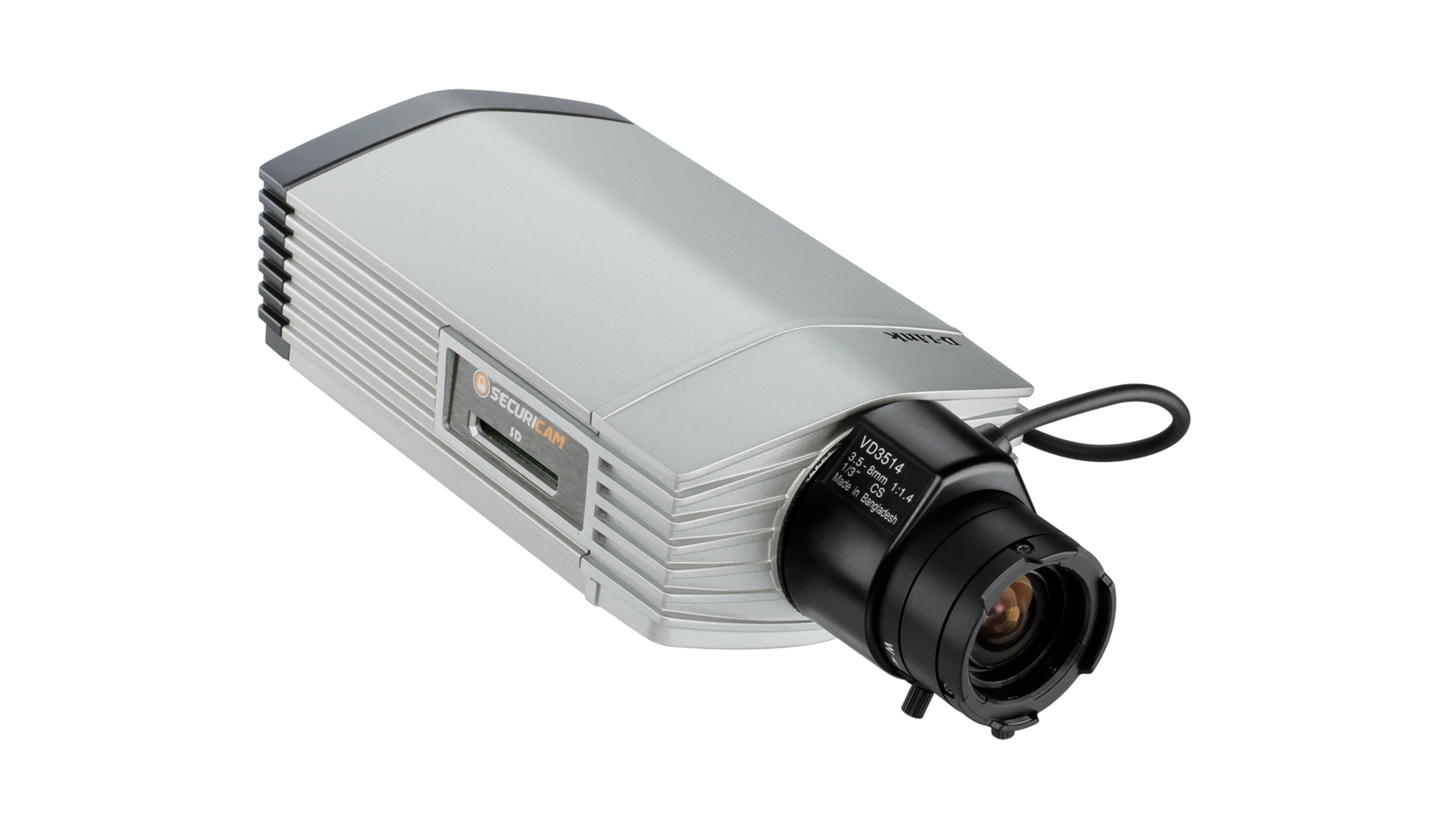

The D-Link DCS-3112 is a high-end HD Day and Night Network Camera, equipped with a 1/4” Megapixel Progressive Scan CMOS sensor and a 3.5-8 mm DC auto iris lens. The camera can capture HD video at resolutions of up to 1280 x 720/1280 x 1024 with frame rates up to 30 fps. Snapshots and video can be saved to a network drive, or to onboard storage through the built-in SD Card slot.
Multiple Video Streams
The DCS-3112 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3112 supports multicast H.264 and MPEG 4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.
Removable IR-Cut filter
The DCS-3112 comes with a ICR Filter which can be manually applied via the web, or set to automatically adjust based on lighting conditions. This feature allows the camera to capture crisp colour images during the daytime, and grayscale images at dark.
Flexible Connectivity

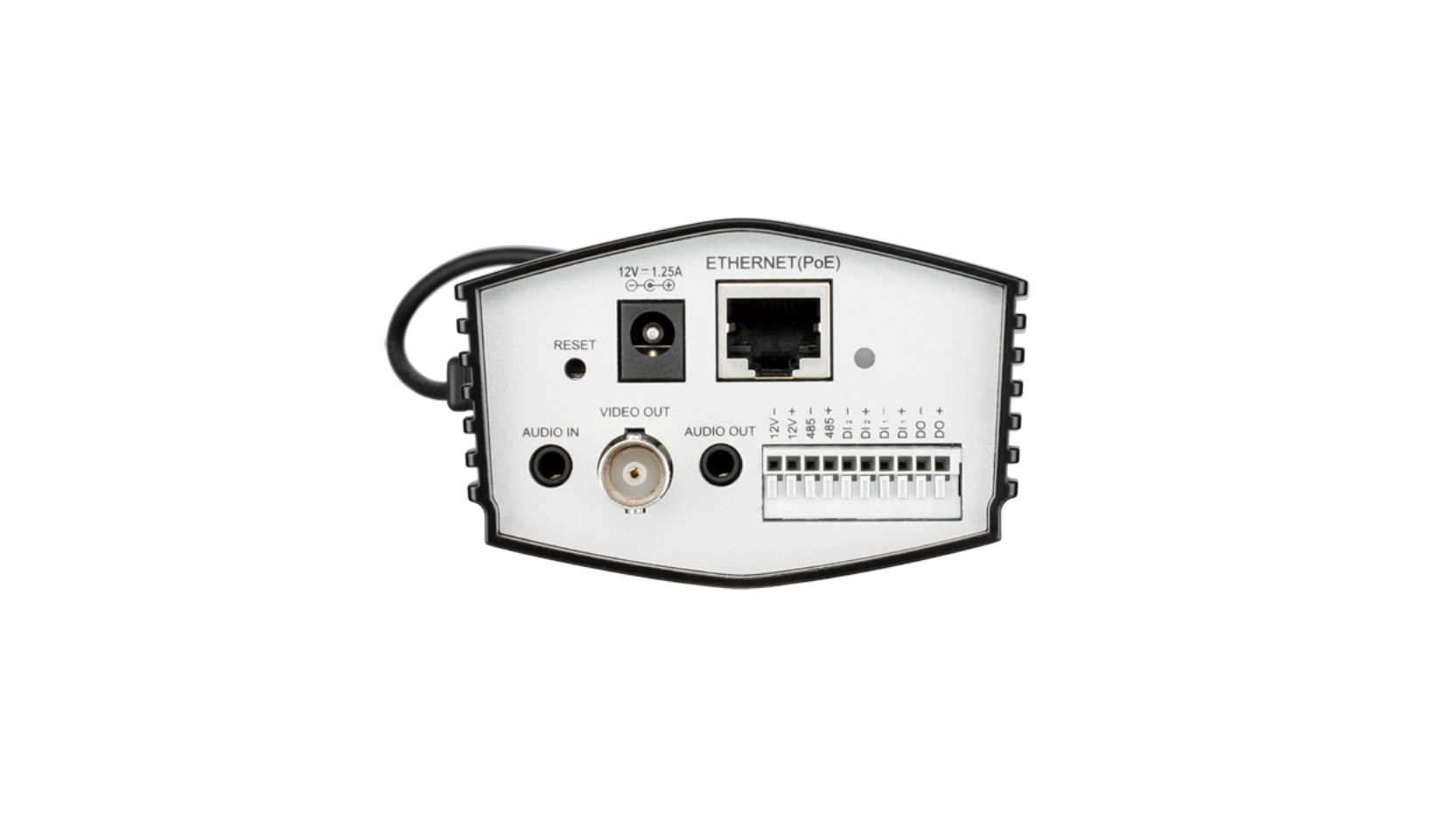

The DCS-3112 incorporates Power over Ethernet (PoE), which allows it to be easily installed in a variety of locations, even when no power outlet is nearby. The DCS-3112 also includes input and output ports that allow connectivity to external devices such as IR sensors, switches, and alarm relays. An RS-485 interface provides connectivity to an optional pan/tilt enclosure which effectively adds pan/tilt functionality to the DCS-3112. An additional 12 V interface provides power for an optional LED illuminator.
Open Network Video Interface Forum (ONVIF) compliant
The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-3112 is ONVIF compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.
Centralised management with D-ViewCam™
The included D-Link D-ViewCam™ (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam™ also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.
Actual product appearance may differ from the image displayed on this page
The D-Link DCS-3112 is a high-end HD Day and Night Network Camera, equipped with a 1/4” Megapixel Progressive Scan CMOS sensor and a 3.5-8 mm DC auto iris lens. The camera can capture HD video at resolutions of up to 1280 x 720/1280 x 1024 with frame rates up to 30 fps. Snapshots and video can be saved to a network drive, or to onboard storage through the built-in SD Card slot.
Multiple Video Streams
The DCS-3112 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3112 supports multicast H.264 and MPEG 4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.
Removable IR-Cut filter
The DCS-3112 comes with a ICR Filter which can be manually applied via the web, or set to automatically adjust based on lighting conditions. This feature allows the camera to capture crisp colour images during the daytime, and grayscale images at dark.
Flexible Connectivity
The DCS-3112 incorporates Power over Ethernet (PoE), which allows it to be easily installed in a variety of locations, even when no power outlet is nearby. The DCS-3112 also includes input and output ports that allow connectivity to external devices such as IR sensors, switches, and alarm relays. An RS-485 interface provides connectivity to an optional pan/tilt enclosure which effectively adds pan/tilt functionality to the DCS-3112. An additional 12 V interface provides power for an optional LED illuminator.
Open Network Video Interface Forum (ONVIF) compliant
The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-3112 is ONVIF compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.
Centralised management with D-ViewCam™
The included D-Link D-ViewCam™ (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam™ also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.
Actual product appearance may differ from the image displayed on this page
Specs
Indoor/outdoor
|
Indoor |
---|---|
Connectivity
|
Wired PoE |
Resolution
|
HD 1 megapixel |
Image sensor
|
1/4" 1.3 megapixel progressive scan CMOS (Sony Exmor) |
Maximum Video Resolution
|
1280 x 1024 (other) 1280 x 720 (16:9) |
Lens
|
3.5-8 mm CS Mount DC iris varifocal F1.4 |
Infrared-Cut Removable Filter
|
Supported
|
Optical Zoom
|
2.3x |
Privacy Masks
|
3 zones |
Analouge Output
|
BNC |
2-way audio
|
Supported
|
External Microphone Input
|
Supported
|
External Speaker Output
|
Supported
|
Digital Input/Output(DI/DO)
|
2/1 |
External Card Slot
|
SD SDHC (max32 GB) |
Features
|
ONVIF |
Video Format
|
H.264 MJPEG MPEG-4 |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
This product was phased out on: 02/07/2016
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 02/07/2018
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
DCS-3112 manual | DCS-3112 manual | - | 5.06mb | Download |
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
1.00 | Quick Installation Guide | - | 2.95mb | Download |
