This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.
![](/be/nl/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_learnmore.jpg?h=703&w=560&la=nl-BE&hash=2C927A10CA41EAEC3357C7A9F29F11B7)
Cutting Edge Performance
Incorporating industry leading Wireless AC Chipset, the DAP-3662 delivers up to 4 times* the performance of Wireless N by supporting simultaneous dual-band operation
![](/be/nl/-/media/product-pages/dap/3662/dap_3662_perforamce.jpg)
16 Wireless SSIDs simultaneously
Supports up to 16 SSIDs, 8 per Band, including Station Isolation
![](/be/nl/-/media/product-pages/dap/3662/dap_3662_16_ssids.jpg)
![](/be/nl/-/media/product-pages/dap/3662/dap_3662_functionality.jpg)
Functionality with Design

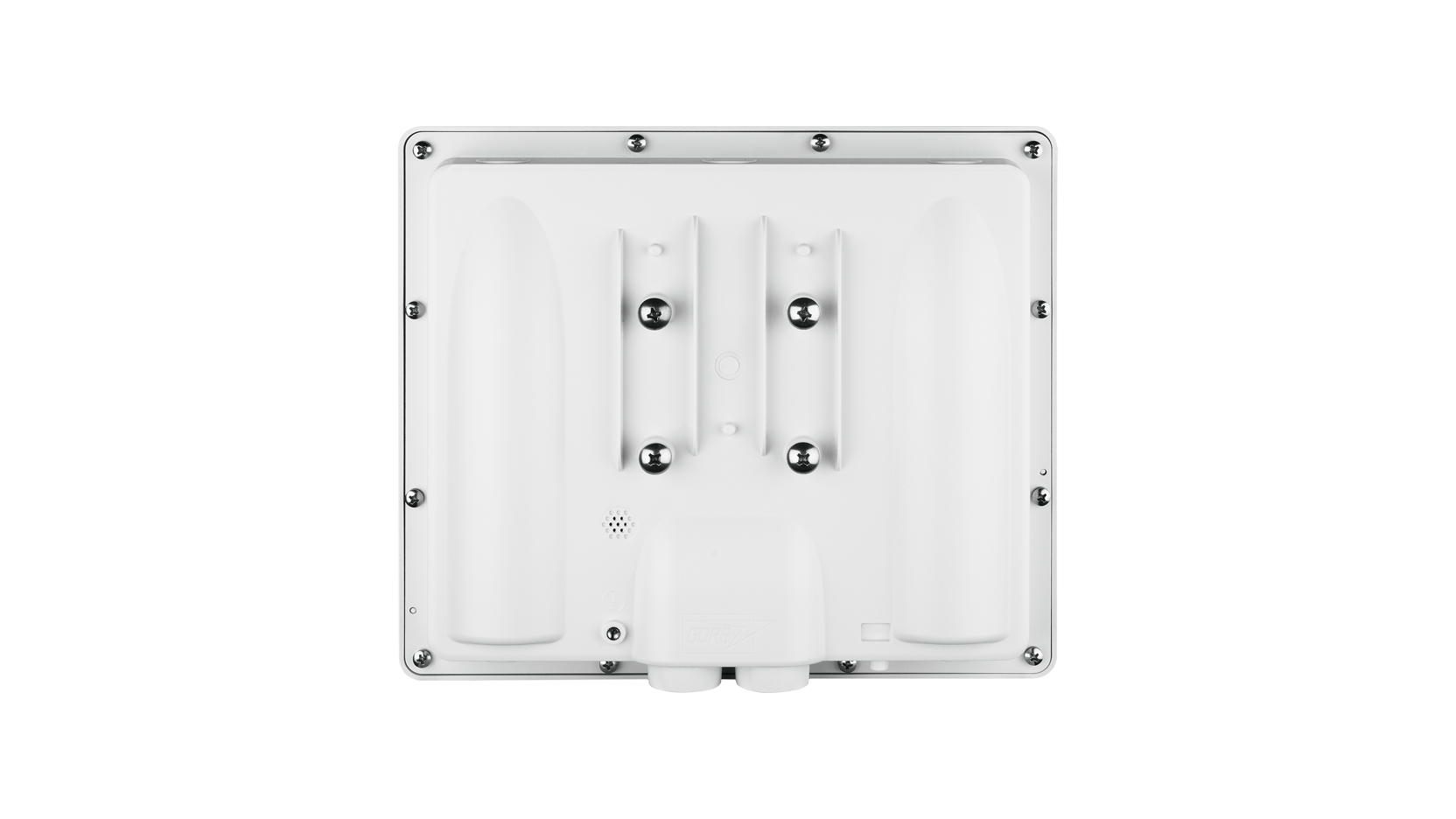

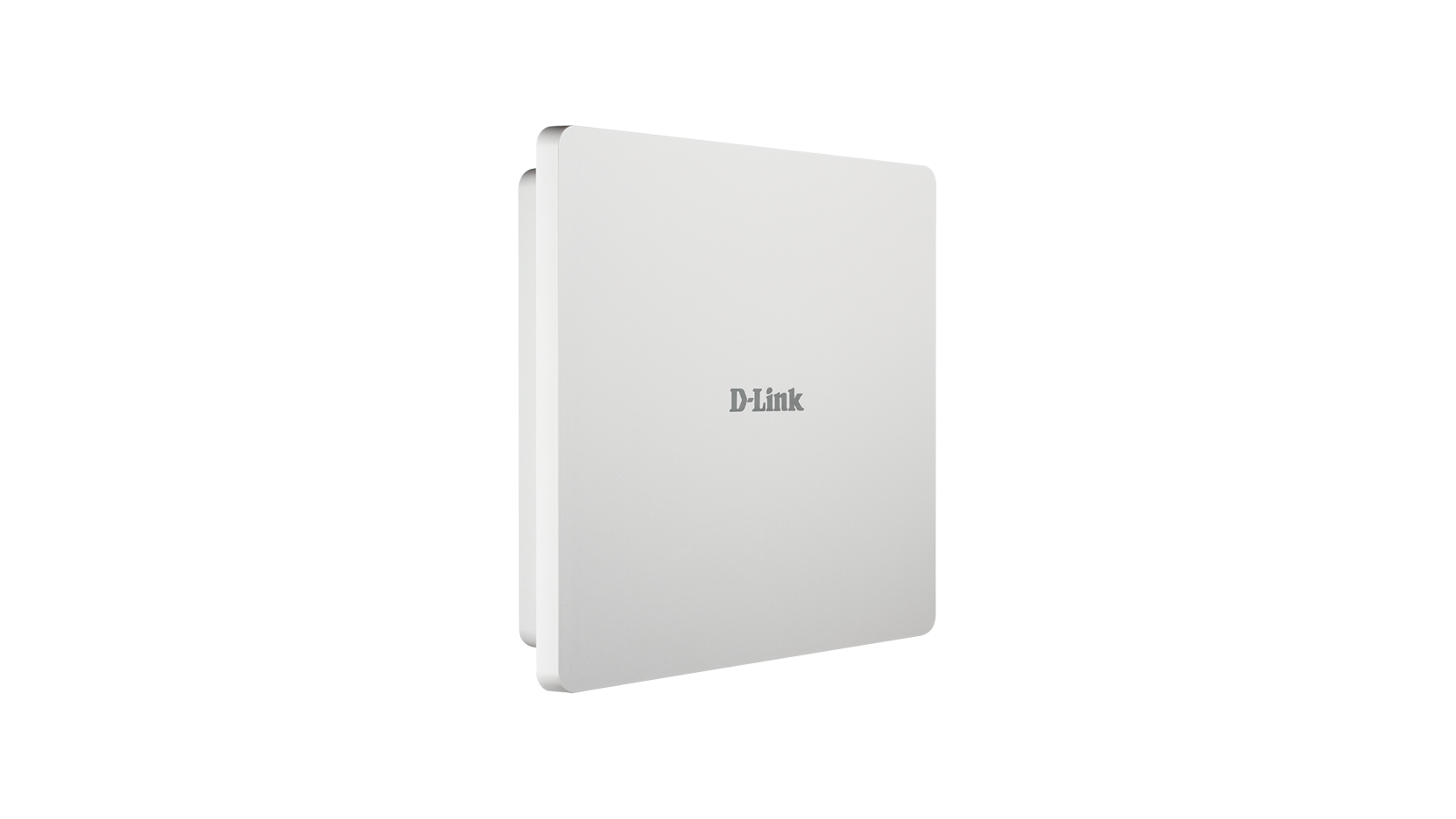

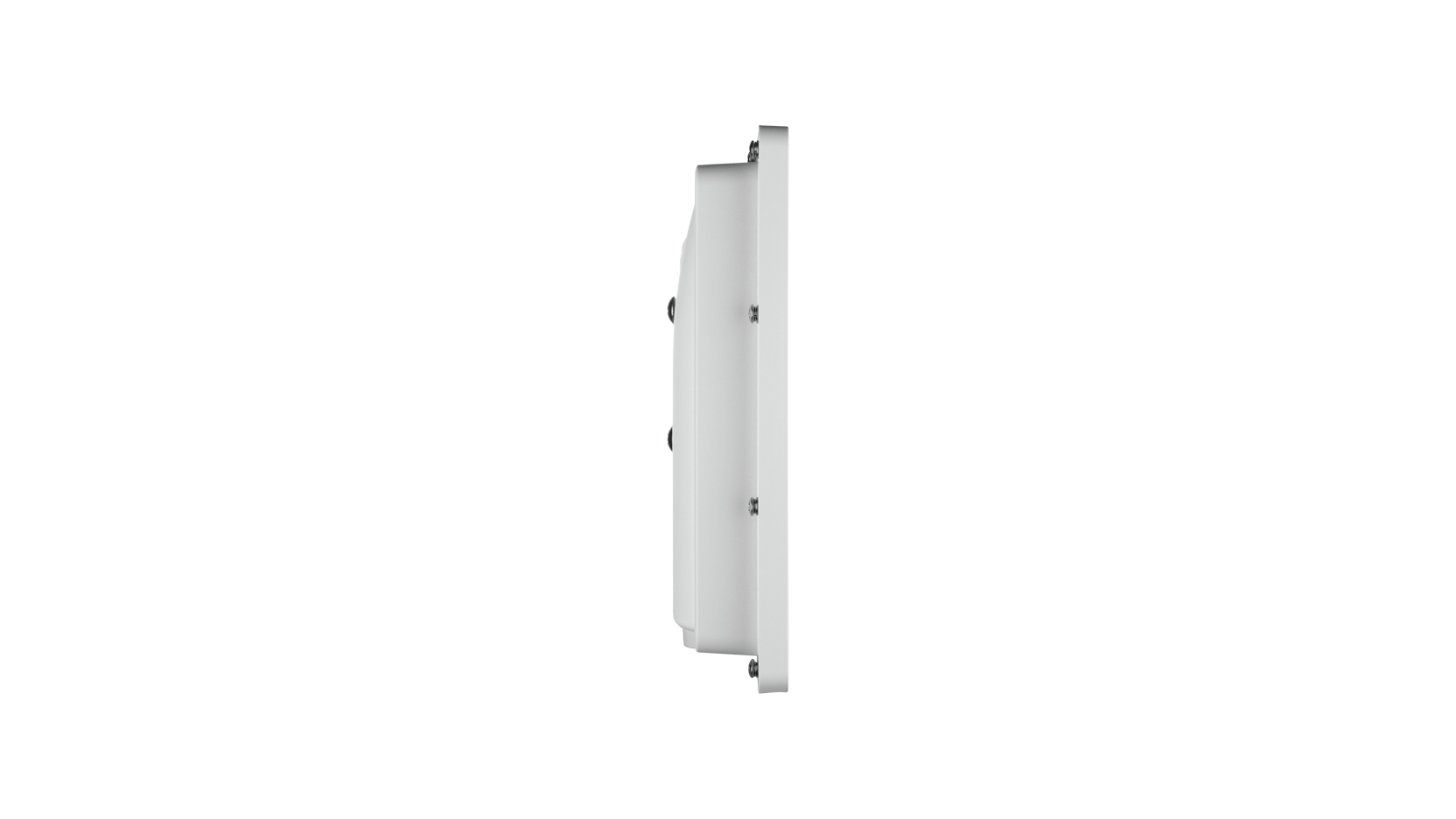

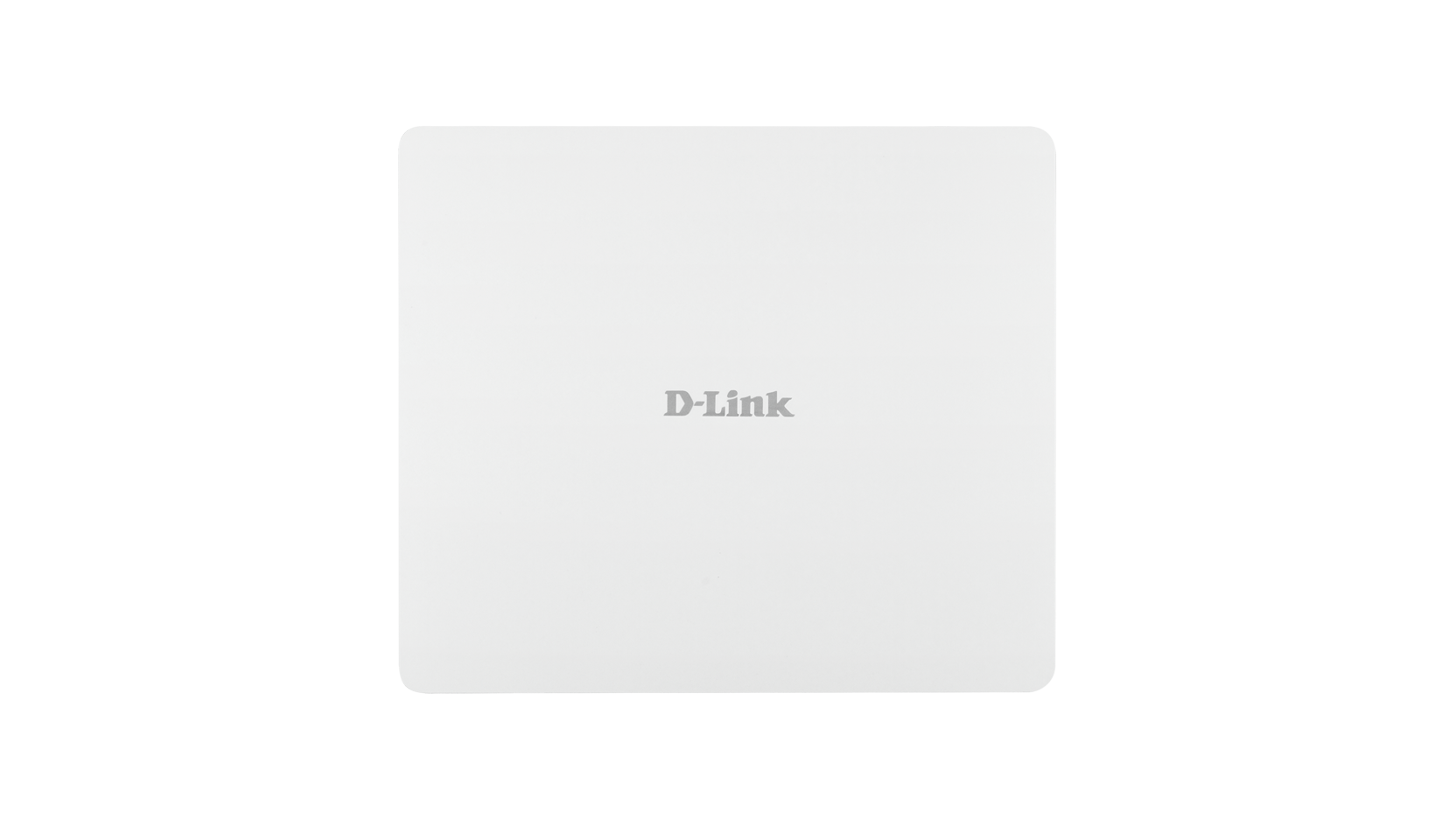

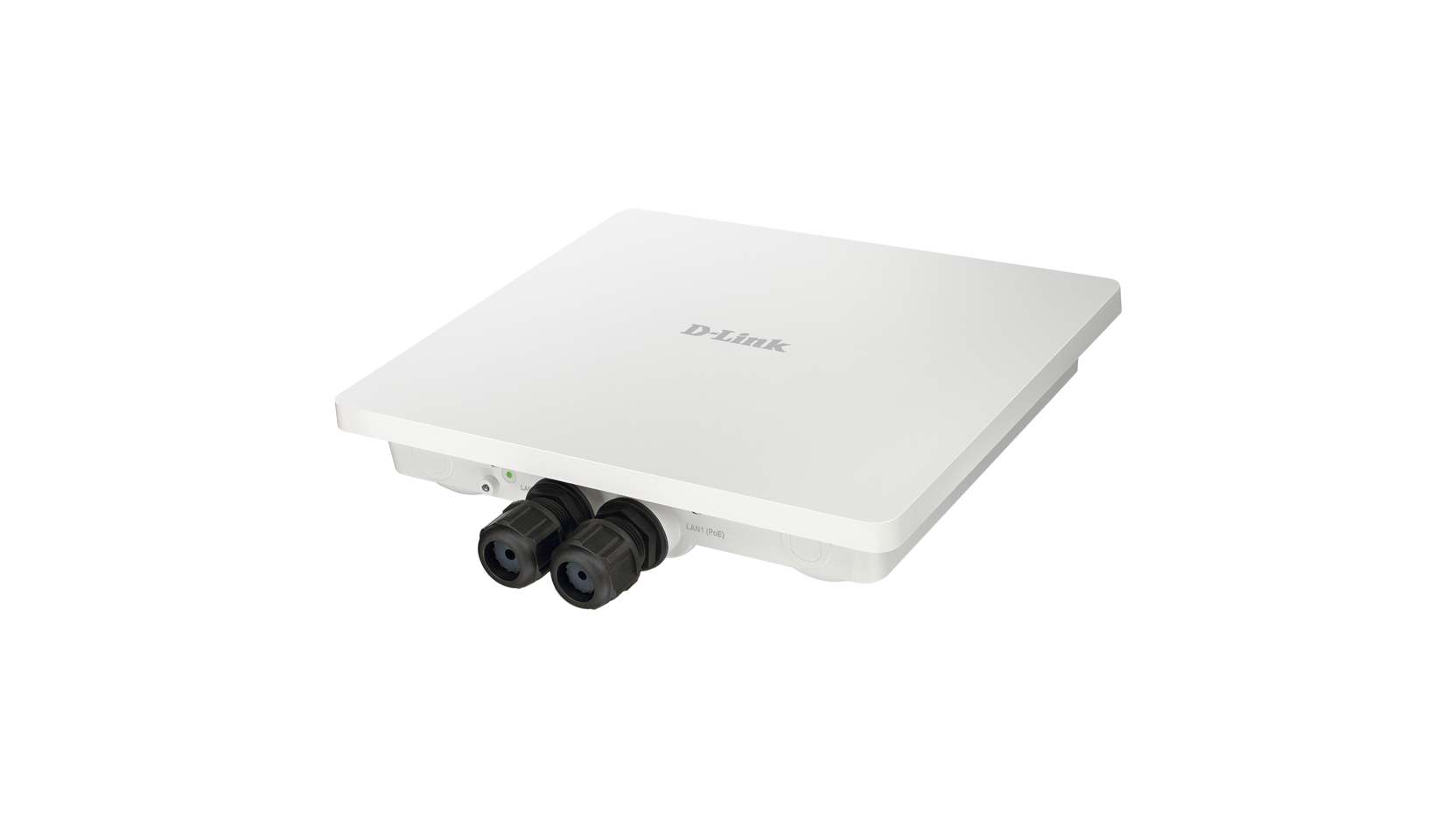

The DAP-3662 is a robust, Gore-Tex® coated, versatile high power outdoor Wireless AC1200 Access Point. Built to withstand the harshest of conditions, it's the ideal solution for extending a wireless network or for creating hot spots outdoors.
![](/be/nl/-/media/images/b2b_icons/access_points/wireless_ac.jpg)
![](/be/nl/-/media/images/b2b_icons/access_points/speed1200.jpg)
![](/be/nl/-/media/images/b2b_icons/access_points/range1000m.jpg)
![](/be/nl/-/media/images/b2b_icons/access_points/dual_band.jpg)
![](/be/nl/-/media/images/b2b_icons/access_points/outdoor.jpg)
![](/be/nl/-/media/images/b2b_icons/access_points/cwm.jpg)
Simultaneous Dual-Band Wireless
Supports up to 900Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band
![](/be/nl/-/media/product-pages/dap/3662/dap_3662_dual_band.jpg)
Smart Design
The DAP-3662 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
![](/be/nl/-/media/product-pages/dap/3662/dap_3662_smart_design.jpg)
Manage up to 1000 APs
Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.
![](/be/nl/-/media/product-pages/dap/3662/dap_3662_1000_aps.jpg?w=270)
Scalable, flexible, centralised AP management
Manage up to 1000 APs from a central location, regardless of geography.
![](/be/nl/-/media/product-pages/dap/3662/dap_3662_scalable.jpg)
* When compared to Wireless N300
Gerelateerde Producten
![](/be/nl/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_09_screenshot.png?h=100&w=192&la=nl-BE&hash=E0D7BC87286BB9AFAB1C8413F9C72FD9)
![](/be/nl/-/media/product-pages/dgs/1100/v2/dgs110005pdv2a1image-lfront.png?h=100&w=209&la=nl-BE&hash=4BD010623BC16B3B7AF8D42AC7EA0A46)
![](/be/nl/-/media/product-pages/dgs/1210/g1/dgs121008p162424p48g1image-lfront.png?h=100&w=175&la=nl-BE&hash=49AAC13C57E1E7BA18C346ABF9E8DF90)
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless AC |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
6 dBi for 2.4 GHz 6 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|

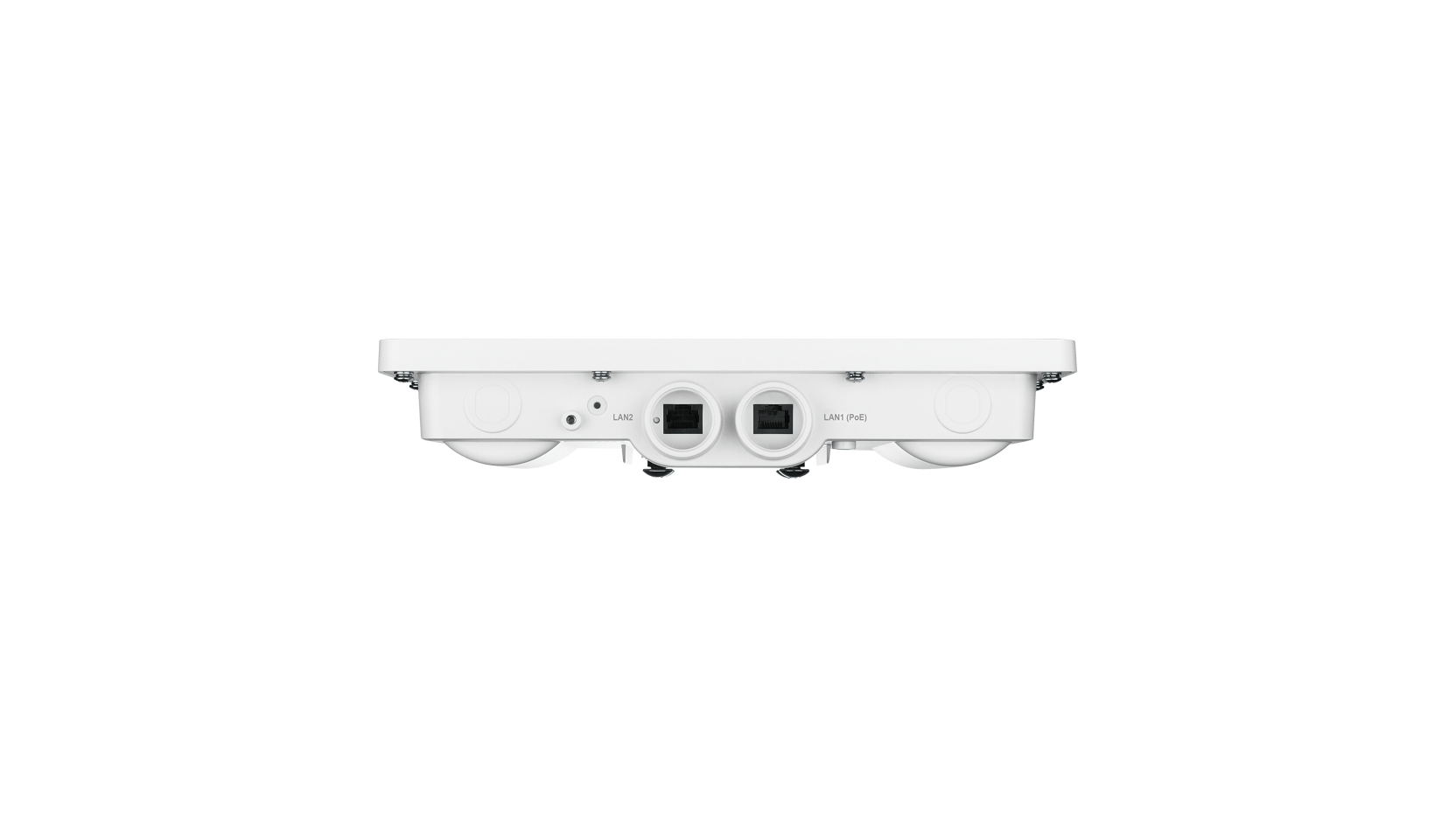

2 x Gigabit Ethernet LAN |
Indoor/outdoor
|
Outdoor |
Type of housing
|
Plastic |
IP rating
|
IP67 |
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Geavanceerde Eigenschappen
|
MIMO |
Maximum number of SSIDs
|
8 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
DHCP server
|
Supported
|
802.1D STP
|
Supported
|
IGMP snooping
|
Supported
|
ARP spoofing
|
Supported
|
NTP
|
Supported
|
IPv6
|
Supported
|
Management platform
|
Central WiFiManager (CWM-100) |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
