The DAP-3410 is a Wireless N Outdoor Access Point with PoE Pass-Through ideal for expanding wireless coverage or increasing signal strength of any wireless network. Built to withstand harsh environments, the DAP-3410 excels in connecting separate networks that are not joined by a physical cable.
Simplified outdoor connectivity
Low cost Outdoor Access Point, with high power radio design the DAP-3410 is ideal for providing wireless connectivity between two locations.
![](/be/nl/-/media/product-pages/dap/3310/performance.jpg)
Broadcast on 8 SSIDs Simultaneously
Supports up to 8 SSIDs per Band that can logically divide the access point into several virtual access points all within a single hardware platform.
![](/be/nl/-/media/product-pages/dap/3310/8ssids.jpg)
Attractive Design
Featuring a clean unobtrusive design, the DAP-3410 can be mounted easily onto any wall or pole. Designed with a PoE pass-through port, the DAP-3410 can also be used to provide power to other devices such as an external camera for added security.
![Wireless N](/be/nl/-/media/images/b2b_icons/access_points/wireless_n.png)
![mbps](/be/nl/-/media/images/b2b_icons/access_points/speed300.png)
![Range](/be/nl/-/media/images/b2b_icons/access_points/range100m.png)
![Single band](/be/nl/-/media/images/b2b_icons/access_points/single_band.png)
![outdoor](/be/nl/-/media/images/b2b_icons/access_points/outdoor.png)

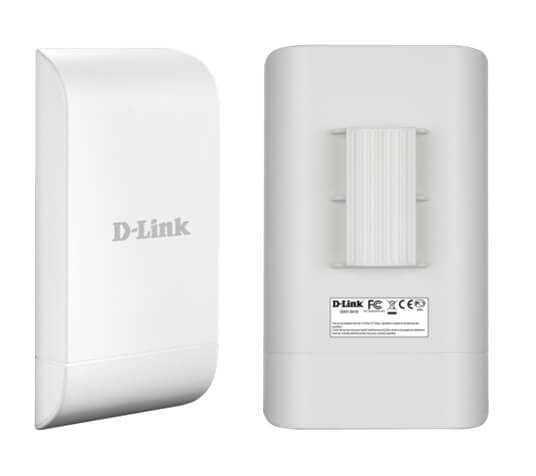

![](/be/nl/-/media/product-pages/dap/3410/dap_3410_dual_view.jpg)
Product Highlights
Durable
Built to withstand harsh outdoor environments and be waterproof to the IPX6 standard
Flexible
PoE powered with PoE pass-through to allow for flexible installation, as well as supply additional power and network connectivity to other PoE powered devices, such as a network camera
Adaptable
With 7 operational modes including access points, WDS, WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater, the DAP-3410 meets the needs of any situation.
Secure
Secure wireless connectivity using WPA/WPA2 data encryption and MAC address filtering wireless access can be controlled
5Ghz Single-Band Wireless
With a high power radio design and built-in high gain sector antenna,
the DAP-3410 supports up to 300Mbps throughput for the 5Ghz band
![](/be/nl/-/media/images/b2b_icons/gifs/5ghz_single_band_300mpbs.jpg)
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless N |
Frequency band mode
|
Single-band |
Wireless speed
|
300 Mbps 5 GHz |
Antenna type
|
Embedded sector antenna |
Antenna gain
|
15 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
2 x Fast Ethernet LAN |
Indoor/outdoor
|
Outdoor |
Type of housing
|
Plastic |
IP rating
|
IPX6 |
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Geavanceerde Eigenschappen
|
MIMO |
Maximum number of SSIDs
|
8 |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
SSID broadcast disable
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Support
Versie | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|
Datasheet | - | 0.50mb | Download |
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
Product manual | Product manual | 15/10/2014 | 3.67mb | Download |
Versie | Beschrijving | Datum | Type | Bestandsgrootte | |
---|---|---|---|---|---|
1.10 | Quick installation guide | 15/10/2014 | 0.53mb | Download |
http://tsd.dlink.com.tw/GPL.asp
De GPL-code en LGPL-code die gebruikt is in dit product wordt gedistribueerd ZONDER ENIGE GARANTIE en is onderworpen aan de auteursrechten van een of meer auteurs. Voor meer informatie, zie de GPL-code en de LGPL-code voor dit product en de voorwaarden van de GPL en LGPL.
Versie | Beschrijving | Datum | Type | |
---|---|---|---|---|
Firmware 1.10rc17 | Firmware | 15/10/2014 | - | Download |
Versie | Beschrijving | Datum | |
---|---|---|---|
CE declaration | CE declaration | 15/10/2014 | Download |
