Wireless N300 Dual-Band PoE Access Point
DAP-2553
- Product Status (Revision B): End of Life

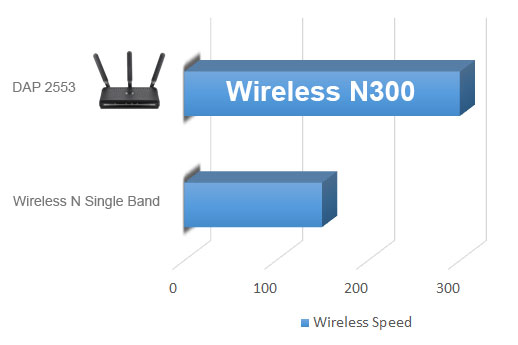

Performance without Compromise
Using the latest generation of Wireless N technology, the DAP-2553 delivers great wireless performance and coverage in a compact design.

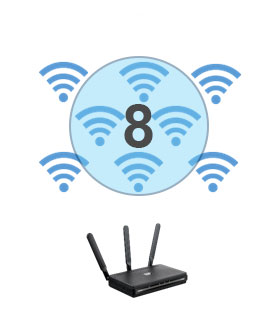

Broadcast 8 independent SSIDs simultaneously

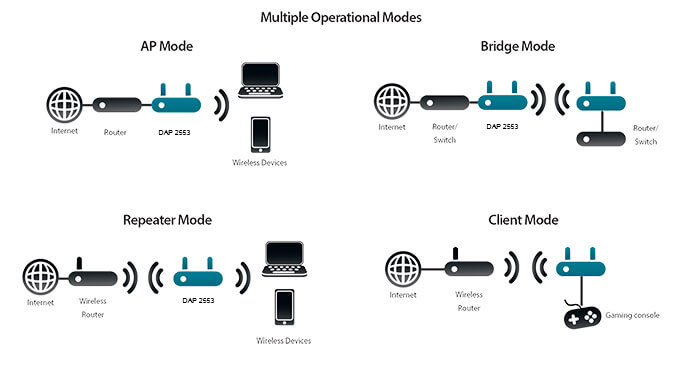

Flexibile Deployment Scenarios
Supporting up to 4 different operating modes, the DAP-2553 is one of the most flexible access points on the market.

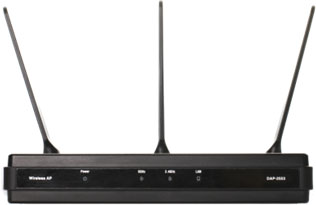

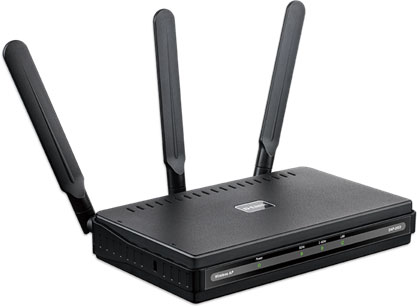

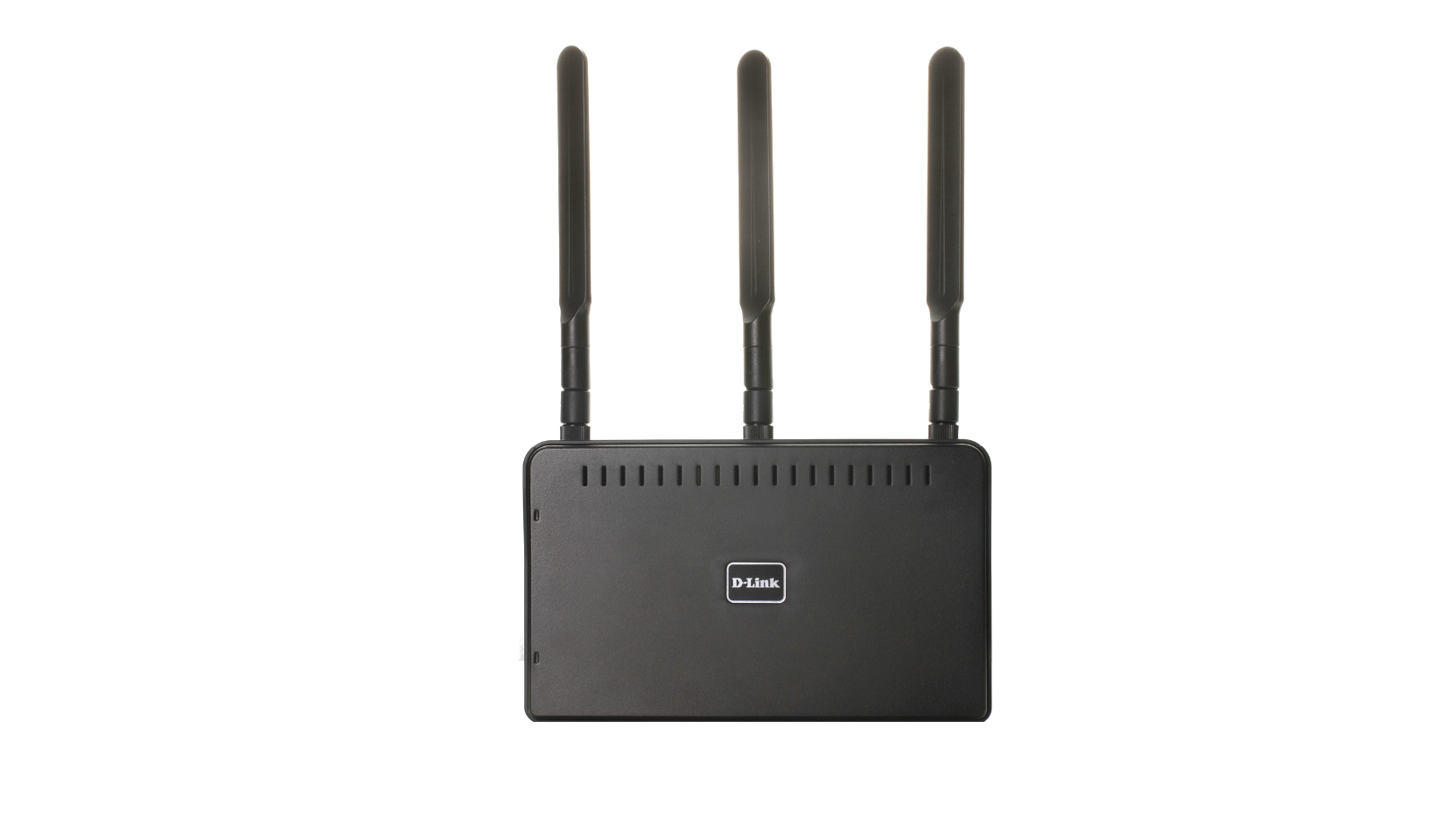

Small but mighty
With it’s deceptively small and simple design, the DAP-2553 is a robust and versatile access point. Multiple operational modes mean it can be deployed quickly and efficiently in any environment.

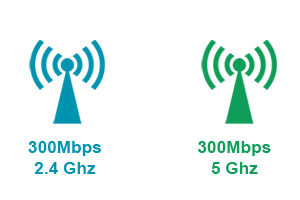

Selectable Dual-Band Wireless
Supports up to 300Mbps for the 5Ghz band or up to 300Mbps for the 2.4Ghz band

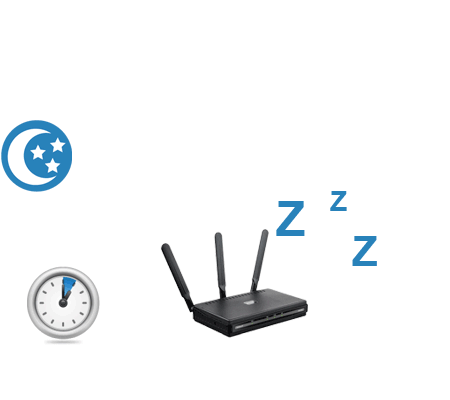

Smart Design
The DAP-2553 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Frequency band mode
|
Dual-band selectable |
|

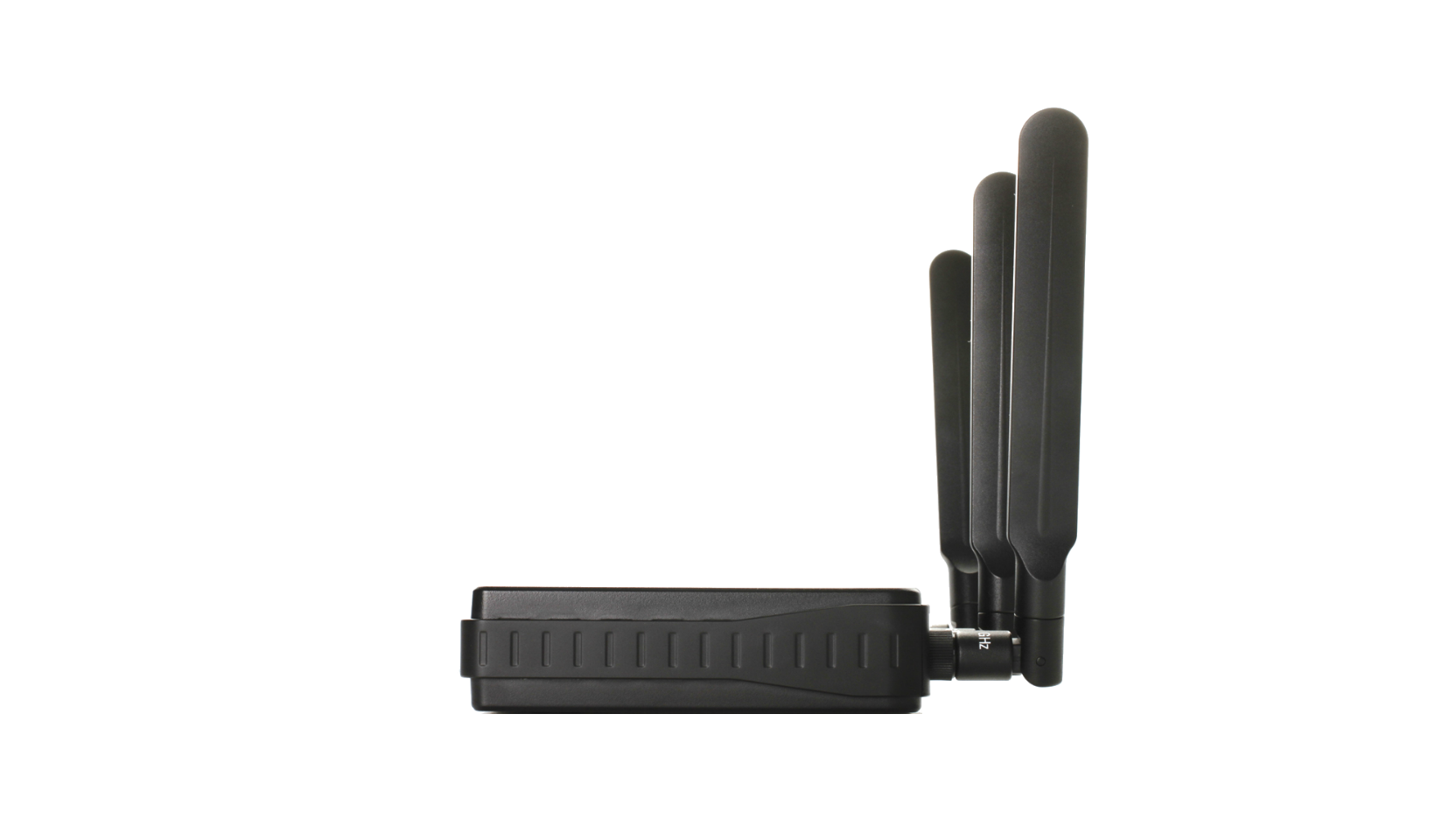

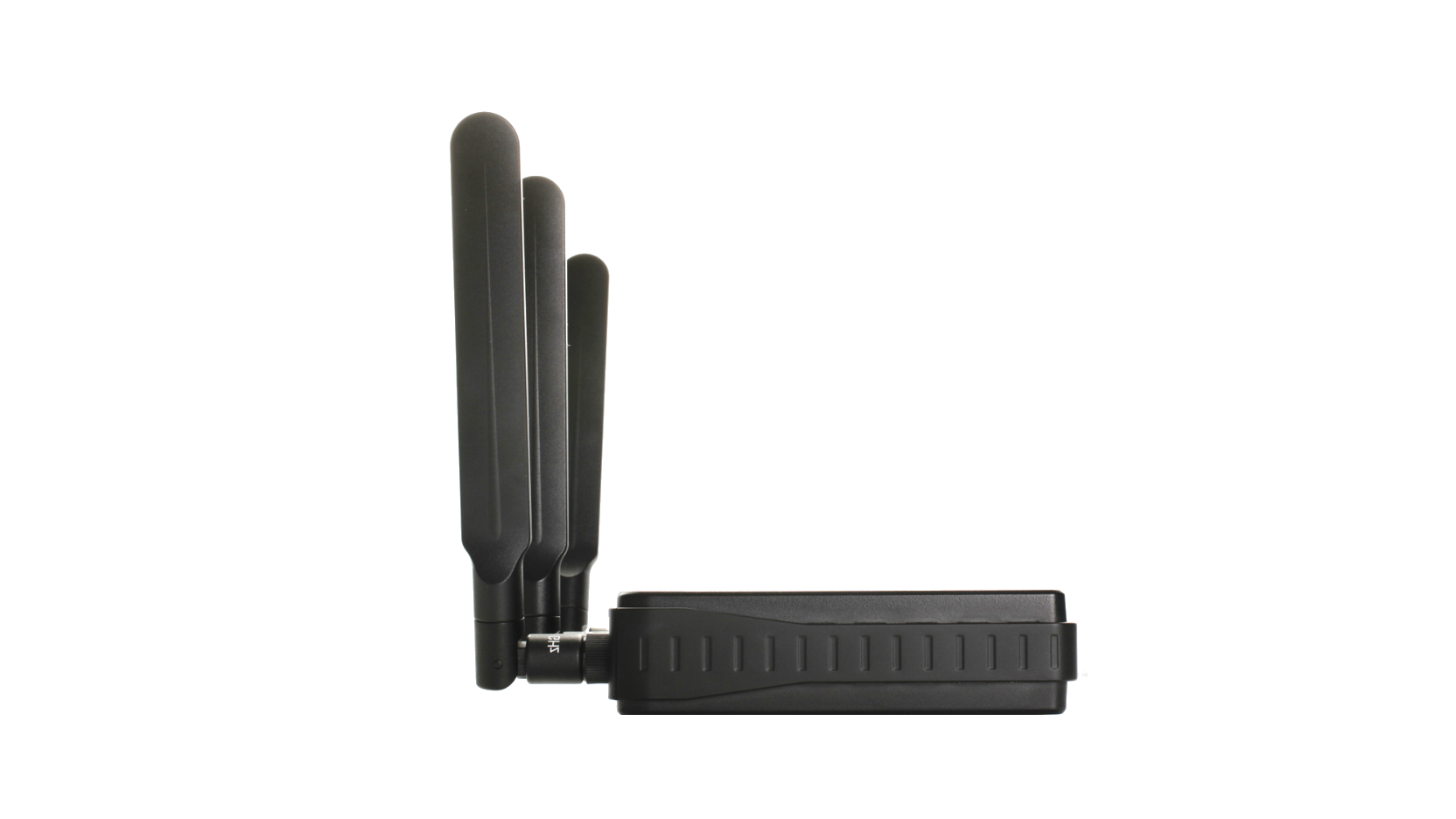

Antenna type
|
3 detachable omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 5 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|

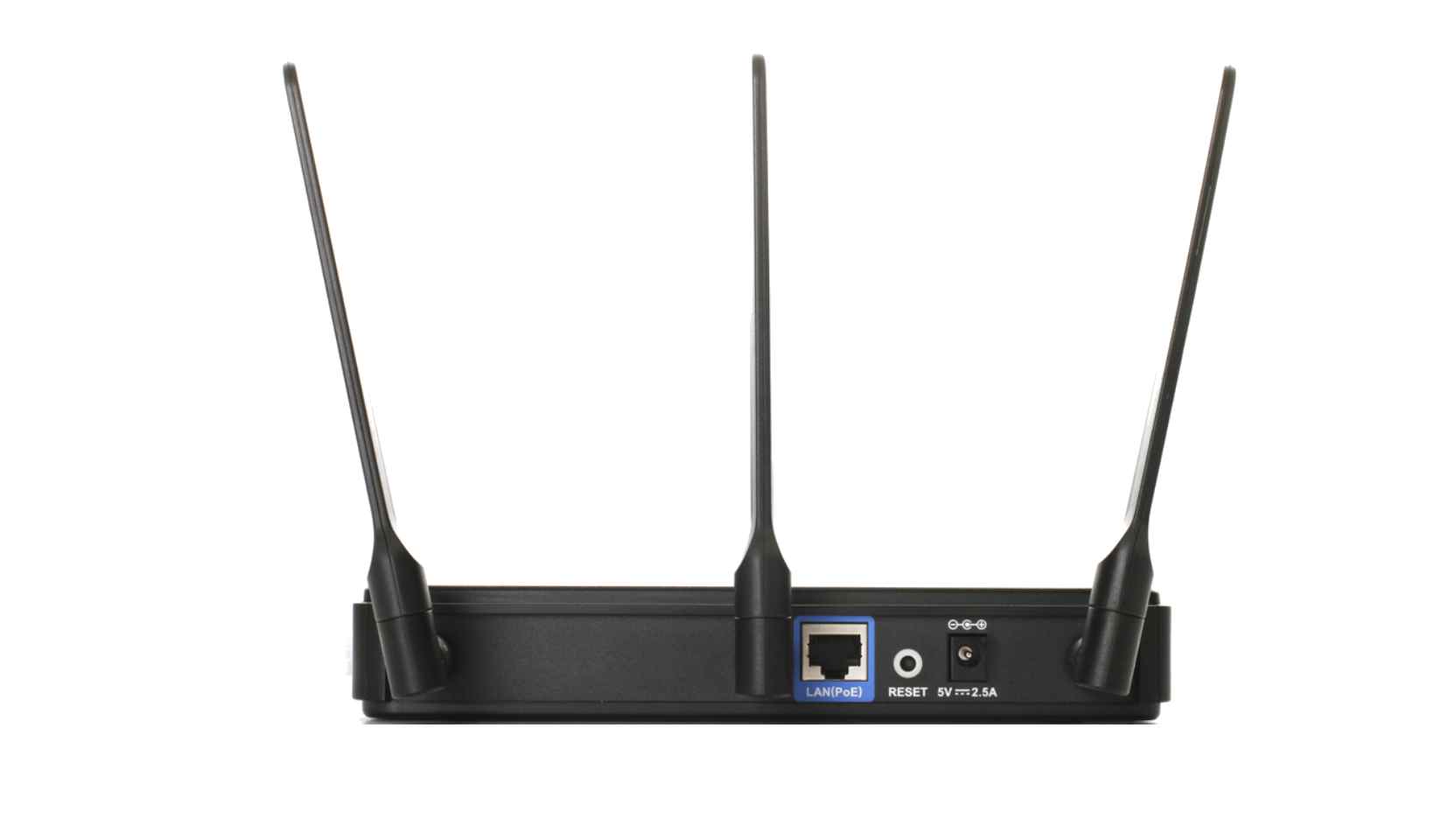

Wired interface
|
1 x Gigabit Ethernet LAN |
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Geavanceerde Eigenschappen
|
MIMO |
|
Maximum number of SSIDs
|
4 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
NTP
|
Supported
|
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
