4G M2M Router

DWM-313

  • Product Status (Revision C1_v1.1): Live
  • 4G LTE speeds of up to 150 Mbps1 for fast Internet access and data transfer
  • Wi-Fi speeds of up to 150 Mbps1 to connect multiple Wi-Fi devices
  • 1 x Micro SD card slot is specifically designed for data log storage
  • 1 x Fast Ethernet WAN/LAN port configurable as wired WAN access
  • 1 x Fast Ethernet LAN port for reliable wired connectivity
  • 2 x SIM slots for cellular WAN failover redundancy
  • No set up required, simply plug it in and your network is ready to go
  • Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
  • -30 to 70°C operating temperature to resist harsh environments
  • Wall mounting and DIN-rail allow for optimal device placement
    Shipping Globally | Coming Soon to North America

Download the datasheet.

Where to buy

User Benefits

Dual-SIM Failover

Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.

Ethernet & 4G Redundancy

Seamless failover between Ethernet WAN and 4G for reliable connectivity.

SMS Event Management

Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.

Industrial-Grade Durability

Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Enhanced Security with VPN Protection

Increase Protection of sensitive data transmission via VPN tunnels to help prevent unauthorized network access.

Centralized Management

Conveniently manage devices from anywhere via the D-ECS management platform.

Carrier Diversity and Network Redundancy

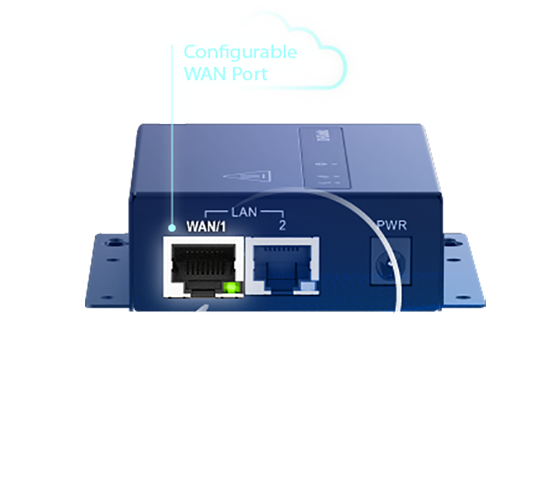

The DWM-313 4G M2M Router offers Dual SIM (Micro-SIM 3FF) support to help improve carrier diversity and provide added network resilience. It’s designed to maintain connectivity, even in areas where coverage may be limited. With two LAN ports—one of which can be configured as a WAN—you have flexible options to switch between Ethernet WAN and LTE connections based on availability and performance needs.

FailoverDWM313560x48001

Strengthen Network Privacy with VPN Capabilities

The DWM-313 4G M2M Router supports a variety of VPN protocols, including IPSec, OpenVPN, PPTP, L2TP, and GRE. These options are designed to enable encrypted tunneling, remote access, and added privacy for data in transit. Suitable for applications such as retail, small shops, pop-up booths, and smart parking systems, the DWM-313 offers tools that can help support more secure handling of transactions and customer information across distributed networks.

VPN

Robust Build Quality

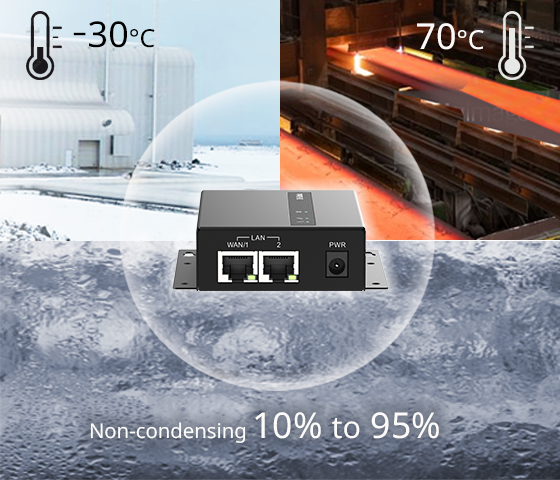

he DWM-313 is engineered for dependable M2M connectivity, featuring a durable zinc-plated steel casing that resists corrosion, along with a wide operating temperature range and humidity tolerance. These features make it a strong fit for a variety of challenging environments. Its wall-mount and DIN-rail compatible design offers flexible installation options to help position the device for optimal signal performance.

weather

1. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.

Related Products

4G M2M Router
DWM-530-T
Find out more
5G M2M Router
DWM-550-G
Find out more

Stronger Connections for More Demanding Deployments

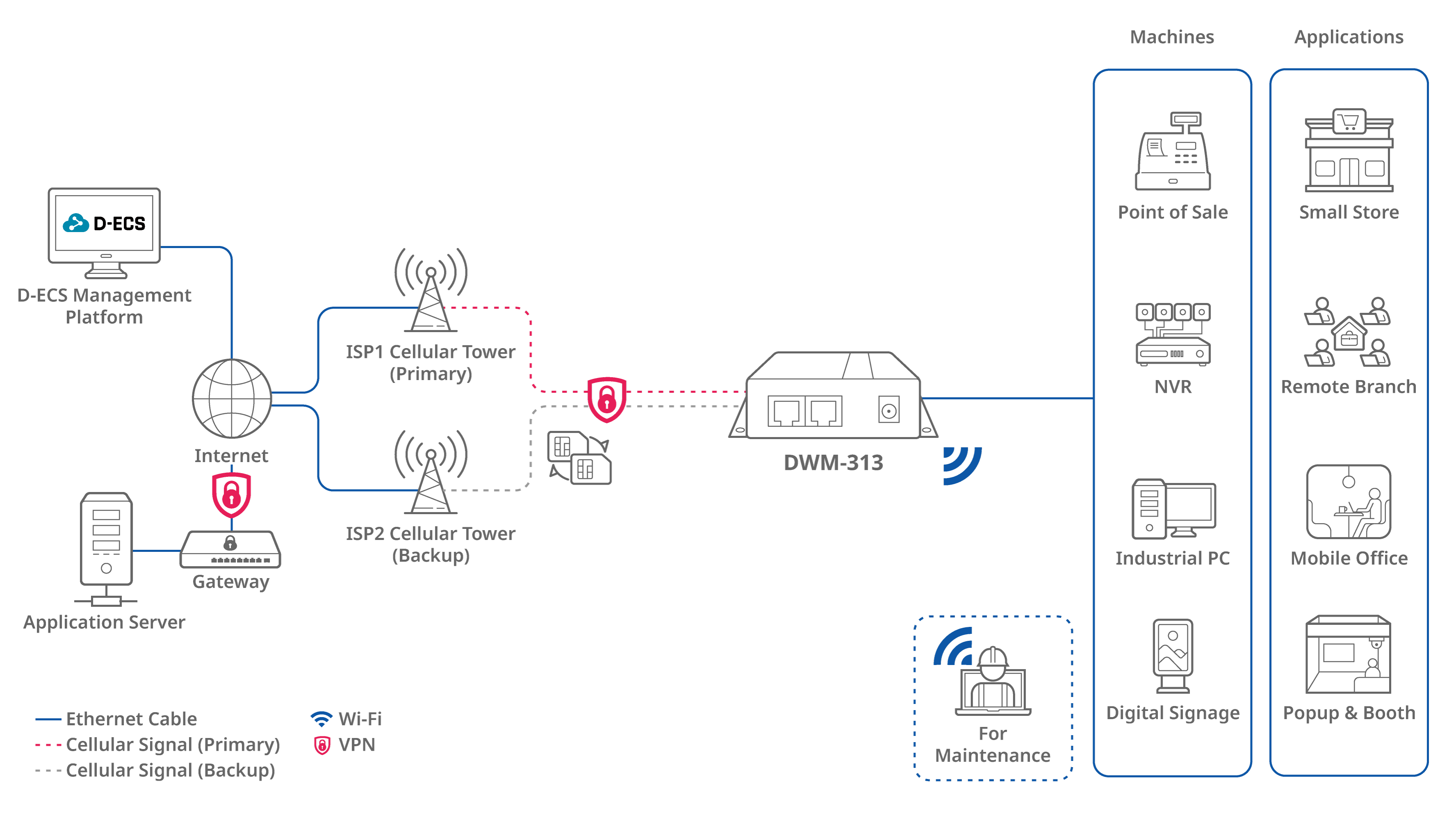

The DWM-313 4G M2M Router addresses the need for dependable connectivity in environments where wired access is limited or unreliable. With dual mobile network support, it offers flexible options for primary and backup connections - helping reduce downtime in critical machine-to-machine operations. VPN features add an extra layer of data protection, while the D-ECS platform simplifies remote network management. Designed for use in retail, mobile offices, pop-up locations, and industrial sites, the DWM-313 supports point-of-sale systems, digital signage, surveillance, and more - keeping systems connected and manageable from virtually anywhere.
img_dwm_313_connection

Versatile Applications

Kiosk

 Remote access for kiosks supports more secure operation and helps reduce the risk of service interruptions

EV Charger

Remote management of charging information and usage status to optimize operations.

Smart Bus Stop

Remote access for real-time bus info and ad updates, enhancing commuter experience.

Vending Machine

Remote access to inventory and sales data optimizes machine status monitoring and restocking efficiency.

Specification

Download the datasheet.

4G Antenna Connectors
2 x SMA antennas
Bridge Mode
Yes
Cellular Module
4G LTE Cat. 4
Ethernet Interface
1 x LAN FE
1 x WAN/LAN FE
IPv6
Cellular IPv6
LAN
DHCP Server/Relay
Local Management
Web UI/SSH
Maximum Cellular Data Throughput
LTE: 150 Mbps (DL) / 50 Mbps (UL)
Micro SD card Slot
Yes
Network Address Translation (NAT)
Yes
OpenVPN
Yes
Port Forwarding
Yes
Power Input
5V/2A adapter
Remote Management
D-ECS
SIM Slot
2 x 3FF Micro-SIM
SMS Notification
Yes
Temperature
Operating -30 to 70 ˚C
WAN
Cellular/Ethernet
Wi-Fi Antenna Connectors
1 x RP SMA antenna

Download the datasheet.
