5G M2M Router

DWM-550-G

  • Product Status (Revision AX_v1.1): Live
  • 5G SA & NSA speeds of up to 3.4 Gbps1 for Internet access and data transfer
  • Wi-Fi speeds of up to 1.8 Gbps1 to connect multiple Wi-Fi devices
  • 1 x Gigabit Ethernet WAN/LAN port configurable as wired WAN access
  • 3 x Gigabit Ethernet LAN port for reliable wired connectivity
  • 2 x SIM slots for cellular WAN failover redundancy
  • No set up required, simply plug it in and your network is ready to go
  • Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
  • -30 to 70°C operating temperature to resist harsh environments
  • Optional Wall mount bracket allows for optimal device placement

Shipping Globally | Coming Soon to North America


Download the datasheet.

Where to buy

User Benefits

5G SA & NSA

Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.

Dual-SIM Failover

Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.

Ethernet & 5G Redundancy

Seamless failover between Ethernet WAN and 5G for reliable connectivity.

Industrial-Grade Durability

Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Enhanced Security with VPN Protection

Increase Protection of sensitive data transmission via VPN tunnels to help prevent unauthorized network access.

Wi-Fi 6 AX1800

Drive Wi-Fi 6 to cover various portable and IoT device networking services.

Carrier Diversity and Network Redundancy

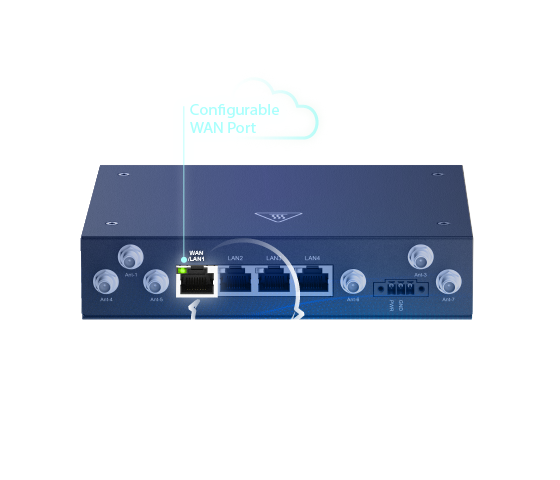

Maintain uptime in tricky locations with the DWM-550-G 5G M2M Router. Its Dual SIM (Nano-SIM 4FF) slot lets the device pick between two carriers, so a dropped signal from one network doesn’t have to take your operation offline. Four Gigabit LAN ports—one switchable to WAN—let you blend wired broadband with 5G, giving you a smooth path to route traffic over whichever link is stronger at the moment. The result: fewer connection gaps, more flexibility for failover or load-balancing, and less time spent troubleshooting links in the field.

FailoverDWM550G560x480

Strengthen Network Protection with VPN Support

The DWM-550-G 5G M2M Router delivers enhanced security through wide-ranging VPN support—IPSec, OpenVPN, PPTP, L2TP, GRE, and WireGuard. These protocols establish encrypted links, versatile tunnels, and remote-access safeguards that help keep data exchanges more secure. The flexible protections fit retail kiosks, small shops, pop-up stalls, and smart-parking terminals where payment details and customer records travel over public networks.

VPN

Robust Build Quality

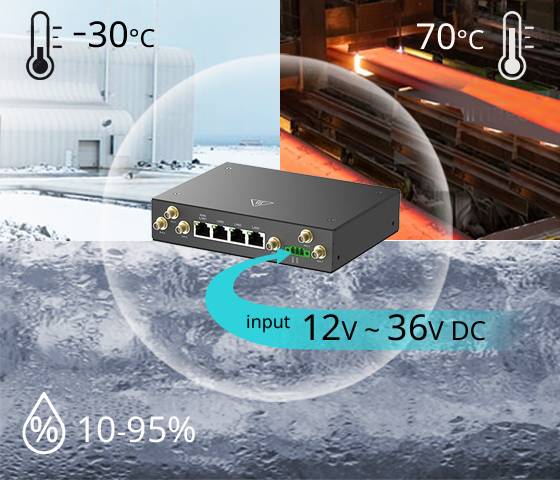

The DWM-550-G pairs a corrosion-resistant zinc-plated steel housing with a broad DC input range and extended temperature-and-humidity tolerances. Together, these hardware safeguards support dependable M2M links in harsh or fluctuating industrial, outdoor, and roadside settings.

Dwm_550g _wideinput

1. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.

Related Products

4G M2M Router
DWM-313
Find out more
4G M2M Router
DWM-530-T
Find out more

High-Speed 5G & Wi-Fi 6 Connectivity for Modern IoT Deployments

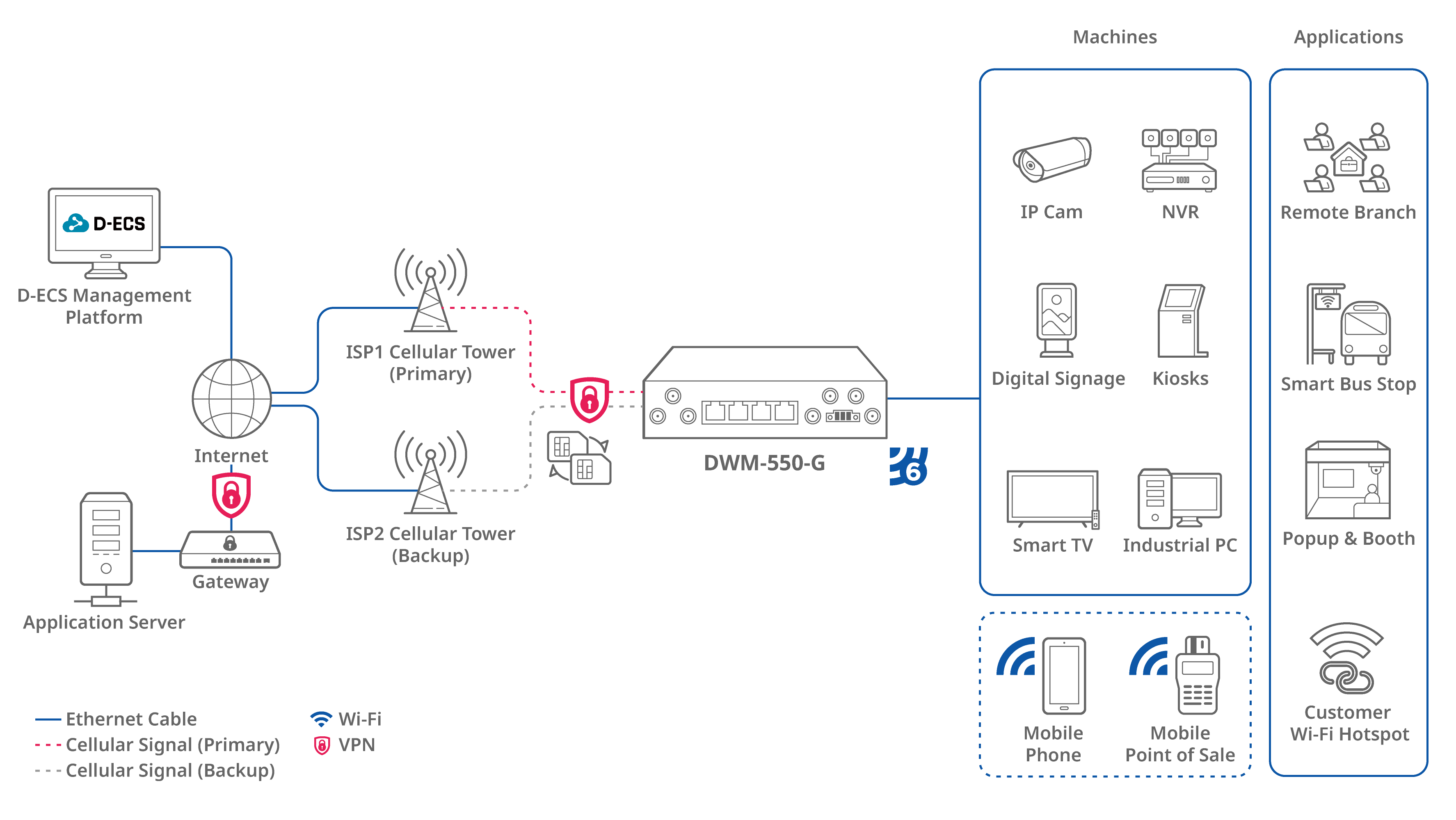

Discover the DWM-550-G 5G M2M Router—built to bring fast 5G backhaul and Wi-Fi 6 AX1800 to machine-to-machine workflows. Dual Nano-SIM slots let the device switch to a secondary carrier if the first link falters, helping connected gear stay online with minimal hands-on work. A broad VPN toolkit (IPSec, OpenVPN, WireGuard, PPTP, L2TP, GRE) enables encrypted tunnels for sensitive data, while D-ECS cloud integration simplifies fleet-wide monitoring, configuration, and firmware updates from one dashboard. Compact and rugged, the DWM-550-G slips easily into NVR cabinets, kiosks, industrial PCs, digital signs, and mobile POS carts—making it a practical fit for remote job sites, pop-up stores, transit shelters, and other spots where wired service may be spotty or out of reach.

img_dwm_550g_connection

Versatile Applications

Kiosk

Remote access for kiosks supports more secure operation and helps reduce the risk of service interruptions.

EV Charger

Remote management of charging information and usage status to optimize operations.

Smart Bus Stop

Remote access for real-time bus info and ad updates, enhancing commuter experience.

Vending Machine

Remote access to inventory and sales data optimizes machine status monitoring and restocking efficiency.

4G/5G Antenna Connectors
4 x SMA antennas
Wi-Fi Antenna Connectors
2 x RP-SMA antennas
Bridge Mode
Yes
Cellular Module
5G NR
Ethernet Interface
1 x WAN/LAN GE
3 x LAN GE
IPv6
Cellular IPv6
LAN
DHCP Server/Relay
Local Management
Web UI/SSH
Maximum Cellular Data Throughput
5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
LTE: 1.6 Gbps (DL) / 200 Mbps (UL)
Network Address Translation (NAT)
Yes
OpenVPN
Yes
Port Forwarding
Yes
Power Input
3-pin TB for DC 12V-36V
Remote Management
D-ECS
SIM Slot
2 x 4FF Nano-SIM
SMS Notification
Yes
Temperature
Operating -30 to 70 ˚C
WAN
Cellular/Ethernet
