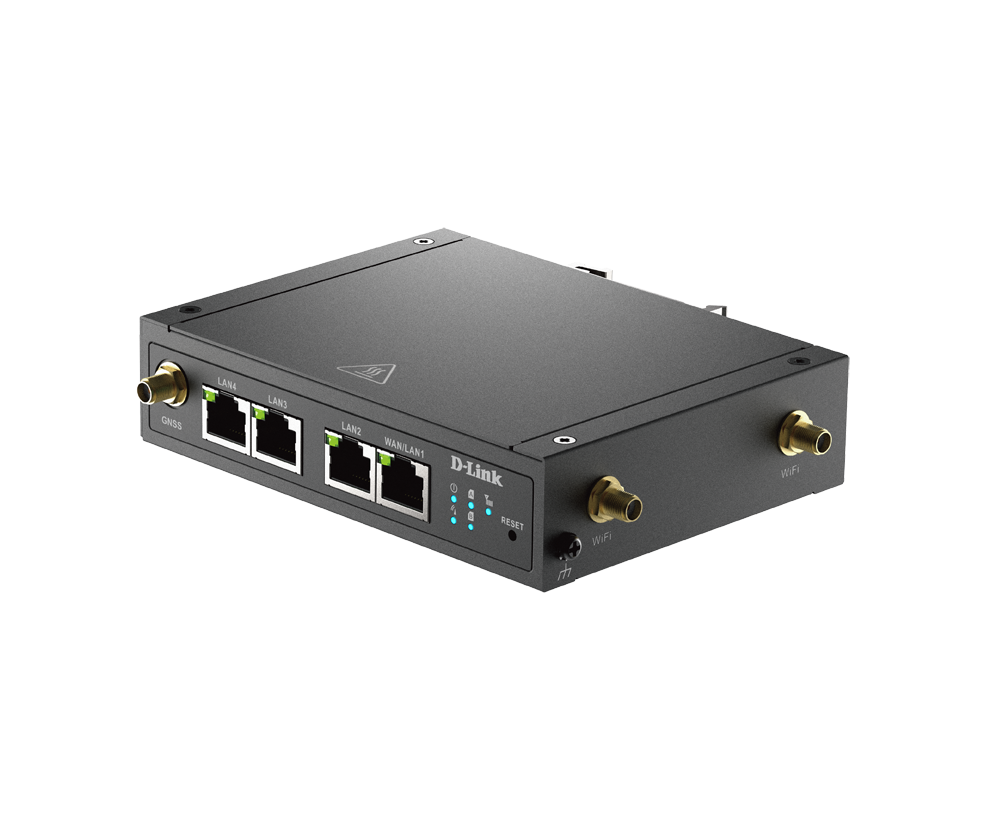

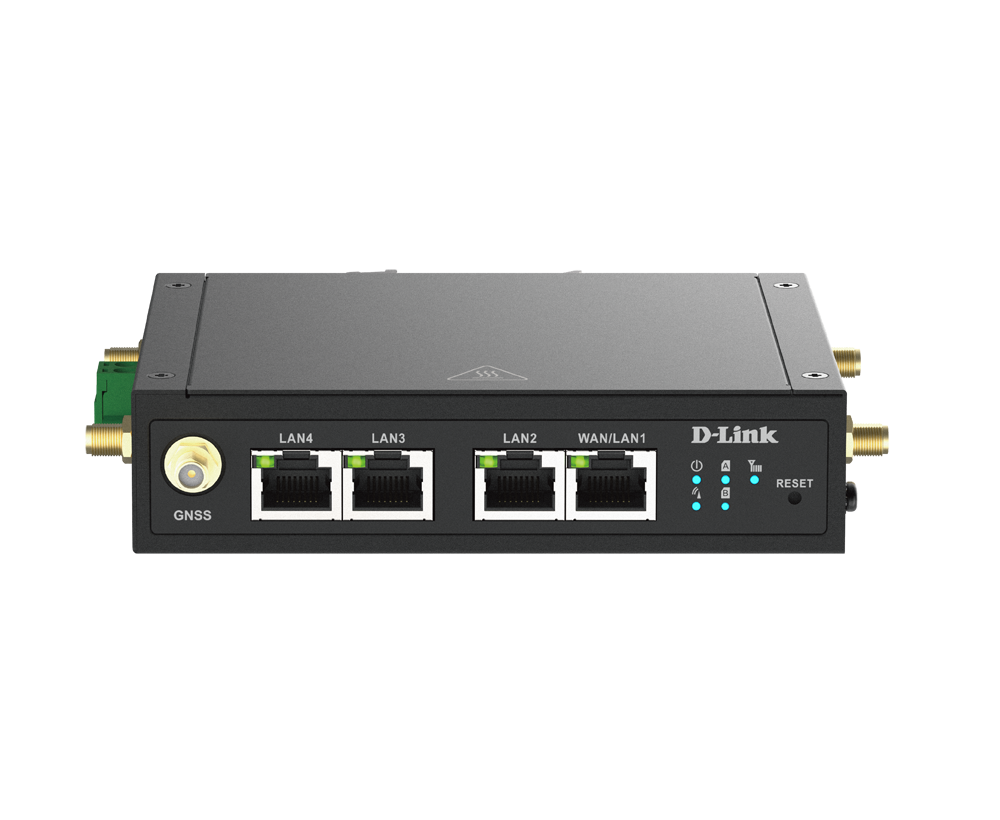

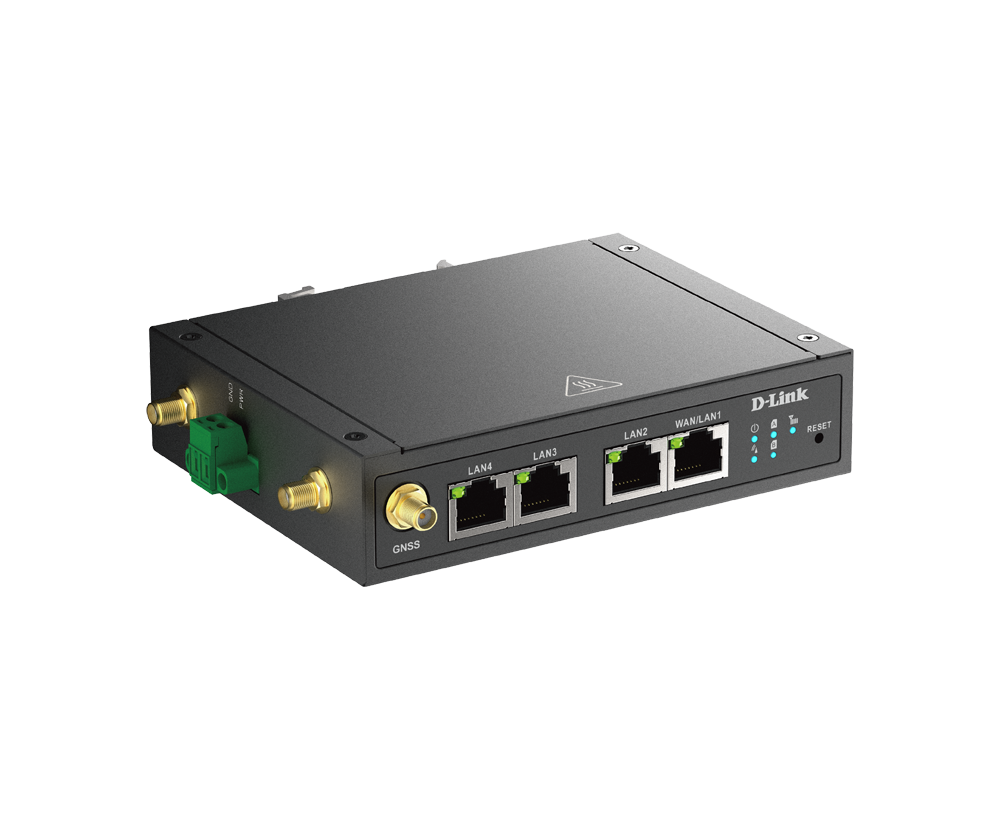

4G M2M Router

DWM-530-T

  • Product Status (Revision AX_v1.11): Live
  • 4G LTE speeds of up to 150 Mbps1 for fast Internet access and data transfer
  • Wi-Fi speeds of up to 300 Mbps1 to connect multiple Wi-Fi devices
  • 1 x Micro SD card slot is specifically designed for data log storage
  • 1 x Fast Ethernet WAN/LAN port configurable as wired WAN access
  • 3 x Fast Ethernet LAN ports for reliable wired connectivity
  • 2 x SIM slots for cellular WAN failover redundancy
  • 1 x GNSS for GPS/GLONASS
  • No set up required, simply plug it in and your network is ready to go
  • Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
  • -30 to 70°C operating temperature to resist harsh environments
  • DIN-rail mounting allows for optimal device placement

Shipping Globally | Coming Soon to North America


Download the datasheet.

Where to buy

User Benefits

Dual-SIM Failover

Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.

Ethernet & 4G Redundancy

Seamless failover between Ethernet WAN and 4G for reliable connectivity.

SMS Event Management

Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.

Industrial-Grade Durability

Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Enhanced Security with VPN Protection

Increase Protection of sensitive data transmission via VPN tunnels to help prevent unauthorized network access.

Centralized Management

Conveniently manage devices from anywhere via the D-ECS management platform.

Carrier Diversity and Network Redundancy

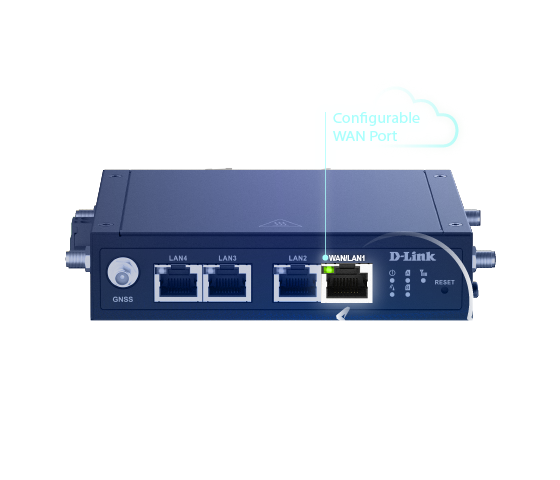

The DWM-530-T 4G M2M Router is designed with Dual SIM (Micro-SIM 3FF) support to provide enhanced carrier diversity and improve network availability across varying conditions. This can help maintain more reliable connectivity, even in areas where coverage may be limited. With four LAN ports—one configurable as a WAN—the router offers flexible options to switch between Ethernet and LTE connections, supporting consistent access and improved uptime across different deployment scenarios.

FailoverDWM530T560x480

Strengthen Data Privacy with VPN Integration

The DWM-530-T 4G M2M Router offers robust VPN support with protocols such as IPSec, OpenVPN, PPTP, L2TP, and GRE, providing options for encrypted connections, versatile tunneling, and more secure remote access. These features support the protection of sensitive data across a range of applications. Suitable for retail environments, small businesses, pop-up locations, and smart parking systems, the DWM-530-T can help with the reliable handling of financial transactions and customer information in dynamic deployment scenarios.

VPN

Robust Build Quality

The DWM-530-T is built to support reliable M2M connectivity across a variety of environments. Its corrosion-resistant zinc-plated steel casing, wide voltage input range, and broad tolerance for temperature and humidity make it a strong fit for industrial and field-based applications. DIN-rail mounting offers flexible installation options, helping to position the device where signal strength and accessibility can be optimized.

Dwm_530T _wideinput

1. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.

Related Products

4G M2M Router
DWM-313
Find out more
5G M2M Router
DWM-550-G
Find out more

Stronger Connections for More Demanding Deployments

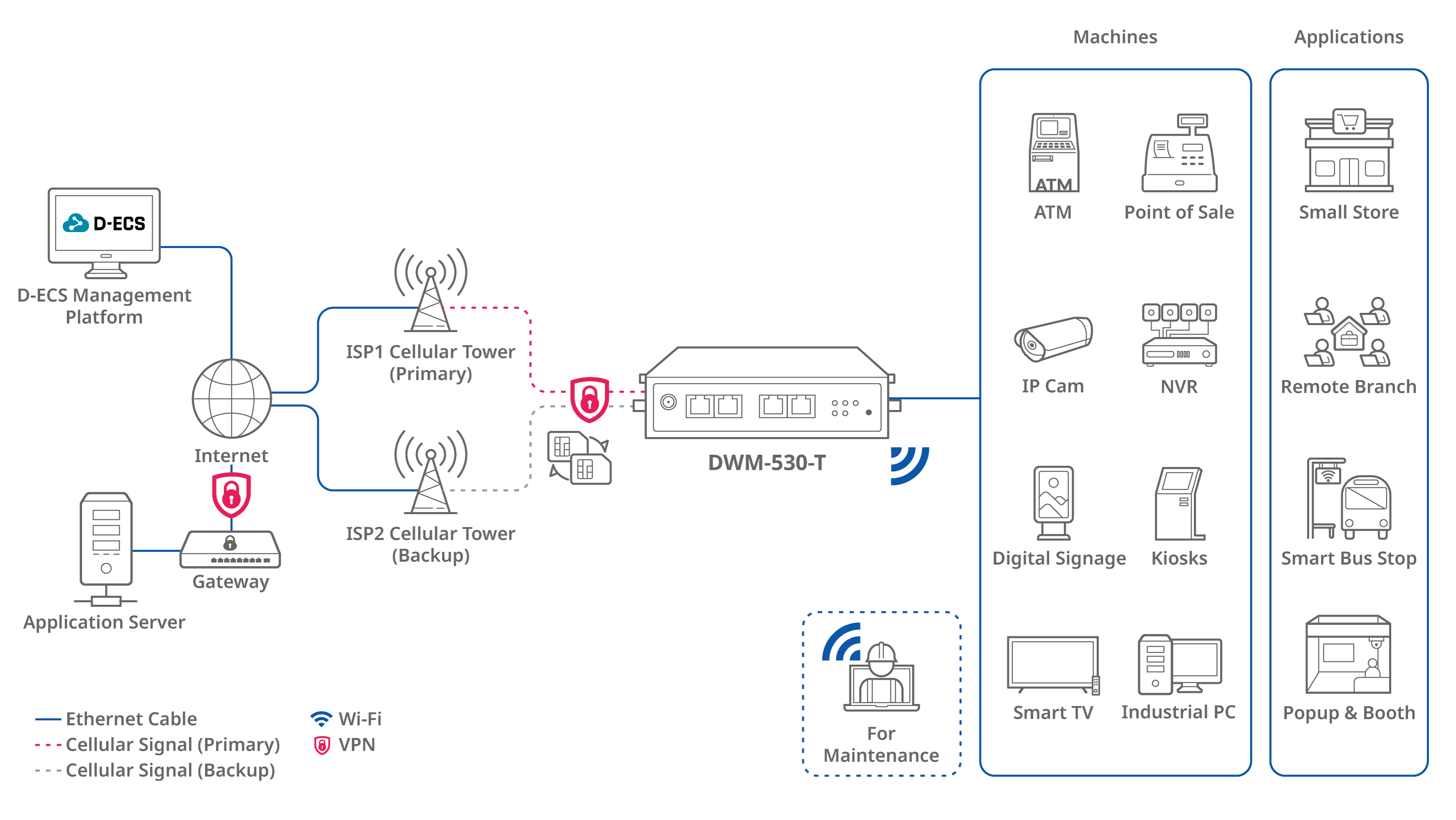

The DWM-530-T M2M Router is designed to support dependable IoT connectivity across a range of deployment scenarios. With dual cellular network support, it helps maintain consistent connections—even when one network is unavailable—and includes VPN capabilities to enhance data security. Centralized configuration and monitoring are streamlined through the D-ECS management platform.

Ideal for use with ATMs, kiosks, NVRs, and industrial PCs, the DWM-530-T supports a variety of applications in sectors such as retail, smart infrastructure, and mobile operations. Its flexible design and performance-focused features help meet the connectivity and security needs of both compact and large-scale IoT installations.

img_dwm_530t_connection

Versatile Applications

Kiosk

Remote access for kiosks supports more secure operation and helps reduce the risk of service interruptions

EV Charger

Remote management of charging information and usage status to optimize operations.

Smart Bus Stop

Remote access for real-time bus info and ad updates, enhancing commuter experience.

Vending Machine

Remote access to inventory and sales data optimizes machine status monitoring and restocking efficiency.

4G Antenna Connectors
2 x SMA antennas
Bridge Mode
Yes
Cellular Module
4G LTE Cat. 4
Ethernet Interface
1 x WAN/LAN FE
3 x LAN FE
IPv6
Cellular IPv6
LAN
DHCP Server/Relay
Local Management
Web UI/SSH
Maximum Cellular Data Throughput
LTE: 150 Mbps (DL) / 50 Mbps (UL)
Micro SD card Slot
Yes
Network Address Translation (NAT)
Yes
OpenVPN
Yes
Port Forwarding
Yes
Power Input
2-pin TB for DC 9V-36V
Remote Management
D-ECS
SIM Slot
2 x 3FF Micro-SIM
SMS Notification
Yes
Temperature
Operating -30 to 70 ˚C
WAN
Cellular/Ethernet
Wi-Fi Antenna Connectors
2 x SMA antenna
