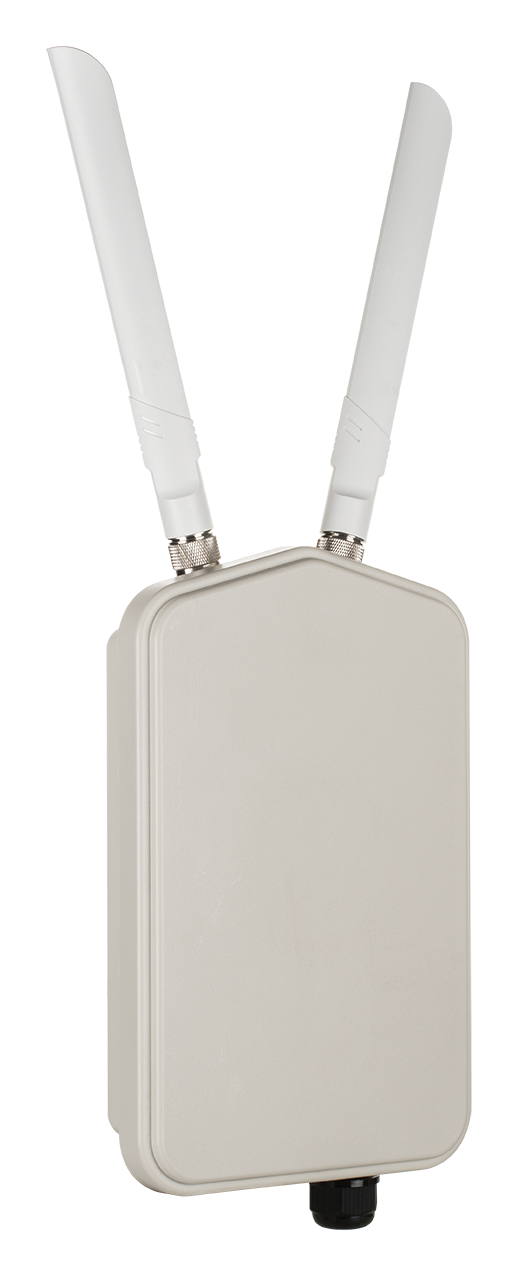

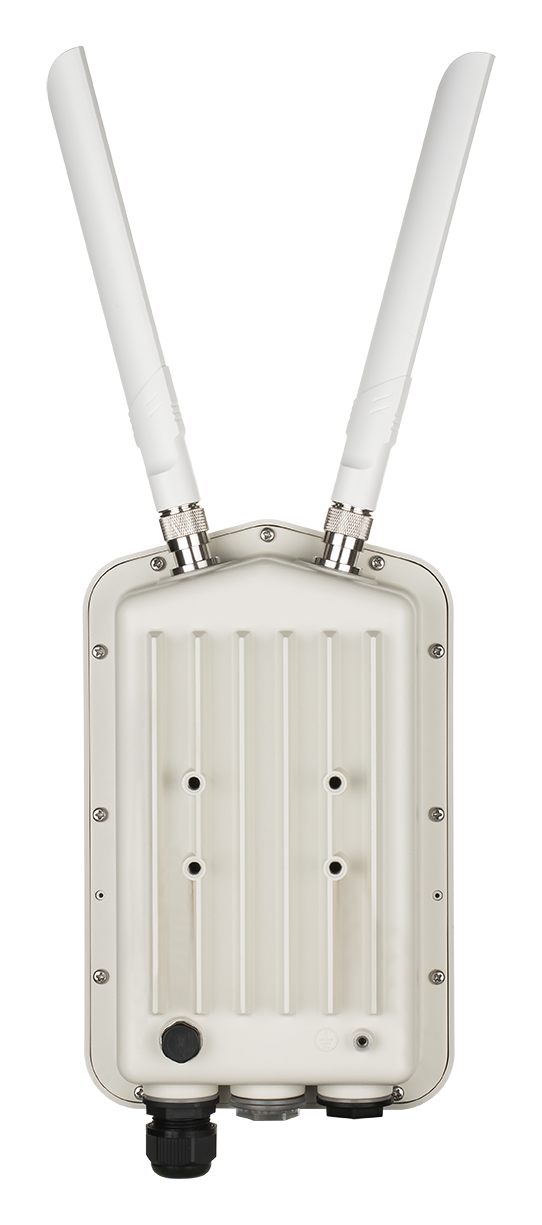

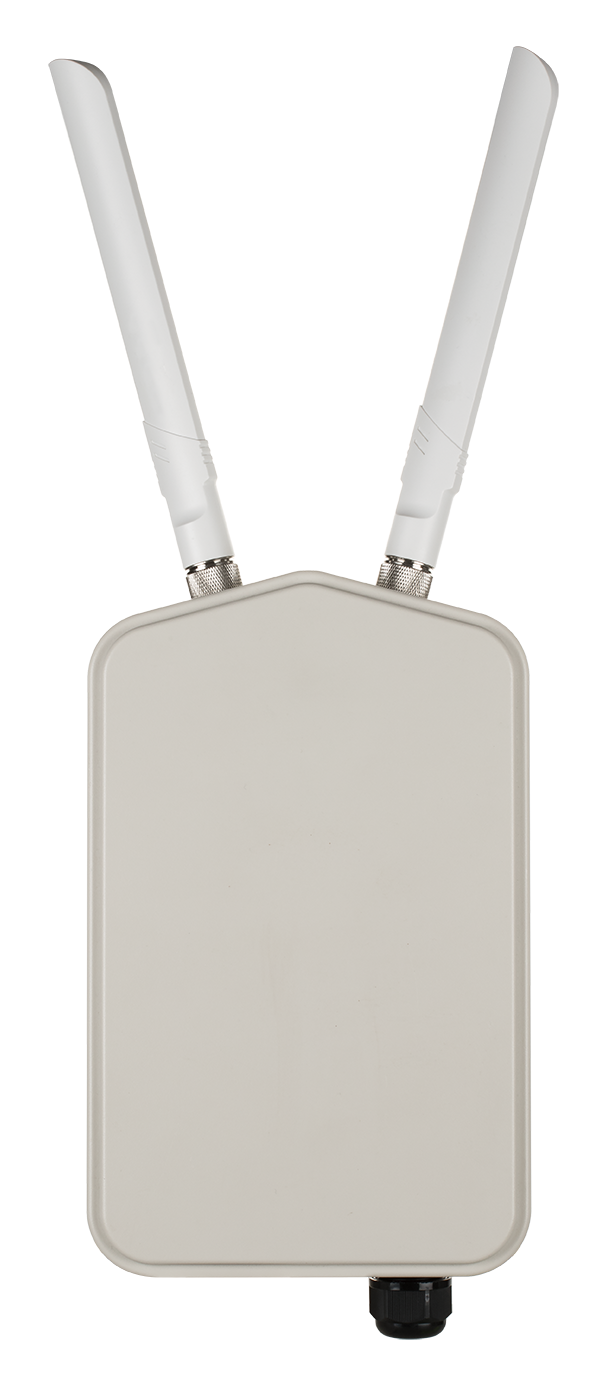

AC1300 Wave 2 Dual-Band Outdoor Unified Access Point


  • Product Status (EU_RevA1): Live
  • 802.11ac Wave 2, up to 1.3 Gbps*
  • IP67 weatherproof housing
  • 2x2 MU-MIMO, detachable omni-directional antennas
  • Up to 32 virtual access points per access point
  • 802.11k Fast Roaming, and QoS with WMM
  • WPA3 security
  • Limited Lifetime Warranty

Download the datasheet.

Where to buy

Outdoor Wi-Fi for your business, in any weather.

Designed for SMBs and enterprises, this outdoor wireless access point delivers high bandwidth, flexibility, and fast throughput even in high-density areas so your clients can enjoy a better Wi-Fi experience.

Wireless AC Wave 2

Up to 1.3 Gbps* combined throughput.

Dual-Band with band steering

Two bands to improve throughput and coverage as well as reduces co-channel interference.

2 x 2 MU-MIMO

Improved efficiency in handling throughput distribution to multiple devices connected to the network.

PoE & flexible installation

It can be wall or pole mounted and power over Ethernet enables installation in hard to reach locations.

802.11k Fast Roaming

Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1


Set up a robust and resilient wireless network that can automatically heal itself when an AP fails.

Latest Wireless Security

Supports WPA3, MAC address filtering & Rogue AP detection.

Dual-Band Wireless for efficient performance

The 2.4 GHz and high-speed 5 GHz AC channels and band steering technology makes your business network flexible by automatically placing clients on the optimal band for their needs like casual web browsing, and data-hungry operations like video streams and large file transfers.

Increase network speeds and efficiency, efficiently.

Load-balancing optimisation effectively eliminates the need for the dedicated hardware and RF expertise that would otherwise typically be required to tune a wireless network.

  • Seamless roaming
  • Airtime Fairness
  • High-Density Connectivity

Rugged & Weather-Resistant For Installation Anywhere

The AP’s IP67-rated weatherproof housing safeguards against dust and water so it can operate in harsh outdoor environments ranging from temperatures from -40°C up to 60°C. PoE support allows for easy installation with a single Ethernet cable, which is ideal for areas where power outlets are not readily available.

Everyday dust particles are prevented from entering the AP’s housing.

Substantial protection from high levels of water and can withstand extremely low and high temperatures.

Quality of Service for smoother video calls.

Video conference calls and VoIP are the mainstay of any busy office. The Quality of Service feature ensures time-sensitive data is intelligently prioritised over other traffic such as email or web browsing ensuring seamless calls and video.

Effective Management

The AP includes a Console port for debugging and configuration. It can be used as a standalone wireless access point, or managed centrally via a D-Link Wireless Controller, allowing centralised management of up to 256 access points.

Robust Centralised Management

Versatile management significantly cuts down configuration and administration time. Paired with the robust DWC-2000 Unified Wireless Controller, the APs can be managed remotely and makes for a more customisable network. Roll out new configurations or keep your APs’ firmware up-to-date easily with remote batch configuration to save time.

Vi är här för att hjälpa dig

Över 35 år inom nätverksbranschen

Innovativa heltäckande lösningsexperter för småföretag till stora koncerner över hela världen.

Det är enkelt att prata med oss

Kompetent lokal support i 16 länder. Våra supportteam är redo att hjälpa dig.

D-Link Begränsad Livstidsgaranti

Kvaliteten och tillförlitligheten hos D-Links produkter gör att vi kan tillhandahålla en branschledande begränsad livstidsgaranti vid varje registrering.

Related Products

DWC 1000 Front
Wireless Controller
Find out more
Wireless Controller
Find out more
AX3600 Wi-Fi 6 Dual-Band Unified Access Point
Find out more
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
Find out more
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
Find out more
Hardware-managed AP
Wireless standard
Wireless AC Wave 2
Frequency band mode
Dual-band simultaneous
Wireless speed
400 Mbps 2.4 GHz

867 Mbps 5 GHz
Antenna type
2 detachable omni-directional antennas
Antenna gain
3.5 dBi for 2.4 GHz

5 dBi for 5 GHz
Wired interface
1 x Gigabit Ethernet LAN
Console port
Type of housing
IP rating
Wireless modes
Access Point (AP)
Advanced features
Fast Roaming


Maximum number of SSIDs
16 per radio
Auto channel selection
WMM-PS/802.11e (U-APSD)
Wi-Fi scheduler
AP traffic load balance
L2 roaming
TKIP/AES encryption
WLAN partition
SSID broadcast disable
Rogue AP detection
Station isolation
MAC address filtering
802.1X authentication
Controller managed features
AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

Supported D-Link Wireless Controllers/Unified Switches

Management platform
Hardware controller: DWC Series
SNMP (v1, v2c, v3)

1 This feature is available when Unified AP is used in conjunction with D-Link’s line of Unified Wireless Controllers.
Maximum wireless signal rate derived from IEEE standard 802.11n and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
