UTM-brandvägg för det lilla kontoret/arbetsgruppen


  • Product Status: End of Life

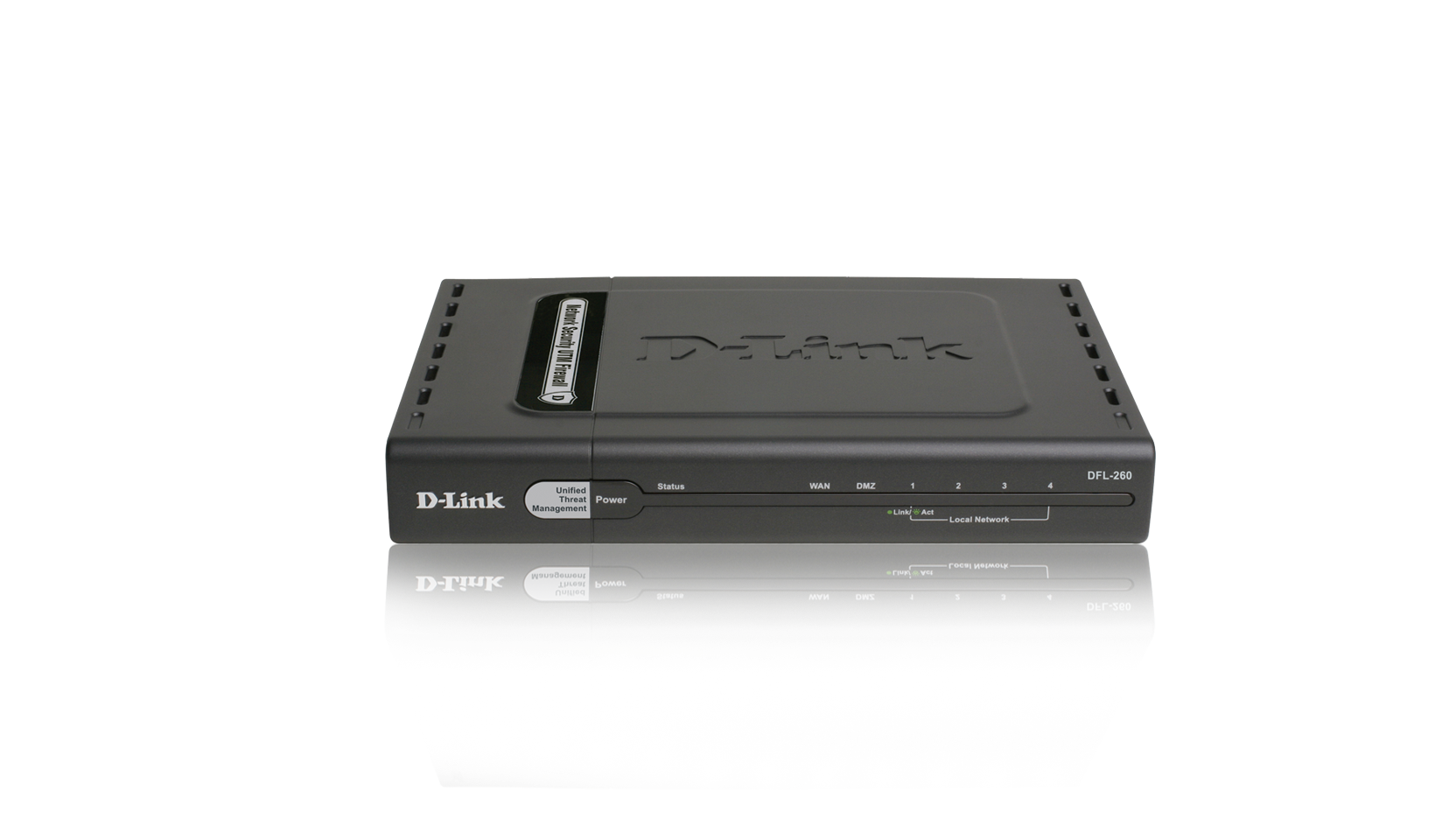

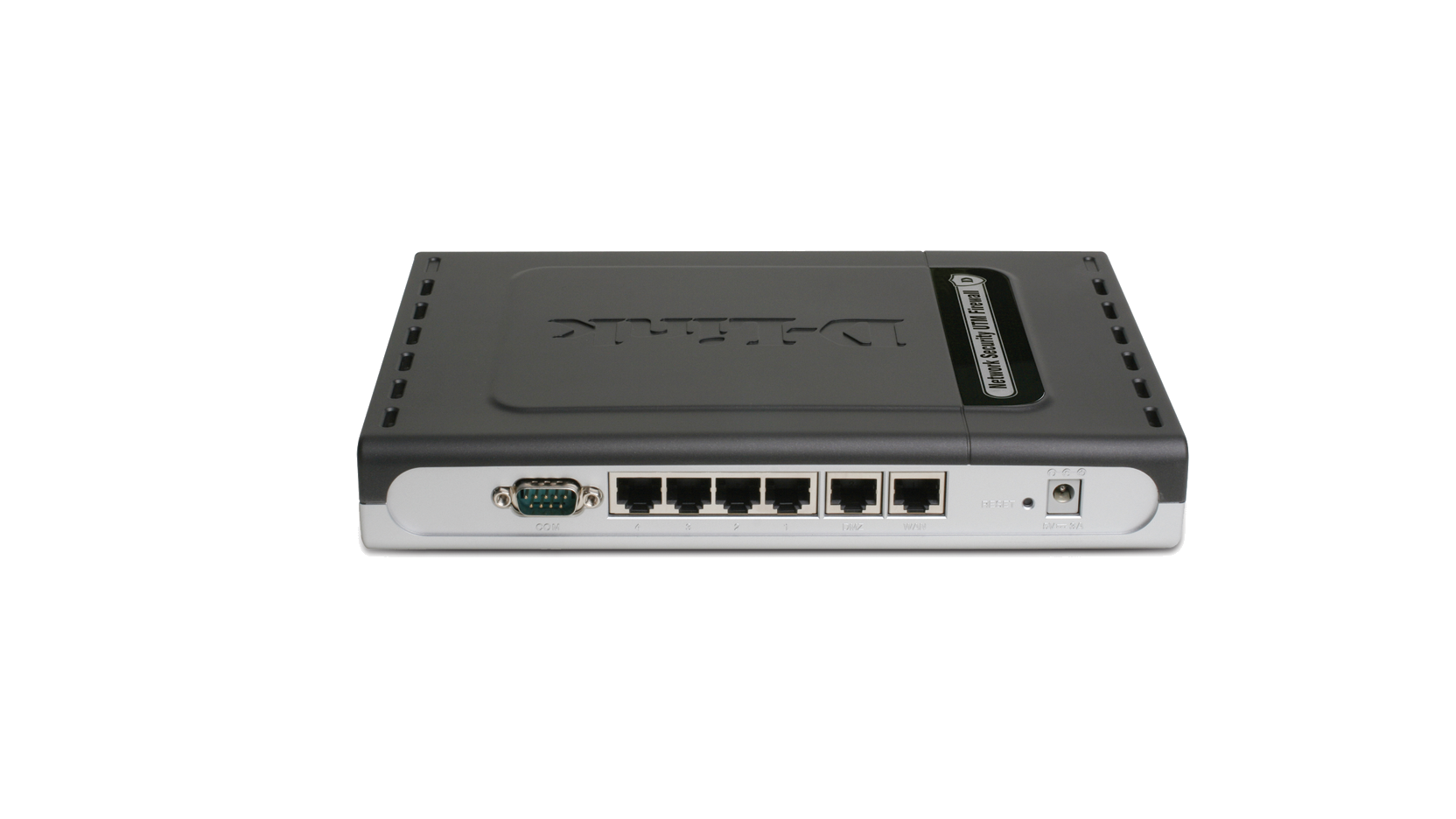

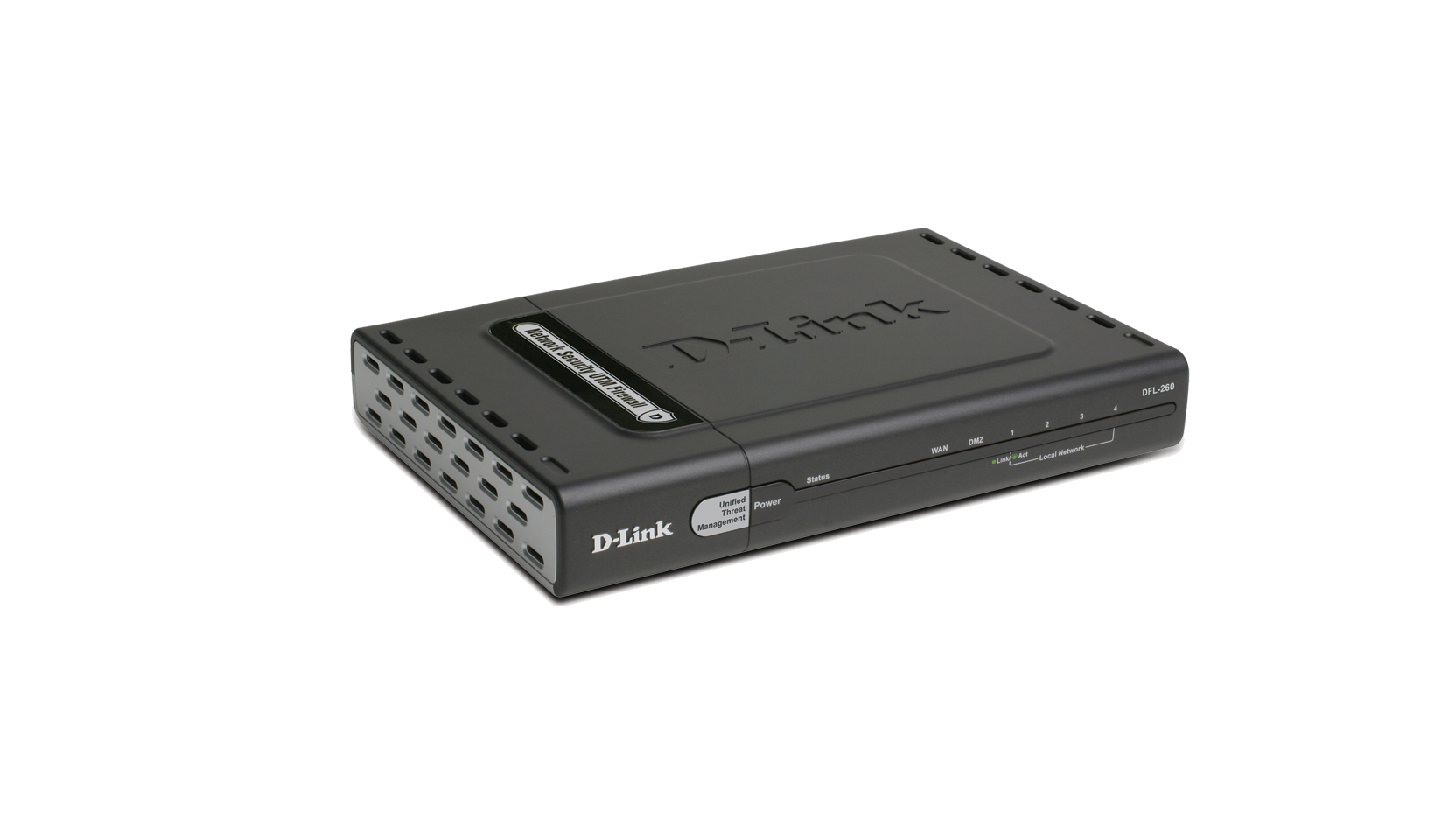

D-Link's NetDefend Unified Threat Management (UTM) firewall (DFL-260) provides a powerful security solution to protect business networks from a wide variety of threats.

The D-Link DFL-260 NetDefend™ Unified Threat Management (UTM) firewall provides a powerful security solution to protect business networks from a wide variety of threats. UTM Firewall offers a comprehensive defense against virus attacks, unauthorized intrusions, and harmful content, enhancing fundamental capabilities for managing, monitoring, and maintaining a healthy network.

Enterprise-class Firewall Security
The DFL-260 provides complete advanced security features to manage, monitor, and maintain a healthy and secure network. Network management features include: Remote Management, Bandwidth Control Policies, URL Black/White Lists, Access Policies and SNMP. For network monitoring, this firewall supports e-mail alerts, system logs, consistency checks and real-time statistics.

Unified Threat Management
For superior Layer 7 content inspection and protection, the DFL-260 provides an integrated intrusion detection and prevention system, gateway antivirus, and content filtering services. The real-time update service keeps the IPS information, antivirus signatures, and URL databases current. Combined, these enhancements help to protect the office network from application exploits, network worms, and malicious code attacks, and provide everything a business needs to safely manage employee Internet access.

Powerful VPN Performance
The DFL-260 offers an integrated VPN client and server. This allows remote offices to securely connect to a head office or a trusted partner network. Mobile users working from home or remote locations can also safely connect to the office or access company data and e-mail. The firewall DFL-260 supports IPSec, PPTP, and L2TP protocols in Client/Server mode and can handle pass-through traffic as well. Advanced VPN configuration options include: DES/3DES/AES/Twofish/Blowfish/CAST-128 encryption, Manual or IKE/ISAKMP key management, Quick/Main/Aggressive Negotiation modes, and VPN authentication support using either an external RADIUS server or a large user database.

Robust Intrusion Prevention
NetDefend UTM firewall employs component-based signatures, a unique IPS technology that recognizes and protects against all varieties of known and unknown attacks. This system can address all critical aspects of an attack or potential attack including payload, NOP sled, infection, and exploits. In terms of signature coverage, the IPS database includes attack sensor-grid and exploits collected from public sites such as the National Vulnerability Database and Bugtrax. NetDefend UTM firewall DFL-260 constantly creates and optimizes NetDefend signatures via the D-Link Auto-Signature Sensor System without overloading existing security appliances. These signatures ensure a high ratio of detection accuracy and a low ratio of false positives.

Stream-based Virus Scanning
The DFL-260 examines files of any size, using a stream-based virus scanning technology that eliminates the need to cache incoming files. The zero-cache scanning method not only increases inspection performance but also reduces network bottlenecks. NetDefend UTM firewall uses virus signatures from Kaspersky Labs to provide systems with reliable and accurate antivirus protection, as well as prompt signature updates. Consequently, viruses and malware can be effectively blocked before they reach the network's desktops or mobile devices.

Web Content Filtering
Web Content Filtering helps administrators monitor, manage, and control employee usage of and access to the Internet. The NetDefend UTM firewall implements multiple global index servers with millions of URLs and real-time website data to enhance performance capacity and maximize service availability. This firewall uses highly granular policies and explicit black/white lists to control access to certain types of websites for any combination of users, interfaces and IP networks. The firewall can actively handle Internet content by stripping potential malicious objects, such as Java Applets, JavaScripts/VBScripts, ActiveX objects, and cookies.

UTM Services
Maintaining an effective defense against various threats originating from the Internet requires that all three databases used by NetDefend UTM firewalls are kept up-to-date. In order to provide a robust defense, D-Link offers NetDefend Firewall UTM service subscriptions, which include updates for every aspect of defense: Intrusion Prevention Systems (IPS), Antivirus (AV), and Web Content Filtering (WCF). NetDefend UTM Subscriptions ensure that each of the firewalls' service databases is complete and effective.

NetDefend UTM Subscription
The standard NetDefend UTM Subscription provides your firewall with UTM service updates for two years starting from the day you activate or extend your service. The NetDefend UTM Subscription can be renewed annually to provide your firewall with the most up-to-date security service available from D-Link.
This product was phased out on: 18/04/2012
This product's last date of support is on: 18/04/2014
Version Date Type File Size
Datasheet (English) - PDF 1.69mb Download
Version Description Date Type File Size
User Manual (English) User Manual (English) 2007-12-24 PDF 5.19mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 3.09mb Download
Version Description Date Type
Firmware upgrade v. all Firmware upgrade v. all 2011-12-09 - Download
Firmware upgrade v2.26.00.02 all Firmware upgrade v2.26.00.02 all 2009-09-23 - Download
Firmware upgrade v2.20.01.05 all Firmware upgrade v2.20.01.05 all 2008-04-16 - Download
Version Description Date
SE_Config_AntiVirus_on_UTM_Firewall_EN_RevA How to configure Anti-Virus on UTM firewall (English) 2007-09-10 Download
SE__Config_Web_Content_Filtering_EN_RevA How to configure Web Content Filtering on UTM firewall (English) 2007-09-10 Download
SE_Block_Facebook_EN_RevA How to block www.facebook.com (English) 2007-09-07 Download
SE_Config_Traffic_Management_for_QOS_EN_RevA How to configure traffic management for Quality of Service assurance (English) 2007-08-02 Download
DEU_CE_A1_RevA Certificate of Declaration A1 2006-07-28 Download
SE_User_Authentication_for_Web_Access_EN_RevA Require user authentication for web access (English) 2005-11-24 Download
SE_Config_Bandwidth_Management_EN_RevA How to configure Bandwidth Management (English) 2005-10-20 Download
SE_Config_Transparent_Mode_EN_RevA How to configure transparent mode (English) 2005-10-20 Download
SE_VLAN_and_Route_Failover_EN_RevA VLAN and route failover (English) 2005-10-20 Download
SE_VPN_LAN_to_Multi_LAN_EN_RevA Configure lan-to-lan tunnels between a main office and two remote offices (sometimes called Hub and Spoke) (English) 2005-10-20 Download
SE_VPN_Using_PPTP_LAN_to_LAN_Tunnel_EN_RevA Virtual private network using a PPTP (or L2TP) lan-to-lan tunnel (English) 2005-10-20 Download
SE_VPN_using_IPSec_LAN_to_LAN_Tunnel_EN_RevA Virtual private network using an IPsec lan-to-lan tunnel (English) 2005-10-20 Download
DEU_CLI_Guide_RevA CLI Reference Guide (English) - Download
DEU_Log_Ref_Guide_RevA Log Reference Guide (English) - Download
SE_Forward_traffic_to_Server_on_Network_EN_RevA How to forward traffic to a server on the network (English) - Download
SE_IPSEC_Tunnel_for_Roaming_Users_EN_RevA How to create an IPSEC tunnel for roaming users (English) - Download
SE_Portmapping_a_Public_IP_EN_RevA Portmapping a public IP (English) - Download
SE_Publish_Public_IP_via_Proxy_arp_EN_RevA How to publish public IP via proxy arp (English) - Download
SE_UTM_Registration_Procedure_EN_RevA UTM Firewall Registration and Activation Manual (English) - Download
SE_Using_Public_IP_addresses_on_DMZ_Zone_RevA Guide för att använda publika IP adresser på DMZ zonen - Download
SE_WAN_with_DHCP_EN_RevA WAN with DHCP (English) - Download
SE_WAN_with_PPPOE_EN_RevA WAN with PPPOE (English) - Download
SE_WAN_with_Static_IP_EN_RevA WAN with static IP (English) - Download
