Single-mode Fiber Gigabit 1000Base-LX/LH SFP-transceiver för långdistans (35 km)
DEM-314GT
- Product Status (Revision A1): End of Life
- Single-mode fibre transceiver
- Up to 50 km. signal transmission
- Hot-swappable
D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

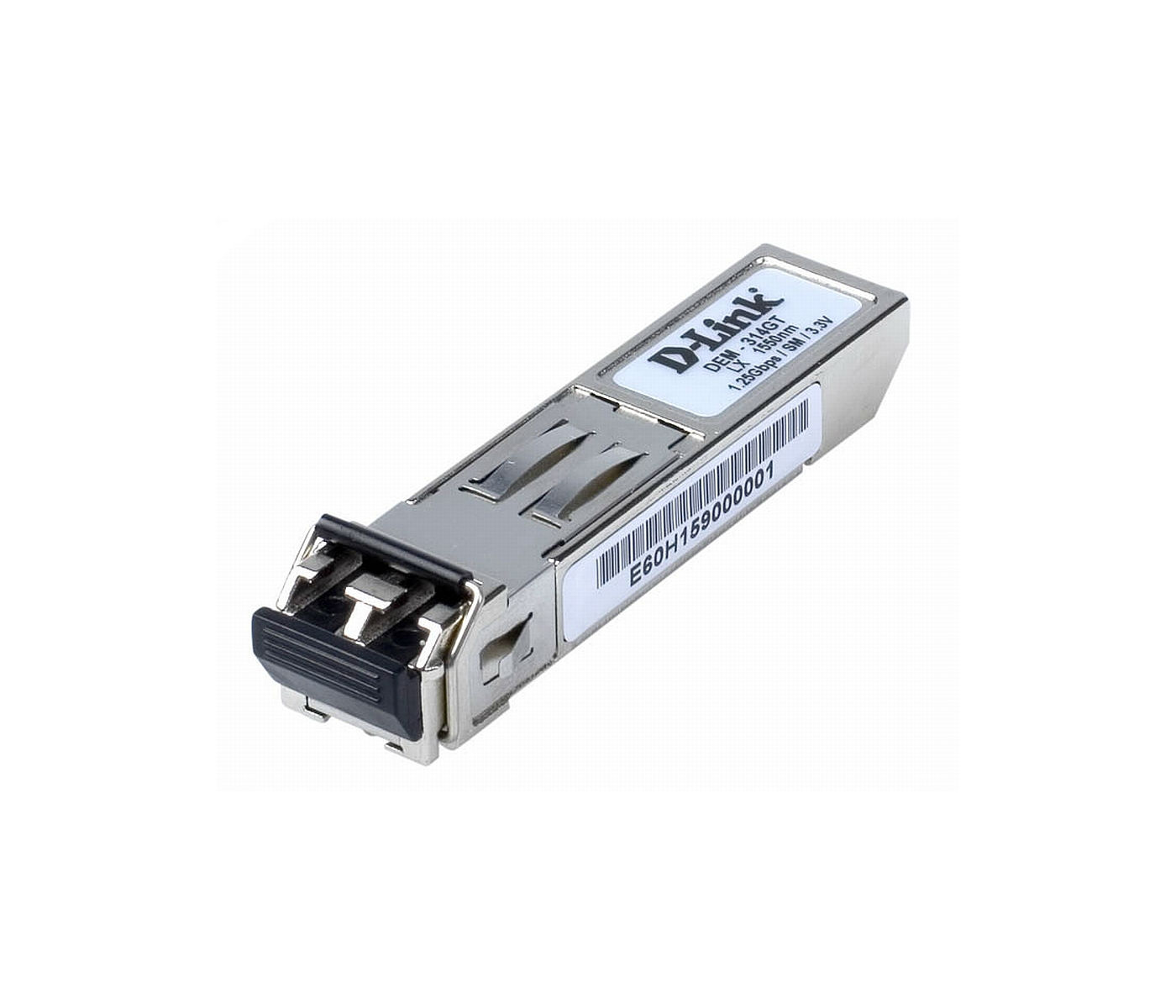

The DEM-314GT is a high performance 1310nm singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on singlemode fiber for distances of up to 50km on 9µm fiber. The unit features a metal housing to reduce EMI and to increase durability. The DEM-314GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
* Third-Party Devices Must Comply With specified Supported Industy-Standard Specifications
* Actual product appearance may differ from the image displayed on this page
Specs
- 1000BASE-LX/LH port (IEEE 802.3z-standard)
- Hot-swappable
- Duplex-LC kontakt
- Mycket låg paketfördröjning
- Full duplex-drift
- Stöd för flödeskontroll enligt 802.3x
- Fibertyp: 9/125 um single-mode fiber upp till 35 km
- Våglängd: 1 310 nm
- Spänningsstöd: 3,3 V
- Effektbudget: 22 dB
Support
This product was phased out on: 26/10/2016
This product's last date of support is on: 26/10/2018
