1-port multi-mode 1000Base-SX Mini GBIC Gigabit Ethernet modul (550 m)

DEM-311GT

  • Product Status: Live

Download the datasheet.

Where to buy
  • 850nm Multi-Mode Tranceiver
  • 550m Max Distance, Duplex LC Connector
D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

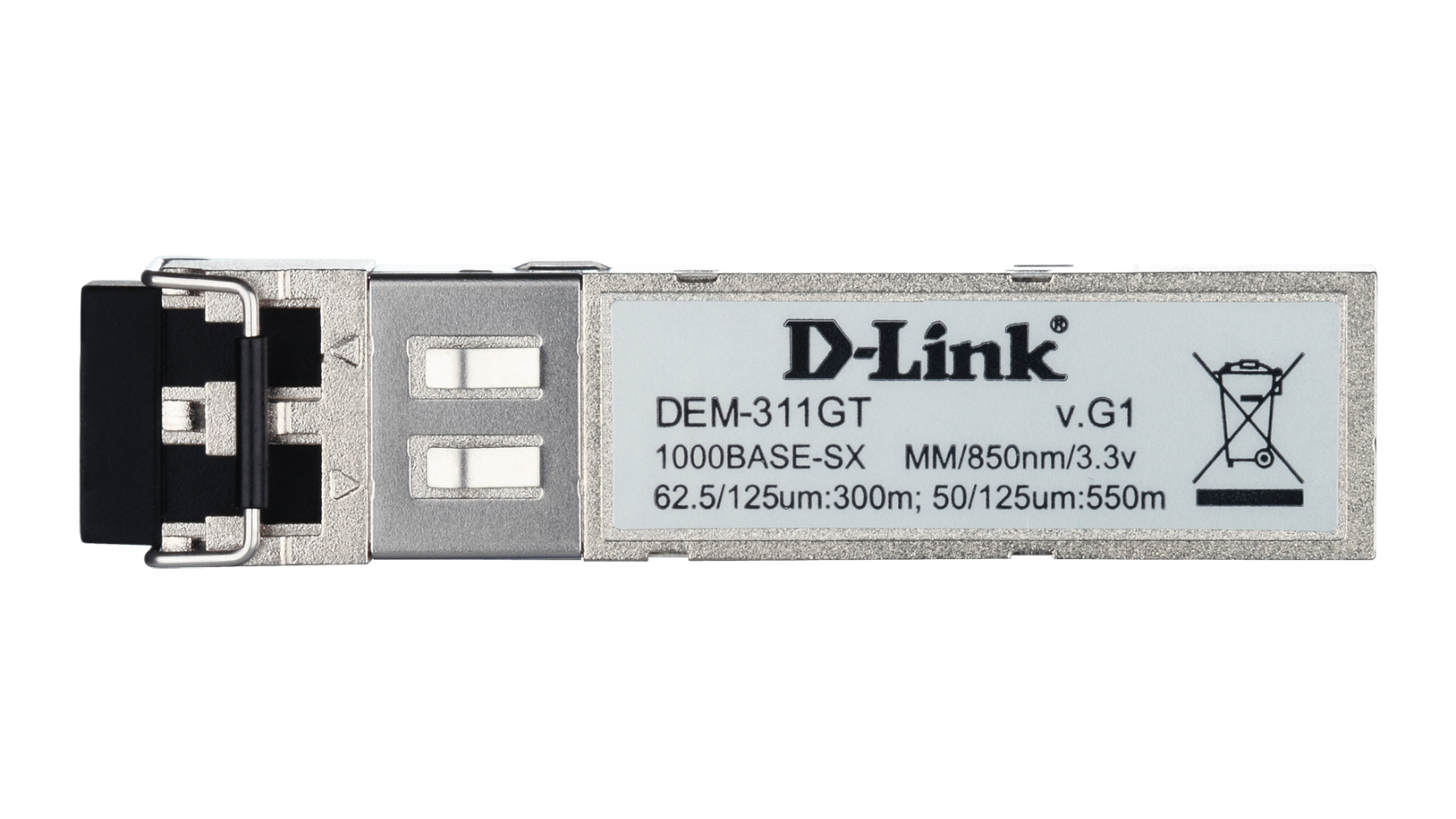

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

* Third-Party Devices Must Comply With specified Supported Industry-Standard Specifications

Specs

Download the datasheet.

  • 1000BASE-SX (IEEE 802.3z-standard)
  • Hot-swappable
  • Duplex-LC kontakt
  • Mycket låg paketfördröjning
  • Full duplex-drift
  • Stöd för flödeskontroll enligt 802.3x
  • Fibertyp: 50/62,5 um multimode-mode fiber upp till 550m
  • Spänningsstöd: 3,3 V

Support

Version Date Type File Size
Datasheet (English) - PDF 0.20mb Download
Version Description Date
DEU_CE_Declaration_RevD CE Declaration 2006-09-27 Download
DEU_CE_DEclaration_RevC CE Declaration 2006-09-27 Download
DEU_CE_Declaration_RevB CE Declaration 2004-07-05 Download
