Single-mode Fiber 100Base-FX SFP Transceiver (15 km)


  • Product Status (Revision A1): End of Life
  • Small Form Factor Pluggable (SFP) Multi-Source Agreement (MSA) Specification Compliant
  • IEEE 802.3u 100BASE-FX Standard
  • 15 km Single-Mode Fiber
  • Hot-Swappable
  • FDA, CDRH, TUV Laser Eye Safety Certified

D-Link's DEM-210 and DEM-211 SFP transceivers provide a high performance solution for serial optical data communication applications. They are hot-swappable, Small Form Factor Pluggable (SFP) compliant with the Multi-Source Agreement (MSA) specification. The transceivers have duplex LC connectors and provide IEEE 802.3u compliant link for up to 100Mbps in the half duplex mode (or 200Mbps full-duplex mode) transmission for fiber cable applications.

D-Link's highly integrated transceivers offer low jitter performance for extended optical links support without performance degradation. This high performance enables reliable data transfer in short-, intermediate- and long-distances for building, factory, campus and metropolitan networking applications.

Previous combo-port switch designs have only provided Gigabit copper or SFP fiber-optic connectivity but not 100BASE-FX SFP fiber-optic connectivity. Switch designs like the DES-1226G and DES-3526 are of the former type. D-Link now provides 100BASE-FX SFP fiberoptic connectivity on Gigabit combo SFP ports for new switch model designs. Futher, in our effort to offer a full product porfolio, D-Link has developed the DEM-210 100BASE-FX SFP transceiver which can plug-in to the Gigabit combo SFP fiber-optic slot of selected switches to provide 100BASE-FX connectivity.

The transceiver connects with certain specific supported D-Link switches. It is not for use in the Gigabit SFP fiber-optic ports found in other switches. The current list of D-Link switches that support the new module includes the following: DES-1228, DES-1228P, DES-1252, DGS-3612G.

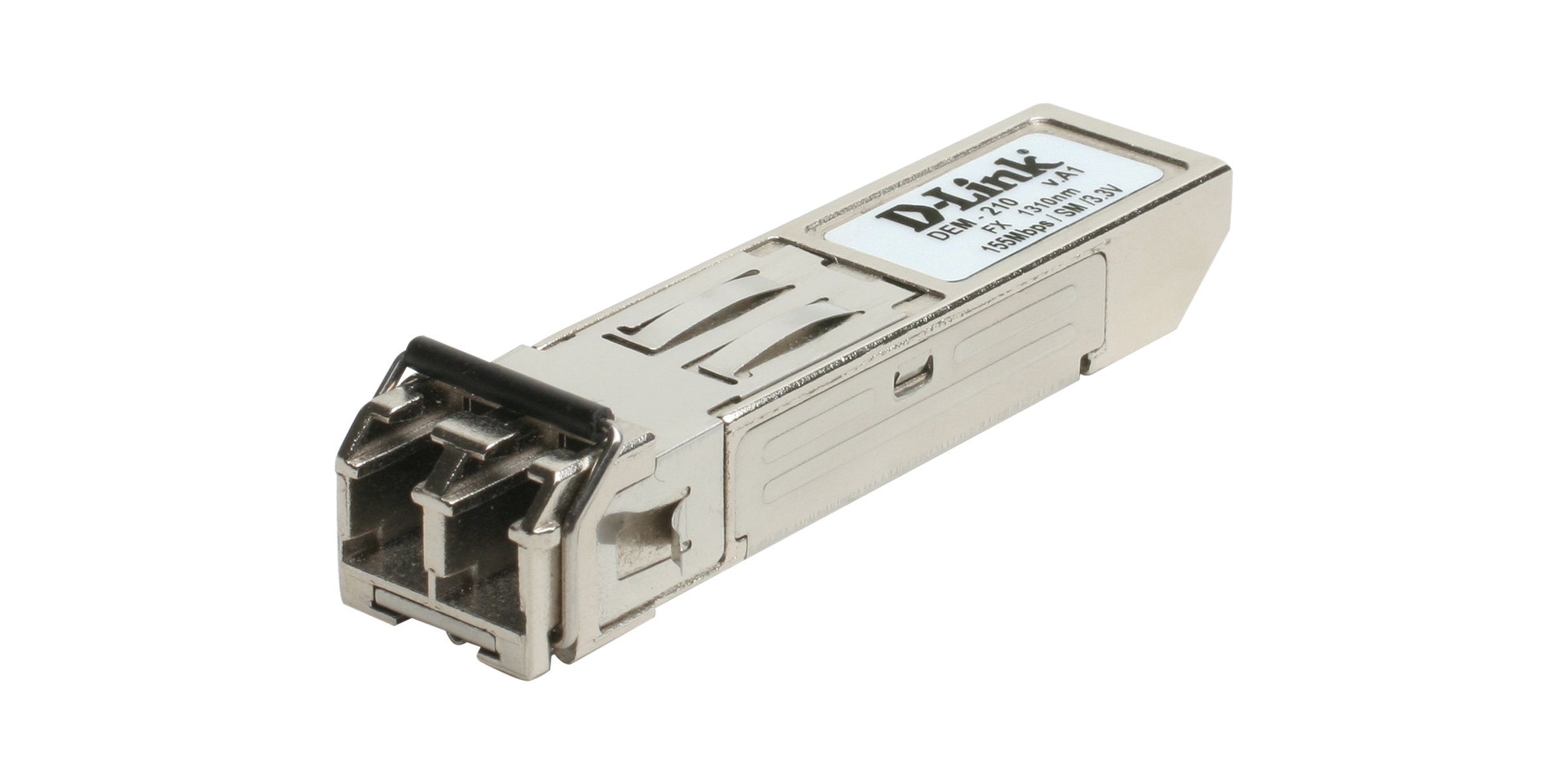

Actual product appearance may differ from the image displayed on this page
  • Endast för DES-1200, DES-3000, DGS-3100 och DGS-3612G
  • 100BASE-FX-port (IEEE 802.3u-standard)
  • Duplex-LC kontakt
  • Full duplex-drift
  • Stöd för flödeskontroll enligt 802.3x
  • Fibertyp: 9/125 um single-mode fiber upp till 15 km
  • Våglängd: 1 310 nm
  • Spänningsstöd: 3,3 V
  • Effektbudget: 17 dB
  • Hot swappable
This product was phased out on: 26/08/2017
This product's last date of support is on: 26/08/2019
Version Date Type File Size
Datasheet (English) - PDF 0.18mb Download
Version Description Date
DEU_CE_DEclaration_1_RevA CE Declaration (English, French) 2009-05-27 Download
