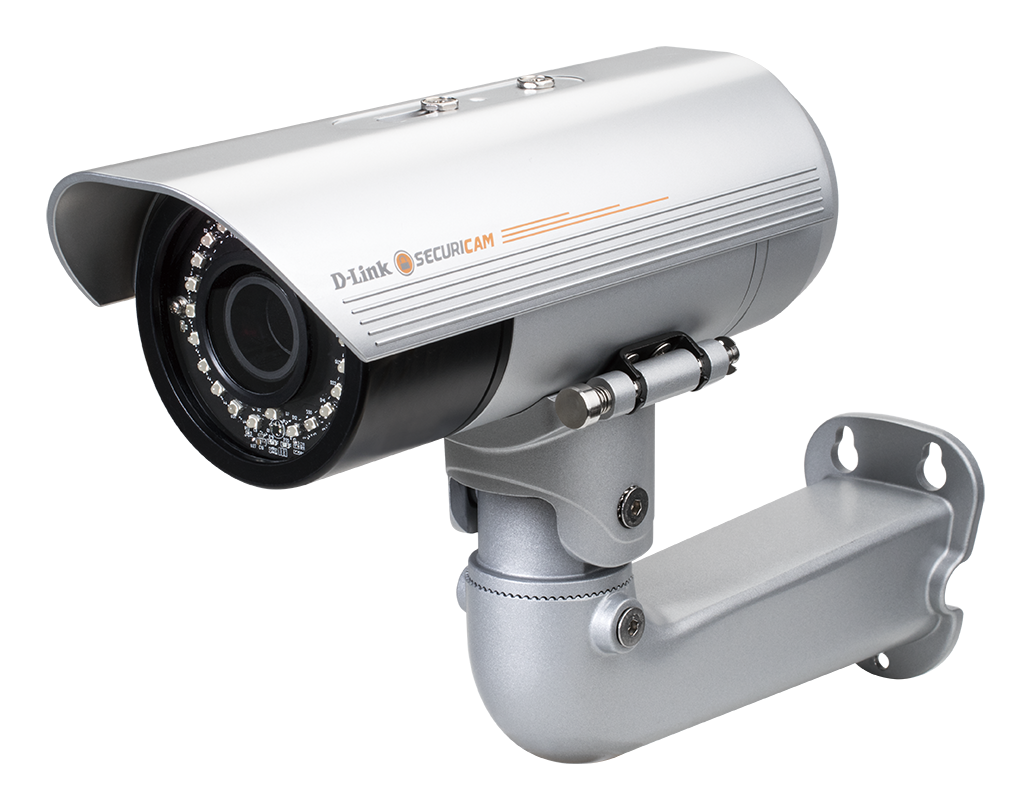

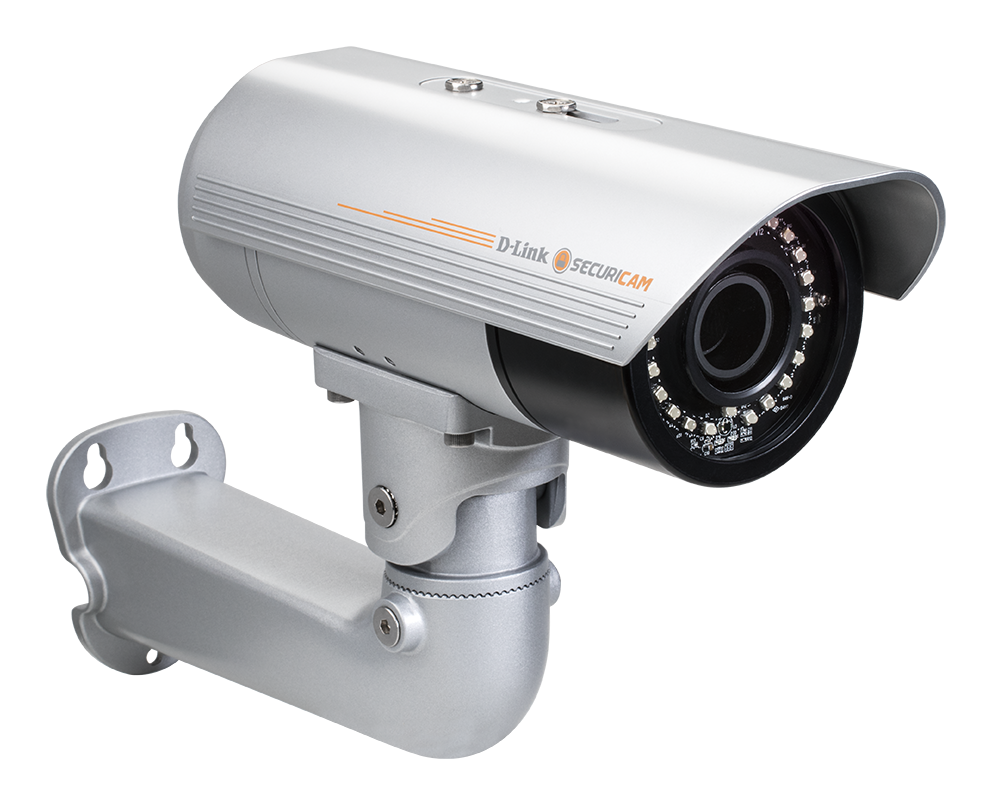

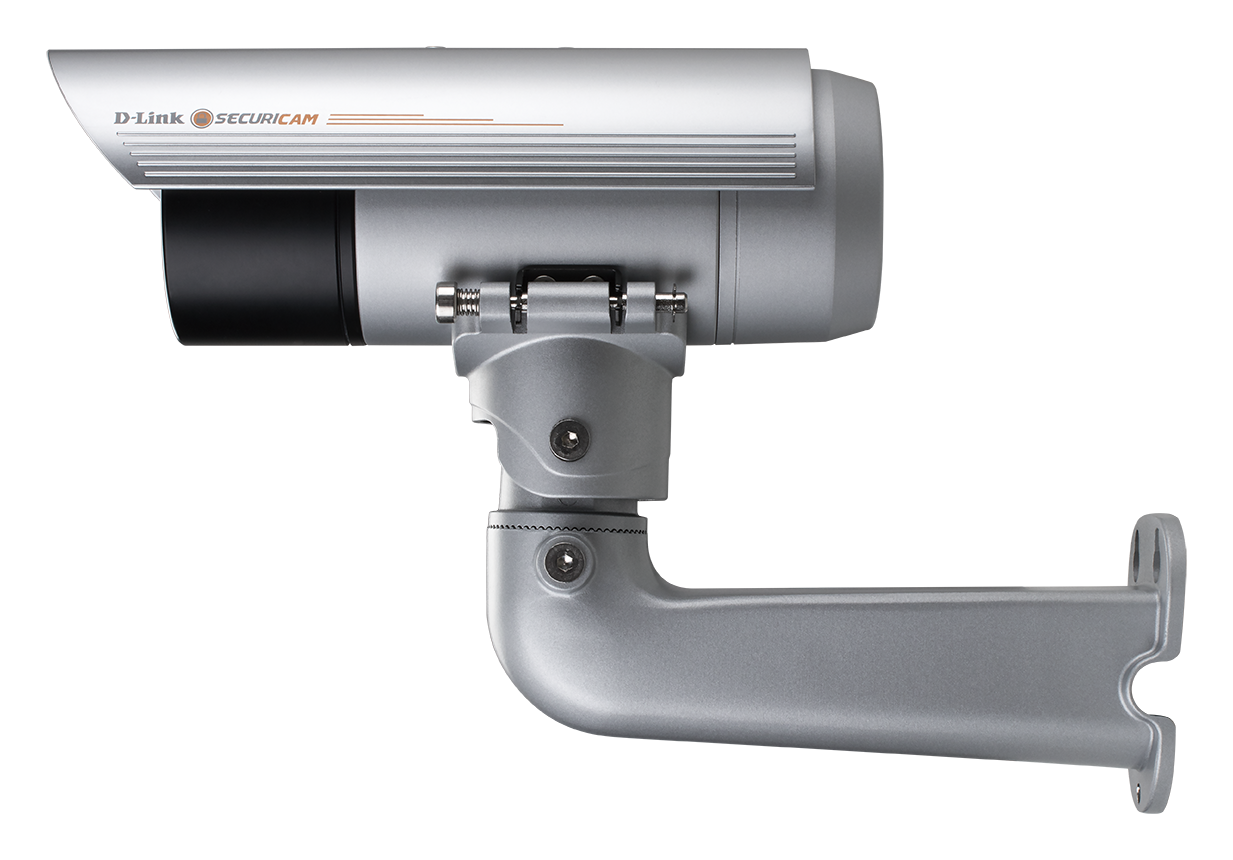

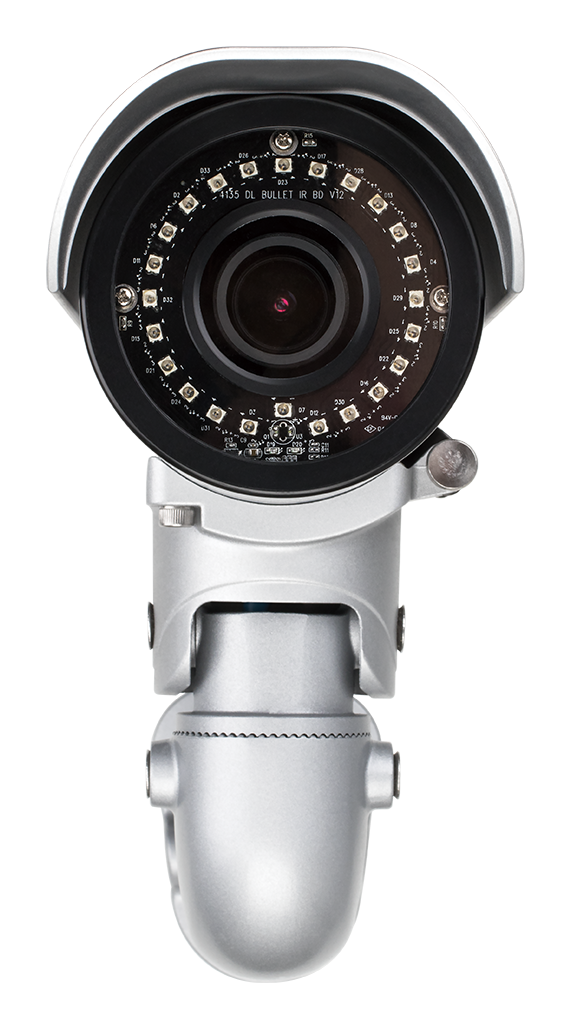

5 Megapixel Varifocal Outdoor Network Camera
DCS-7517
- Product Status: End of Sale
There's a new version of this product:
Vigilance 8 megapixel H.265 utomhuskamera
DCS-4718E
See Newer ProductThere's a new version of this product:

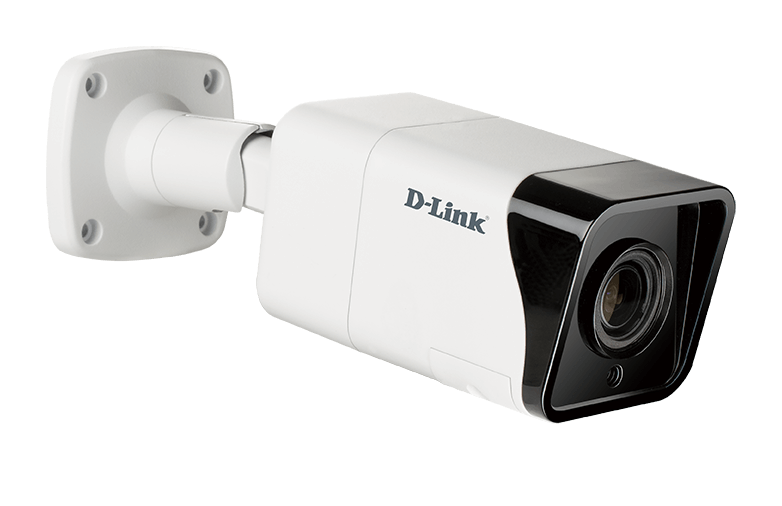

DCS-4718E
Vigilance 8 megapixel H.265 utomhuskamera
Overview
- 4K Ultra HD 8-megapixelobjektiv
- IP66 väderbeständig
- 30 m mörkerseende med WDR och LowLight+
- PoE för enkel installation
- Enkel fjärrhantering med D-ViewCam
Overview
- 4K Ultra HD 8-megapixelobjektiv
- IP66 väderbeständig
- 30 m mörkerseende med WDR och LowLight+
- PoE för enkel installation
- Enkel fjärrhantering med D-ViewCam
Related Products
Functional Cable for DCS-6517, DCS-7513, DCS-7517
DCS-11
5 Megapixel Varifocal Outdoor Dome Network Camera
DCS-6517
Specs
Indoor/outdoor
|
Indoor Outdoor |
---|---|
Type
|
Bullet |
Connectivity
|
Wired PoE |
Resolution
|
5 megapixel |
Image sensor
|
1/2.9'' 5 megapixel WDR progressive scan CMOS |
Maximum Video Resolution
|
1920 x 1080 (16:9) 2560 x 1920 (other) |
Lens
|
2.8-12 mm F1.4 Motorised Varifocal |
Angle of View (H/V/D)
|
75° ~ 24° / 55° ~ 18° / 96° ~ 30° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
30 m |
Wide Dynamic Range(WDR)
|
Supported
|
Optical Zoom
|
4.2x |
Privacy Masks
|
5 zones |
2-way audio
|
Supported
|
External Microphone Input
|
Supported
|
External Speaker Output
|
Supported
|
Digital Input/Output(DI/DO)
|
1/1 |
External Card Slot
|
MicroSD SDHC SDXC (max 128 GB) |
Power Consumption
|
10 W |
Features
|
ONVIF |
Video Format
|
H.264 H.265 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
This product was phased out on: 08/06/2022
This product's last date of support is on: 08/06/2027
