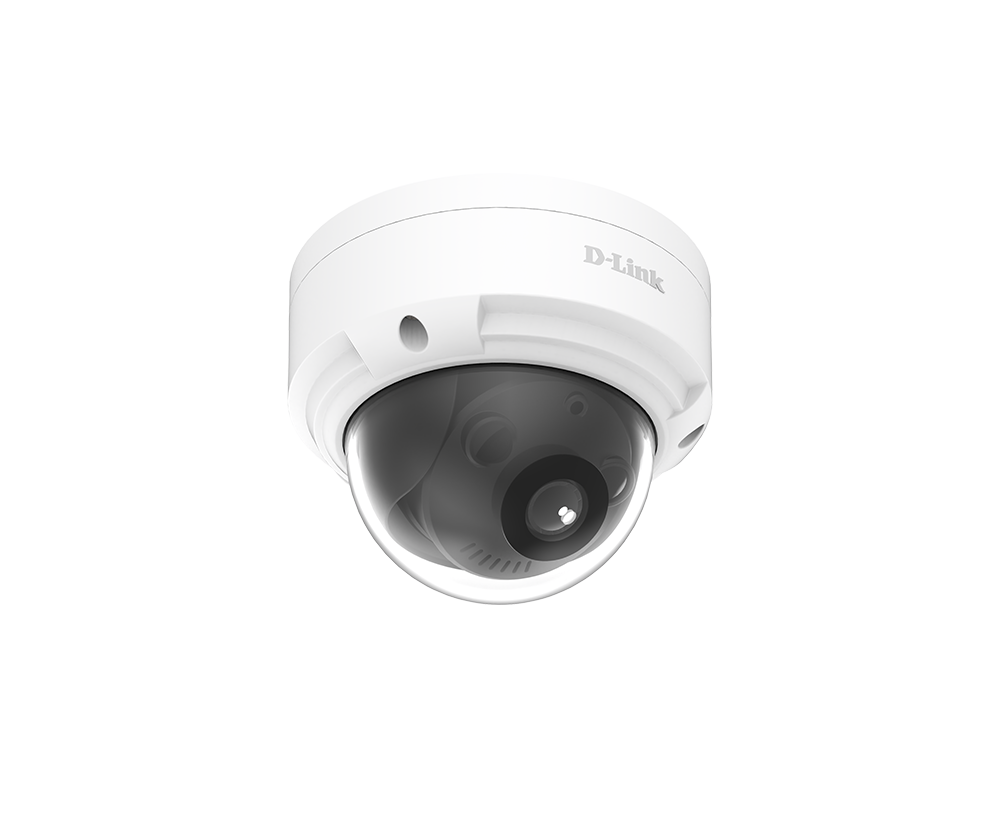

2 Megapixel H.265 Outdoor Dome Camera
BCD-P01
- Product Status (Rev A): Live
- 2MP Progressive CMOS Sensor
- IR Illumination Range up to 30 m
- Minimum Object Distance of 1 m
- IP66 Weatherproof Protection
- IK10-Rated Impact Protection
- 10/100 Fast Ethernet with 802.3af PoE
- microSD Card Support up to 1 TB
- Human, Vehicle, and IVS Detection
- Built-in People Counting Support
- ONVIF Profile S/T Compliant
Where to buy
User Benefits

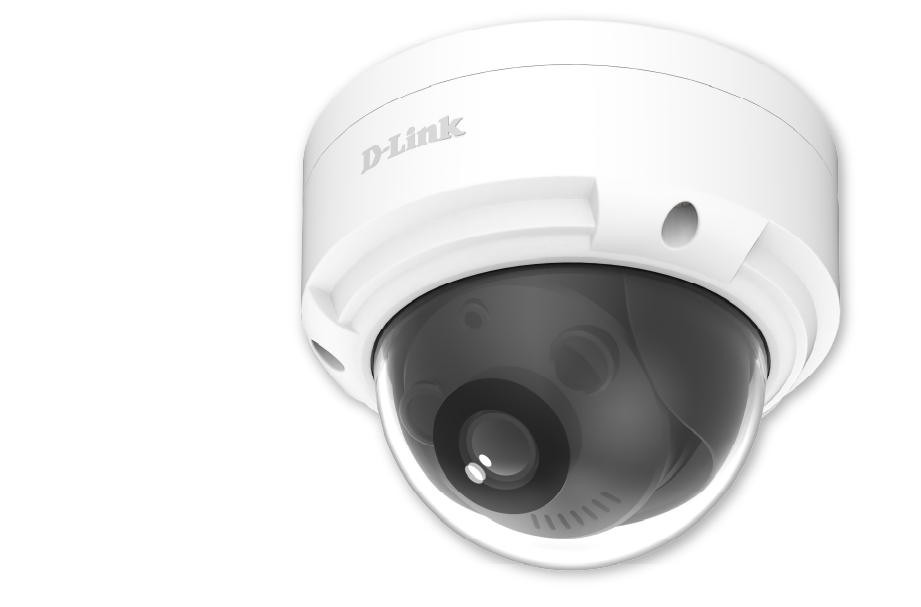

Clear High-Definition Video
Delivering crisp, high-definition video to ensure every frame is sharp, vivid, and reliable in any environment
Intelligent Video Analytics
Advanced video analytics reduce false alarms to deliver real-time precision and smarter, proactive monitoring

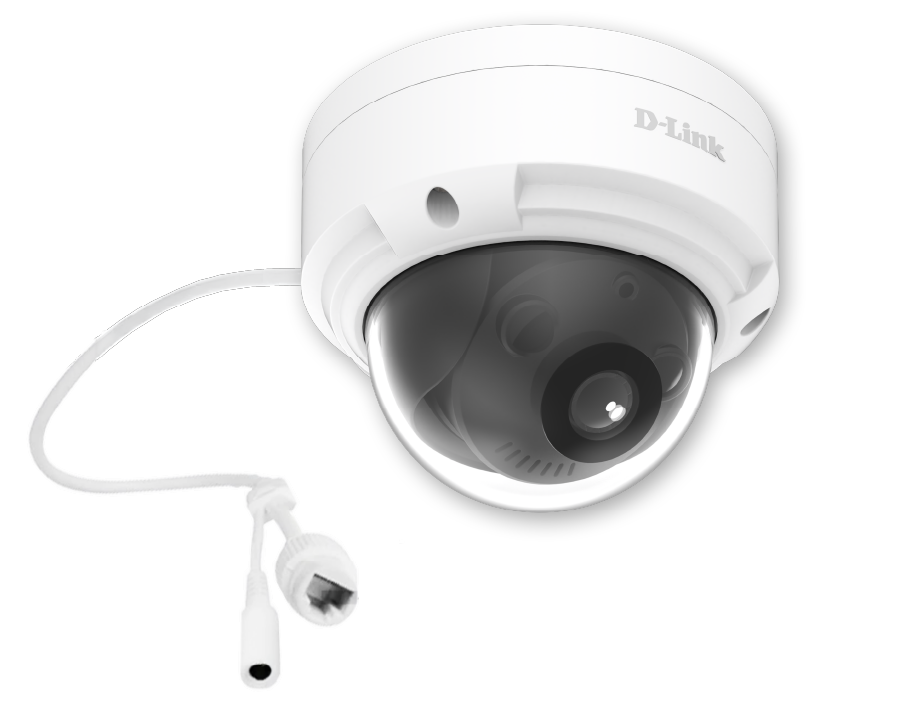

Simplified Cabling Installation
PoE enabling both power and data transmission through a single cable, reducing installation complexity and cost
IK10 Protection
Achieves the highest impact rating (IK10), making the camera impervious to heavy blows and attempted vandalism
Digital Wide Dynamic Range
Precisely capture objects in challenging environments, ensuring optimal visibility in both bright highlights and deep shadows
IP66 Weather-Proof
IP66-rated weatherproofing guarantees durability against dust and water jets, even in the harshest outdoor conditions
See Everything, Miss Nothing
Smart Event Detection
Transform your surveillance from passive recording to proactive protection.The BCD-P01 features built-in Intelligent Video Analytics that go beyond simple motion detection, identifying specific events and behaviors in real-time. By filtering out environmental noise, it delivers the precise insights needed to enhance site safety and operational efficiency.
Motion Detection
Detects motion events by analyzing changes in the video scene and triggers alarms when movement is identified.
Person Detection
Automatically identify and classify human objects within the video stream with high precision.
Vehicle Detection
Detects and classifies vehicles, including cars and motorcycles, within the monitored area.
Sound Detection
Triggers instant alerts when ambient sound levels exceed your customized decibel threshold.
Line-Crossing Detection
Triggers instant alerts when subjects cross a customizable virtual line, securing restricted areas with precision.
People Counting
Counts the number of people entering and exiting a defined area based on video analytics.
Wrong-Way Detection
Detects objects moving in a direction opposite to the predefined allowed direction and triggers an alert.
Illegal Parking Detection
Triggers an alarm when a vehicle remains stationary beyond the configured parking duration.
Single-Cable Integration
Vandal-Proof IK10 Protection
Related Products

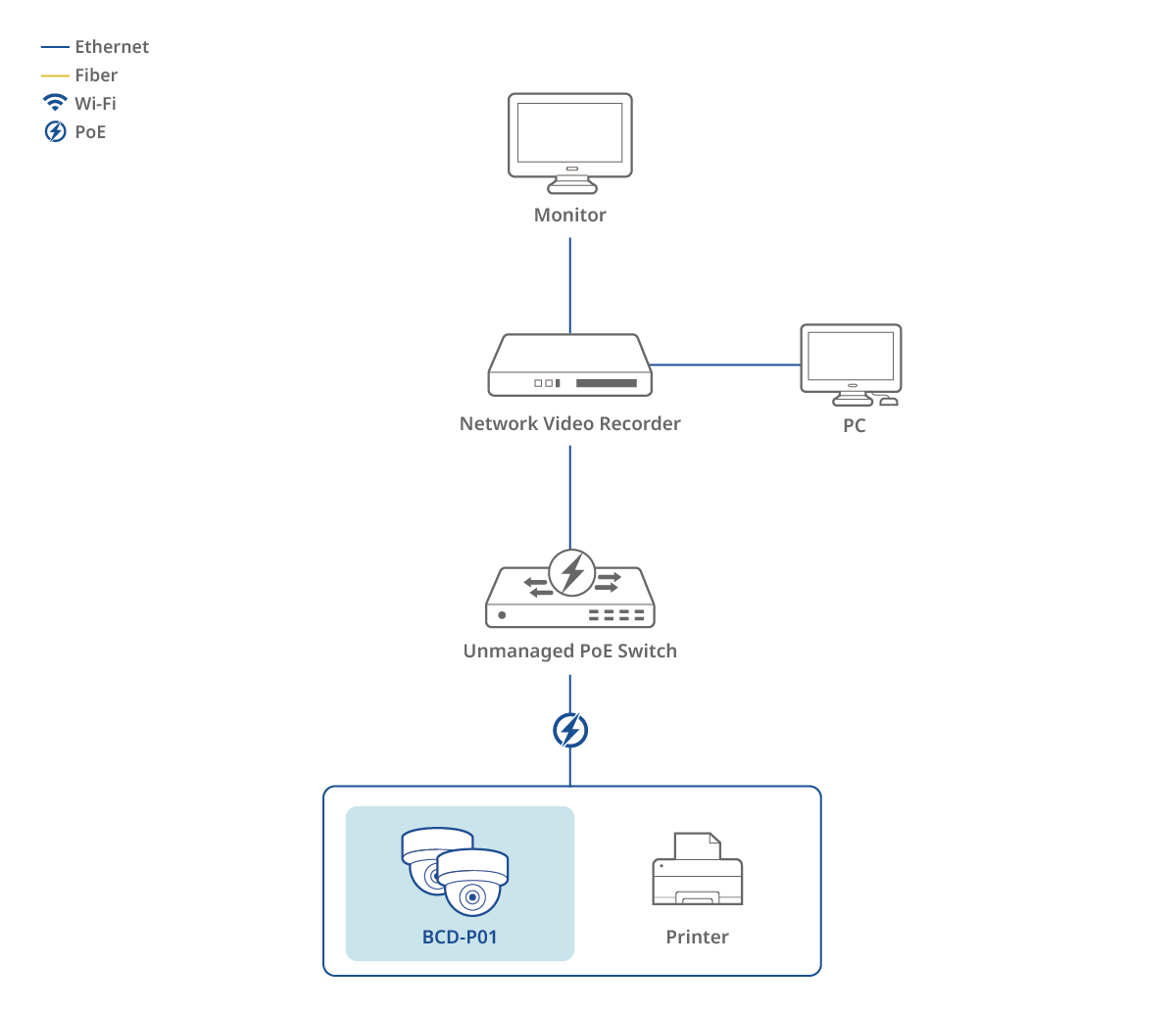

Connection Diagram
Tailored for SMBs, the BCD-P01 integrates seamlessly with NVRs and PoE switches to create a robust security foundation. With simplified PoE installation and true plug-and-play functionality, it is the ideal choice for enhancing safety and operational efficiency in small office, a retail store, a restaurant, or a coffee shop.
Unmanaged PoE Switch
Network Video Recorder
Restaurant
User benefits :
- PoE support for power and data through a single cable.
- Clear HD video for reliable monitoring in various conditions.
- Intelligent video analysis for event monitoring and false alarms.
Learn more :

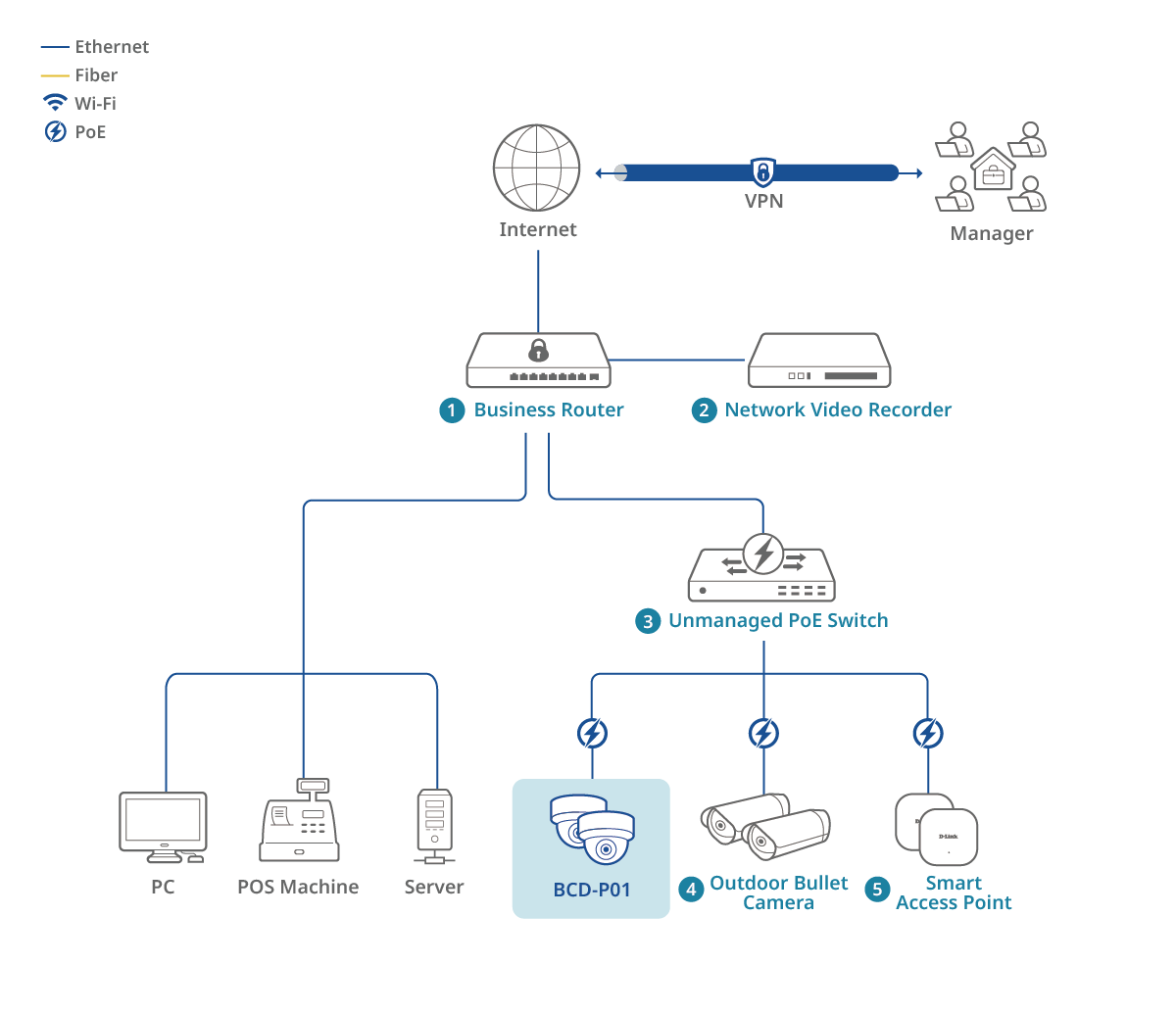

Retail Store
- Stable on-site recording without internet dependency.
- Reliable PoE connectivity for remote camera access.
- Real-time video streaming for instant response.
Learn more :
- Business Router : DBR-700
- Network Video Recorder : BNR-008
- Unmanaged PoE Switch : DGS-1008P
- Outdoor Bullet Camera : BCB-P01
- Smart Access Point : DBR-X3000-AP
Specs
|
Maximum Resolution
|
2 Megapixel |
|---|---|
|
Camera Hardware Profile
|
Illuminator: LED Number 2 (IR LED) IR Illumination Distance: up to 30 meters Minimum illumination: Color: 0.05 lux @(F2.0, AGC ON) B/W: 0 lux with light Built-in Infrared-Cut Removable (ICR) Filter Minimum object distance 1 m Focal length: 2.8 mm Aperture: F2.0 Fixed Lens Mount Angle of view: (H) 93.1°/ (V) 52.2° 3-axis adjustment angle (non-motorized): Pan: 0°-355°, Tilt: 0°-75° Rotate: 0° - 350° |
|
Audio
|
Built-in mic |
|
Camera Housing
|
Outdoor, IP66 certified weatherproof housing Supports IK10 standard |
|
Video Compression
|
H.265/H.264/MJPEG |
|
Max Resolution and Frame Rate
|
Stream 1: 1920 x 1080, 1280 x 720 @ 25/30 fps Stream 2: D1, VGA, CIF @ 25/30 fps Stream 3: VGA, CIF, QVGA @ 25/30 fps |
|
External Device Interfaces
|
Reset button microSD card slot (up to 1 TB) 10/100 Base-TX Fast Ethernet port (supports 802.3af PoE Class 3) |
|
Max Concurrent Streams
|
3 streams |
|
Event Trigger from IP Camera
|
Motion detection Smart Motion - Person/vehicle detection Single Line-crossing detection Double Line-crossing detection Multi-Loitering detection Wrong-way detection Illegal parking detection People counting |
|
Requirements for Web Interface
|
Chrome MS-Edge |
|
ONVIF Compliant
|
Profile S, T |
|
Weight
|
405 g ± 5% |
|
Power Input
|
12 VDC/PoE (802.3af) |
|
Max Power Consumption
|
3.5W ± 5% (12 VDC) 4.4W ± 5% (PoE) |
|
Operating Temperature
|
-25˚ C to 55 ˚C (-13 to 131 °F) |
|
Storage Temperature
|
-25˚ C to 55 ˚C (-13 to 131 °F) |
|
Humidity
|
Less than 90% RH (non-condensing) |
|
Dimensions
|
Ø 110 x 85.4 mm (Ø 4.33 x 3.36 in) |
