AX5400 Wi-Fi 6 Router


  • Product Status (Revision A1): End of Sale

There's a new version of this product:

EAGLE PRO AI AX3200 Smart Router


See Newer Product

There's a new version of this product:


EAGLE PRO AI AX3200 Smart Router


  • Dual-Band AX3200 Wi-Fi 6
  • 2.4 GHz (802.11n, up to 800 Mbps), 5 GHz (802.11ax, up to 2402 Mbps)
  • AI assistant
  • AI-based Mesh1, Wi-Fi, and Traffic Optimisers
  • MU-MIMO, & OFDMA efficiency
  • Voice Control with Google/Alexa
  • WPA3 Wireless security
  • Easy Setup & Management
See Newer Product


  • Dual-Band AX3200 Wi-Fi 6
  • 2.4 GHz (802.11n, up to 800 Mbps), 5 GHz (802.11ax, up to 2402 Mbps)
  • AI assistant
  • AI-based Mesh1, Wi-Fi, and Traffic Optimisers
  • MU-MIMO, & OFDMA efficiency
  • Voice Control with Google/Alexa
  • WPA3 Wireless security
  • Easy Setup & Management
See Newer Product

The Ultimate Wi-Fi 6 Performance.

Experience the ultimate in Wi-Fi performance with Wi-Fi 6.The latest in Wi-Fi technology delivers unprecedented capacity, reliability and security for all your devices at once.

Experience Wi-Fi like never before.

Wi-Fi 6, also known as 802.11ax, is the next-generation standard in Wi-Fi technology. Wi-Fi 6 has significant improvements on the previous 802.11ac Wi-Fi standard. Now you can watch, game and browse at a faster and more efficient rate from every room in the house and with more devices than ever.


DIR-X5460 offers 5GHz band speed of up to 4.8 Gbps, over 120% faster than previous generation 802.11ac 5GHz band speed.


OFDMA greatly increases your total number of devices you can connect to around your home.


Built-in power amplifiers boost your range, and beamforming and MU-MIMO deliver higher bandwidth to all your devices at once with precision.

A new type of Wi-Fi that’s even faster.

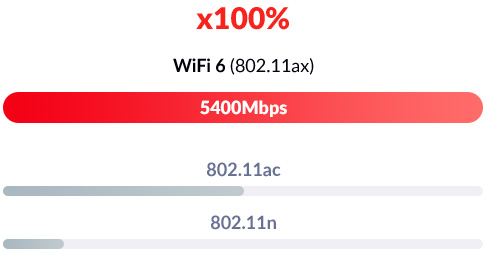

Bring home next-gen Wi-Fi 6 speeds of up to 5.4 Gbps for a better way to enjoy snappier browsing, 4K streaming and online gaming.

Built for tomorrow’s tech, today.

Wi-Fi 6 works by using 1024-QAM to provide a signal that packs in a lot more data, and a 160 MHz for a wider channel, that results in a lot faster Wi-Fi with unprecedented efficiency. Now you can enjoy more of the latest tech like virtual reality gaming, vivid 4K streaming, as well as multiple conference calls without stutter and faster file downloads.

Bandwidth allowance
Boost from Wireless AC’s 80 MHz to double the channel width of Wi-Fi 6’s 160 Mhz, for a faster connection from router to any device.


Higher throughput
DIR-X5460 offers 5GHz band speed of up to 4.8 Gbps which is over 120% faster than previous generation 802.11ac 5GHz band speed.


Coverage that reaches further.

6 high-gain external antennas, and built-in power amplifiers work together to generate a broader and more reliable Wi-Fi signal to reach more rooms and provide coverage throughout your home2.

Multi-device household? No problem.

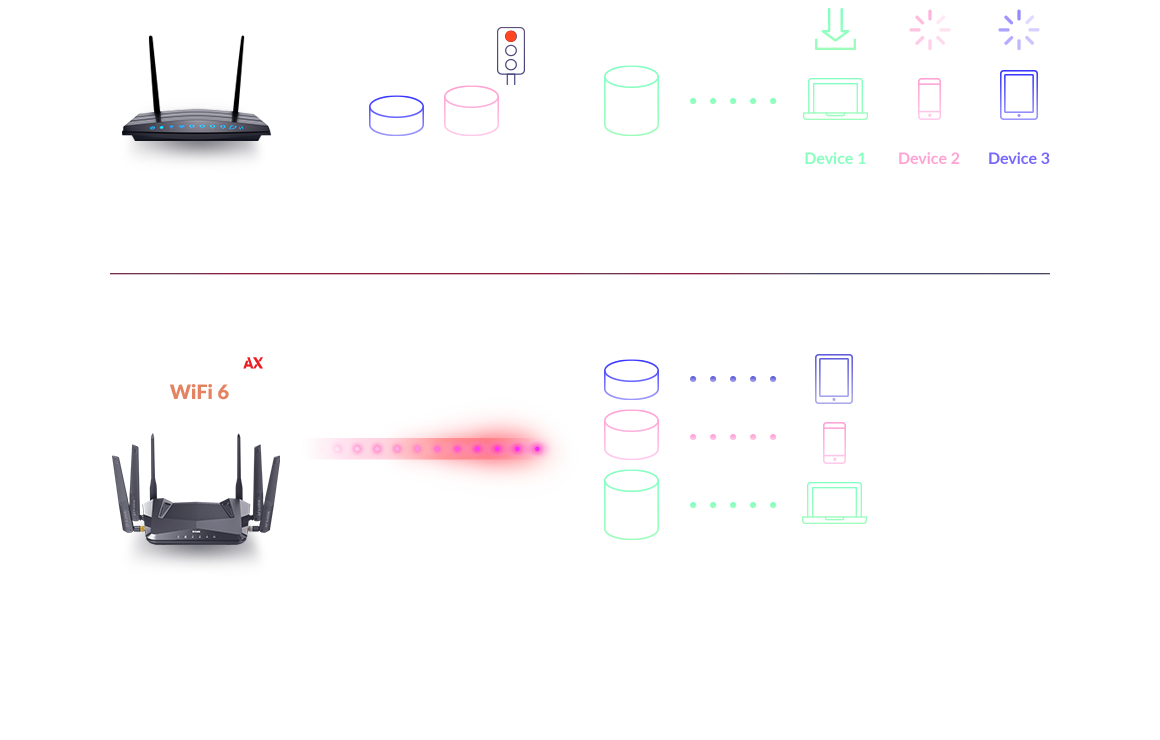

Wi-Fi 6 uses a combination of OFDMA and MU-MIMO technology to increase the total number of devices your network can effortlessly handle by up to 4x, so you can bring more of the latest tech into your smart home. And OFDMA transmits to multiple devices simultaneously to make sure everyone using the home Wi-Fi uses it with unprecedented efficiency.


With far more processing power over any common Wi-Fi 5 router, the DIR-X5460’s triple-core 1.5 GHz CPU can tackle huge amounts of data transfers, so you can enjoy lag-free gaming and vivid 4k//HD streaming without buffering.

Wi-Fi 6 has the latest security, with powerful encryption.

Privacy has become essential to digital life. With a built-in firewall (NAT), automatic security and firmware updates and backups, a VPN wizard for virtual private networking, and the most advanced Wi-Fi 6 security, the DIR-X5460 provides peace of mind while you’re online.

Always up to date.

Firmware automatically stays updated, making sure you always have the latest security. The Dual Image feature saves a recovery image before any update, so you’re always backed up.

WPA3 Wi-Fi Security.

Built-in 128-bit encryption is the latest advanced Wi-Fi security standard available, bringing a new era of wireless encryption and greater privacy to all your devices at home.

Quick VPN.

When you’re out and about, Quick VPN lets you connect to the internet as if you’re at home, making connections more secure, and allowing you to access online videos and content like you’re at home.

You’re the boss.

Set the ground rules to keep your children safe online. Whether you need to get everyone around the table for a meal, it’s time for homework or you need a break from the screens, the DIR-X5460 comes with parental controls on the D-Link Wi-Fi mobile app so that you’re always in charge.


Full control
Find out which devices are connected, created schedules, check login credentials, reboot the system hand-free
 Guest Wi-Fi zoneWi-Fi Guest Zone
Set guest logins for when you have visitors and block any devices you don’t know.
 Parental ControlsParental Controls
Manage internet access with profile-based parental controls.

Easy setup. Convenient controls.

Setup is quick and easy with the free D-Link Wi-Fi app. Follow the on-screen step-by-step instructions to get everything up and running in no time.

D-Link Wi-Fi free mobile app Download button for the Apple App Store. Download button for the Google Play Store.

Green technology that saves your battery life.

Target Wake Time (TWT) automatically helps reduce battery consumption for all your connected devices by devising when and how often transfers are required, TWT then automatically conserves energy and helps save battery life on your devices.

Voice control with Alexa and Google Assistant.

"Hey... pause the internet for the kids"

Take control of your network just by using your voice with Amazon Alexa or Google Home devices. Receive instant audio alerts about network updates, check on the security status of any device, and more.

Works with Amazon Alexa and Google Assistant

We're here to help.

Over 35 years in the networking industry

Innovative end-to-end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

2‑Year D‑Link Warranty

You're protected by one of the global leaders in the industry.

Related Products

AX1800 Wi-Fi 6 Router
Find out more
AX1800 Mesh Wi-Fi 6 Range Extender
Find out more
Wireless standard
802.11ax Wi Fi 6
Frequency band mode
Dual-band simultaneous
Wireless speed
4800 Mbps 5 GHz

600 Mbps 2.4 GHz
Antenna type
6 fixed omni-directional antennas

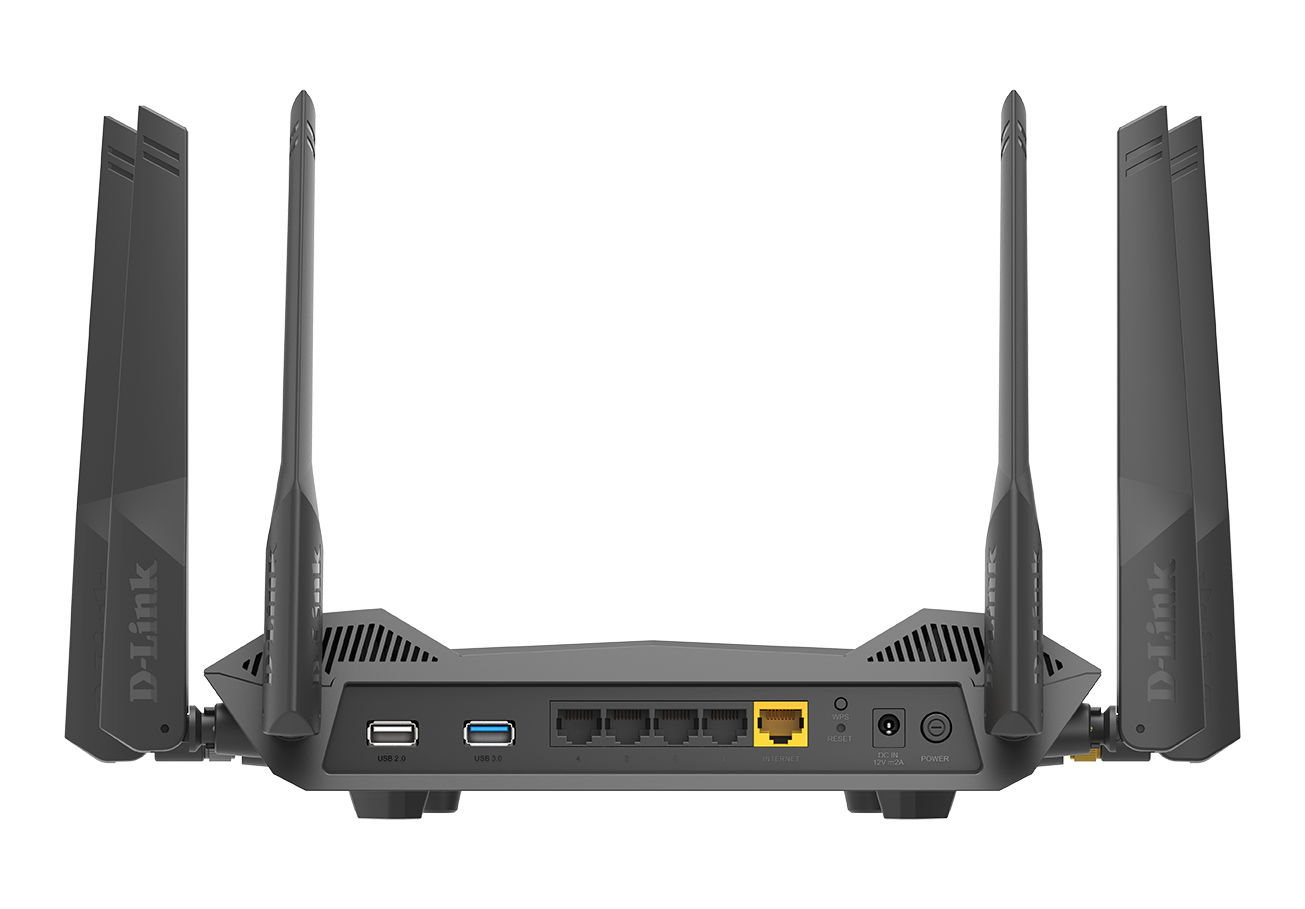

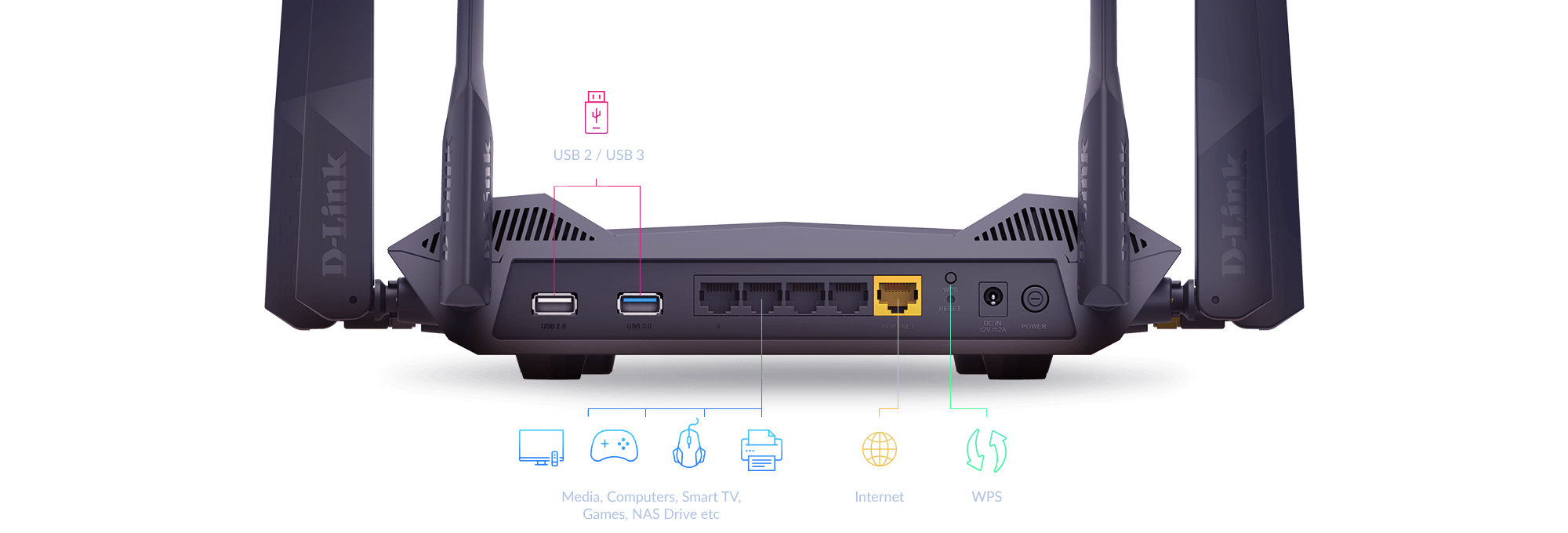

Wired interface
1 x Gigabit Ethernet WAN

4 x Gigabit Ethernet LAN
USB ports
1 x USB 2.0

1 x USB 3.0
Advanced features
Multicast support



SmartConnect band optimisation

1 The DIR-X5460 may not support all of the mandatory features, established in Wave 1 of the IEEE 802.11ax specifications
2 Maximum wireless signal rate derived from IEEE Standard 802.11ax and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

This product was phased out on: 30/12/2022
Version Date Type File Size
Datasheet EN - PDF 1.52mb Download
Version Description Date Type File Size
Manual 1.01 RevA1 Product Manual 12.06.2020 - - Download
Version Description Date Type File Size
QSG 1.00 RevA1 Quick Setup Guide 06.11.2020 - - Download
QIG 1.00 RevA1 Quick Install Guide 06.11.2020 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.11b01 RevA1 Firmware 24.08.2021 - Download
FW 1.10 RevA1 Firmware 07.04.2021 - Download
FW 1.04 RevA1 Firmware 03.09.2020 - Download
Version Description Date
CE doc UKCA 1.10 RevA1 CE document 17.10.2021 Download
CE doc 1.00 RevA1 CE document 02.10.2020 Download
