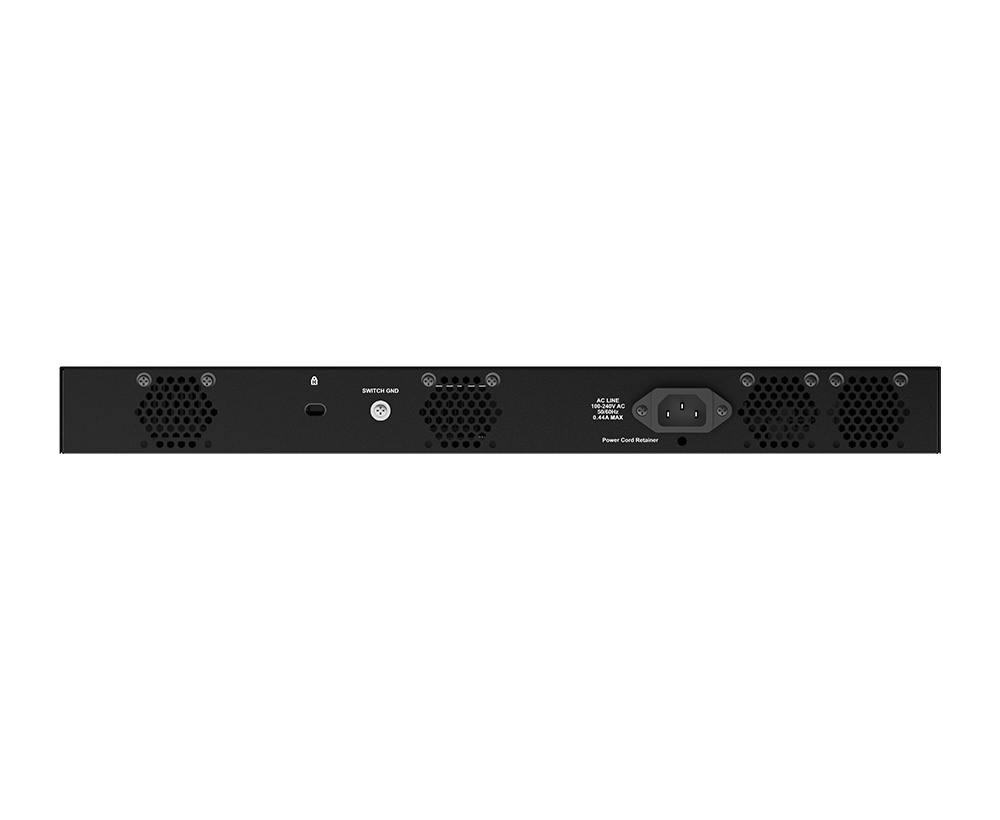

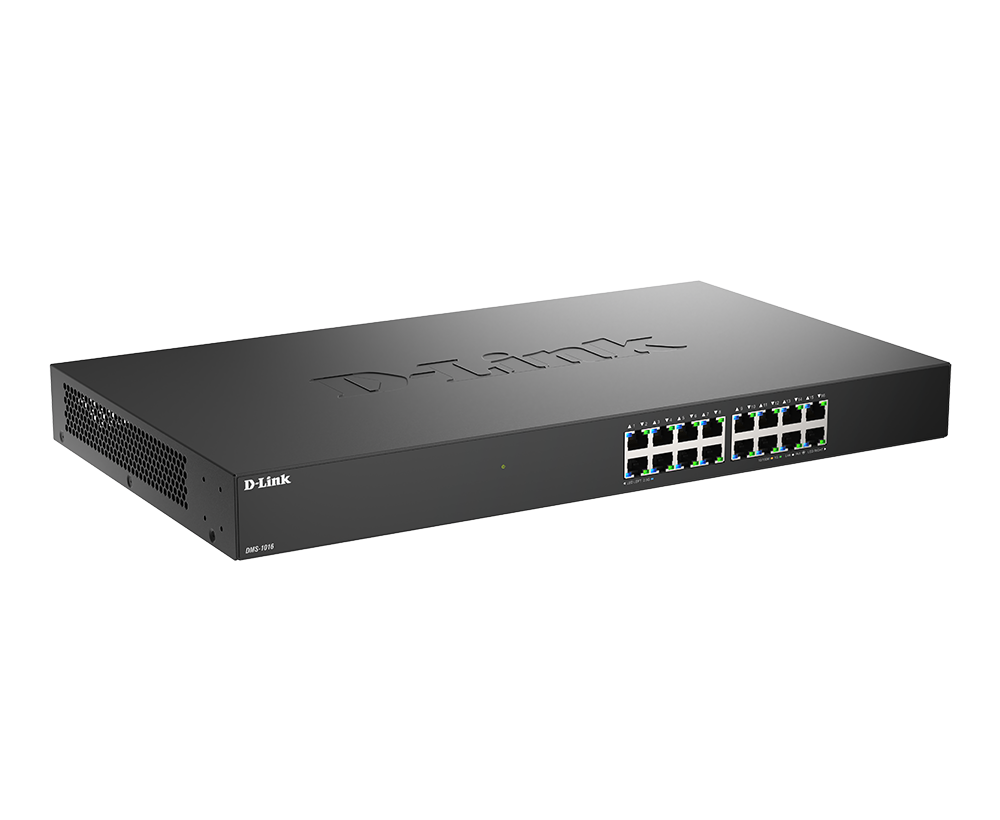

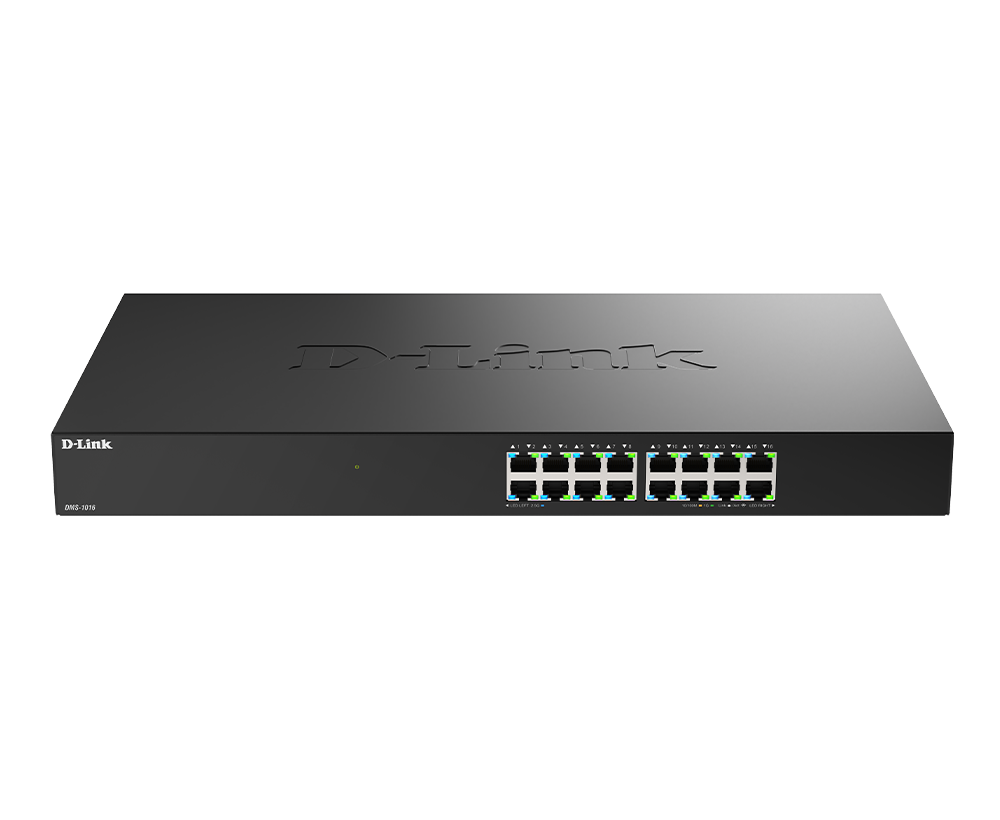

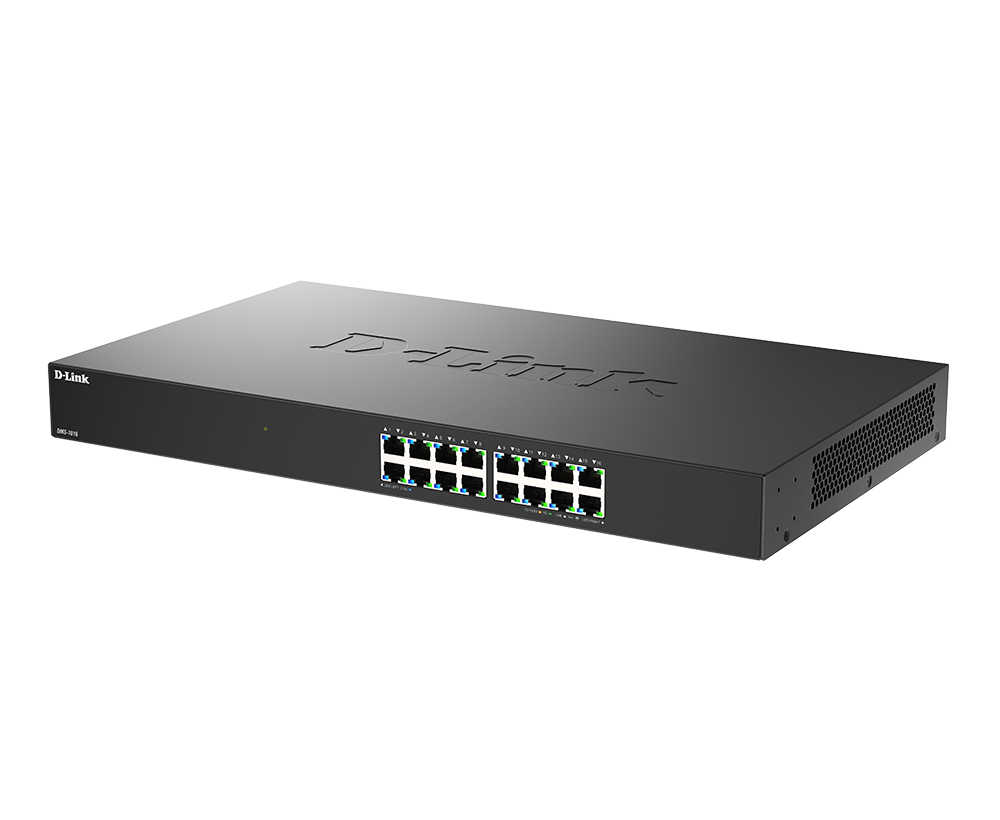

16-Port 2.5G Multi-Gigabit Unmanaged Switch
DMS-1016
- Product Status (Revision A): Live
- 16-port 2.5GE connectivity for high performance networking
- Plug and Play simplicity for easy installation
- Fanless design for enhanced reliability and silent performance
- Durable rackmount metal housing enhances product durability
- IGMP snooping for optimized bandwidth utilization
- Auto MDI/MDI-X crossover on all ports simplifies setup
- IEEE 802.3x flow control prevents packet loss
- Quality of Service (QoS) ensures uninterrupted connectivity
- IEEE 802.3az reduces power consumption and operating cost
Where to buy
User Benefits
Plug & Play
No complex configurations required for fast and easy network connectivity
2.5G Ports
Multi-Gigabit ports for high data rate transmission
Multicast Optimization
IGMP snooping feature prevents network flooding
Rugged Design
Compact metal casing improves device durability
Silent Operation
Fanless design for a noise-free working environment
Optimized Performance
QoS prioritizes traffic, enhancing user experience

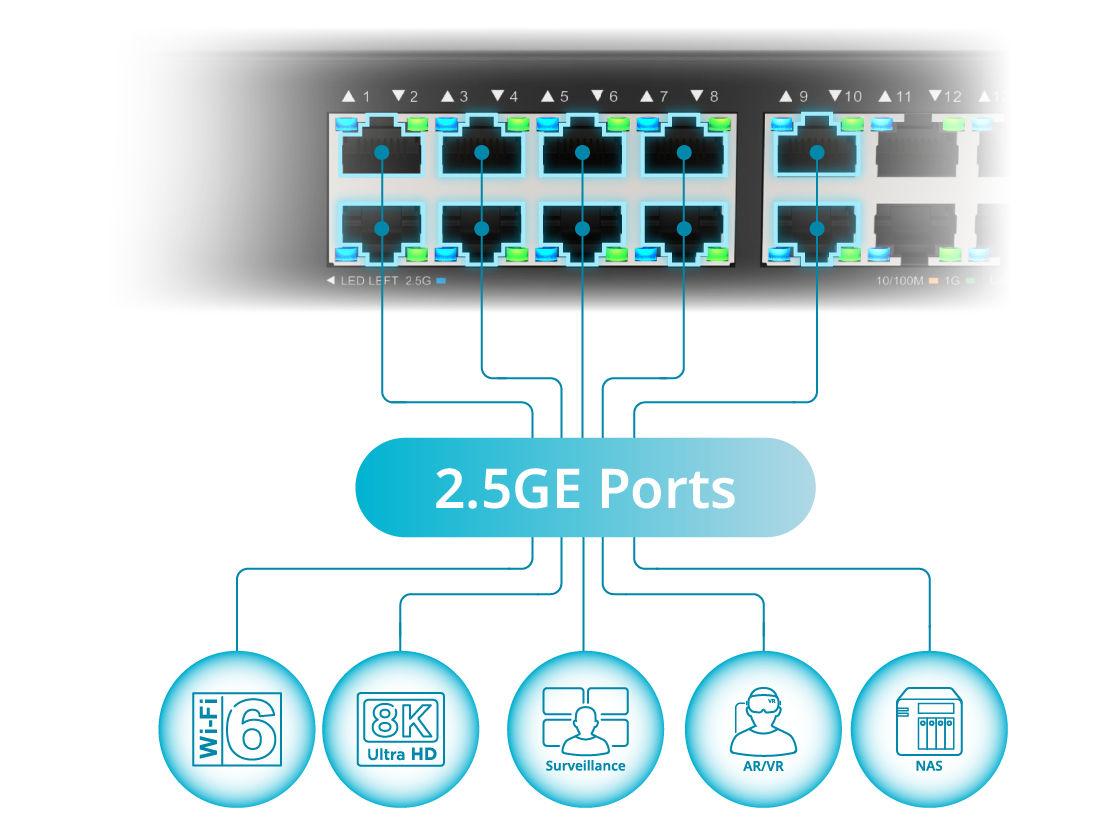

2.5G Ports for Faster Data Rates
New generation Wi-Fi delivers ultra-fast speeds with low latency and standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, enabling significantly faster data rates for Wi-Fi APs, smoother 4K/8K streaming, HD surveillance, AR/VR gaming, NAS, and many more applications in data-intensive environments.
Smarter Multicast, Smoother Performance
The DMS-1016 enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.
Prioritize Traffic for Optimized Performance
With the DMS-1016, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

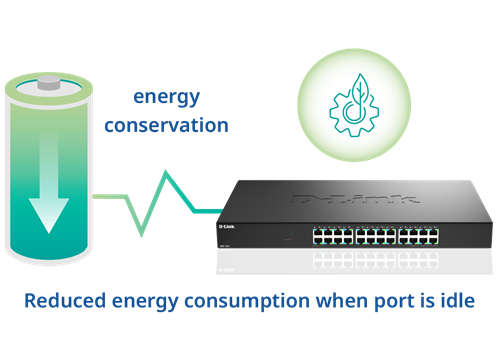

Eco-Friendly and Cost Saving
The DMS-1016 optimizes energy use and cuts operating costs with intelligent power management that reduces consumption during idle periods. The fanless design enables silent operation while minimizing maintenance and expenses. Experience a cost-effective, eco-friendly solution that saves money and promotes sustainability.
Related Products
5-Port 2.5G Multi-Gigabit Desktop Switch
DMS-105
7-Port Multi-Gigabit Unmanaged Switch
DMS-107
8-Port 2.5G Multi-Gigabit Desktop Switch
DMS-108
8-Port 2.5G Multi-Gigabit Unmanaged PoE Switch
DMS-108P
24-Port 2.5G Multi-Gigabit Unmanaged Switch
DMS-1024
Specs
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
5 to 14 ports |
|
Layer
|
Layer 2 Layer 2+ |
|
Main type of ports
|
2.5GBASE-T Ethernet |
|
Type of uplink ports
|
10GbE SFP+ |
|
Fanless
|
Supported
|
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
Port-based |
|
Advanced VLAN
|
Asymmetric VLAN Auto Voice VLAN Auto Surveillance VLAN |
|
IP interfaces
|
8 |
|
Static route for IPv4/IPv6
|
IPv4 - 128 IPv6 - 64 |
|
Number of QoS queues per port
|
8 |
|
Bandwidth control
|
16 Kbps minimum granularity |
|
ACL type
|
Ingress |
|
Encryption protocol supported
|
SSH |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
802.1X access control
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
