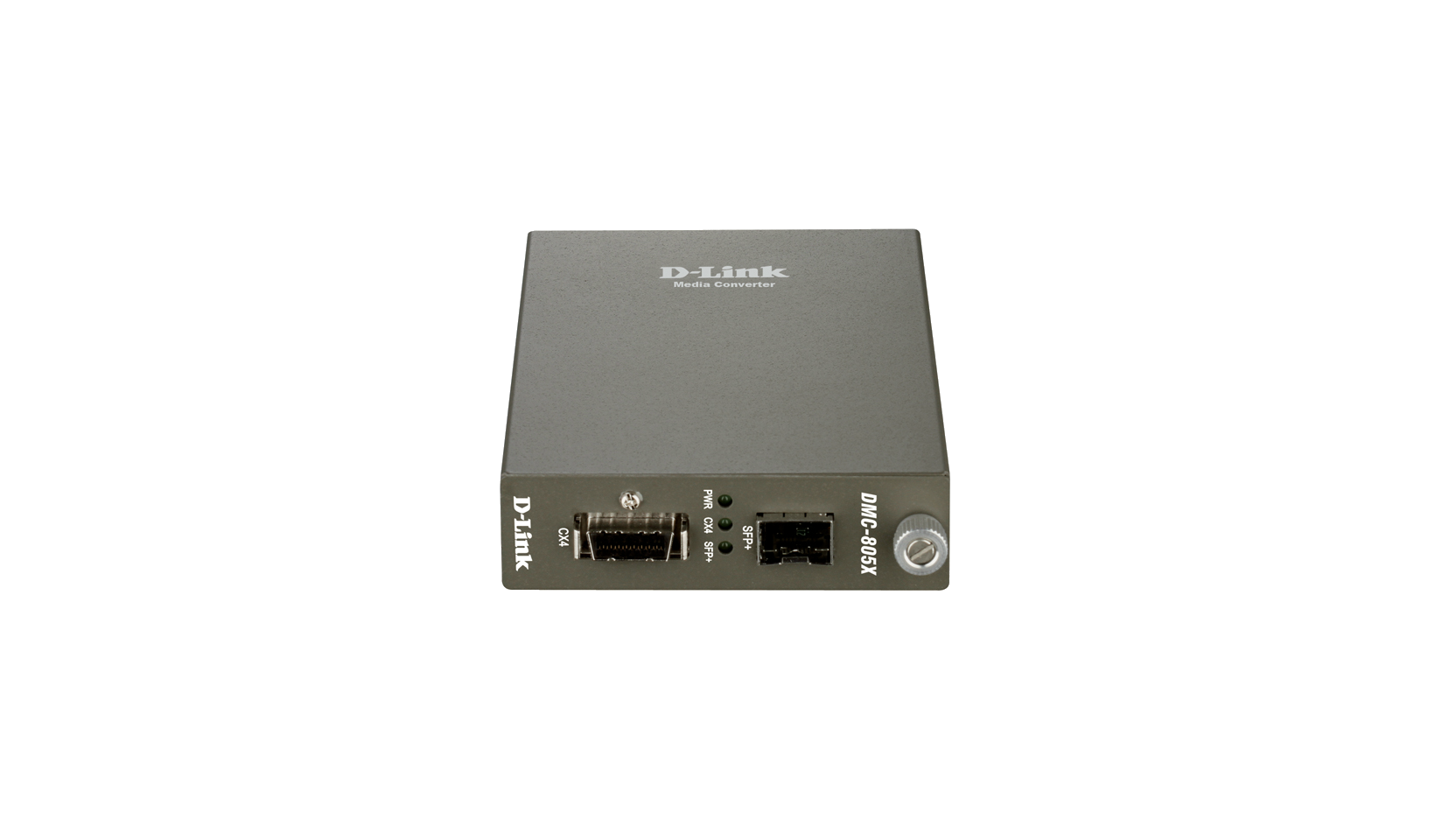

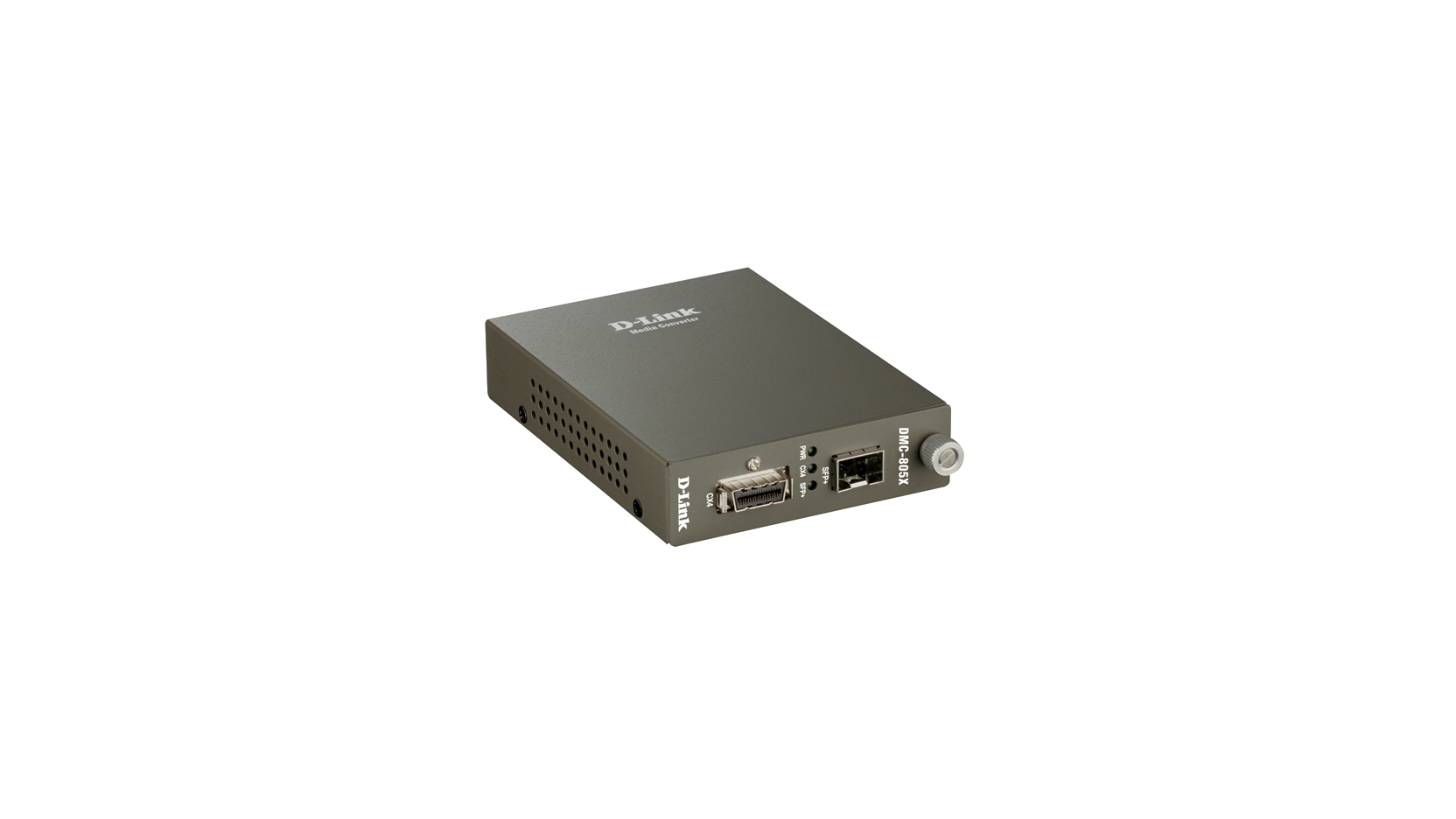

10Gbps CX4 to 10Gbps SFP+ media converter

DMC-805X

  • Product Status (Revision A): End of Life

The DMC-805X 10G CX4 to 10G SFP+ Media Converter converts 10G CX4 signals to 10G SFP+ fibre signals. The DMC-805X comes with an SFP+ slot for user-selectable fibre transceivers and extends the network connection to various lengths depending on SFP+ transceiver capability. The DMC-805X is a high-performance 10G media converter which provides flexible distance extension for servers equipped with CX4 NICs or older 10G switches with 10G CX4 ports. The DMC-805X can be used as a standalone converter or installed in a standard rack-mount chassis (DMC-1000). A management option is available for the DMC-805X installed in a chassis (DMC-1000).

Specs

Media Converter Features

  • ƒƒOne-channel media conversion between 10 Gbps SFP+ and 10 Gbps CX4
  • ƒƒSupports various fibre distances using different 802.3ae/aq-compliant SFP+ transceivers
  • ƒƒSupports link pass through
  • ƒƒSliding switch for configuring fixed half/full duplex modes
  • ƒƒSliding switch for setting to Forced mode or Auto-negotiation
  • ƒƒSliding switch for setting the speed
  • ƒƒSliding switch for setting the LLCF, LLR function
  • ƒƒStore-and-forward mechanism
  • ƒƒBack-pressure & IEEE 802.3x compliant flow control
  • ƒƒFull wire-speed forwarding rate
  • ƒƒFront panel status LEDs
  • ƒƒCan be used as a standalone device or installed in a rack-mount chassis (DMC-1000)
  • ƒƒManageable through user-friendly Web
  • Graphical User Interface (GUI)

Physical & Environmental

LEDs

  • Power, Link/Act/Speed

AC Input

  • 3.4 watts

Maximum Power Consumption

  • Power On (Standby) DC input: 1.63 watts
  • AC input: 2.26 watts

Dimensions

  • 120 x 88 x 25 mm (4.72 x 3.46 x 0.98 inches)

Weight

  • 0.29 kg (0.64 pounds)

Operating Temperature

  • 0 to 40 ˚C (32 to 104 ˚F)

Storage Temperature

  • -10 to 70 ˚C (14 to 158 ˚F)

Operating Humidity

  • 10% to 90% non-condensing

EMI

  • CE Class A, LVD
This product was phased out on: 10/09/2017
This product's last date of support is on: 10/09/2019
Version Description Date
CE doc 3.00 Revision A1 CE document 18.5.2016. Download
