Wireless N Day & Night Home Network Camera
DCS-932
- Product Status: End of Life

There's a new version of this product:
DCS-932L
Day/Night Cloud Camera
Overview
                                The DCS-932L Wi-Fi Day/Night Camera is a complete surveillance solution for your home or small office. The built-in night vision gives you 24 hour surveillance complete with motion and sound detection. It’s mydlink enabled too, so you can check on your camera anytime, anywhere from any PC, tablet, or mobile phone.

                                See Newer Product


                        Overview
                                The DCS-932L Wi-Fi Day/Night Camera is a complete surveillance solution for your home or small office. The built-in night vision gives you 24 hour surveillance complete with motion and sound detection. It’s mydlink enabled too, so you can check on your camera anytime, anywhere from any PC, tablet, or mobile phone.

                                See Newer Product

                        - Compact size
 - Wireless N technology for a flawless connection anywhere in your home
 - Built-in IR LEDs for night vision (up to 5 m.)
 - Motion-triggered alerts by email
 - Built-in microphone
 - Wireless security at the touch of a button with Wi-Fi Protected Setup (WPS)
 - Dynamic DNS support to easily access your camera from anywhere in the Internet
 - Includes D-ViewCam software

The DCS-932 is a unique and versatile surveillance solution for your home or small office. Unlike a traditional webcam, this camera is a complete system with a built-in CPU and web server that transmits high quality video images and audio for security, surveillance, and remote monitoring. Simple installation and an intuitive web based interface offer easy integration with your Ethernet or 802.11n wireless network. The DCS-932 also comes with remote monitoring, motion detection, and night vision for a complete and cost-effective home security solution.
Wireless N connectivity
This network camera includes 802.11n wireless for fast and easy integration into your existing network environment. Wireless N allows you to stream high-quality video to remote sites over the Internet. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. It also includes a standard Ethernet port for connections to traditional wired networks.
Night vision
This Wireless N camera comes with built-in infrared LEDs that allow for continuous monitoring even in complete darkness. The 5-metre illumination distance makes it suitable for small offices, baby rooms, sheds and garages.
Easy to configure and use
This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognise the camera and add it to the network. Sign up with one of the free Dynamic DNS services available on the web to assign a name and domain to the camera (e.g. mycamera.dlinkddns.com), and remotely access the camera without having to remember the IP address. You may also view up to 32 cameras from a central location using the included free D-ViewCam software (DCS-100). D-ViewCam has a robust set of features including automated e-mail alerts which can instantly inform users of suspicious or unusual activities.

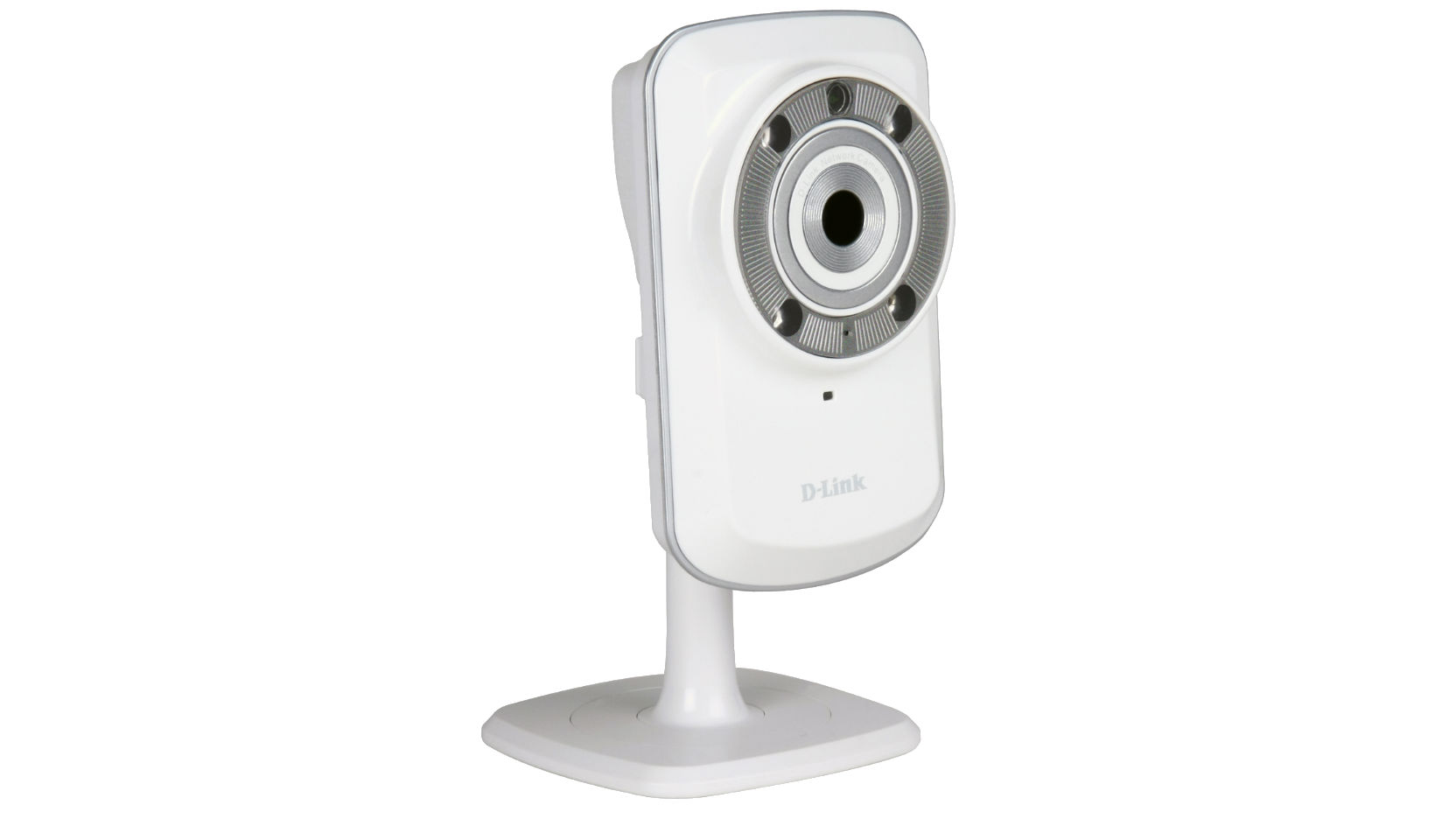

Actual product appearance may differ from the image displayed on this page
Specs
Networking Protocol

Network Interface
Wireless connectivity
Wireless transmit output power
Memory
Reset button

Video codecs
Video features
Resolution
Lens
Sensor

Minimum Illumination

View Angle

Digital zoom

LEDs

3A control

Power

Dimensions (W x D x H)

Weight

Max power consumption
Temperature

Humidity

Emission (EMI), Safety & Other Certifications
            - IPV4, ARP, TCP, UDP, ICMP
 - DHCP Client
 - NTP Client (D-Link)
 - DNS Client
 - DDNS Client (Dyndns and D-Link)
 - SMTP Client
 - FTP Client
 - HTTP Server
 - PPPoE
 - UPnP Port Forwarding
 - LLTD

Network Interface
- 10/100BASE-TX Fast Ethernet
 - 802.11b/g/n WLAN

Wireless connectivity
- 802.11b/g/n Wireless
 - WEP/WPA/WPA2 security

Wireless transmit output power
- 16 dBm for 11b
 - 12 dBm for 11g
 - 12 dBm for 11n (typical)

Memory
- SDRAM: 32 MB
 - Flash: 4 MB

Reset button
- Reset to factory default

Video codecs
- MJPEG
 - JPEG for still images

Video features
- Adjustable image size and quality
 - Time stamp and text overlay
 - Flip and Mirror

Resolution
- 640 x 480 at up to 20 fps
 - 320 x 240 at up to 30 fps
 - 160 x 120 at up to 30 fps

Lens
- Focal length: 5.01 mm, F2.8

Sensor
- VGA 1/5 inch CMOS Sensor

Minimum Illumination
- 1 lux @ F2.8

View Angle
- Horizontal: 45.3°
 - Vertical: 34.5°
 - Diagonal: 54.9°

Digital zoom
- Up to 4x

LEDs
- 4x IR LED
 - Illumination distance: 5 m. (16 feet)

3A control
- AGC (Auto Gain Control)
 - AWB (Auto White Balance)
 - AES (Auto Electronic Shutter)

Power
- Input: 100-240 V AC, 50/60 Hz
 - Output: 5 V DC, 1.2 A
 - External AC-to-DC switching power adapter

Dimensions (W x D x H)
- Camera only: 27.2 x 60 x 96 mm
 - Including the bracket and stand: 65.8 x 65 x 126 mm

Weight
- 76.9 g (without bracket and stand)

Max power consumption
- 2 W

Temperature
- Operation: 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
 - Storage: -20 ˚C to 70 ˚C (-4 ˚F to 158 ˚F)

Humidity
- 20-80% RH non-condensing

Emission (EMI), Safety & Other Certifications
- FCC Class B
 - IC
 - C-Tick
 - CE

                        This product was phased out on: 21/01/2012


                        This product's last date of support is on: 20/01/2014

                | Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet (English) | - | 0.62mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual (English) | Manual (English) | - | 3.32mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Quick Installation Guide (English) | - | 0.54mb | Download |
            This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
    http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
| Version | Description | Date | Type | |
|---|---|---|---|---|
| Firmware 1.01b3 | Firmware | 10.1.2012. | - | Download |
| Version | Description | Date | |
|---|---|---|---|
| Installation Wizard 1.01.0929 | Installation Wizard | 10.1.2012. | Download |
