Securicam Day and Night Outdoor Network Camera


  • Product Status: End of Life
  • Built-in 1/3” SONY interlaced CCD sensor
  • Infra-Red LEDs, for movement detection in total darkness up to 30 m away
  • Weatherproof casing (IP66 certified against rain and dust) with detachable sun shield
  • 16x digital zoom
  • 3G mobile video, for live video streams on a 3G mobile phone or PDA
  • Simultaneous Motion JPEG, MPEG-4 streaming
  • Digital I/O for connection to sensors and alarms
  • Supports 2-way audio*
  • RS-485 port for connection to an external Pan/Tilt device
  • Direct recording to a NAS box or Network Video Recorder
  • Free D-ViewCam software included
*requires connection to external speaker and microphone

The DCS-7410 is a day and night outdoor camera with built-in infrared LEDs, ideal for 24-hour surveillance. It is designed for small organisations to increase the value they get from their data network.

Weatherproof housing

The camera is housed in an IP66 certified weatherproof casing, which protects it against rain and dust. An adjustable top shields the camera sensor from direct sunlight while providing air ventilation for the camera.

Day & night powerful surveillance

Equipped with a high-resolution Sony CCD image sensor, the camera delivers excellent image quality and level of detail. Embedded with a powerful SoC (System-on-Chip), the camera provides high-quality, real-time video compression in MPEG-4 and motion JPEG formats. The built-in Infra-Red LEDs turn on automatically when light fades; the camera can then detect moving objects in total darkness, for distances of up to 30 m.

Easy to set up with wired PoE access

The DCS-7410 includes built-in support for 802.3af Power Over Ethernet (PoE). This allows the camera to be powered directly from a PoE Ethernet switch, giving you the freedom to place the camera anywhere you need, including high walls and covert locations.

Recording & storage

Two video streams in either MPEG-4 or MJPEG can be activated simultaneously to address different requirements, for example live viewing and recording. You can save snapshots and automatically start recording video and audio  when motion is detected. With the built-in Samba client, software is not required to record the action directly on to a network storage device.

Alternatively, you can record videos to a Network Video Recorder (NVR), such as the D-Link DNS-722-4 or DNS-726-4. These devices can control multiple cameras and support RAID-1 for backup of the video footage.

You can also connect the cameras to I/O sensors, and set up the system to send automated e-mail notifications for unusual events.

Remote monitoring

With the D-ViewCam software included, up to 32 cameras may be monitored on a single computer screen in one central location. The DCS-7410 also features 3G mobile video support, enabling you to view a live video feed from the camera on a compatible 3G mobile phone or PDA anywhere in your 3G coverage area.

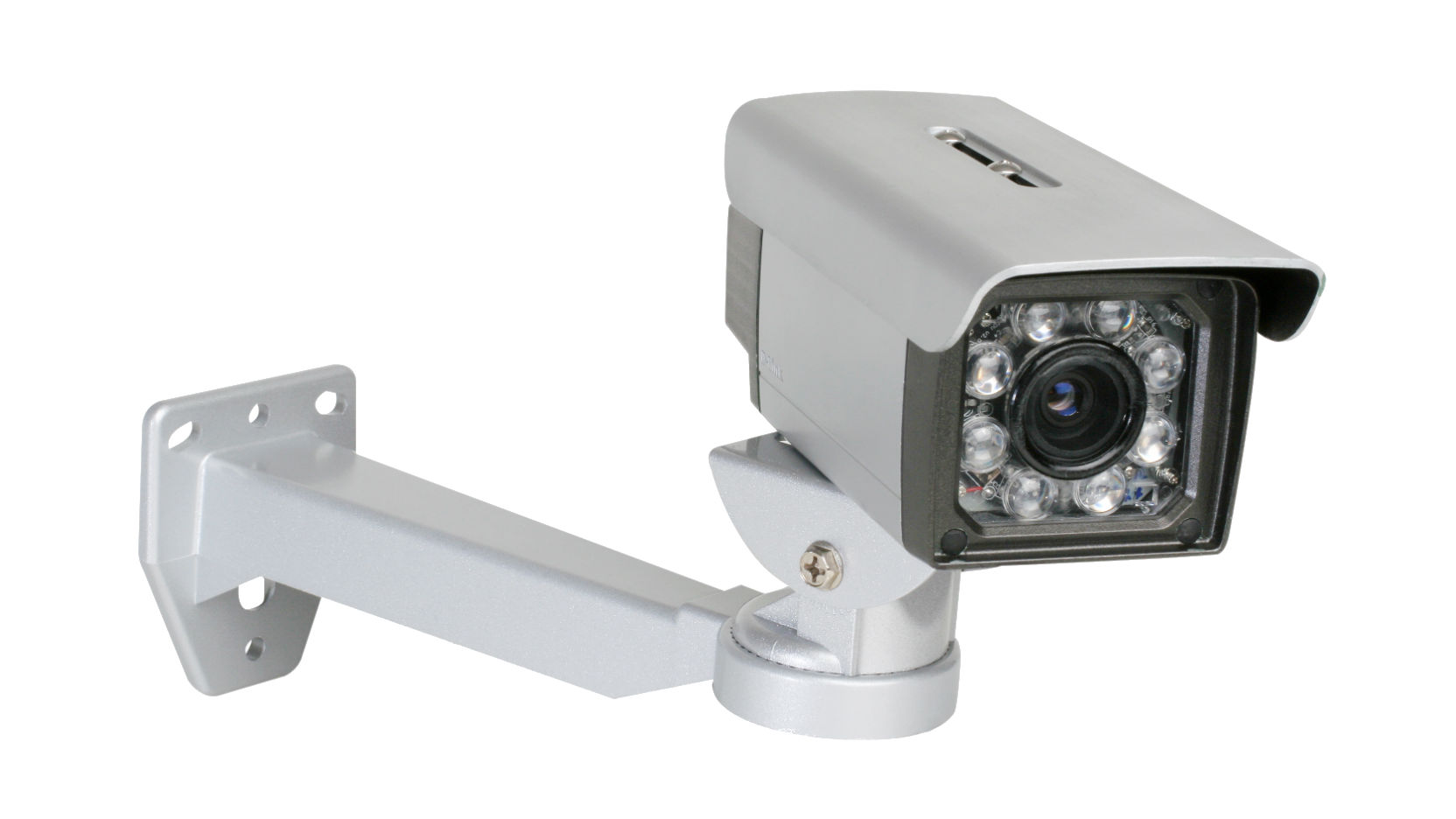

Actual product appearance may differ from the image displayed on this page
  • Built-in 1/3” SONY interlaced CCD sensor
  • IR LEDs: 30m illumination distance
  • Lens: Focal Length 12 mm, F1.4
  • Minimum illumination: 0.7 Lux @ F1.4
  • RS-485 interface for connection to an external Pan/Tilt device
  • Digital I/O support for sensors and alarms

  • 1 10/100Base-TX Ethernet port
  • IEEE 802.3af Power over Ethernet (PoE) support
  • Dynamic DNS support
  • Web-based configuration

  • Motion JPEG / MPEG-4 dual-format compression
  • Up to 4 simultaneous video profiles
  • JPEG for still image
  • Adjustable image size and quality

  • External microphone input, external speaker output

Monitoring and recording
  • Live video streams from a 3G mobile phone or PDA
  • Remote management/control of up to 32 cameras via D-ViewCam software
  • Direct recording to a NAS device (no software required)
This product was phased out on: 23/09/2012
This product's last date of support is on: 23/09/2014
Version Date Type File Size
Datasheet - PDF 0.54mb Download
Version Description Date Type File Size
D-ViewCam Manual D-ViewCam Manual - PDF 13.84mb Download
User Manual User Manual - PDF 0.54mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 0.99mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
Firmware 1.00.3710 Firmware 25.3.2011. - Download
Version Description Date
Setup Wizard 1.05 Setup Wizard 19.4.2011. Download
Version Description Date
DEU_CE_Declaration_RevA Declaration of conformity 27.10.2009. Download
